Circuit Description & Possible Causes

For circuit description and possible causes, see Fig 1 and Fig 2 .

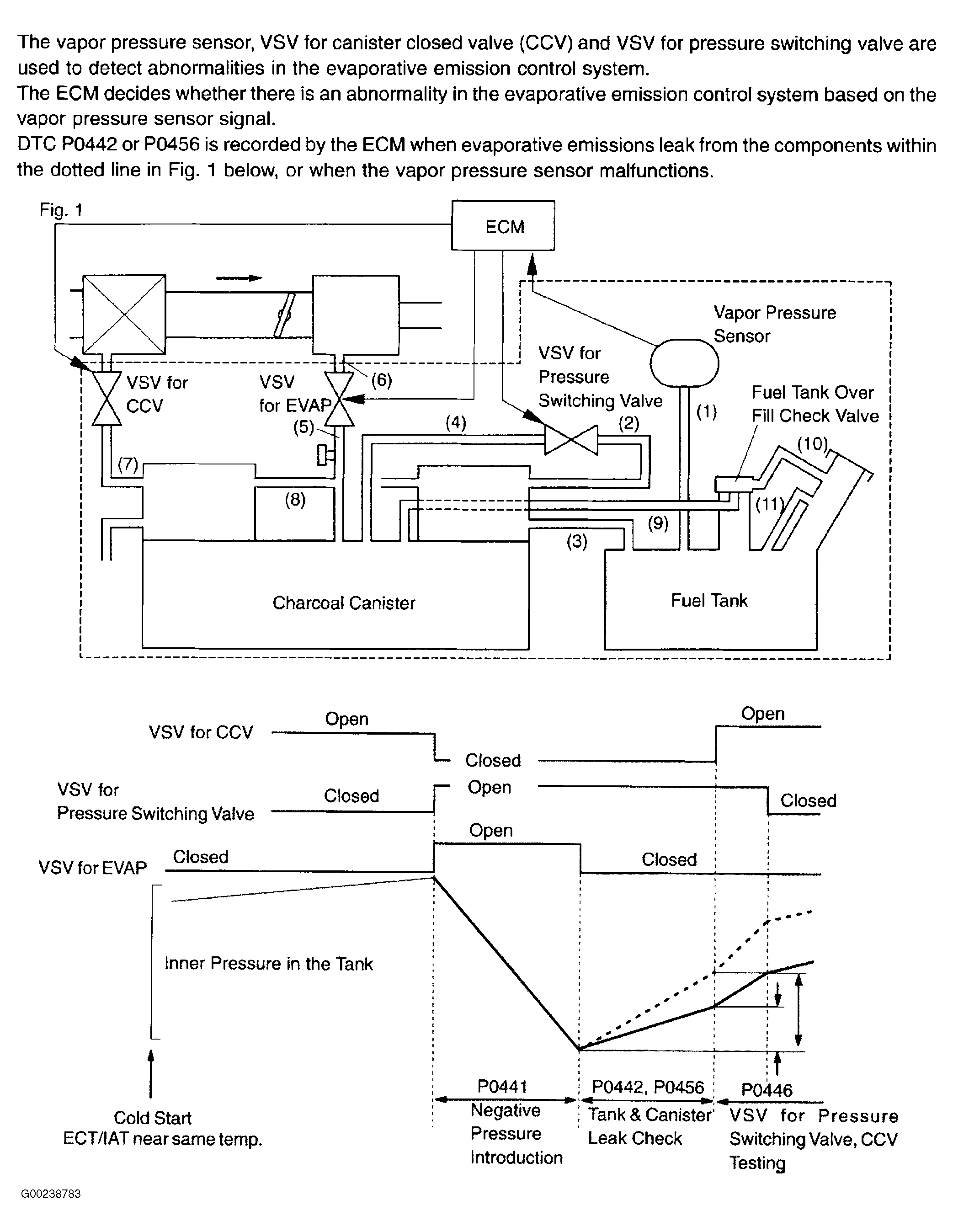

Fig 1: DTCs P0442 & P0456 Circuit Description (1 Of 2)
G00238783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

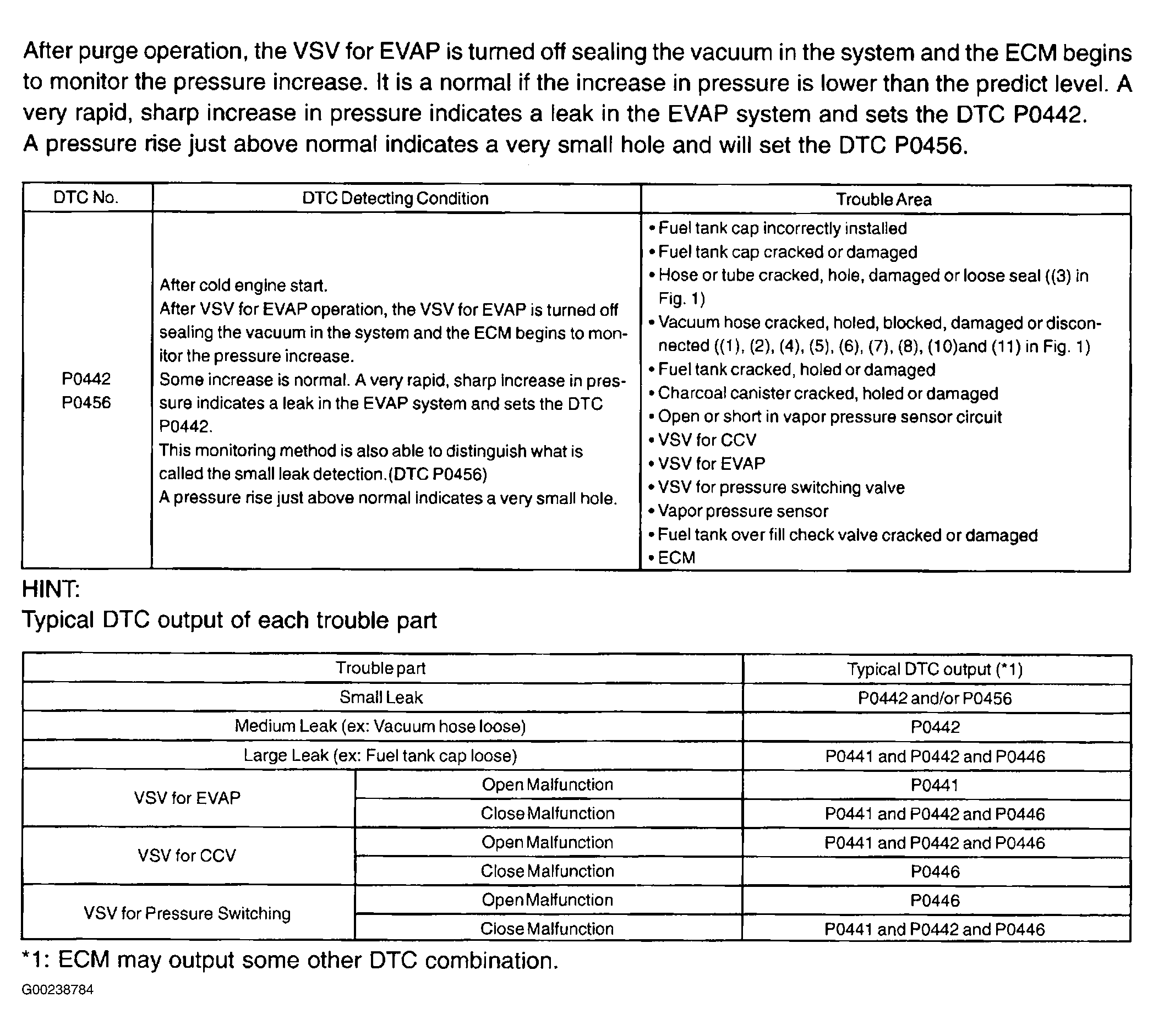

Fig 2: DTCs P0442 & P0456 Circuit Description (2 Of 2)
G00238784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
