Section 249 (Rear Suspension System): Description
WARNING: This page is about a different car, the 2004 Toyota Camry, 2003 Toyota Camry, and 2002 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

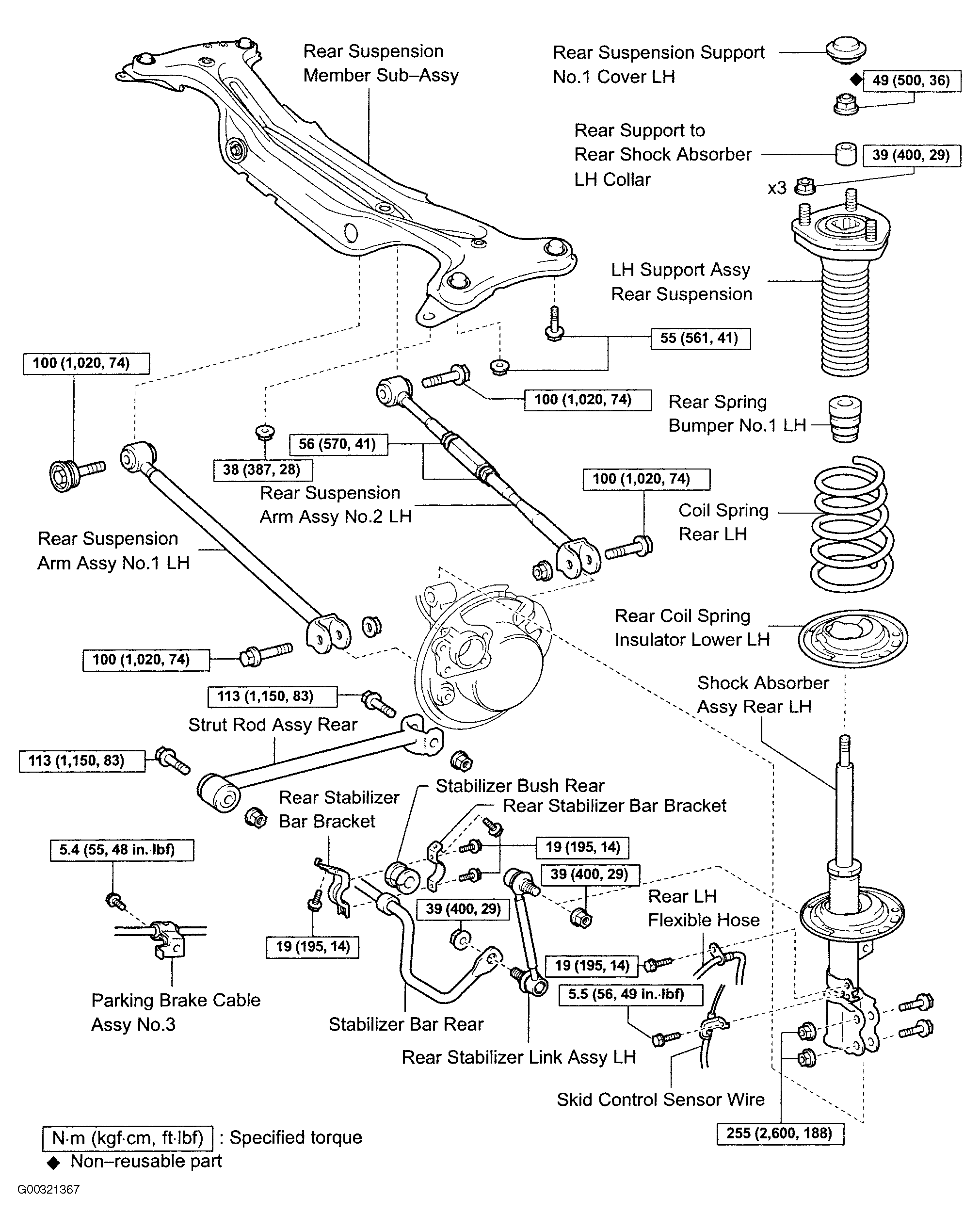

On Camry models, a dual link MacPherson strut type independent suspension has been adopted for the rear. Rear suspension components are shock absorber assemblies with coil springs, connected between rear axle carrier and vehicle body. Wheel bearings and axle hub is a one piece assembly, bolted to rear axle carrier. See Fig 1.
