Engine Control System

For engine control system component locations, see Fig 1-Fig 13 .

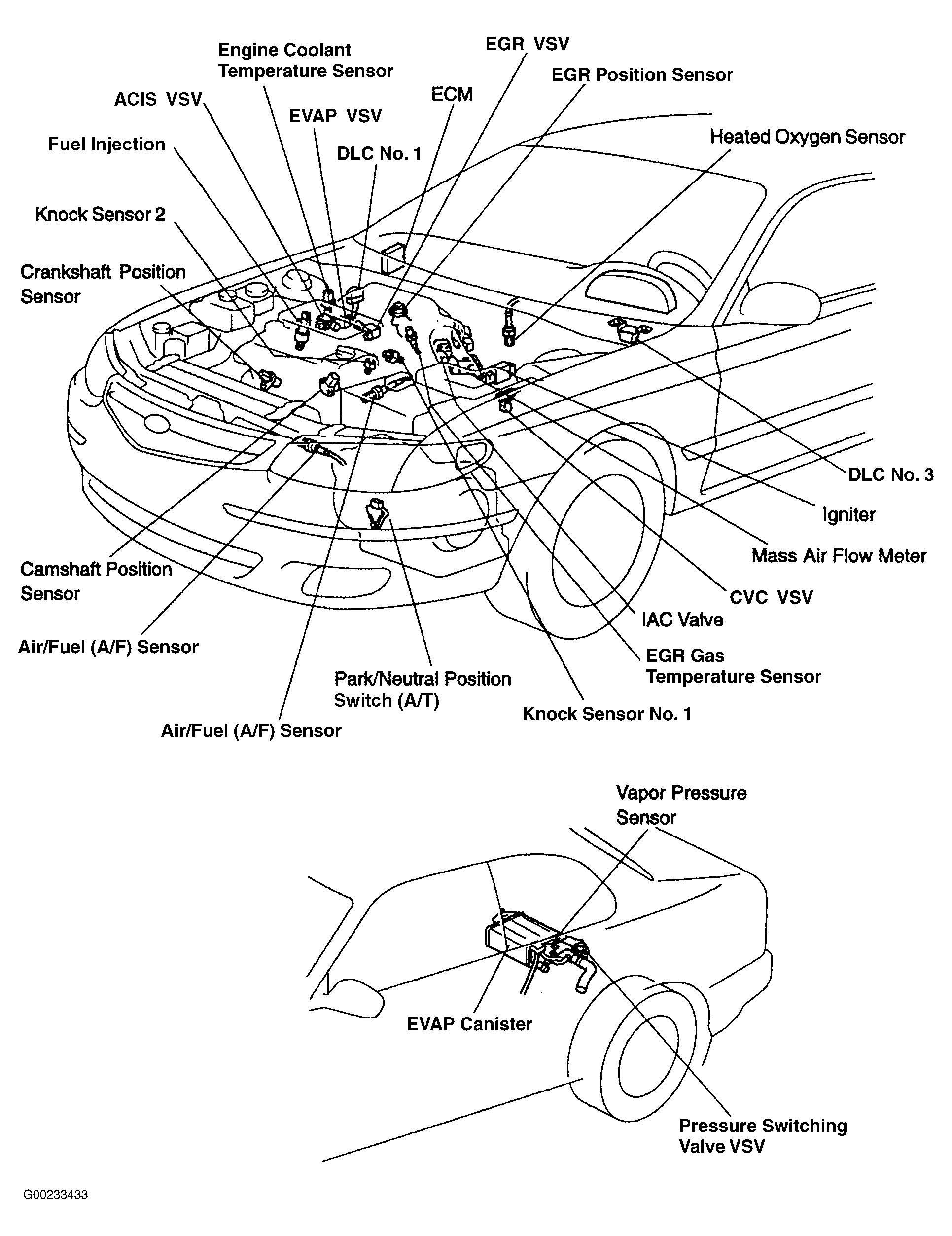

Fig 1: Locating Engine Control System Components (Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Engine Control System Components (Camry - Up To Jan. 2003 Production)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

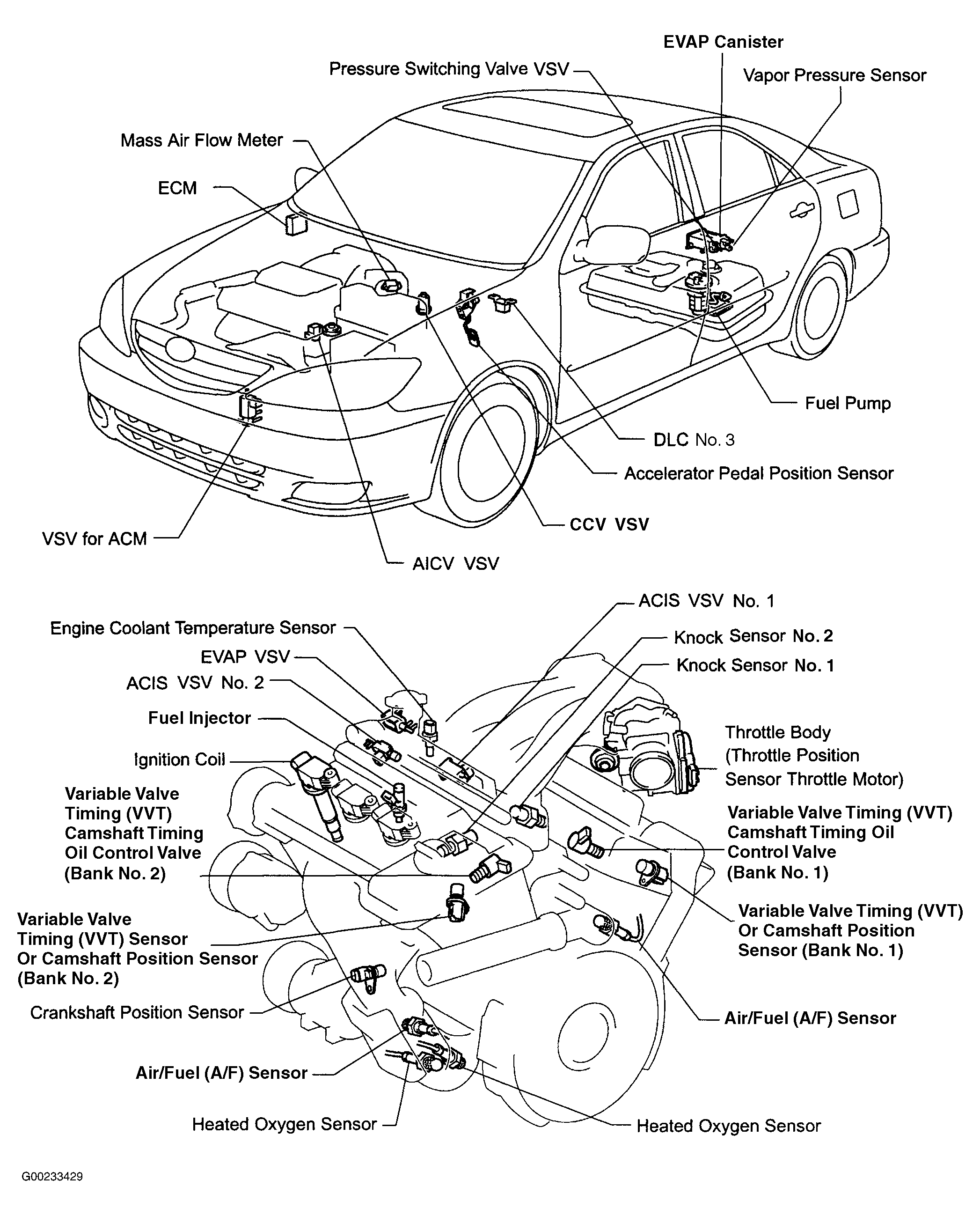

Fig 3: Locating Engine Control System Components (Camry - Jan. 2003 & Later Production)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating Engine Control System Components (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

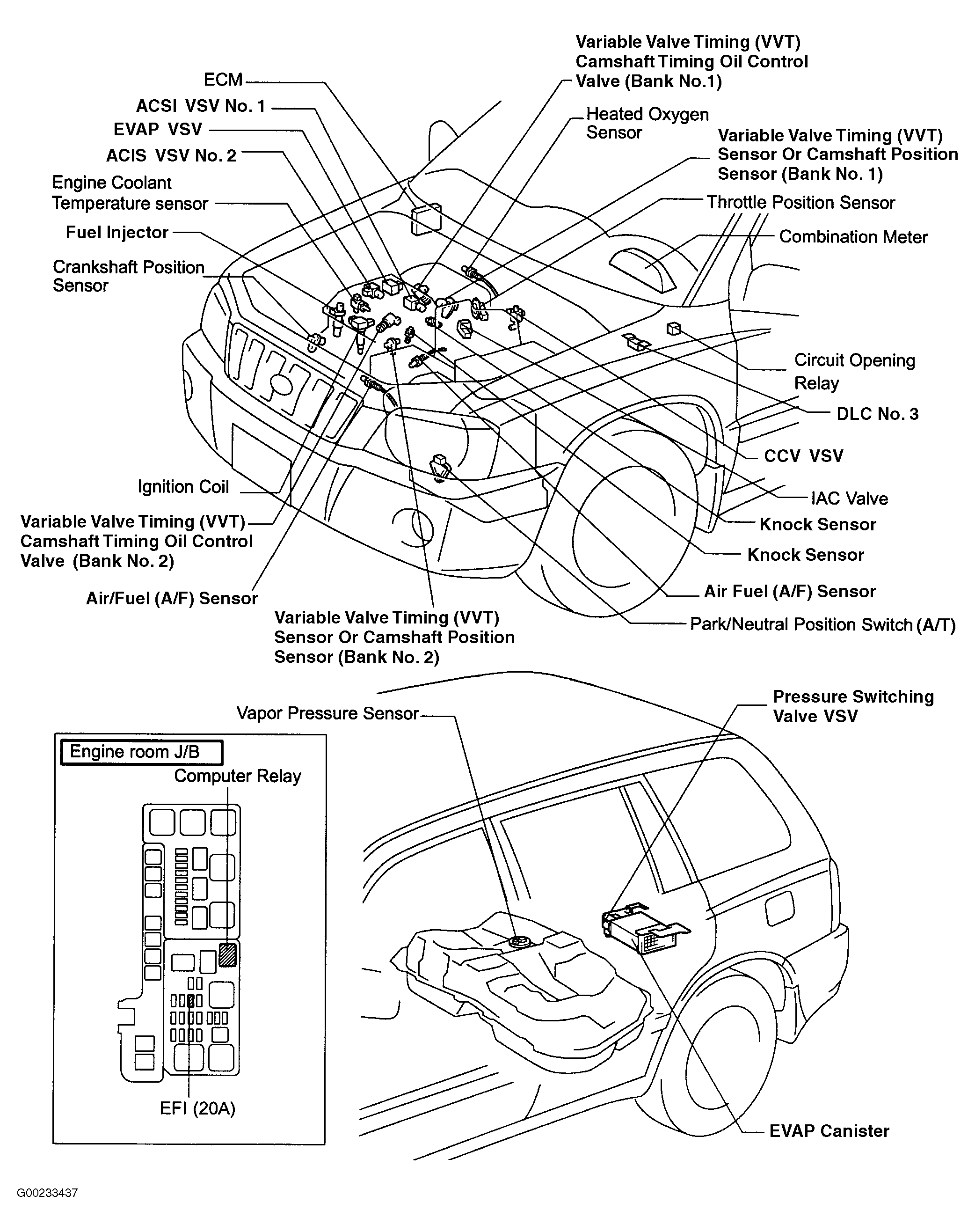

Fig 5: Locating Engine Control System Components (Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

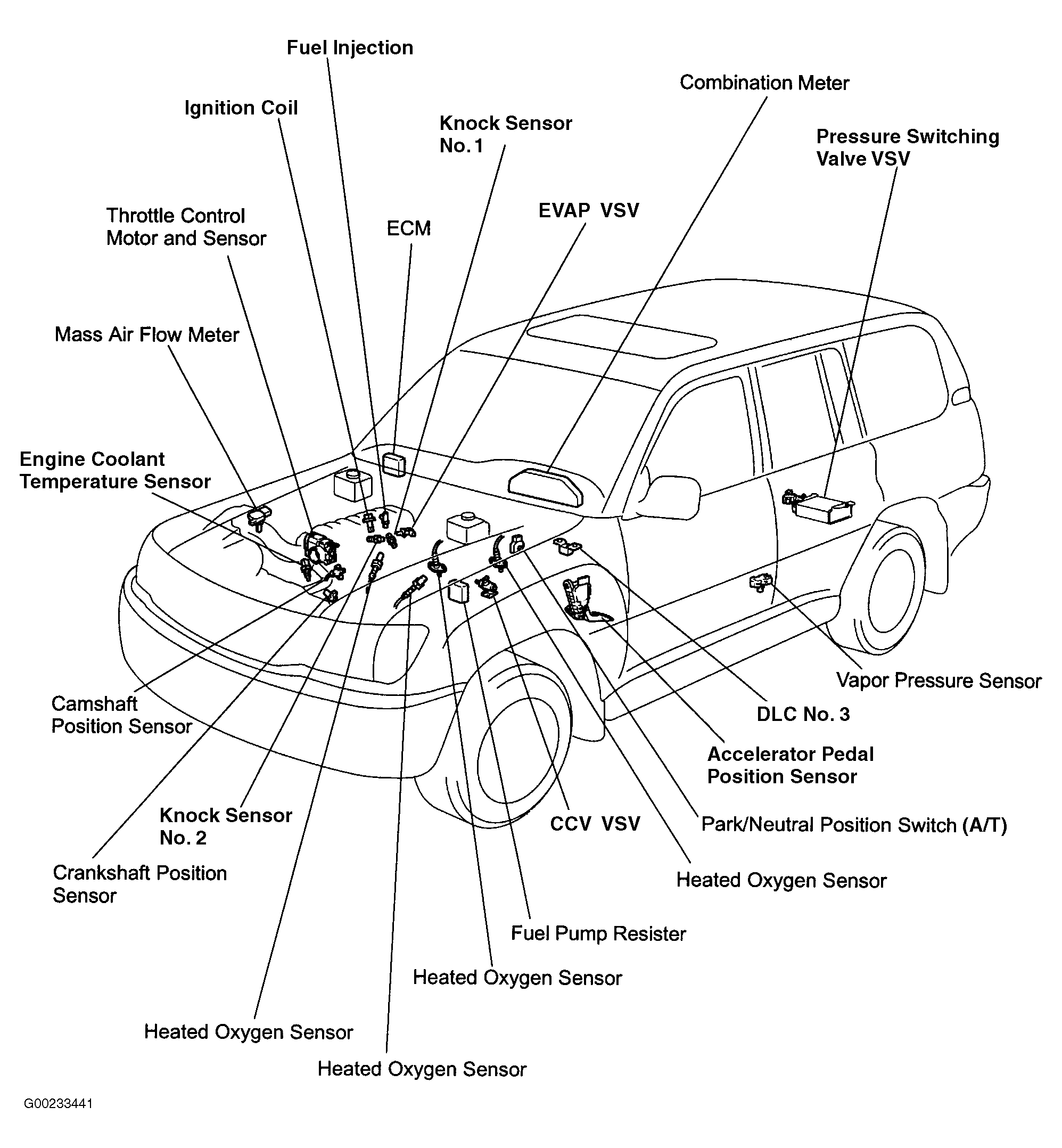

Fig 6: Locating Engine Control System Components (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

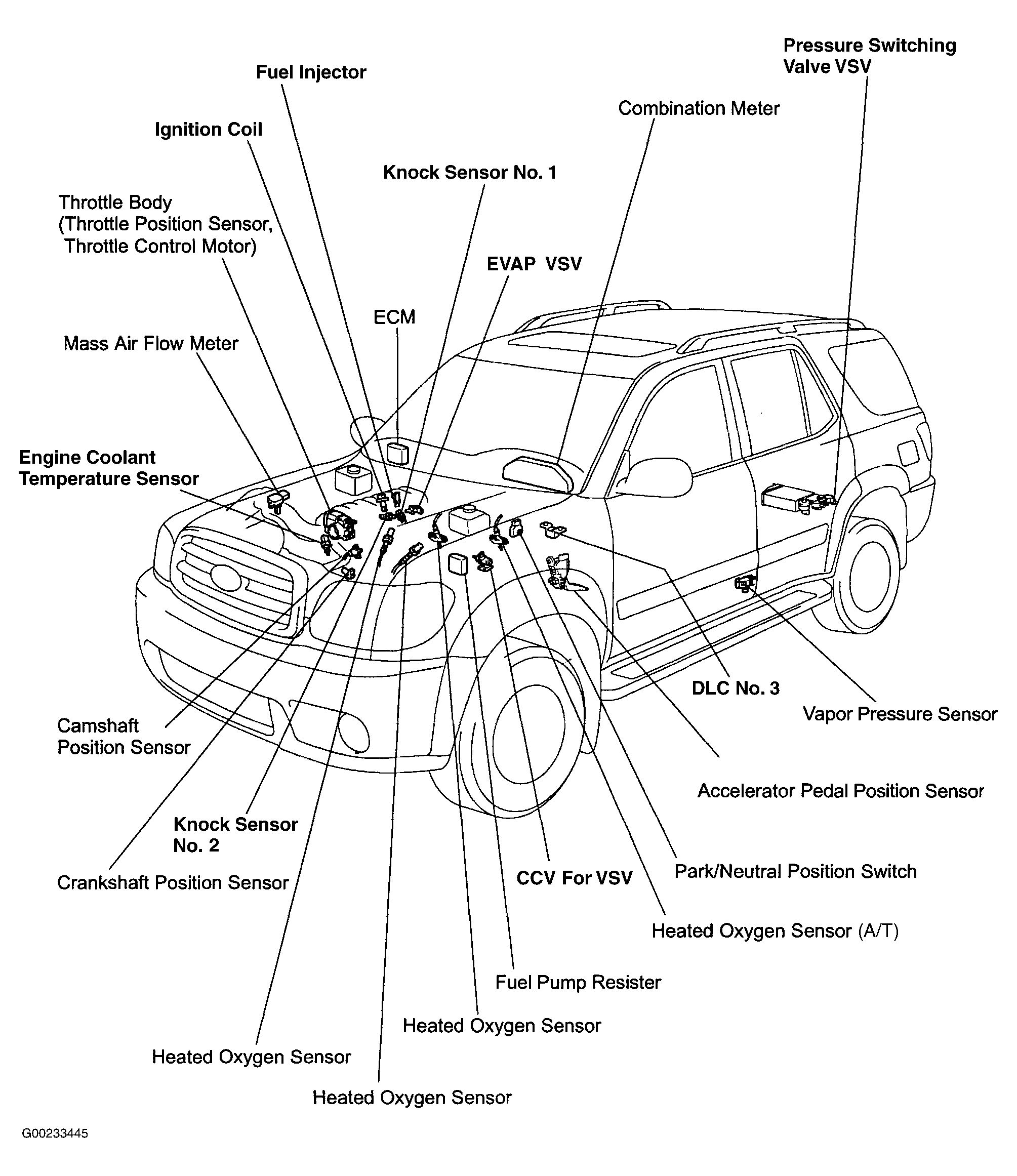

Fig 7: Locating Engine Control System Components (Sequoia)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Locating Engine Control System Components (Sienna)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Locating Engine Control System Components (Tacoma)

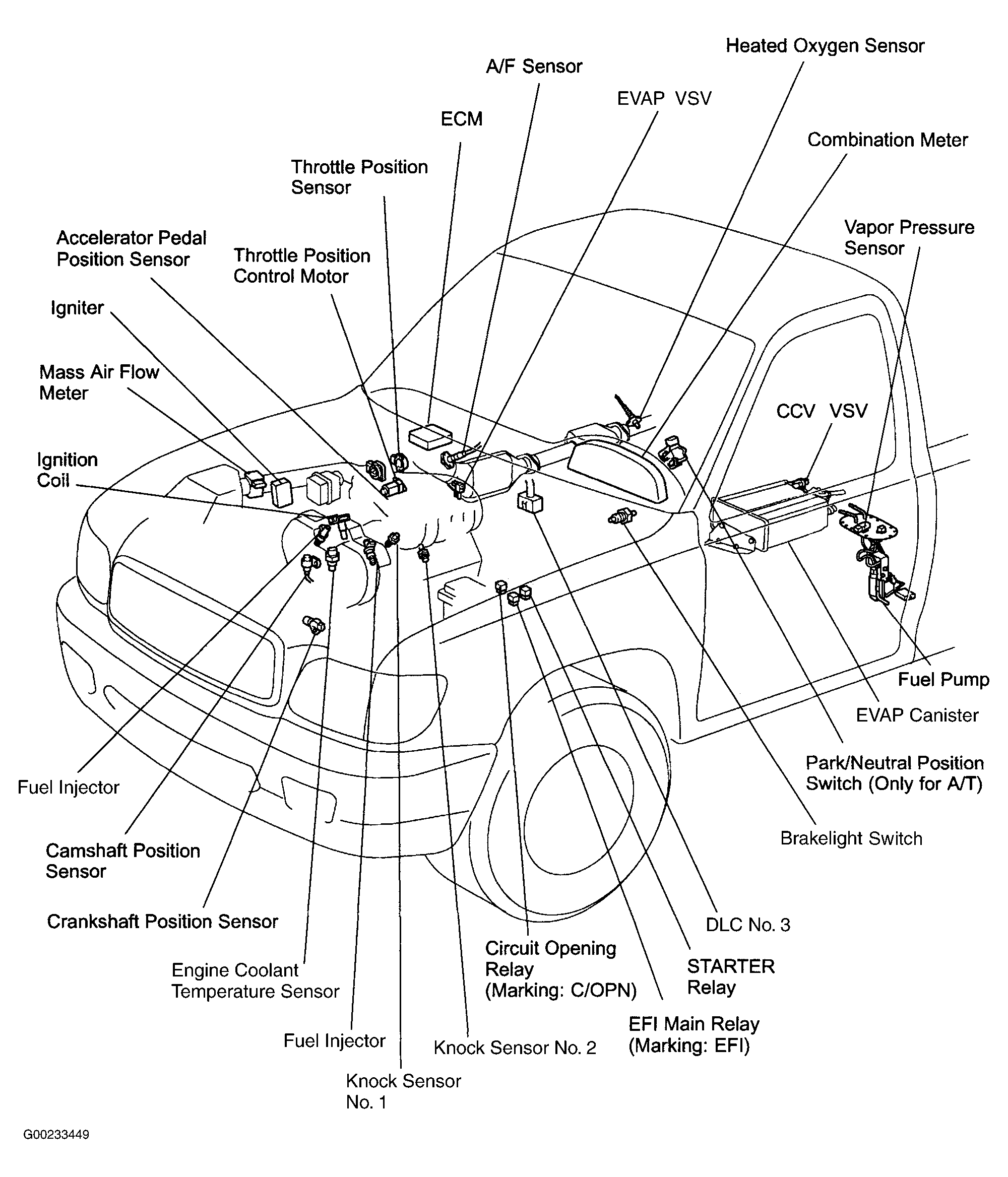

Fig 10: Locating Engine Control System Components (Tundra 3.4L)

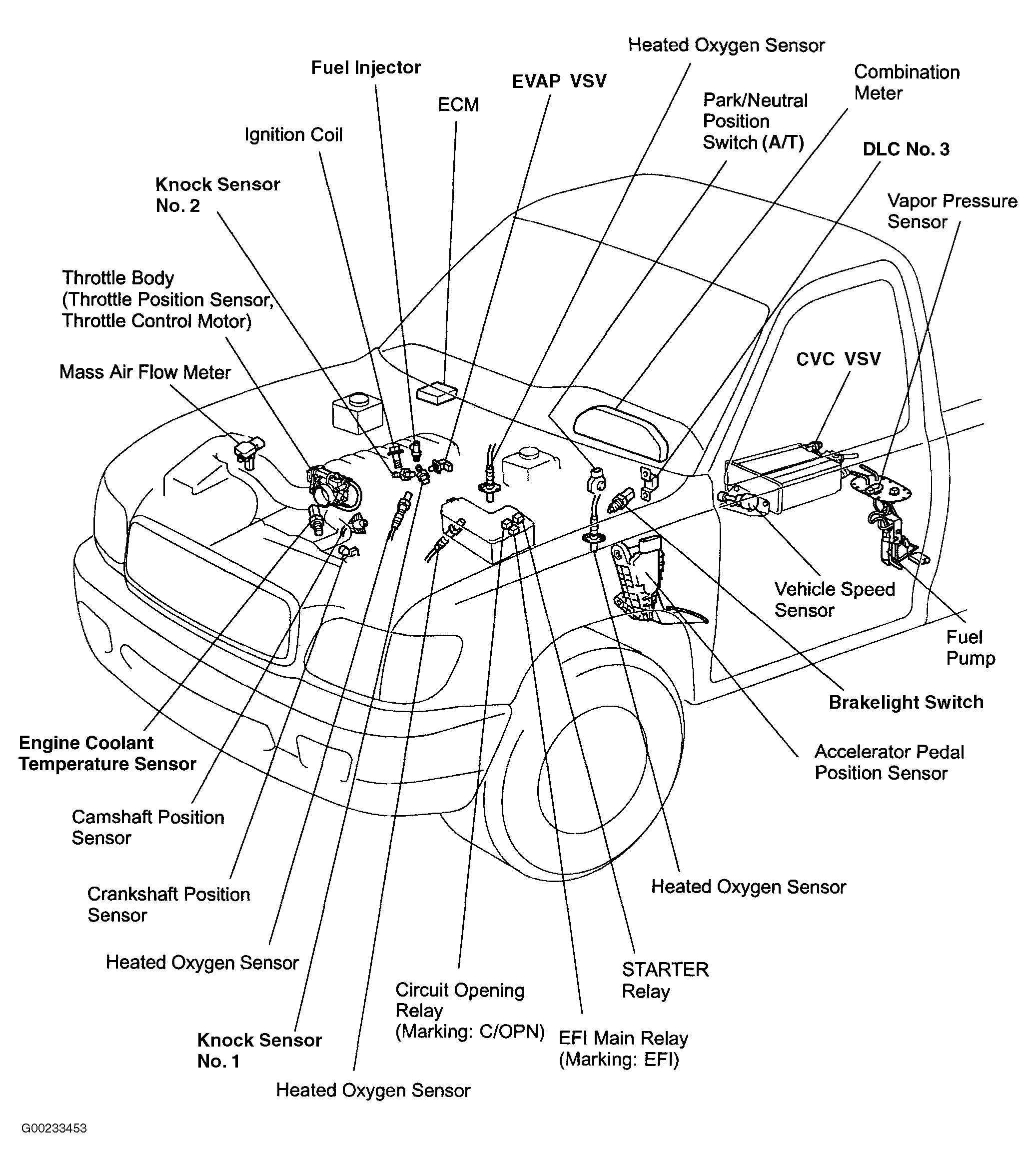

Fig 11: Locating Engine Control System Components (Tundra (4.7L)

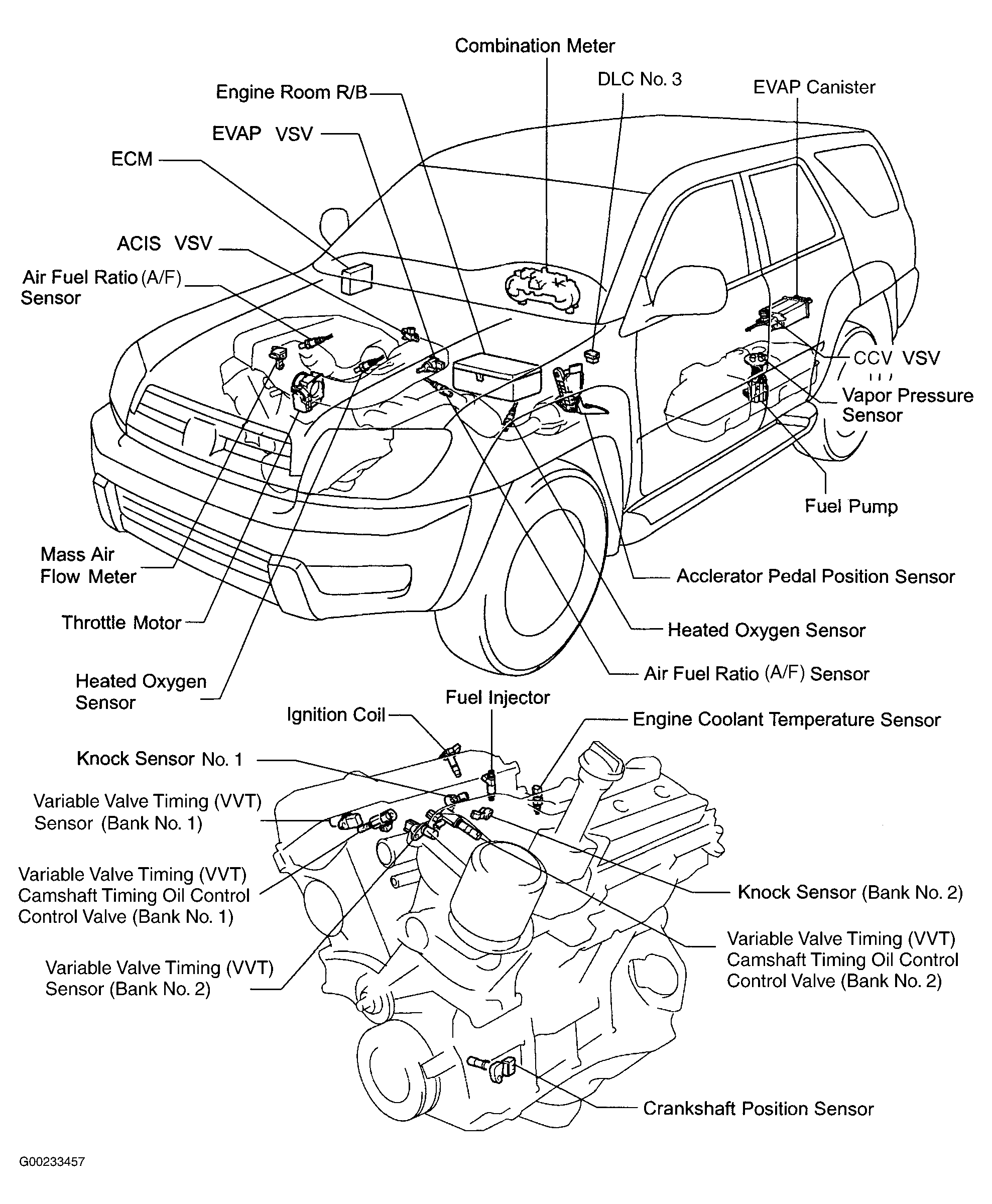

Fig 12: Locating Engine Control System Components (4Runner 4.0L)

Fig 13: Locating Engine Control System Components (4Runner 4.7L)
