Cranking Hold Function Circuit: 4Runner

NOTE: Cranking Hold Function Circuit maybe referred to as starter signal circuit.

For cranking hold function circuit inspection and wiring diagram, see Fig 1-Fig 12 . For circuit identification, see ENGINE PERFORMANCE in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL. To check for intermittent problems, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS under COMPUTERIZED ENGINE CONTROLS.

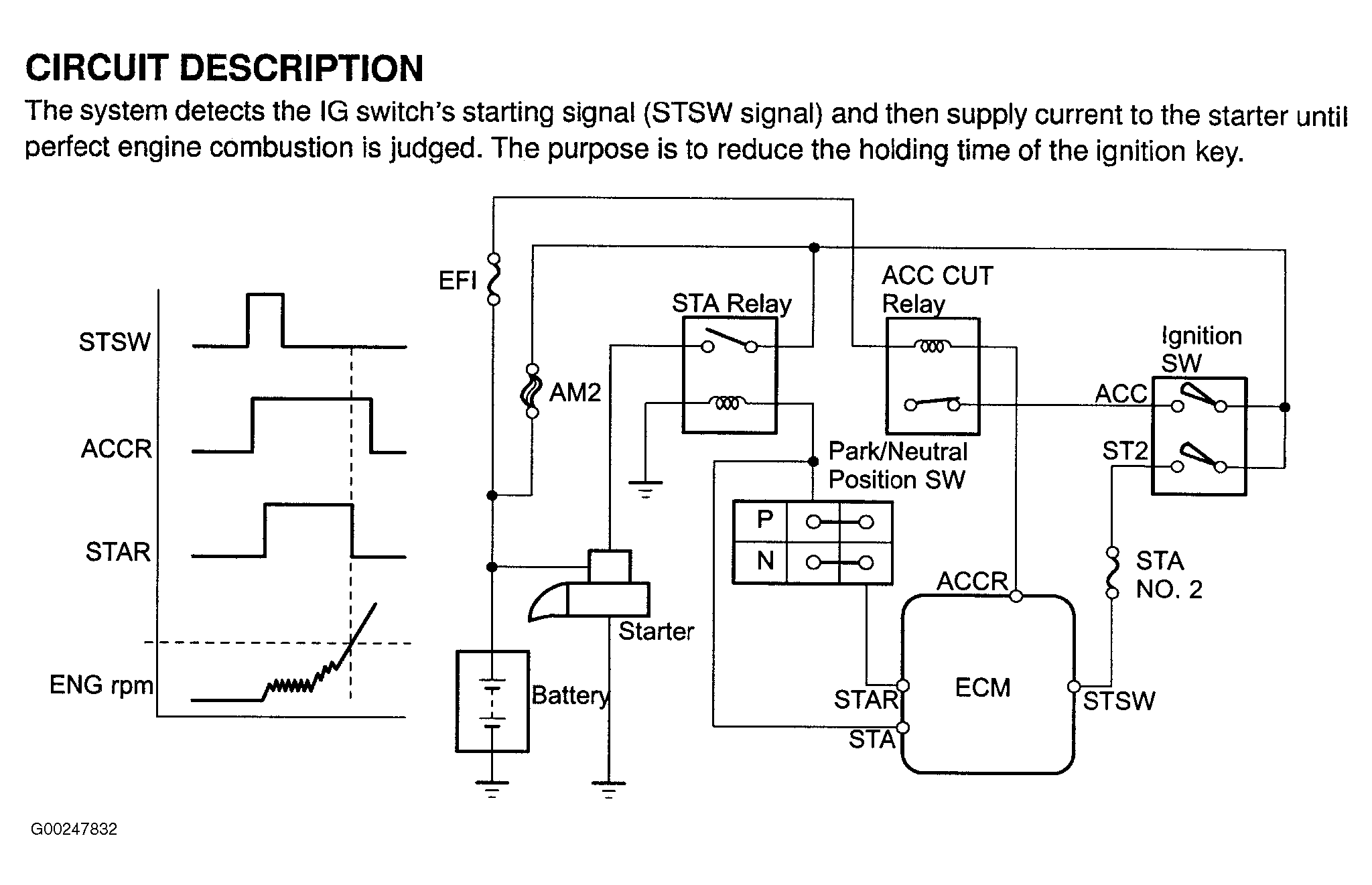

Fig 1: Cranking Hold Function Circuit Description & Diagram (4Runner)

G00247832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

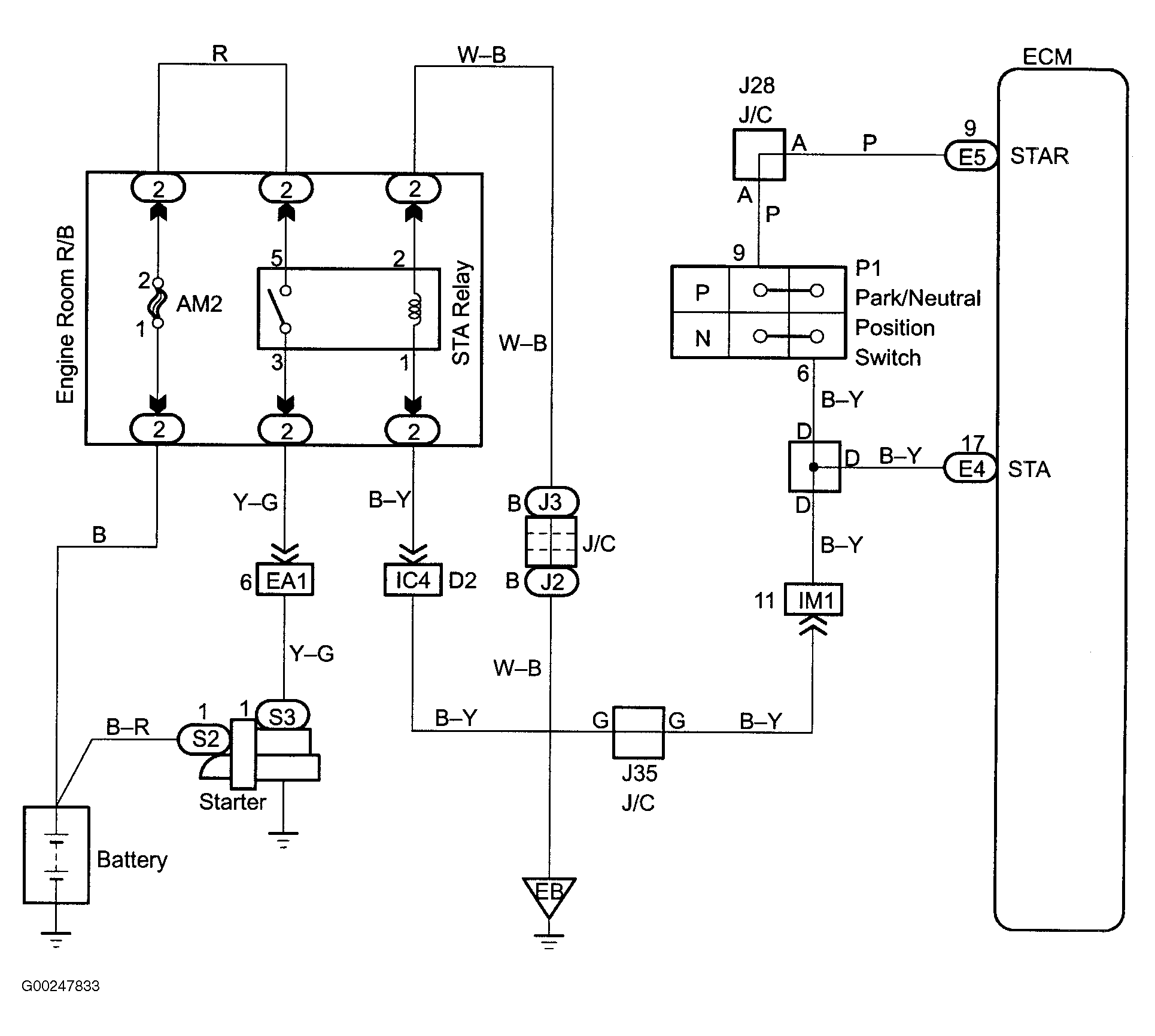

Fig 2: Cranking Hold Function Wiring Diagram (4Runner)

G00247833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

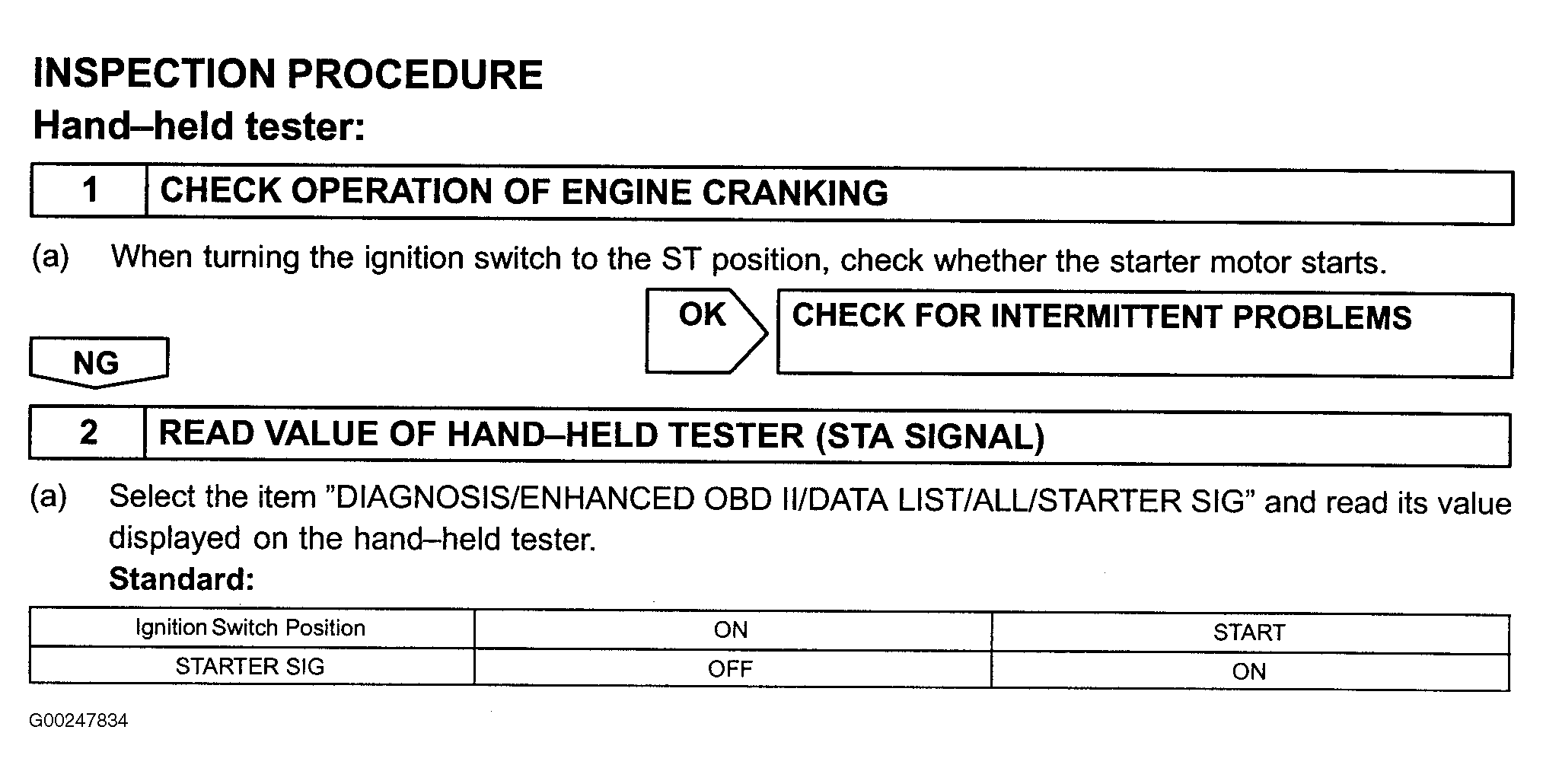

Fig 3: Cranking Hold Function Circuit Inspection Using Hand-Held Tester - Steps 1-2 (4Runner)

G00247834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

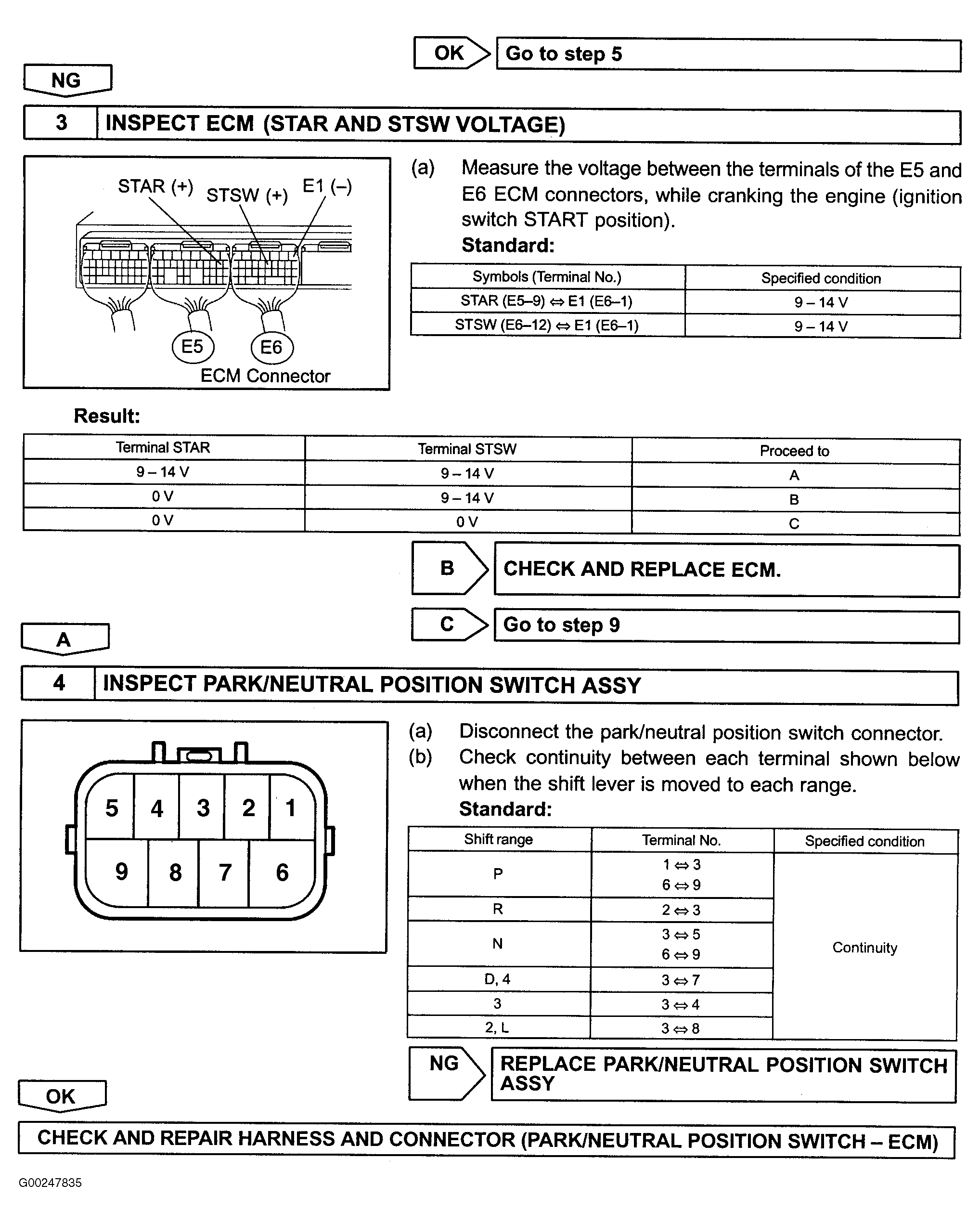

Fig 4: Cranking Hold Function Circuit Inspection Using Hand-Held Tester - Steps 3-4 (4Runner)

G00247835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

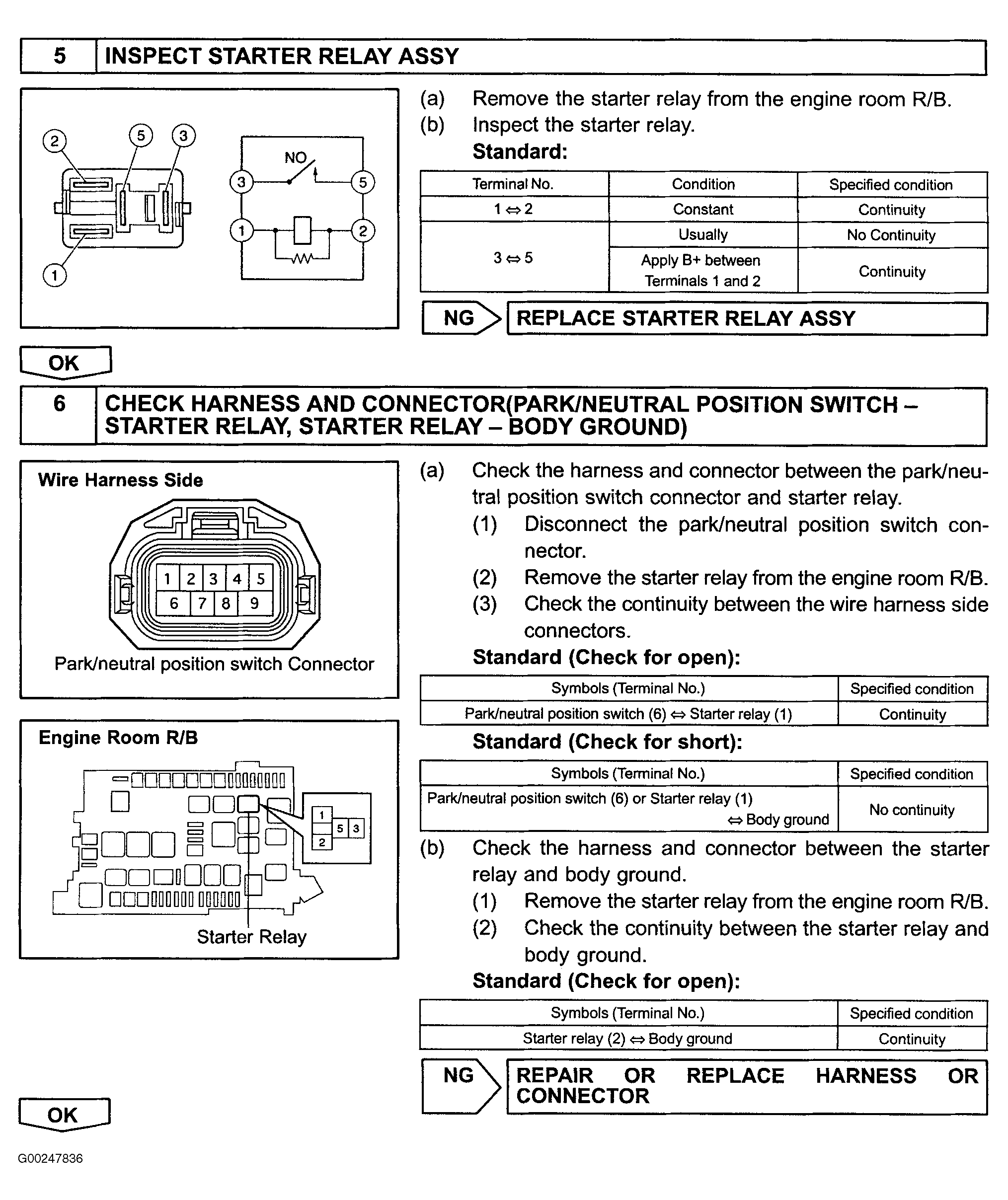

Fig 5: Cranking Hold Function Circuit Inspection Using Hand-Held Tester - Steps 5-6 (4Runner)

G00247836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

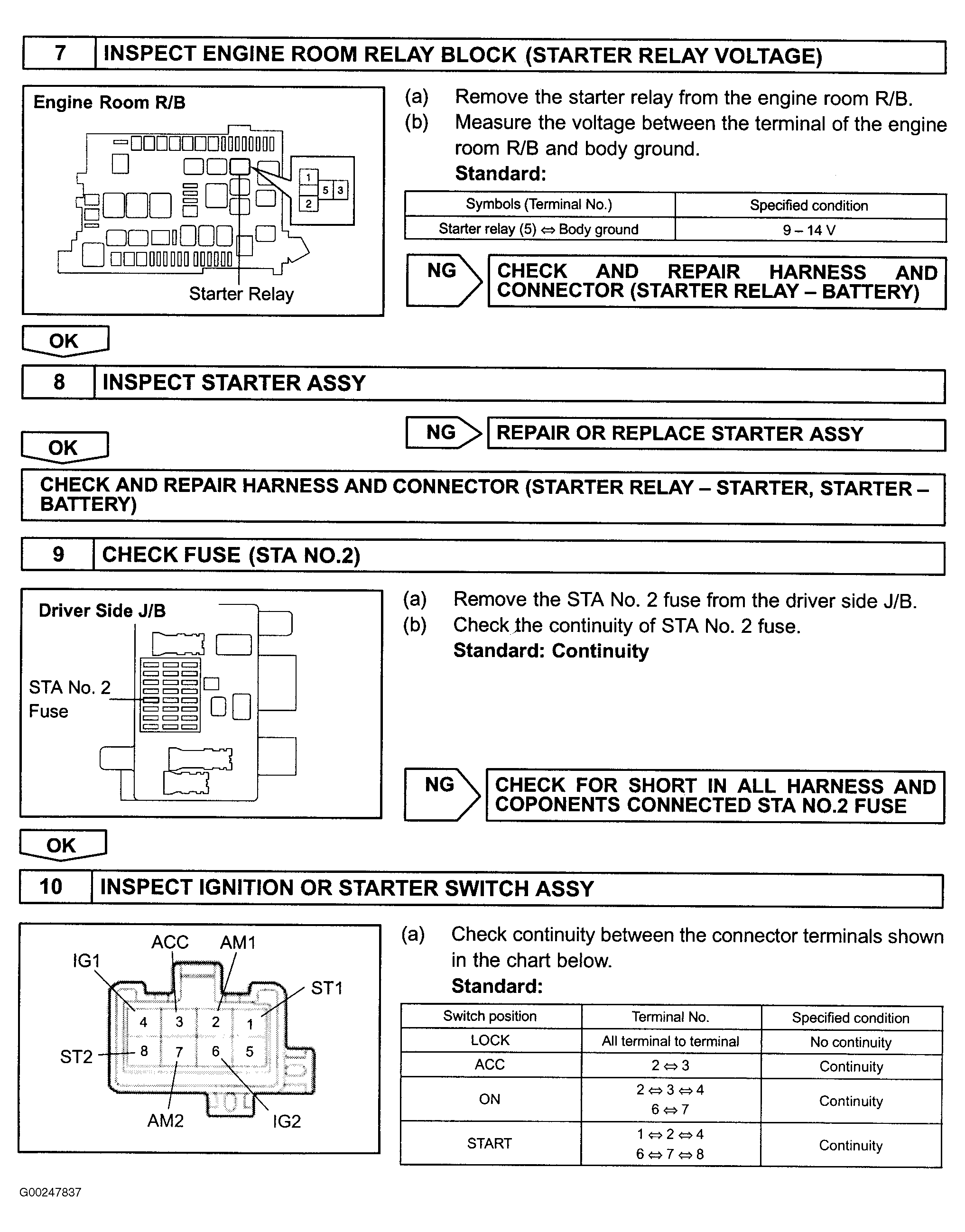

Fig 6: Cranking Hold Function Circuit Inspection Using Hand-Held Tester - Steps 7-10 (4Runner)

G00247837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

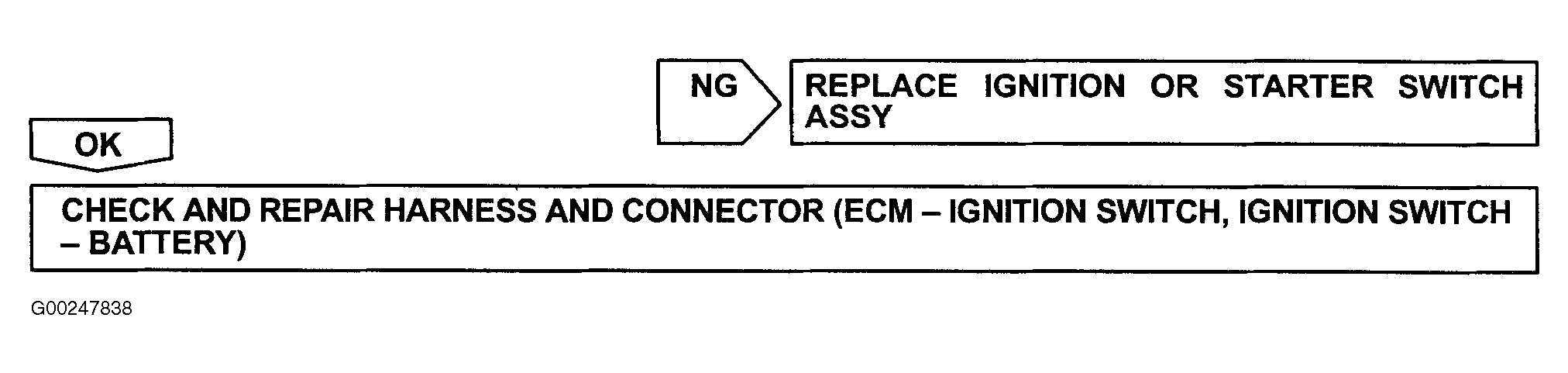

Fig 7: Cranking Hold Function Circuit Inspection Using Hand-Held Tester - Step 10 Cont. (4Runner)

G00247838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

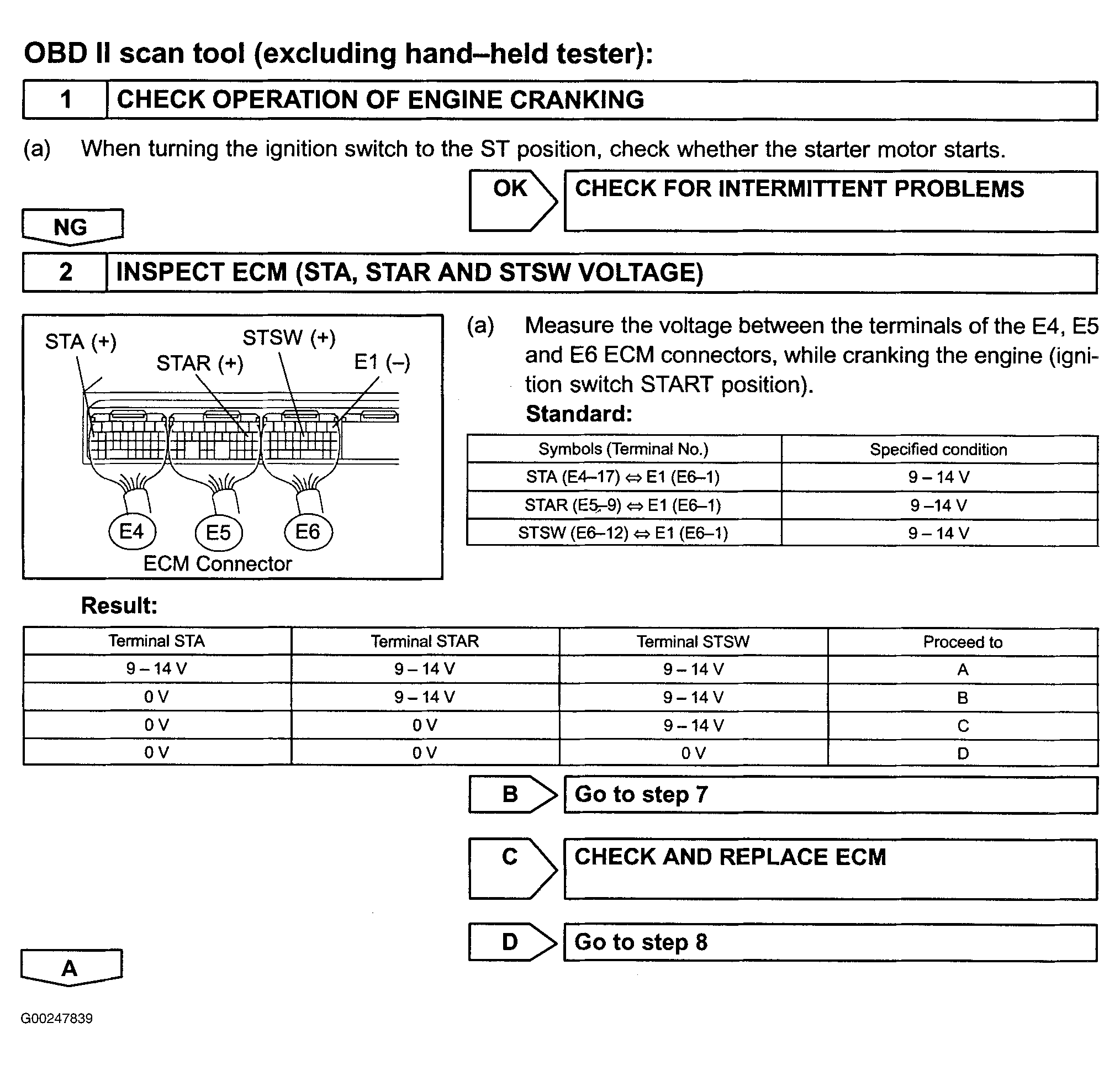

Fig 8: Cranking Hold Function Circuit Inspection Using OBD II Scan Tool - Steps 1-2 (4Runner)

G00247839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

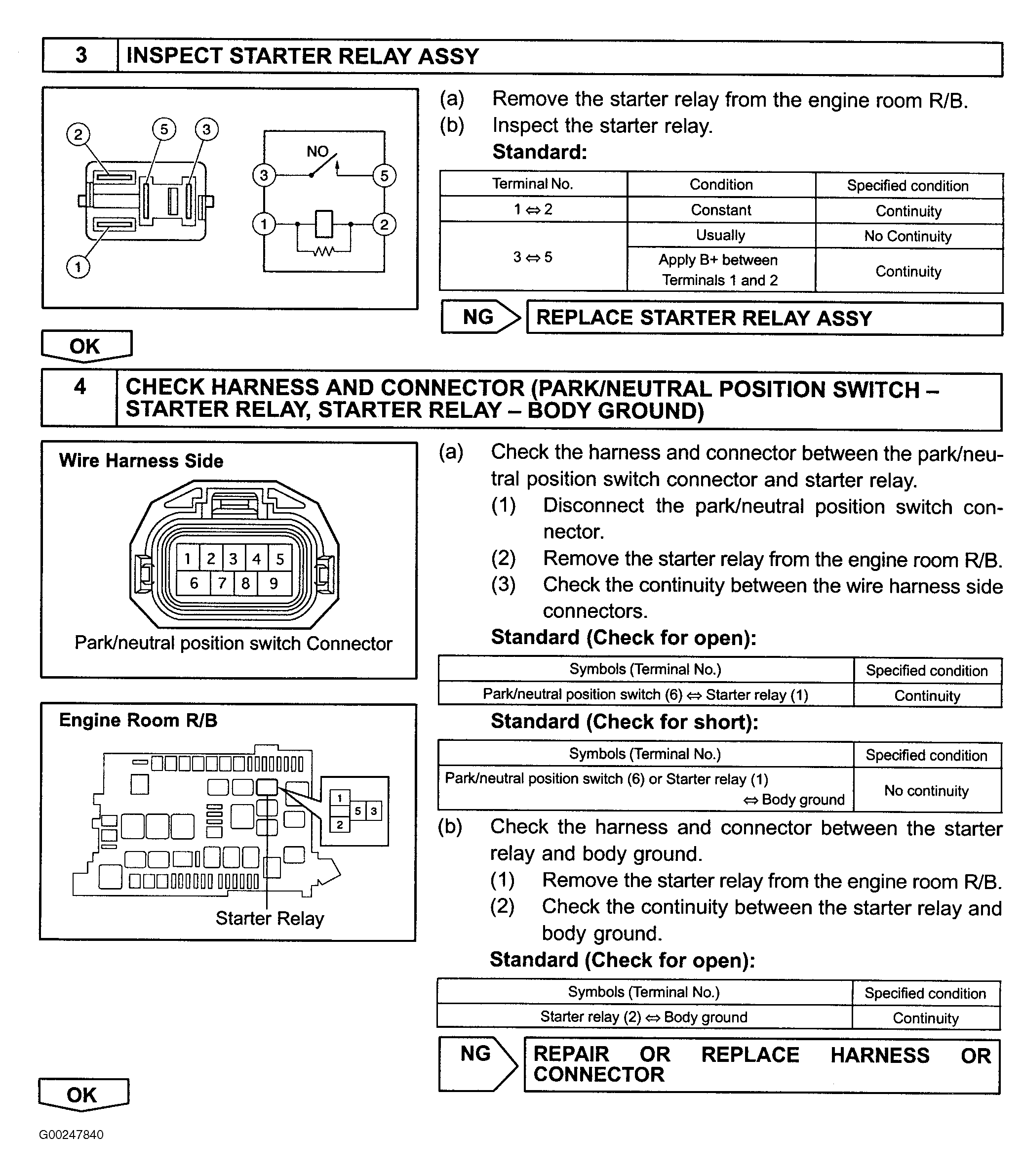

Fig 9: Cranking Hold Function Circuit Inspection Using OBD II Scan Tool - Steps 3-4 (4Runner)

G00247840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

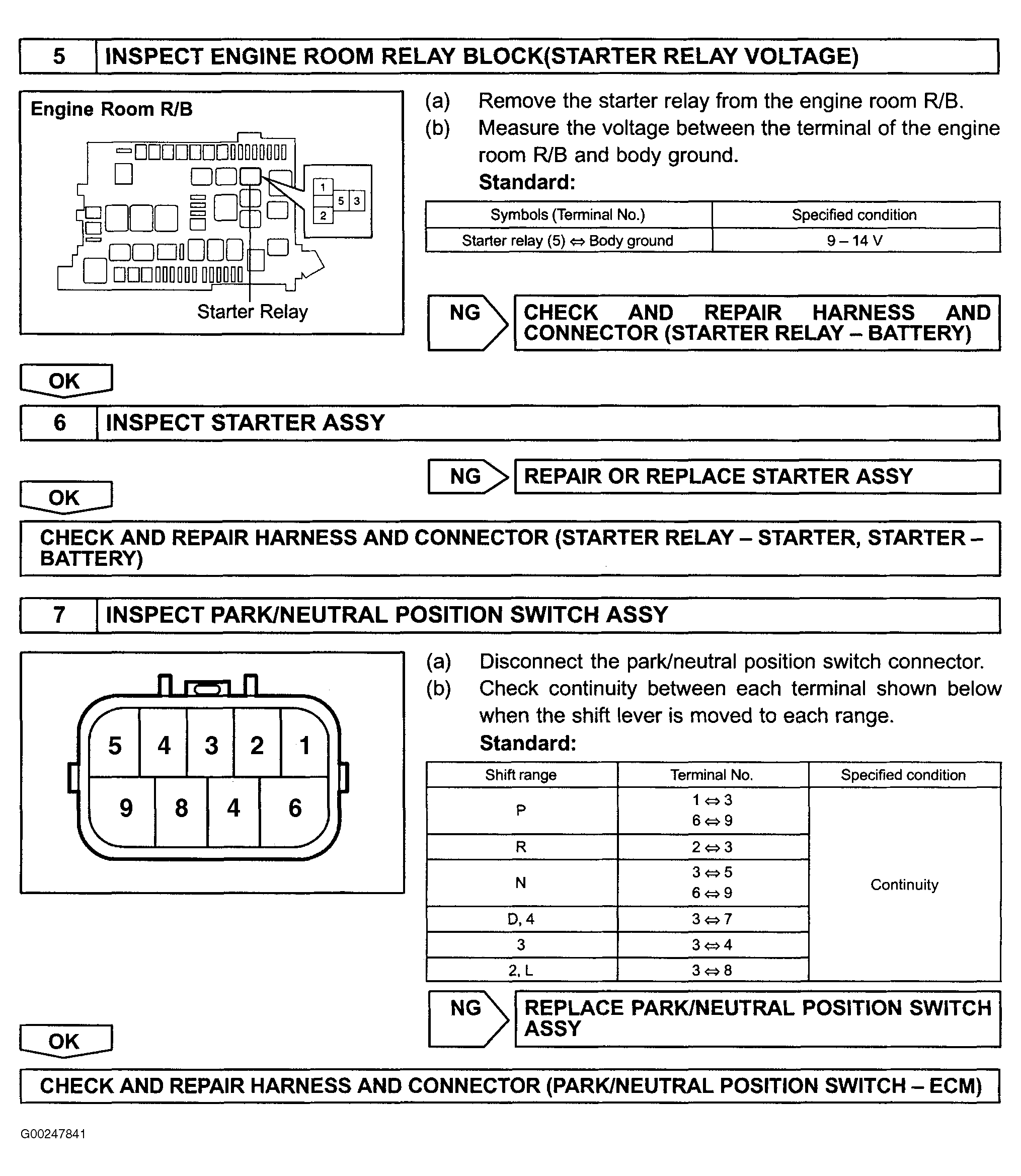

Fig 10: Cranking Hold Function Circuit Inspection Using OBD II Scan Tool - Steps 5-7 (4Runner)

G00247841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

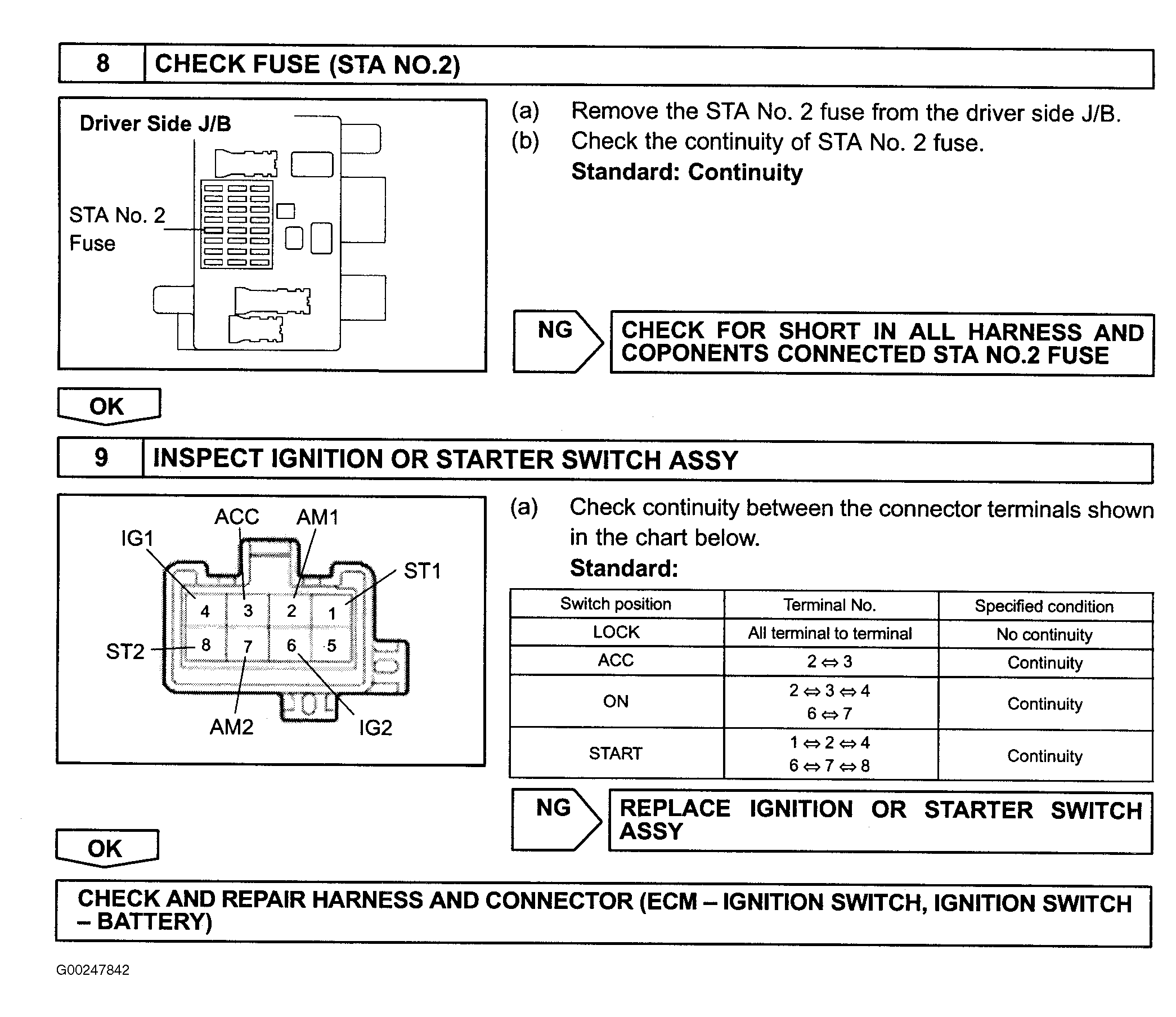

Fig 11: Cranking Hold Function Circuit Inspection Using OBD II Scan Tool - Steps 8-9 (4Runner)

G00247842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Locating Data Link Connector No. 3 (4Runner)

G97G28874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
