Power Rear Quarter Window System: Inspection

INSPECT POWER QUARTER WINDOW SWITCH CONTINUITY

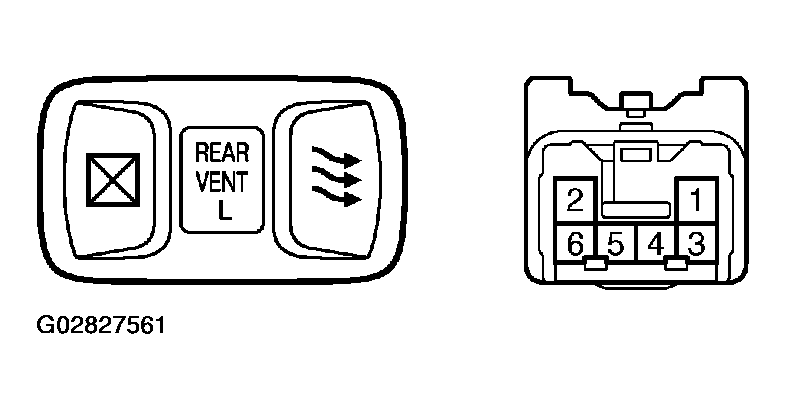

Fig 1: Identifying Power Rear Quarter Window Switch And Connector Terminal

G02827561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER QUARTER WINDOW SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
CLOSE	3 - 6, 4 - 5	Continuity
OFF	-	Continuity
OPEN	3 - 4, 5 - 6	Continuity
Illumination Circuit	1 - 2	Continuity

If continuity is not as specified, replace the switch.

Left side:
INSPECT POWER VENT WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the window link moves to OPEN position.

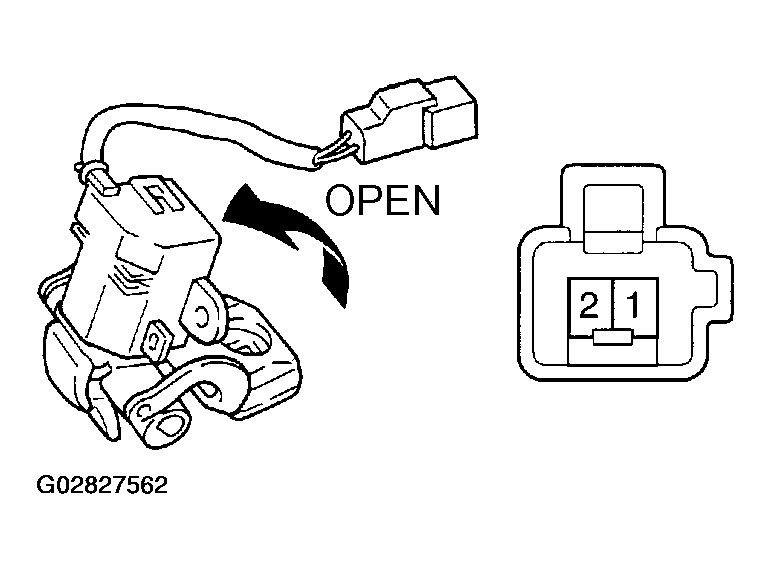

  Fig 2: Inspecting Power Window Link In Open Position LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

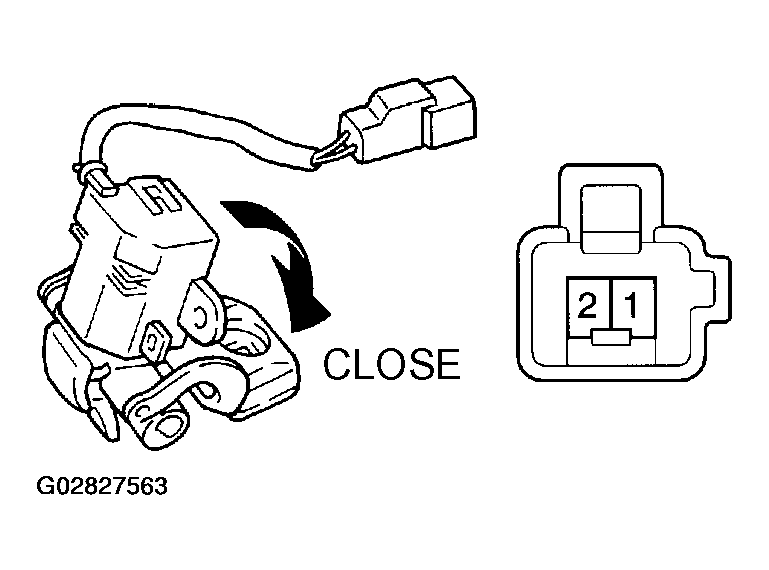

2. Remove the polarity and check that the window link moves to CLOSE position.
If operation is not as specified, replace the window motor.
Right side:
INSPECT POWER VENT WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the window link moves to OPEN position.

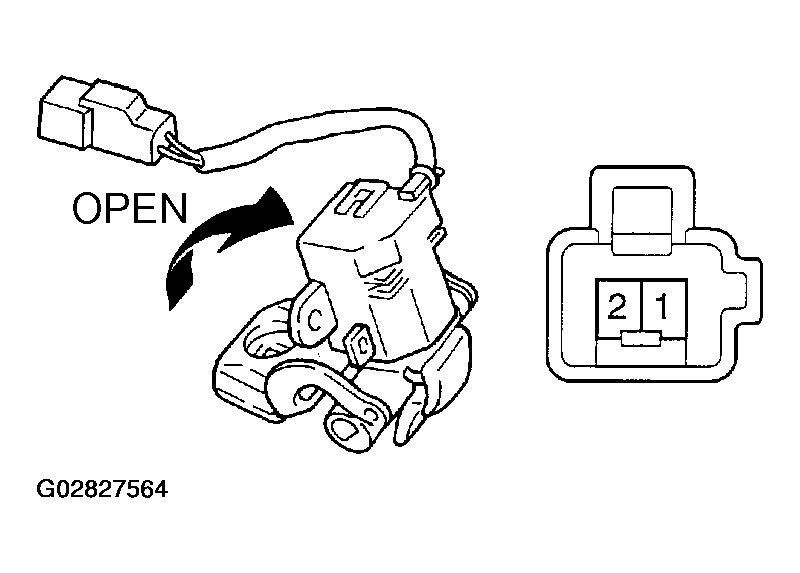

  Fig 4: Inspecting Power Window Link In Open Position RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the polarity and check that the window link moves to CLOSE position.

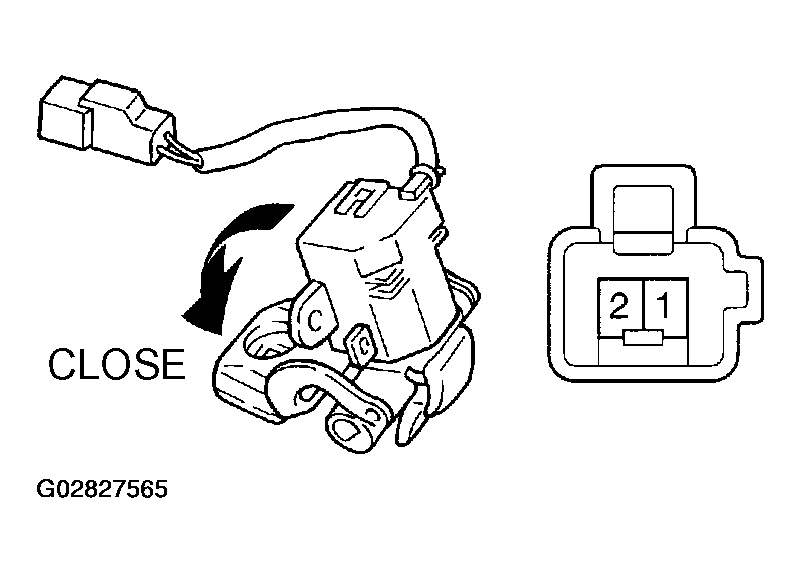

  Fig 5: Inspecting Power Window Link In Close Position RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
