Combination Meter Location: Circuit

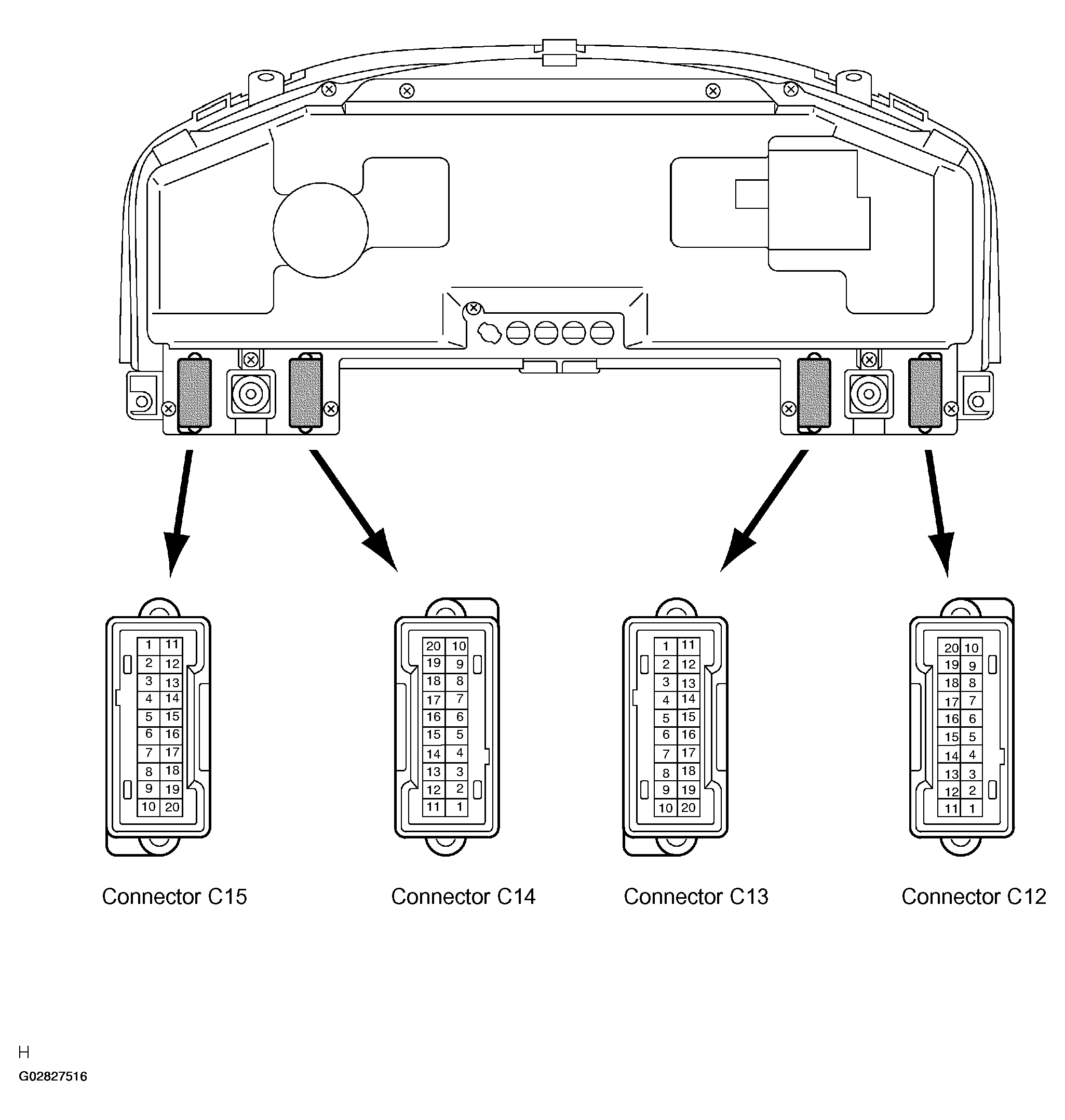

Fig 1: Identifying Combination Meter Terminal Connectors
G02827516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

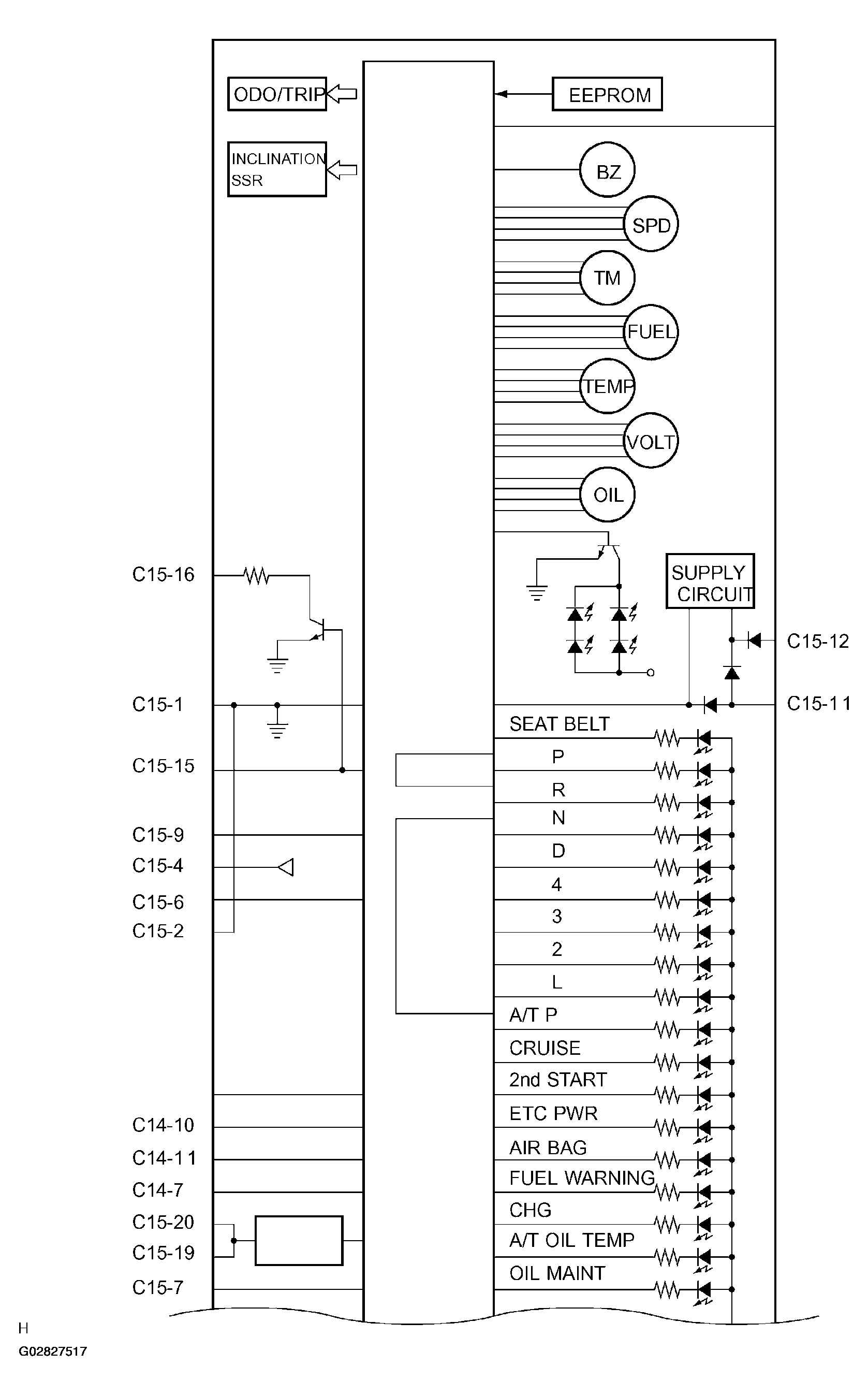

Fig 2: Combination Meter Circuit Diagram (1 Of 2)
G02827517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

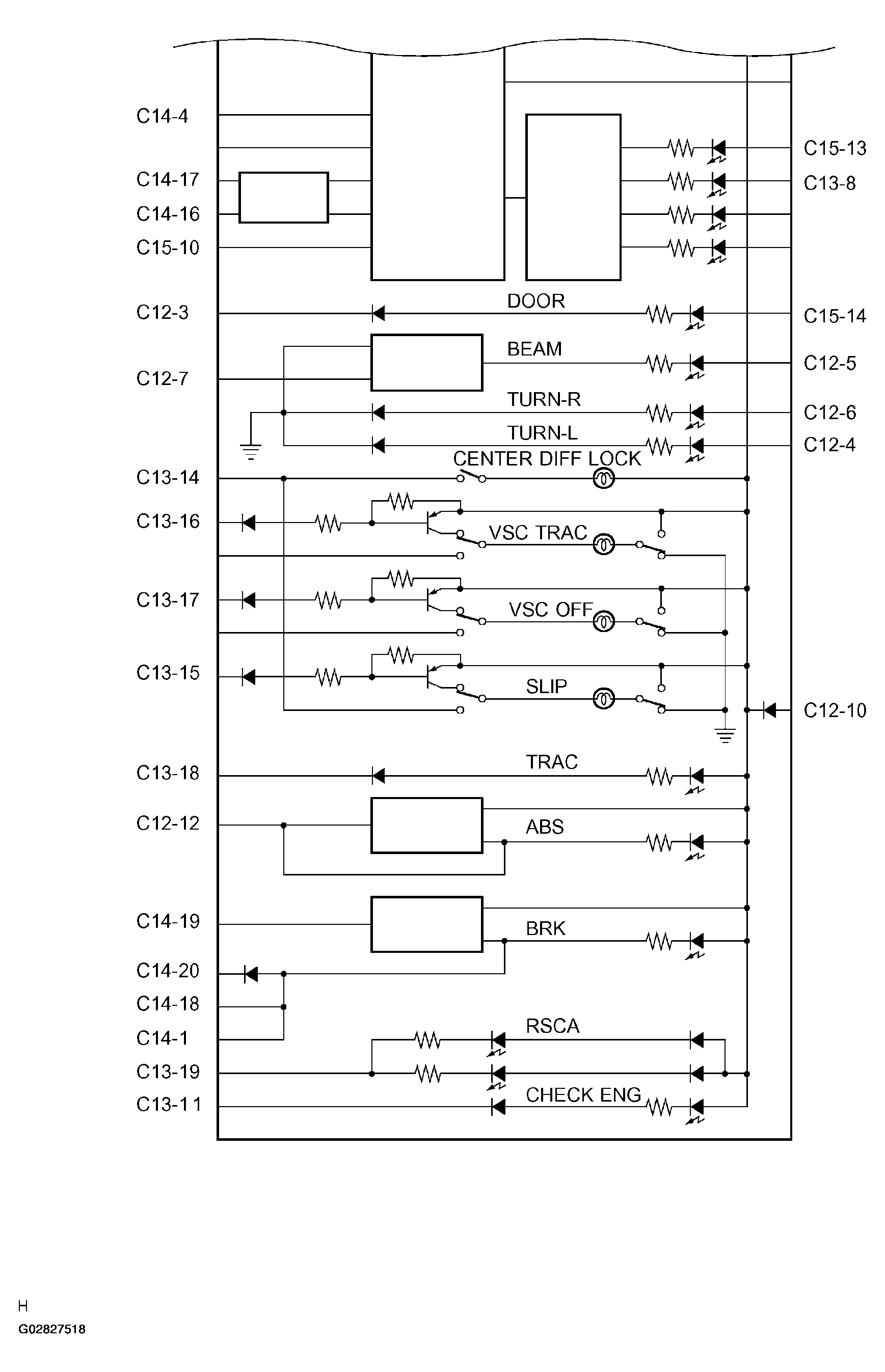

Fig 3: Combination Meter Circuit Diagram (2 Of 2)
G02827518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

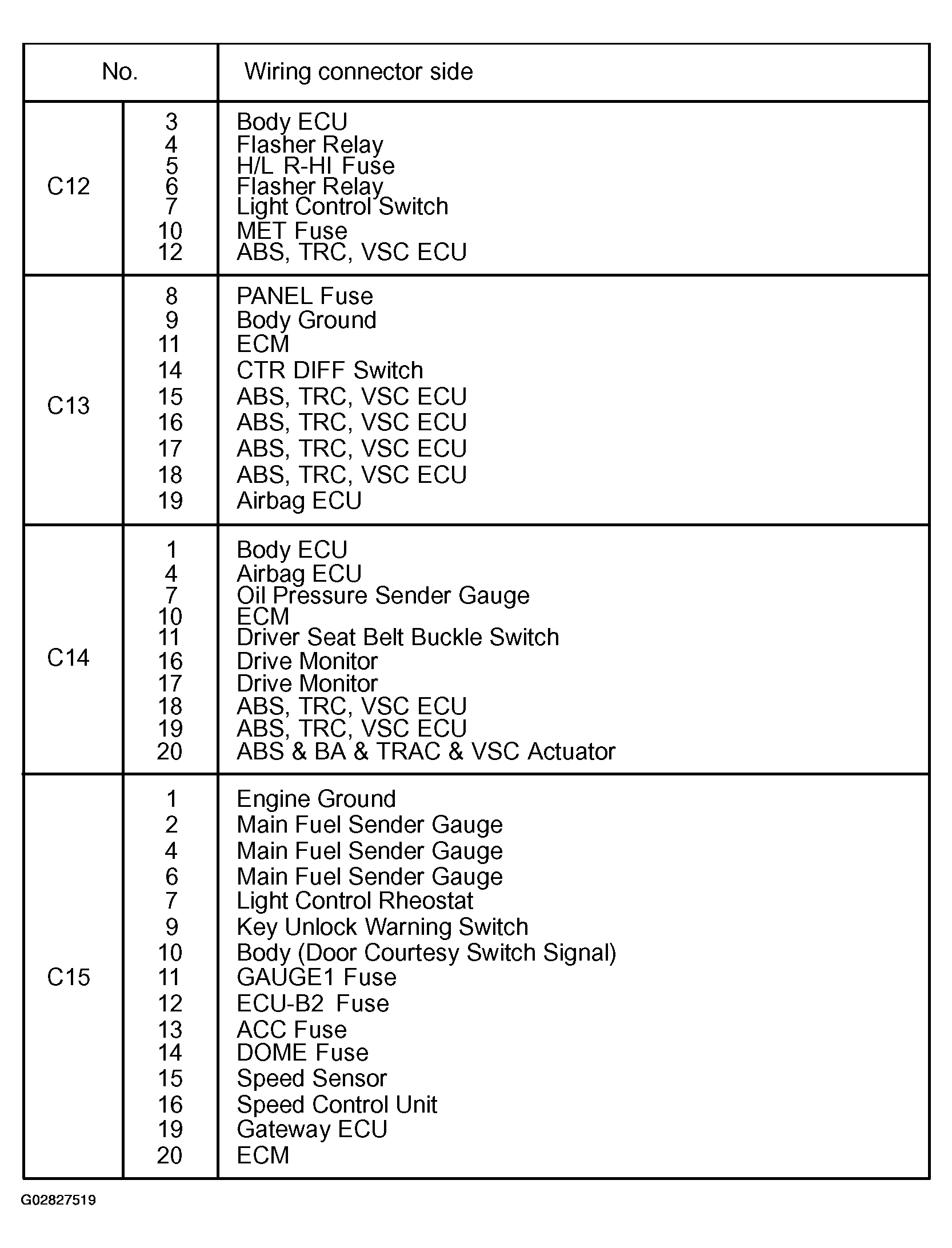

Fig 4: Wiring Connector Side Table
G02827519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
