Camshaft Position Sensor: 4Runner

Disconnect electrical connector for camshaft position sensor. See Fig 1-Fig 3 . Remove camshaft position sensor. See CAMSHAFT POSITION SENSOR under IGNITION SYSTEMS in REMOVAL & INSTALLATION - V6 & V8 article.

Using ohmmeter, check resistance between electrical terminals on electrical connector for camshaft position sensor. Ensure camshaft position sensor resistance is within specification. See CAMSHAFT POSITION SENSOR RESISTANCE table. Replace camshaft position sensor if resistance is not within specification. See CAMSHAFT POSITION SENSOR under IGNITION SYSTEMS in REMOVAL & INSTALLATION - V6 & V8 article. Reinstall electrical connector for camshaft position sensor.

CAMSHAFT POSITION SENSOR RESISTANCE

Application

Ohms

Avalon & Camry

Cold ⁽¹⁾

835-1400

Hot ⁽²⁾

1060-1645

Camry Solara

Denso Sensor ⁽³⁾

Cold ⁽¹⁾

835-1400

Hot ⁽²⁾

1060-1645

Wabash Sensor ⁽³⁾

Cold ⁽¹⁾

1690-2560

Hot ⁽²⁾

2145-3010

Highlander, Land Cruiser, Sequoia, Sienna, Tacoma, Tundra & 4Runner

Cold ⁽¹⁾

835-1400

Hot ⁽²⁾

1060-1645

⁽¹⁾	Cold is with temperature of 14-122°F (-10-50°C).

⁽²⁾	Hot is with temperature of 122-212°F (50-100°C).

⁽³⁾	This is manufacturer of camshaft position sensor.

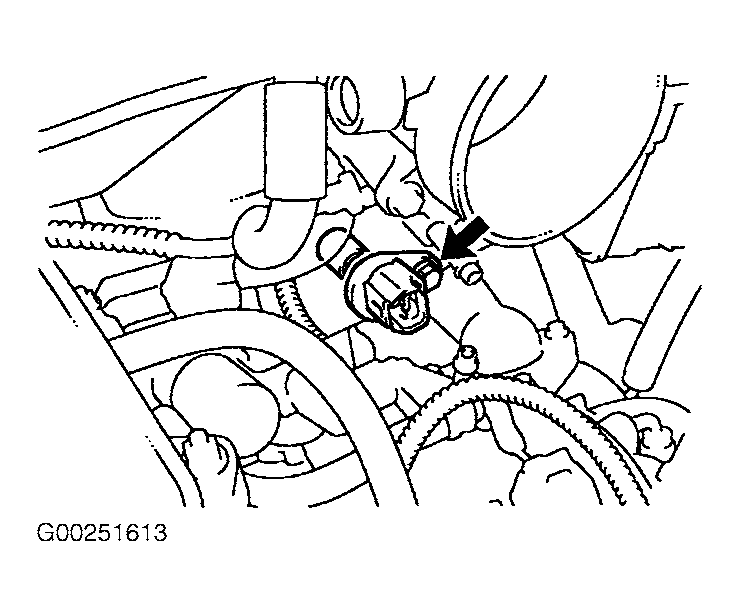

Fig 1: Locating Camshaft Position Sensor (4Runner 4.0L V6, RH Bank)

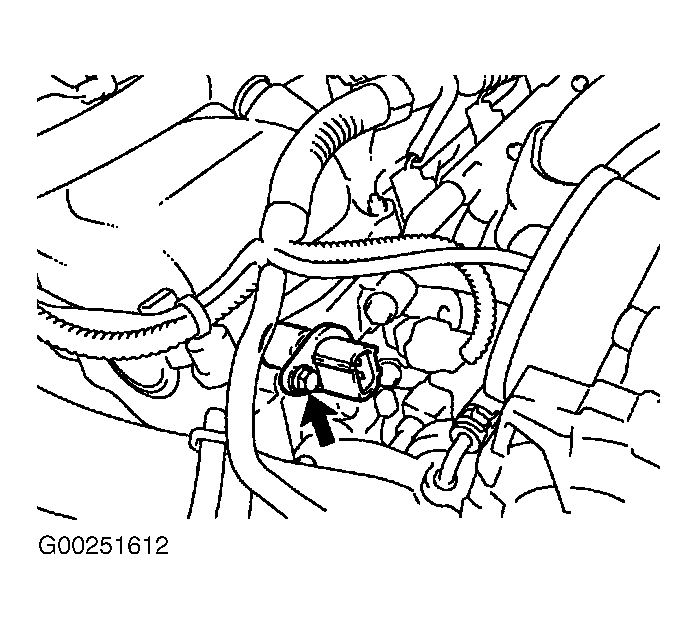

Fig 2: Locating Camshaft Position Sensor (4Runner 4.0L V6, LH Bank)

Fig 3: Locating Camshaft Position Sensor (4Runner 4.7L V8)
