Air Conditioning Control Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

w/ navigation system: REMOVE KNOB
Using a screwdriver, pull out the knobs.

HINT:

Tape up the screwdriver tip before use.

Fig 1: Removing Knobs (W/Navigation System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ navigation system: REMOVE INTEGRATION CONTROL PANEL
1. Remove the 2 screws.

  Fig 2: Removing Integration Control Panel Screw (W/Navigation System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw and the board.

  Fig 3: Removing Board (W/Navigation System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ navigation system: REMOVE HEATER CONTROL HOUSING
1. Disconnect the connector clamps.
2. Remove the 2 screws and pull out the board from the heater control housing.
Fig 4: Removing Heater Control Housing (W/Navigation System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE KNOB
1. Using a screwdriver, pull out the knobs.
  HINT:

  Tape up the screwdriver tip before use.
2. Remove the nut.
w/o LEXUS navigation system: REMOVE KNOB
Using a screwdriver, pull out the knobs.

HINT:

Tape up the screwdriver tip before use.

Fig 5: Removing Knobs (W/O Lexus Navigation System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o navigation system: REMOVE INTEGRATION CONTROL PANEL
1. Remove the 6 screws and pull out the A/C amplifier.

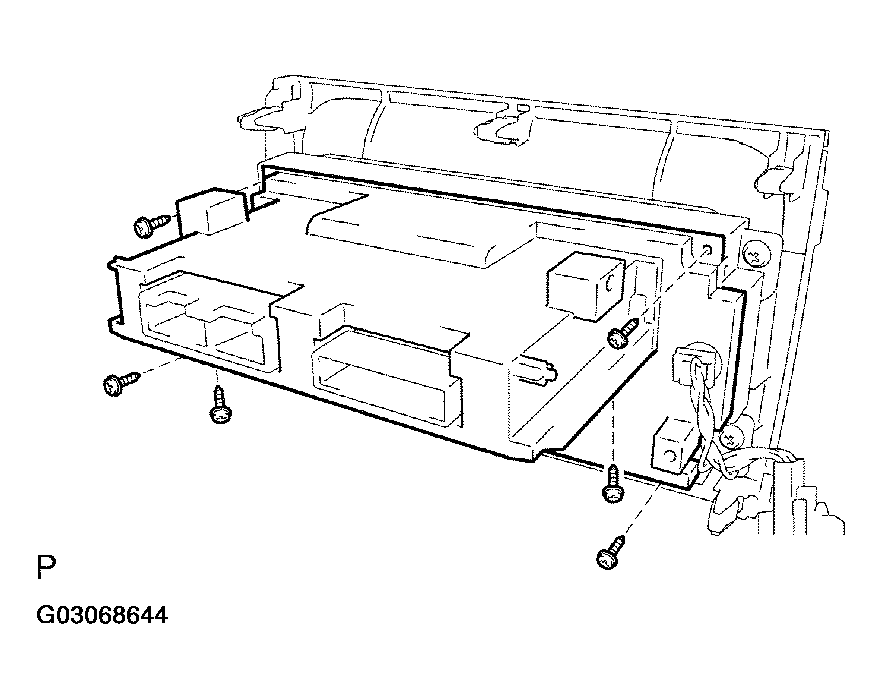

  Fig 6: Pulling Out A/C Amplifier (W/O Navigation System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

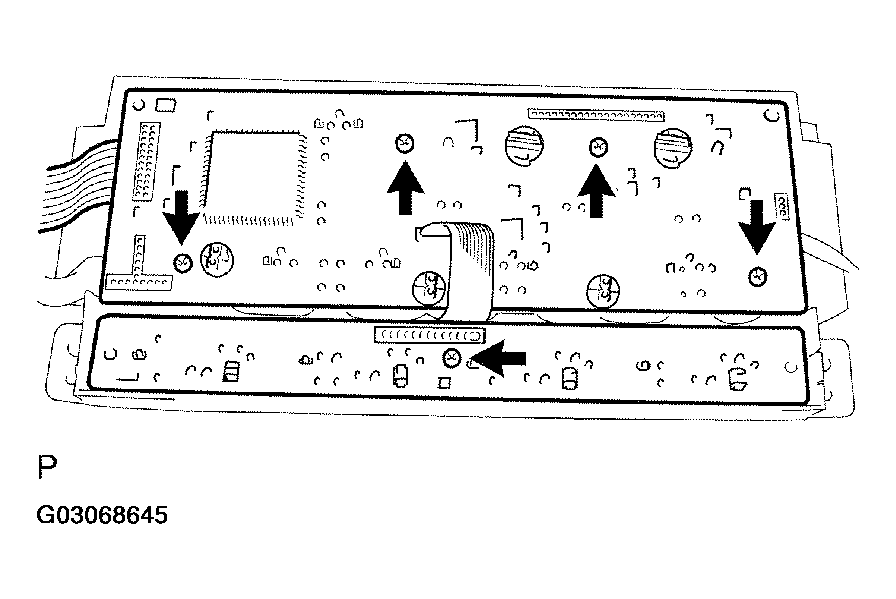

2. Remove the 5 screws and the board.

  Fig 7: Removing Board (W/O Navigation System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
