Navigation Module: Testing and Inspection

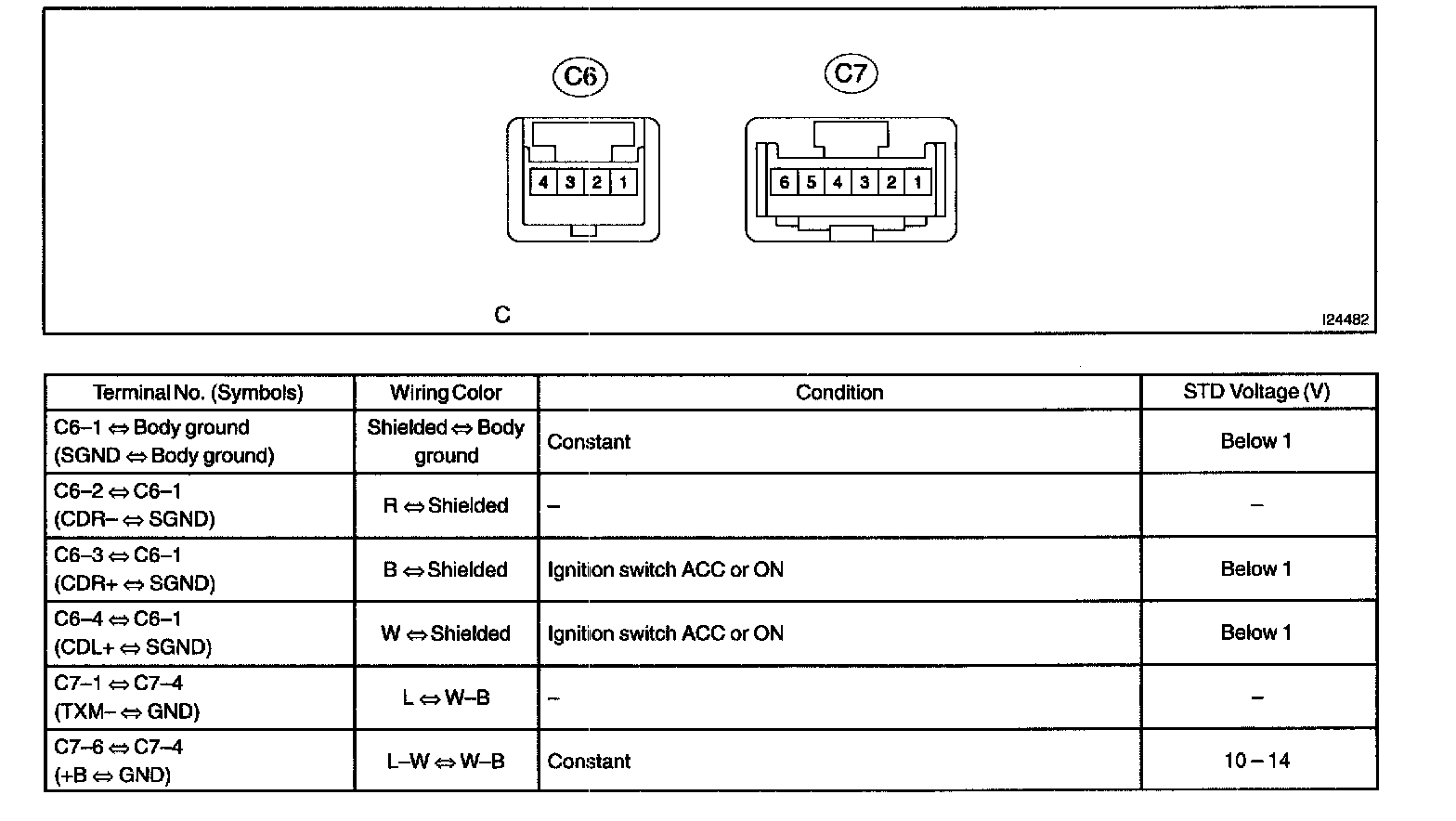

Terminals Of ECU/pinouts Navigation Receiver Assy Part 1:

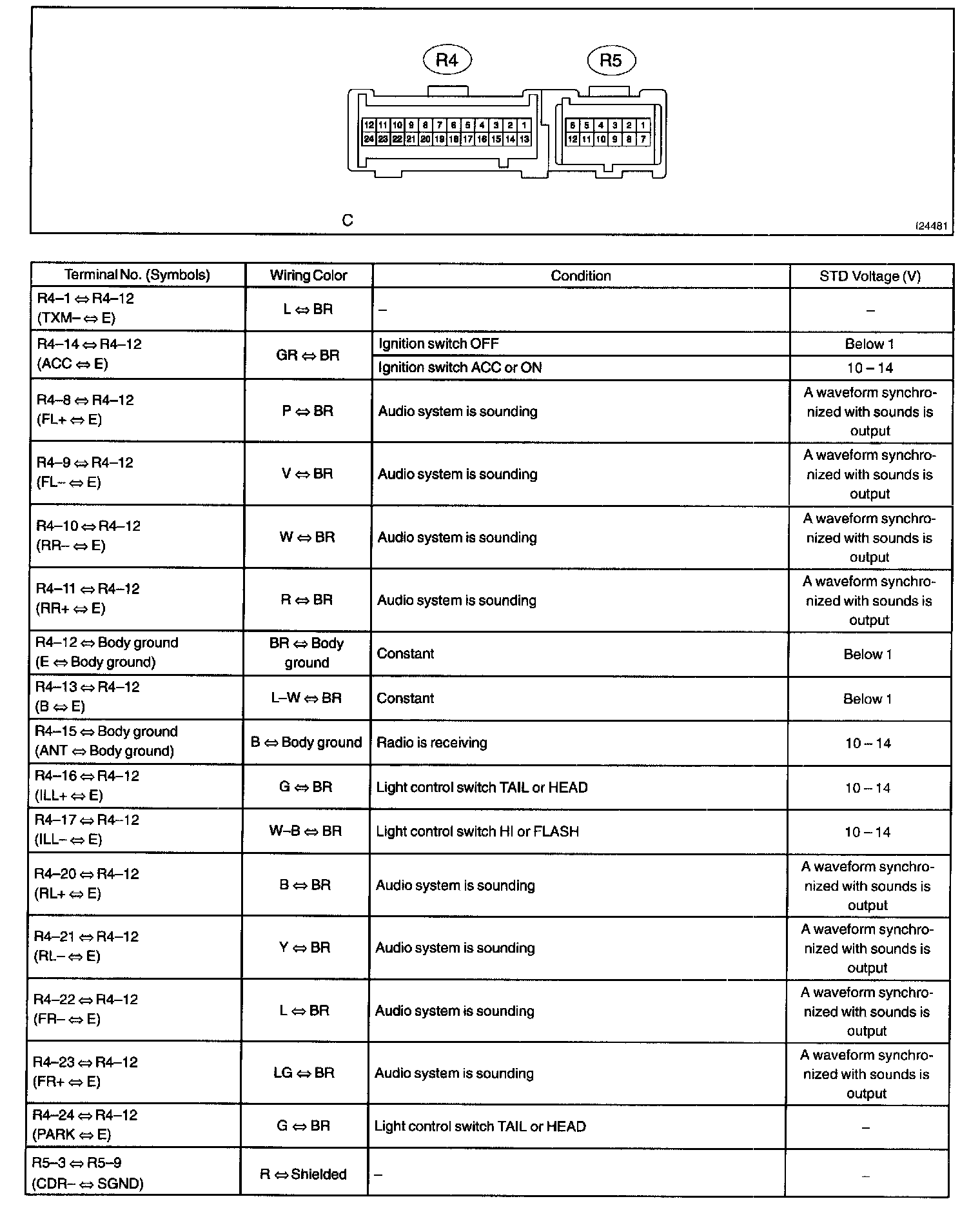

Terminals Of ECU/pinouts Navigation Receiver Assy Part 2:

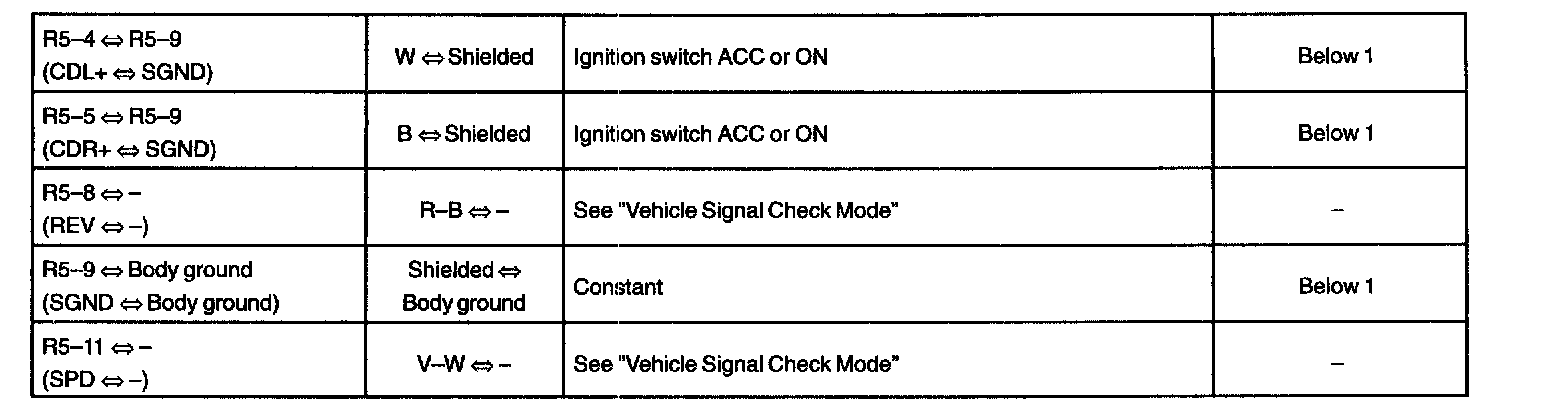

Terminals Of ECU/pinouts Disc Player Changer:
