Cruise Control Module: Service and Repair

CRUISE CONTROL ECU ASSEMBLY

REPLACEMENT

1. REMOVE METER HOOD SUB-ASSEMBLY
2. REMOVE COMBINATION METER ASSEMBLY

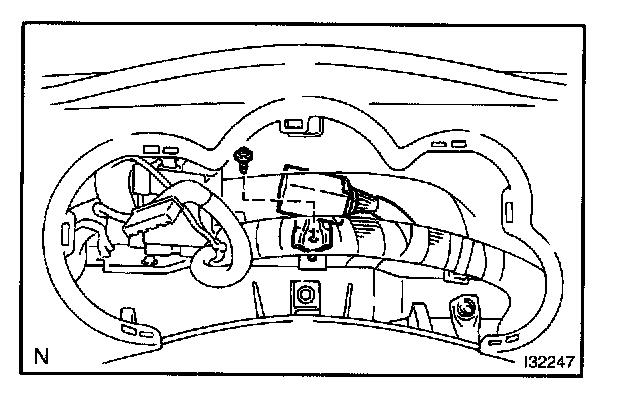

3. REMOVE CRUISE CONTROL ECU ASSEMBLY
a. Disconnect the connector.
b. Remove the screw and cruise control ECU assembly.
