Fuse Block: Locations
Engine Room R/B, J/B - Engine Compartment Left:
Instrument Panel J/B - Lower Finish Panel:
Instrument Panel J/B - Lower Finish Panel:
RH R/B, J/B - Right Side Of The Instrument Panel Reinforcement:

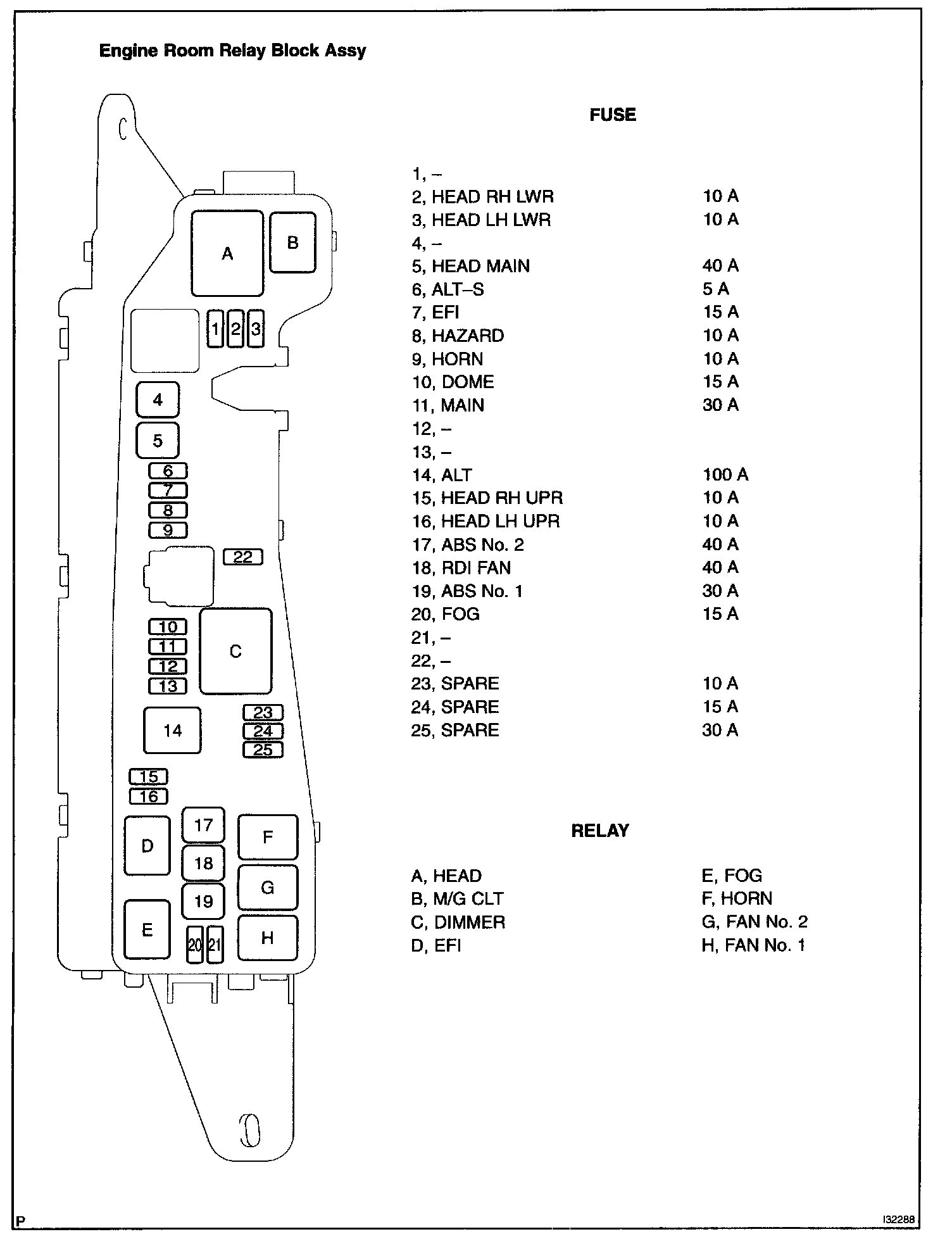

Engine Room Relay Block Assembly:

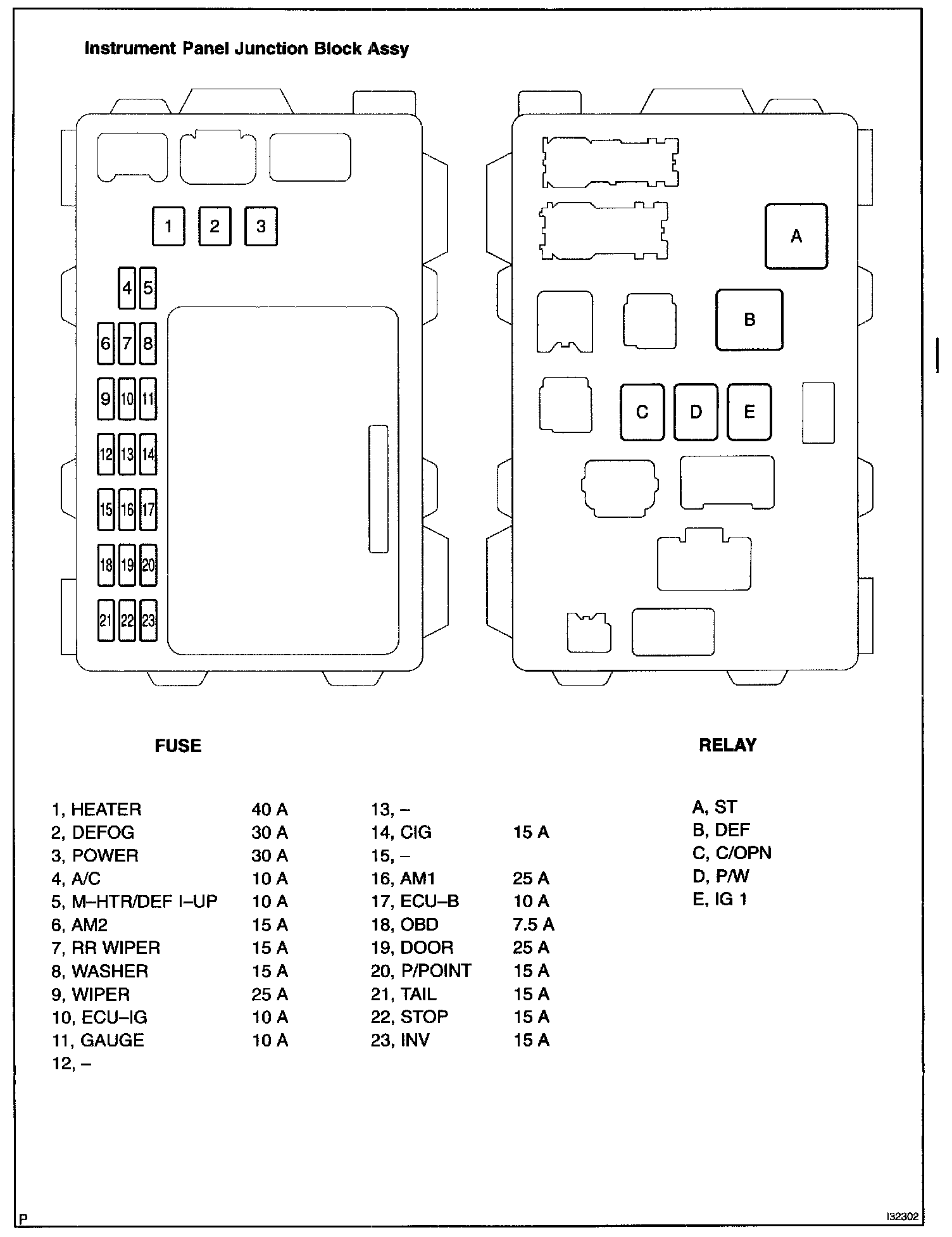

Instrument Panel Junction Block Assembly:
RH Junction Block:
Details

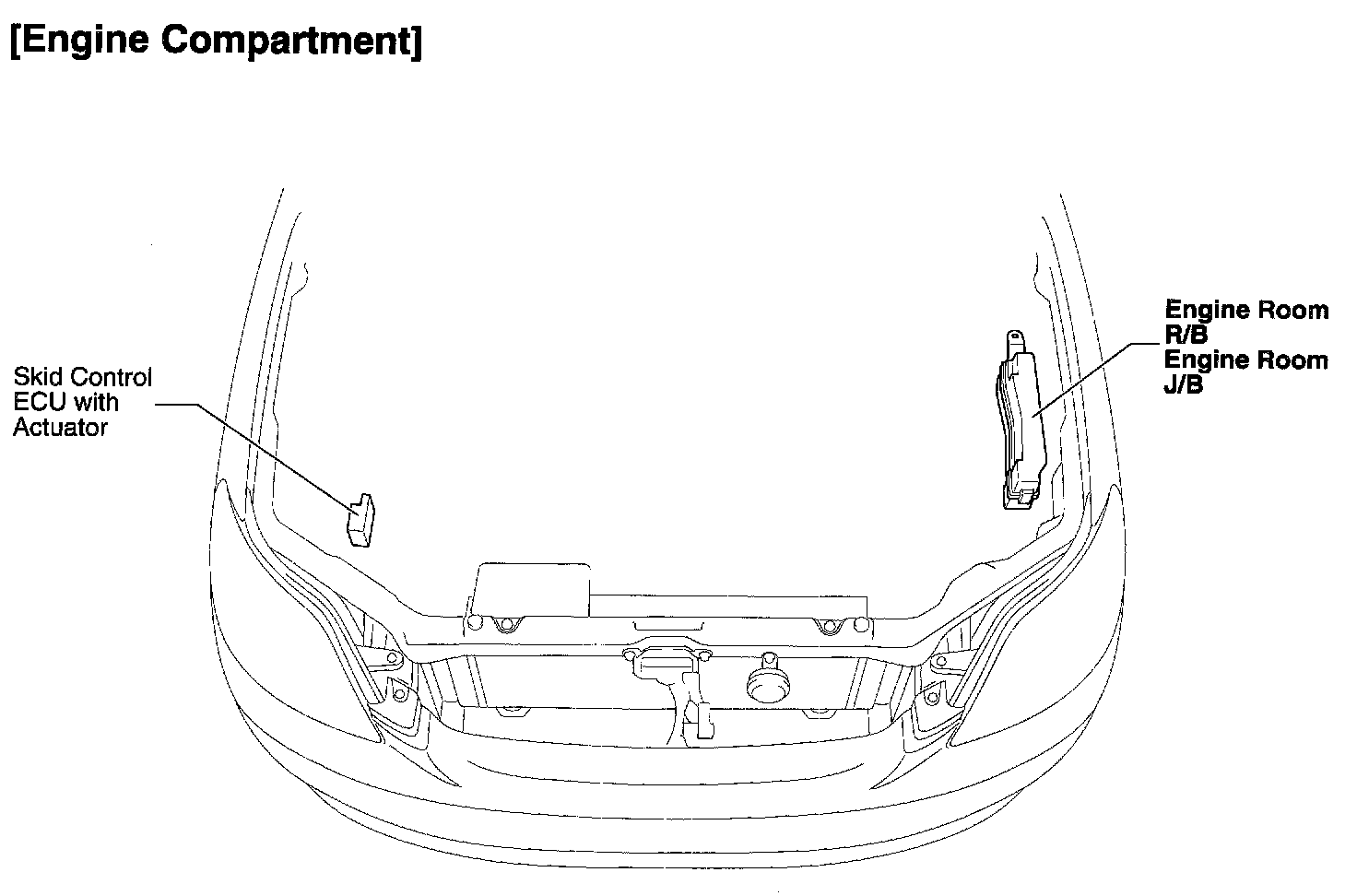

Engine Compartment:
Instrument Panel:

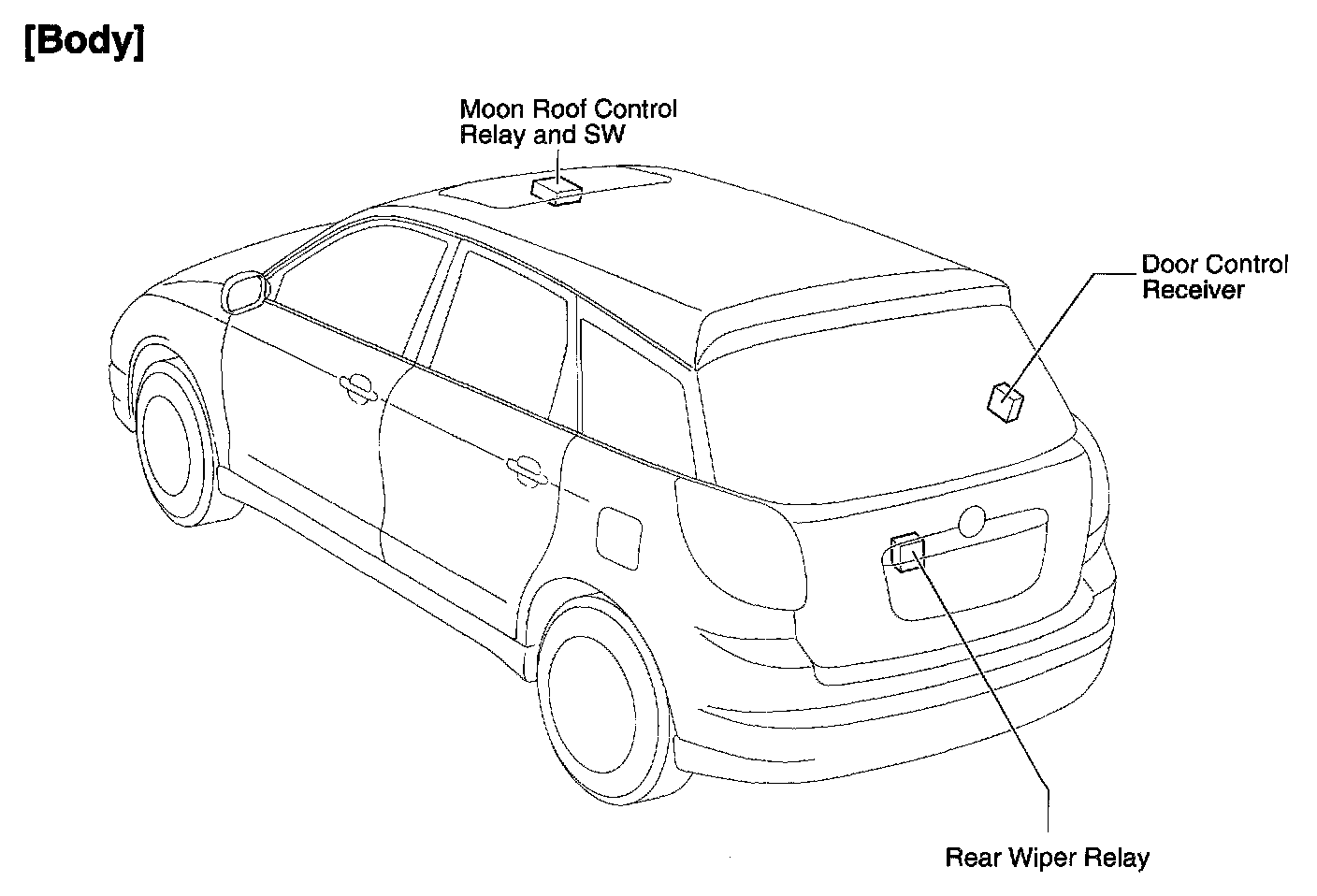

Body:
Power Source:

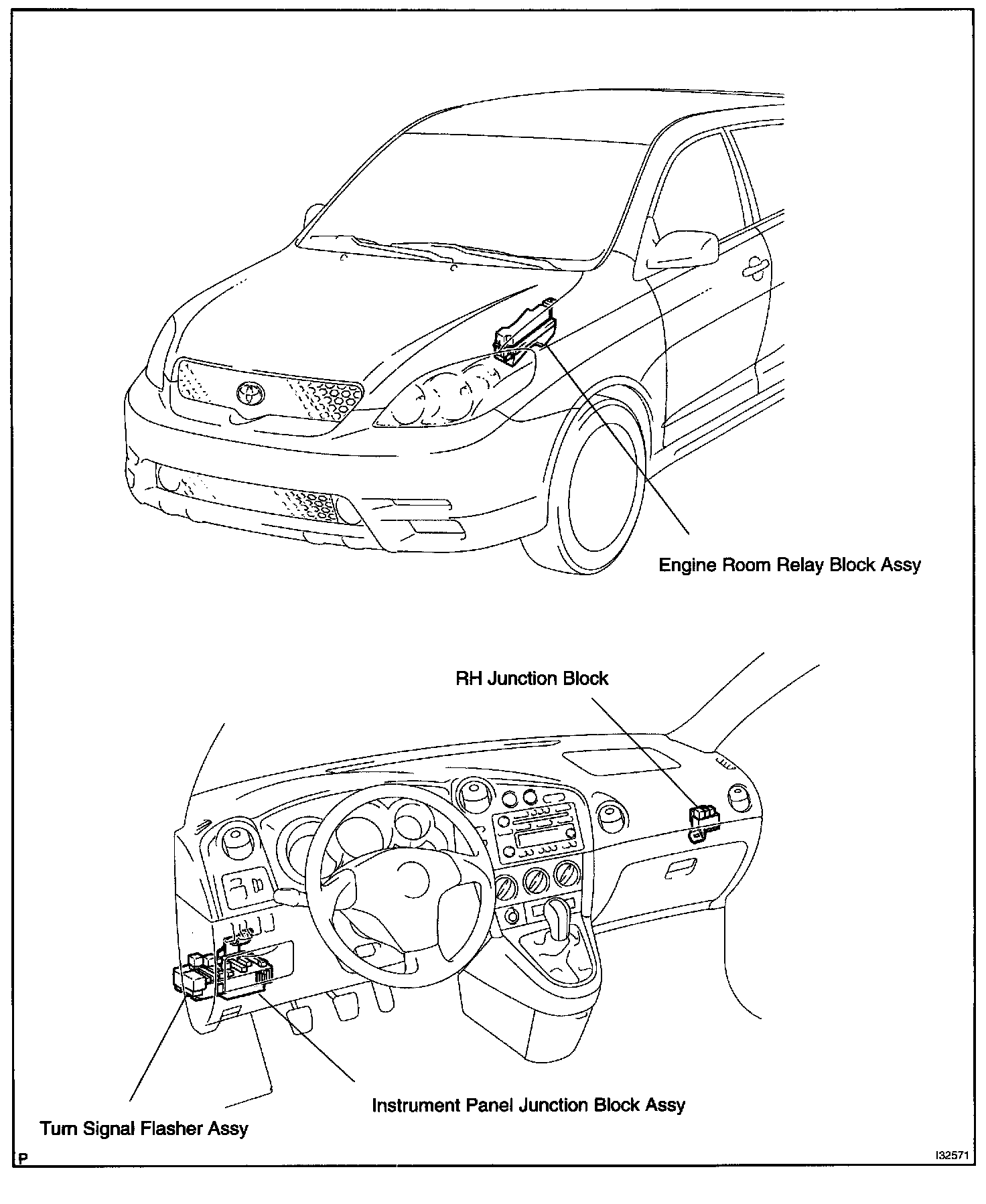

Locations
