System Specifications

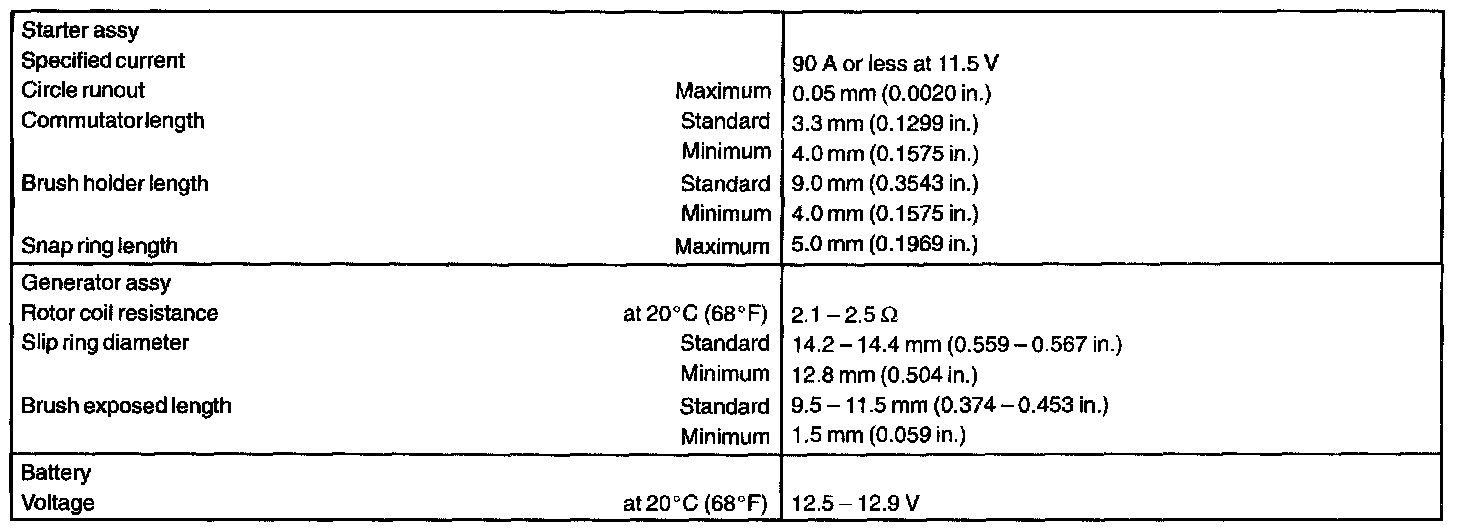

Starting & Charging - Service Data:

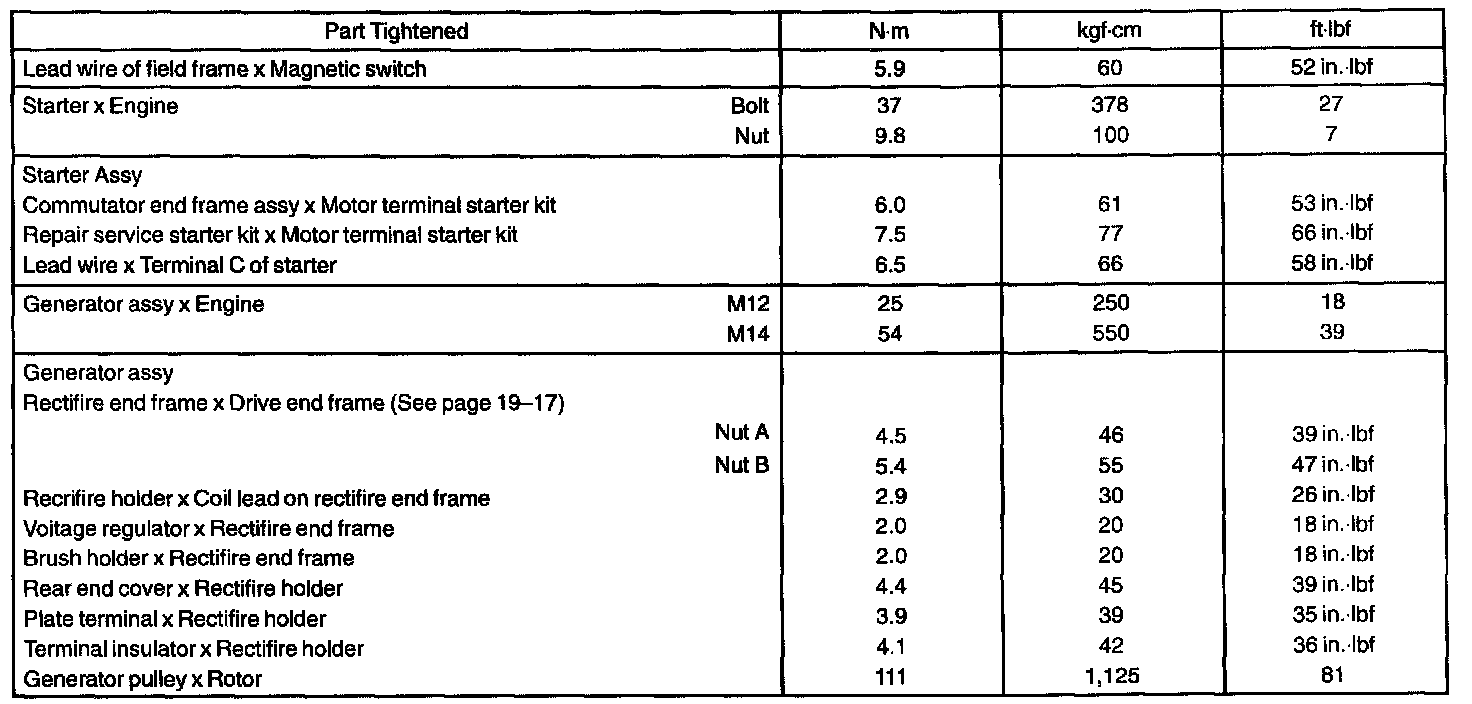

Starting & Charging - Torque Specification:
