Axle Shaft Assembly

Drive Shaft/Propeller Shaft/Axle - Service Data:

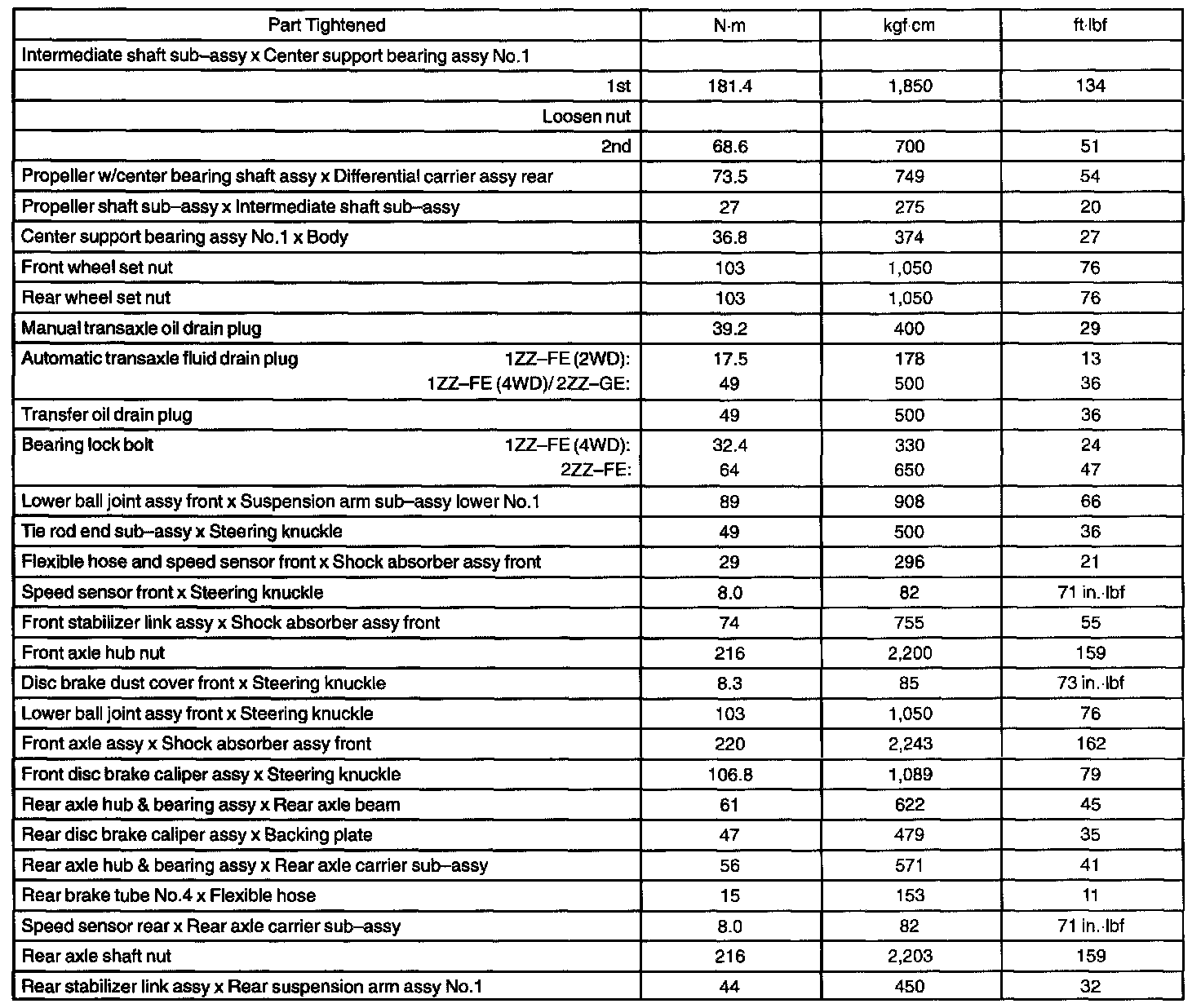

Drive Shaft/Propeller Shaft/Axle - Torque Specification:
