Radio Receiver Assembly: Replacement

NOTE: COMPONENTS: See COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )
REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
1. Remove the 4 screws.
2. Disconnect the clamp from the radio bracket No.2.
3. Disconnect the connectors, then remove the radio receiver assembly w/bracket.

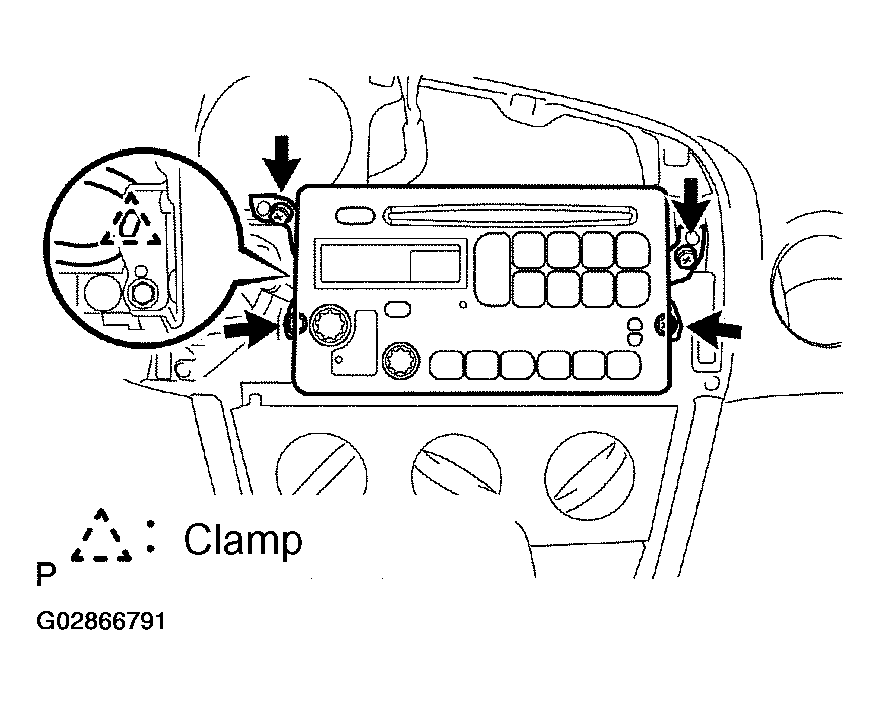

Fig 1: Removing Radio Receiver Assembly W/Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO.1
1. Except Indash CD Changer:
  Remove the 4 screws and radio bracket No.1.

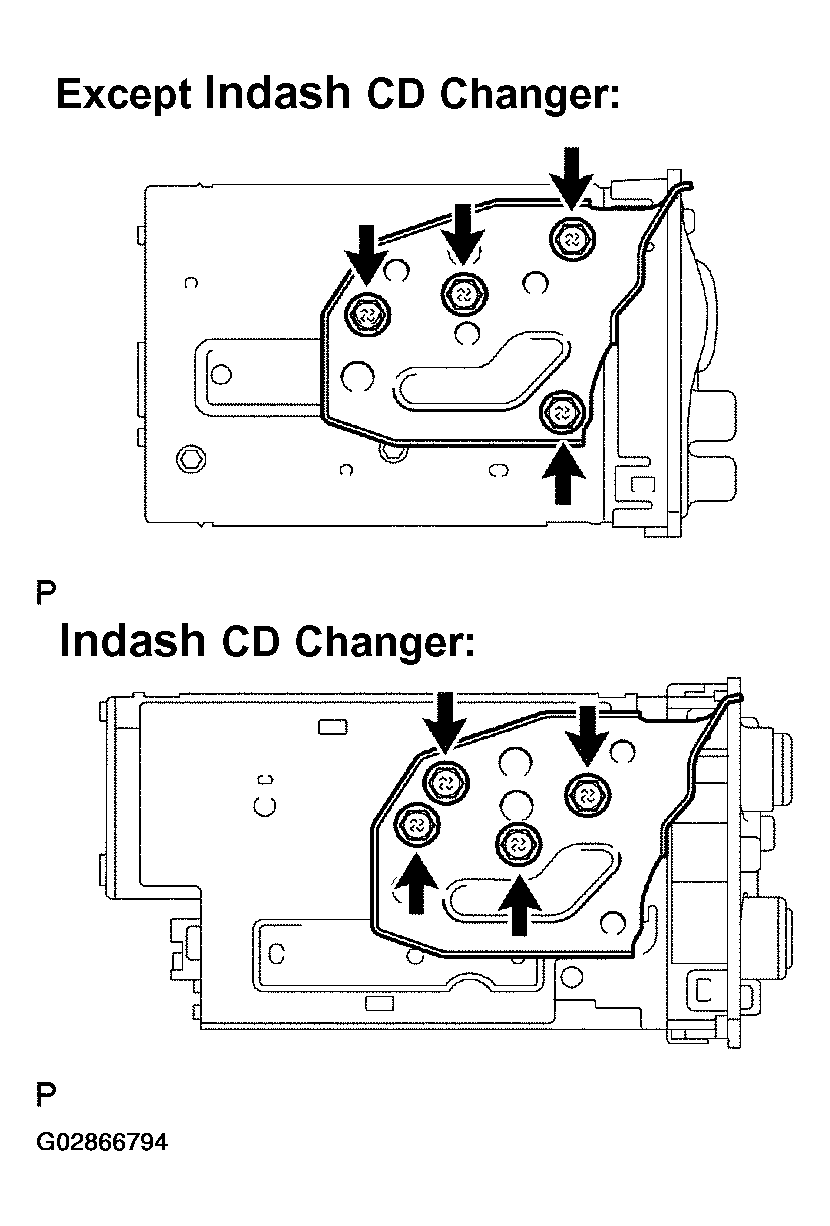

  Fig 2: Removing Radio Bracket No. 1 (Except Indash CD Changer)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Indash CD Changer:
  Remove the 3 screws and radio bracket No.1.

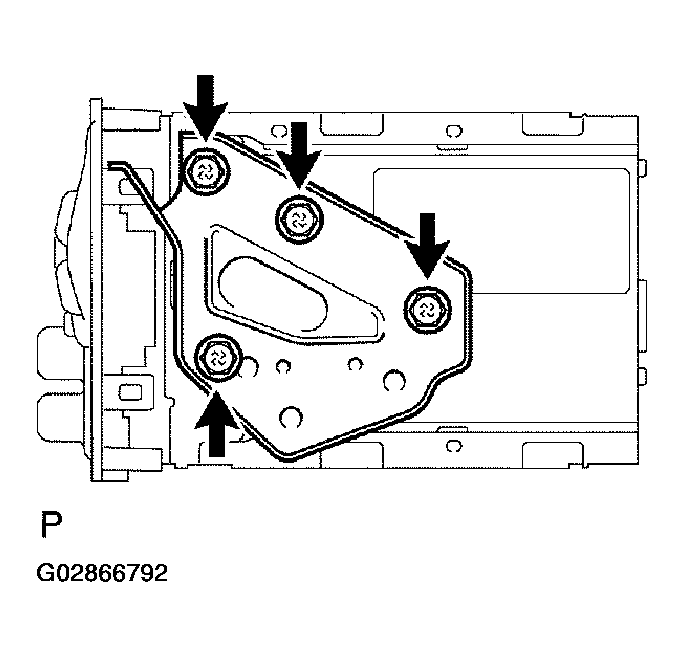

Fig 3: Removing Radio Bracket No. 1 (Indash CD Changer)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO.2
1. Remove the 4 screws and radio bracket No.2.

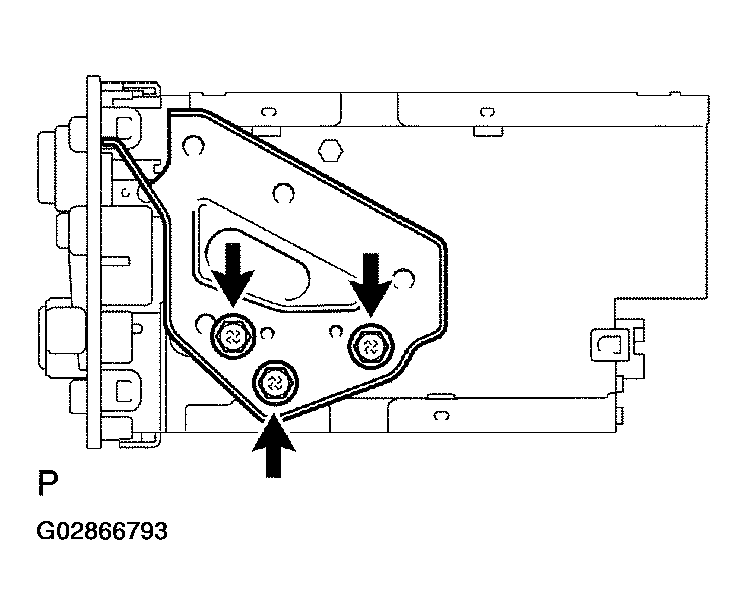

Fig 4: Remove Radio Bracket No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER ASSY
