Power Door Lock Control System - Diagnostics: Location: Notes

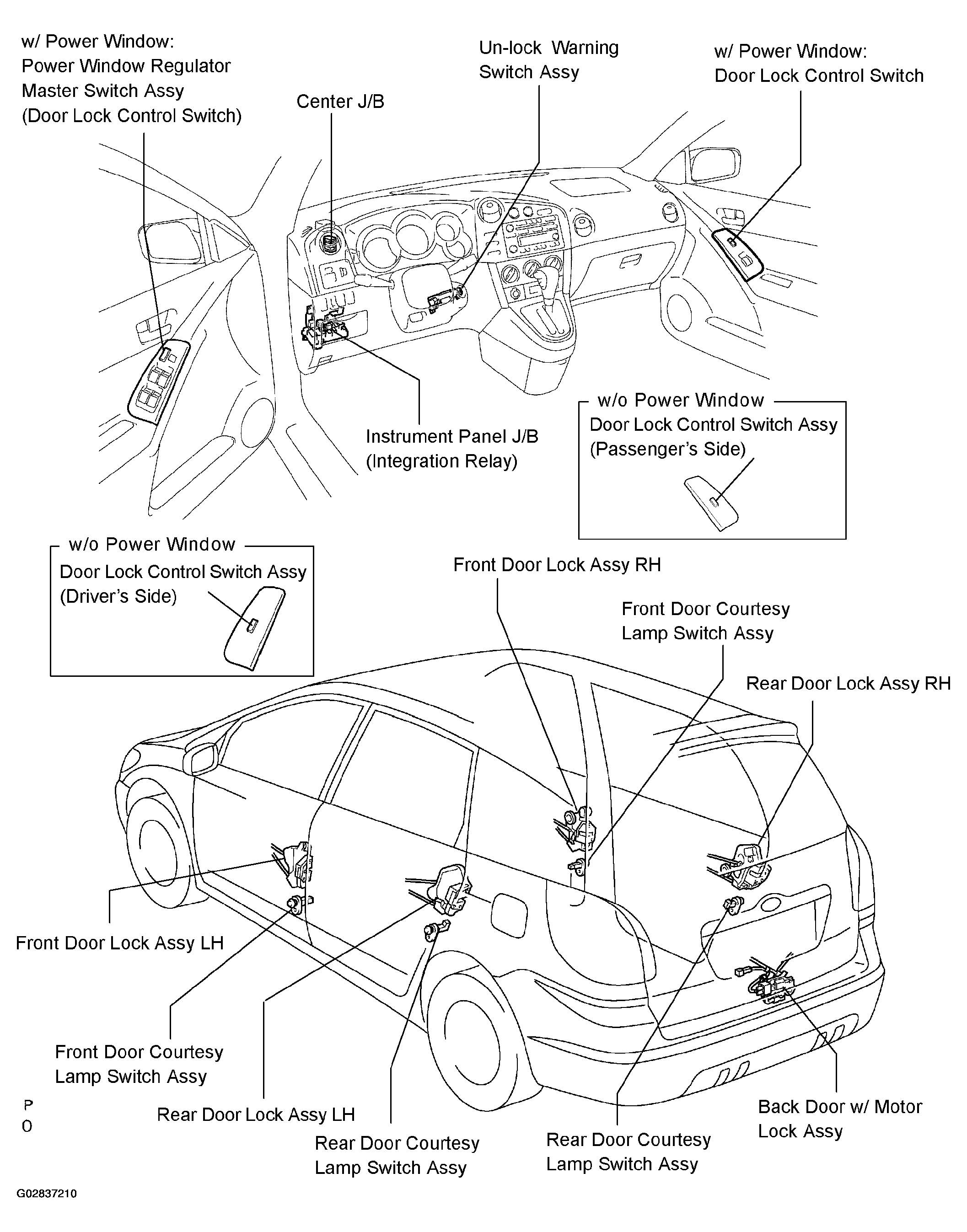

Fig 1: Identifying Power Door Lock Control System Components
G02837210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
