Back Door Glass: Replacement

NOTE: Installation is in the reverse order of the removal.

REMOVE BACK DOOR PANEL SUB-ASSY UPPER OUTER

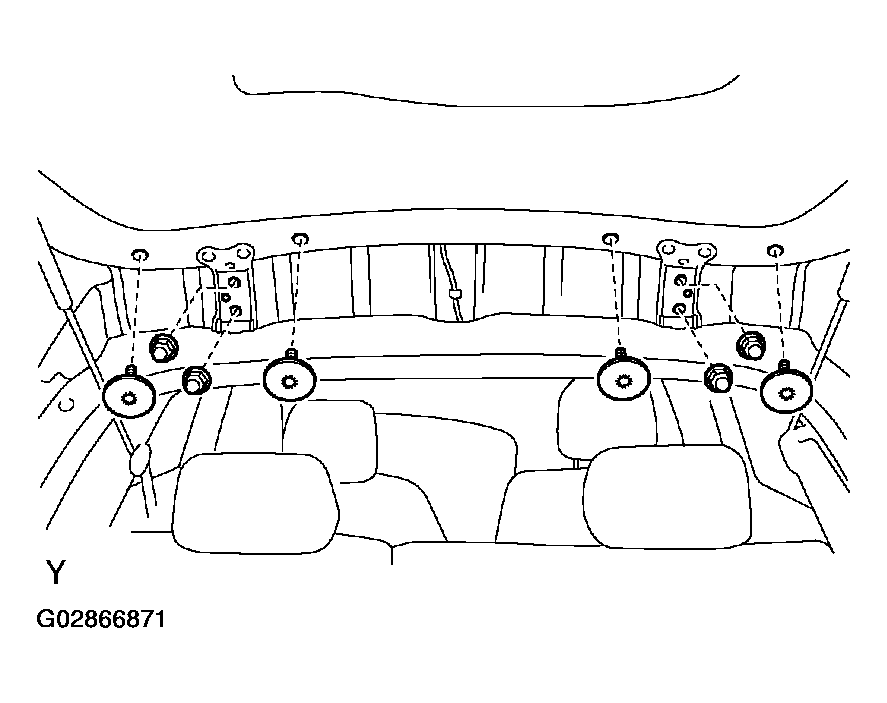

Fig 1: Removing Back Door Panel Sub-Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 nuts and rear stoplight cover.
2. Using a Torx wrench (T30), remove the 4 screws.
3. Remove the 4 nuts.

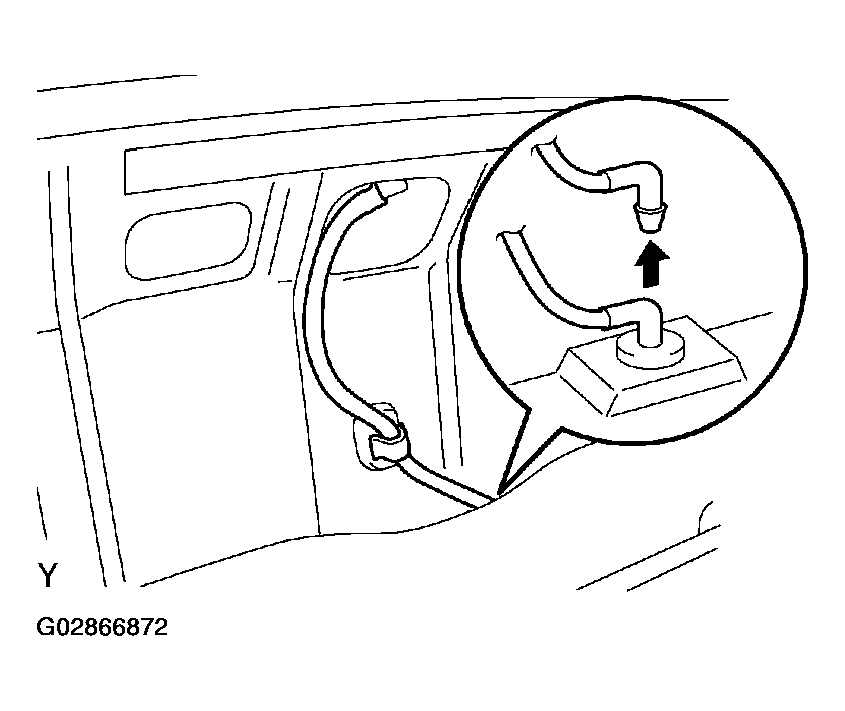

4. Remove the hose.

  Fig 2: Removing Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

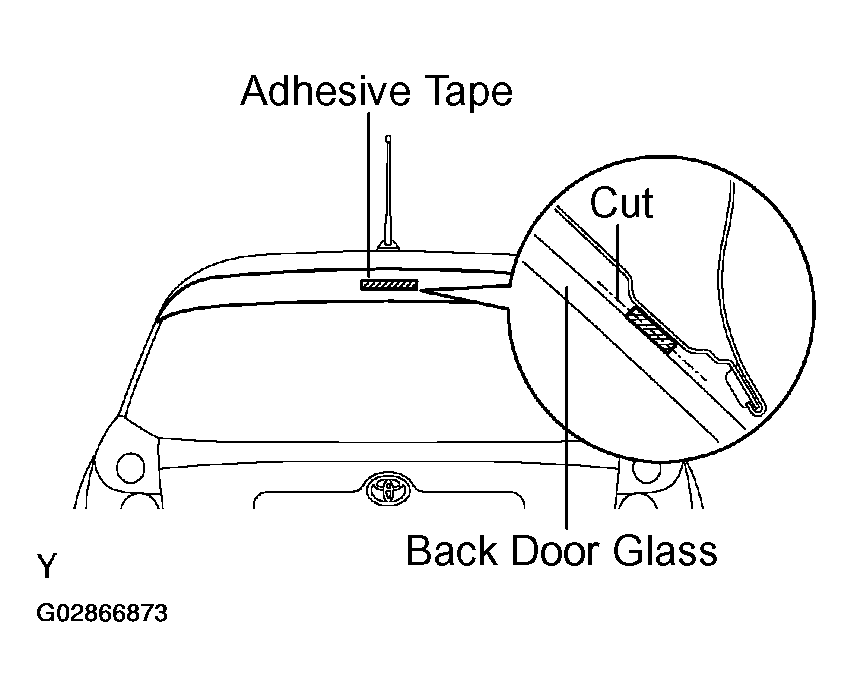

5. Using a knife, cut off the adhesive tape as shown in the illustration.
6. Remove the back door panel upper outer, and then disconnect the clamp.
NOTE: Do not damage the back door glass with the knife.
REMOVE REAR WIPER ARM ASSY (W/ RR WIPER) (See REPLACEMENT )
REMOVE REAR WIPER LINK CAP (W/ RR WIPER) (See REPLACEMENT )
REMOVE W/WASHER PACKING NUT REAR WIPER LINK PIVOT (W/ RR WIPER) (See REPLACEMENT )
REMOVE RR WIPER MOTOR COVER (W/ RR WIPER) (See REPLACEMENT )
REMOVE REAR WIPER MOTOR ASSY (W/ RR WIPER) (See REPLACEMENT )
REMOVE BACK DOOR GLASS

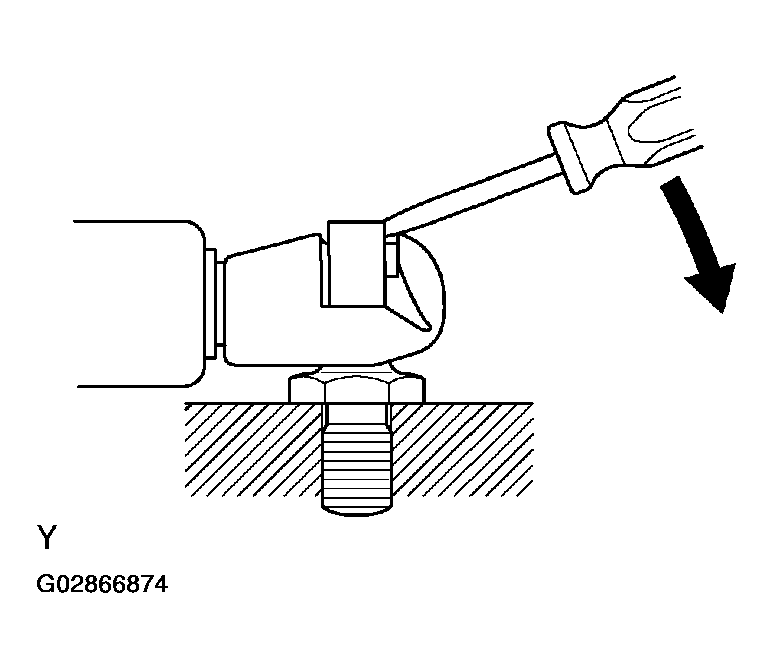

1. Using a screwdriver, remove the back door stay from the back door panel.
  NOTE: While supporting the back door by hand, remove the back door stay.

  Fig 4: Removing Back Door Stay From Back Door Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

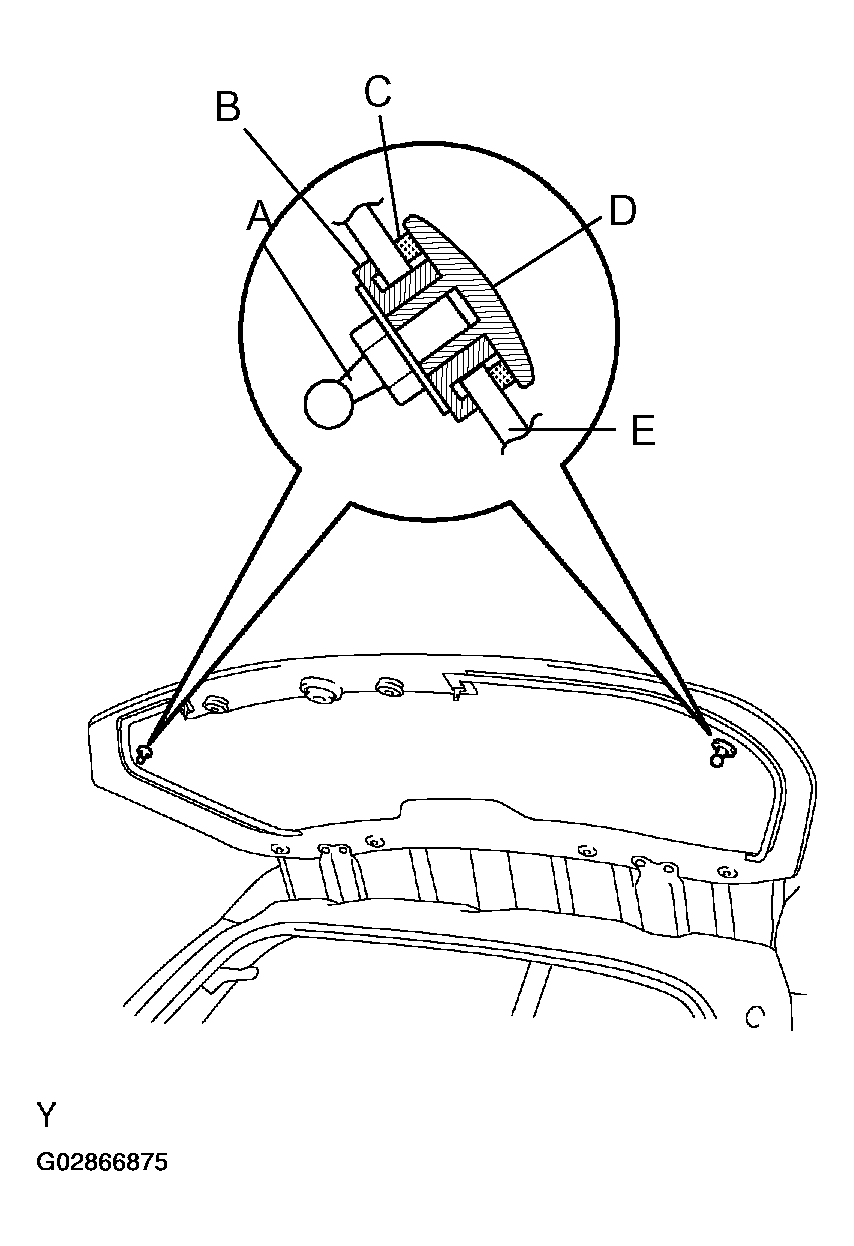

2. Remove the back door stay bolt No. 1, back door stay retainer and back door stay packing No. 2 from back door glass.

  Fig 5: Removing Back Door Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  1. Back door stay bolt No.1
  2. Back door stay packing No.2
  3. Back door stay packing No.1
  4. Back door stay retainer
  5. Back door glass

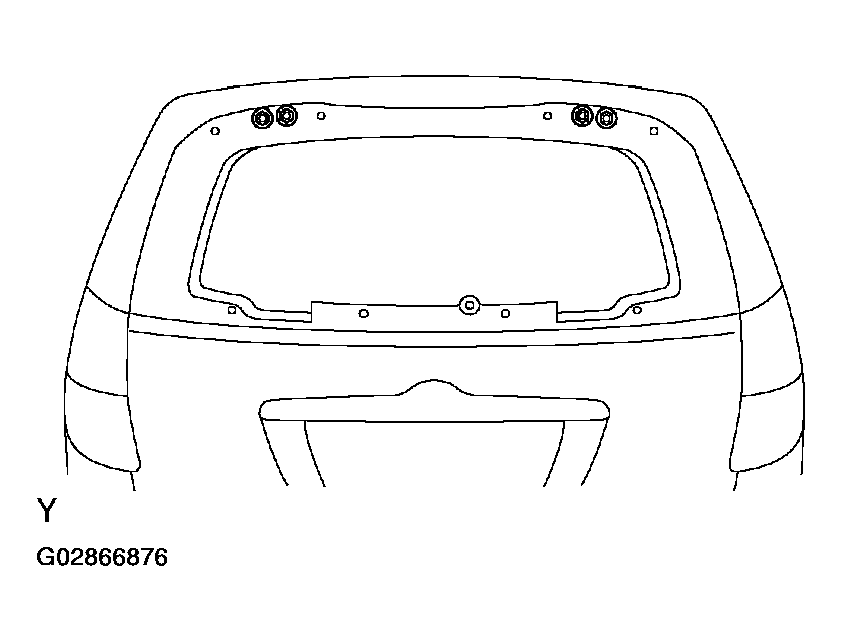

3. Remove the 4 nuts and back door glass.

  Fig 6: Removing Back Door Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR HINGE ASSY RH
1. Remove the 2 nuts, window glass spacer No.1, back door hinge male pad and back door glass from the back door hinge assembly RH.
REMOVE BACK DOOR HINGE ASSY LH
INSTALL BACK DOOR GLASS
Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
INSTALL BACK DOOR PANEL SUB-ASSY UPPER OUTER
1. If reusing the back door panel upper outer:
  Clean the back door panel upper outer.
  1. Remove the adhesive tape from the back door panel upper outer.
  2. Wipe off the stains with cleaner.

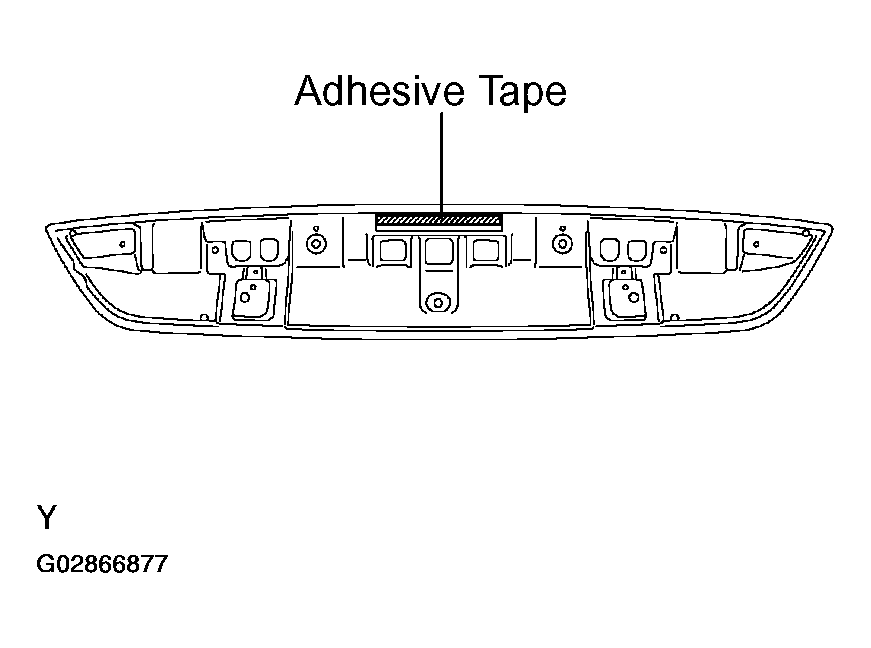

2. Apply new adhesive tape to the back door panel upper outer as shown in the illustration.
3. Install the back door panel upper outer with the 4 screws and 4 nuts.
