Deceleration Sensor (4WD): Replacement

REMOVE FRONT SEAT ASSEMBLY LH (See OVERHAUL )
REMOVE DECELERATION SENSOR BRACKET
1. Remove the bolt and upper side deceleration sensor bracket.

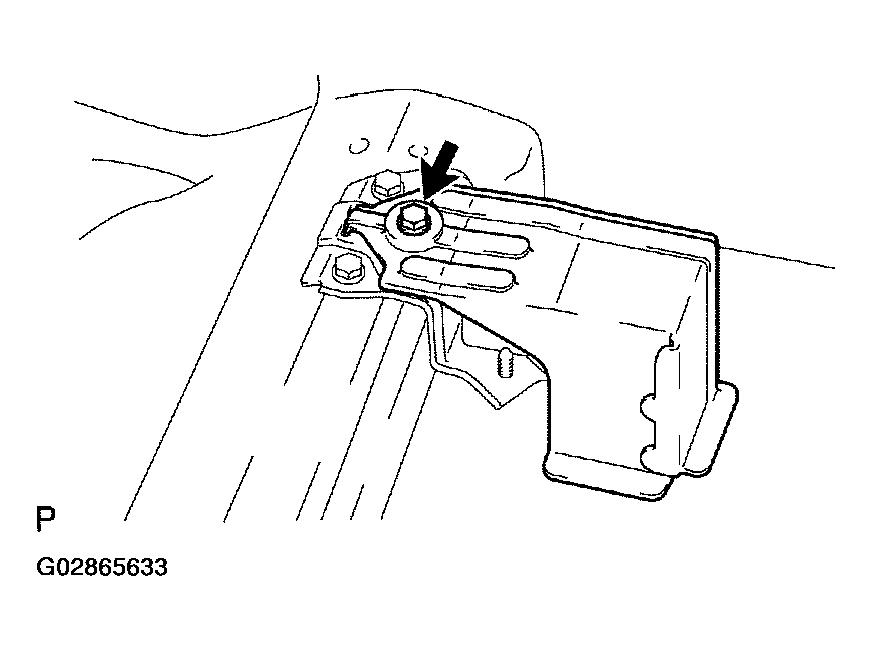

  Fig 1: Removing Deceleration Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DECELERATION SENSOR
1. Disconnect the deceleration sensor connector from the deceleration sensor, then remove the 2 bolts and deceleration sensor with the anchor side deceleration sensor bracket.

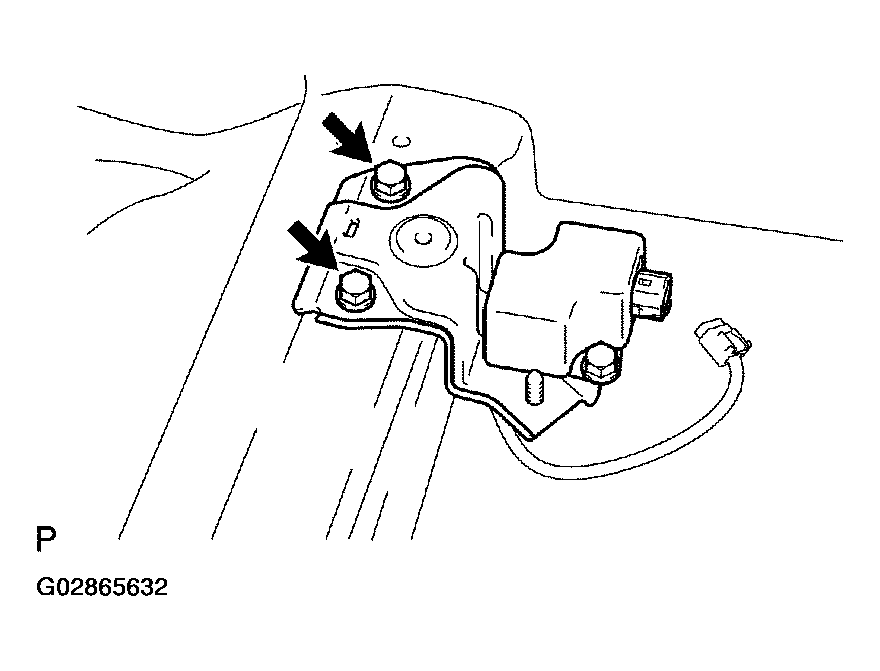

  Fig 2: Disconnecting Deceleration Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECELERATION SENSOR
1. Install the 2 bolts and deceleration sensor to the body, then connect the deceleration sensor connector to the deceleration sensor.
Torque: 21 N.m (214 ft.lbf, 15 ft.lbf)
NOTE:
- Do not use the dropped or damage sensor.
- Free from the foreign matters or floor carpet between the deceleration sensor bracket and body.
INSTALL DECELERATION SENSOR BRACKET
1. Install the bolt and upper side deceleration sensor bracket.
Torque: 21 N.m (214 ft.lbf, 15 ft.lbf)
INSTALL FRONT SEAT ASSEMBLY LH (See OVERHAUL )
CHECK DECELERATION SENSOR SIGNAL (See PRE-CHECK )
