Back-Up Light System: Location

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

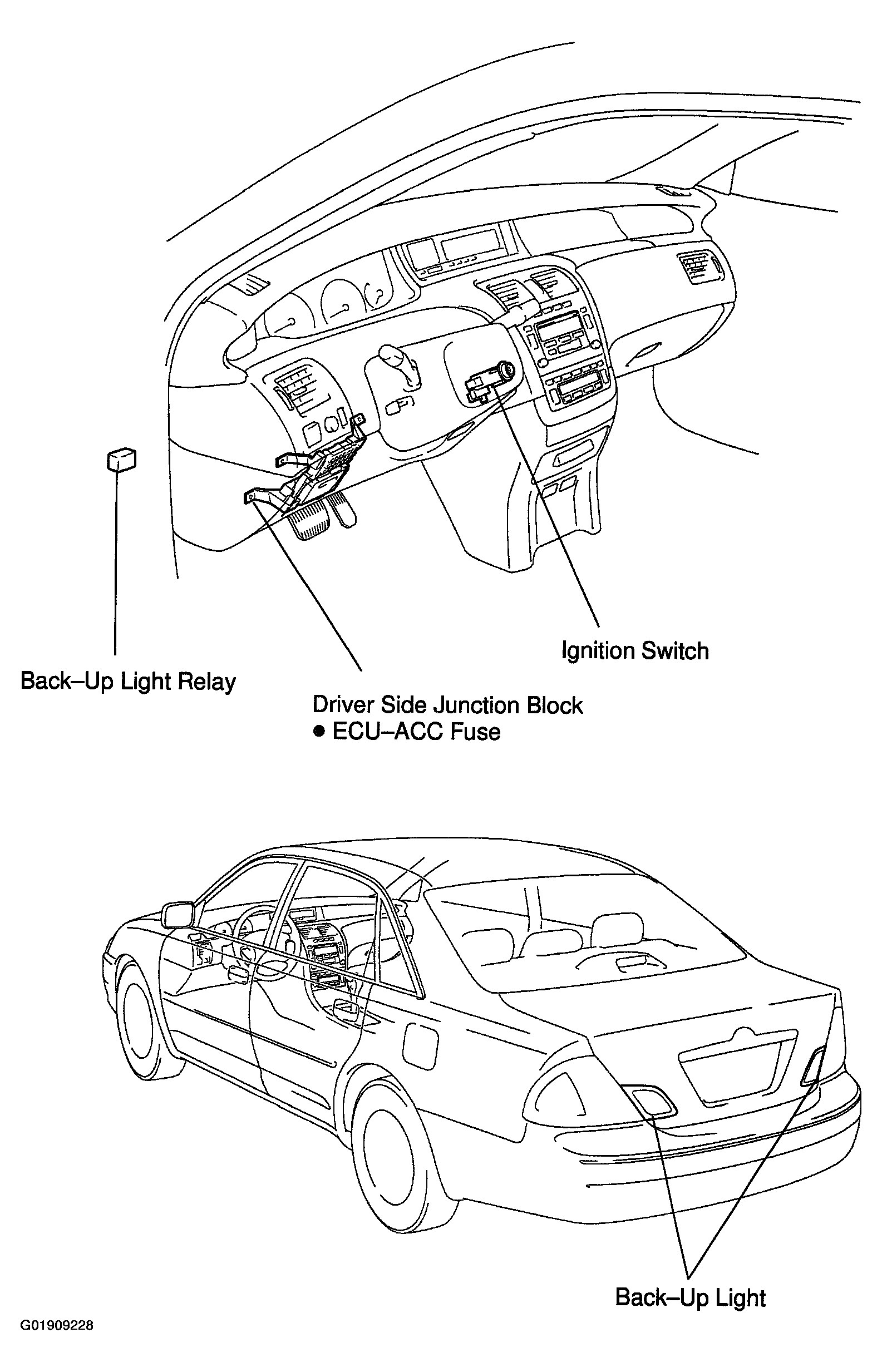

Fig 1: Locating Back-Up Light System Components
G01909228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
