Section 249 (Exterior Lights): Inspection

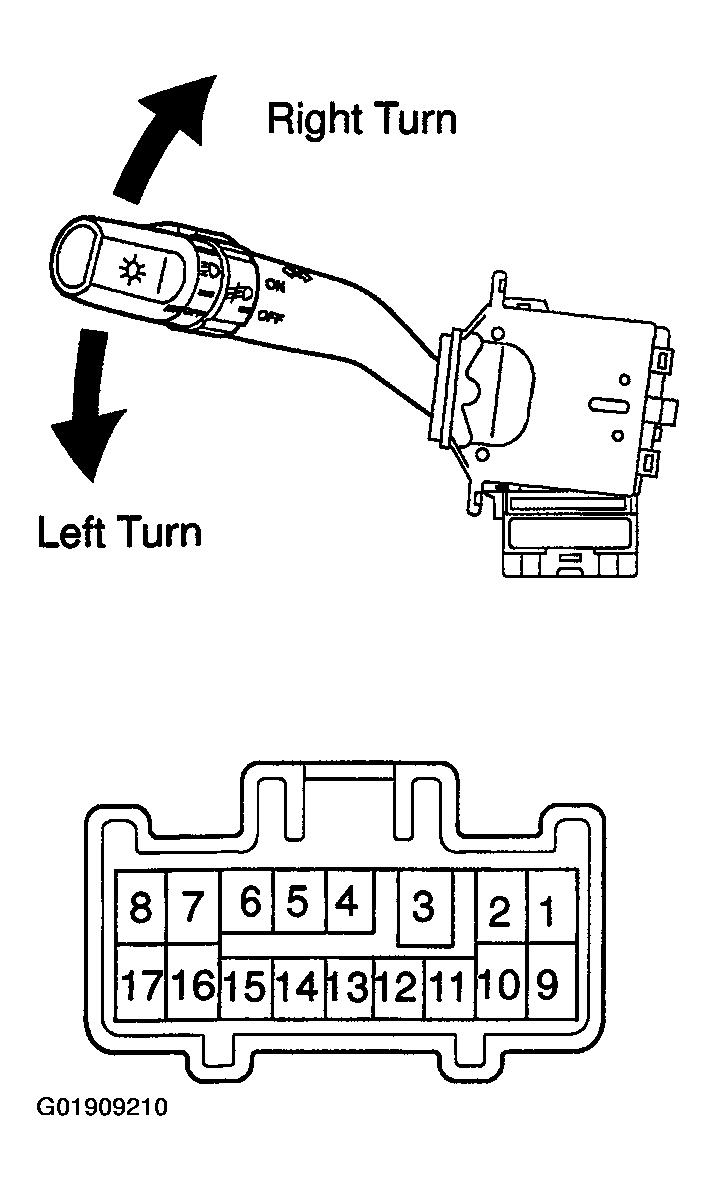

Fig 1: Identifying Turn Signal Switch Positions & Locating Turn Signal Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

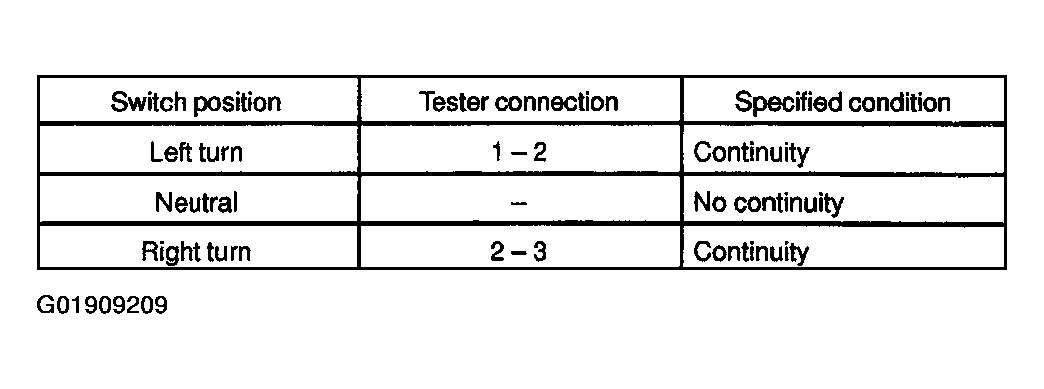

Fig 2: Turn Signal Switch Continuity Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.

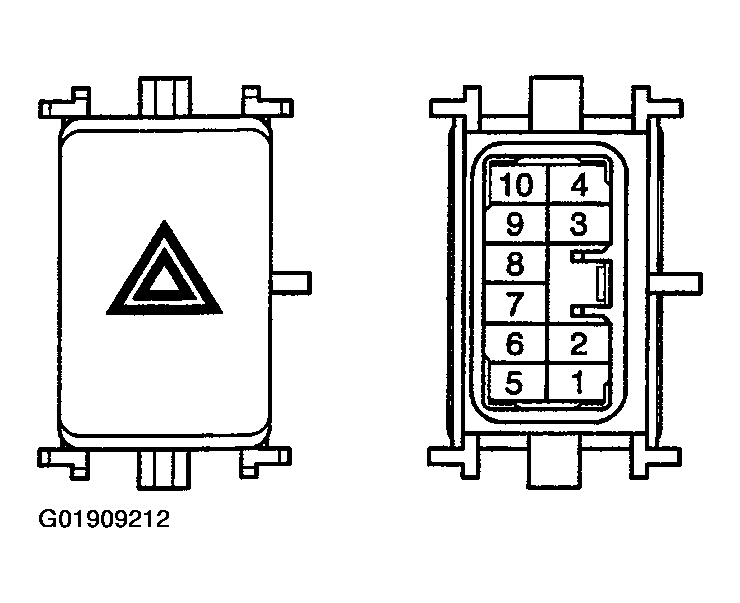

Fig 3: Identifying Hazard Warning Switch & Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

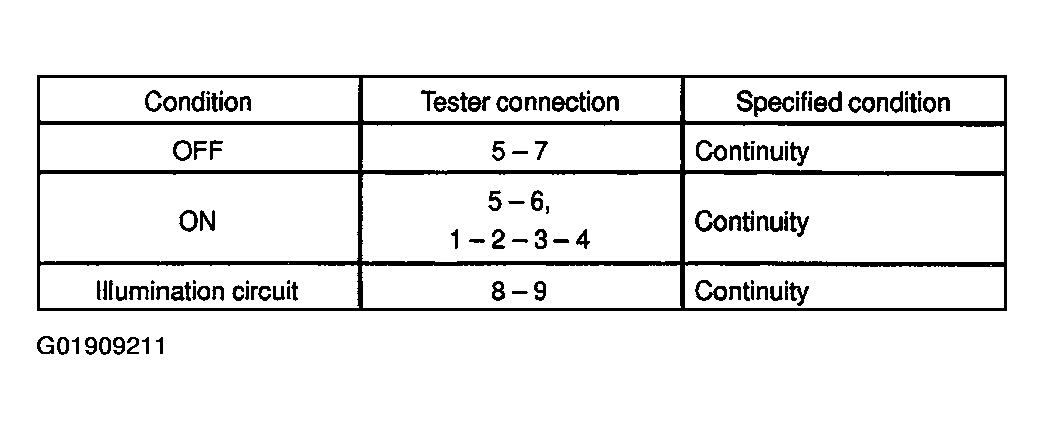

Fig 4: Hazard Warning Switch Terminal Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.

1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 3.
NOTE:
• The turn signal lights should flash 60 or 120 times per minute.
• If one of the front or rear turn signal lights has an open circuit, the number of flashers will be more than 140 per minute.
• If operation is not as specified, replace the flasher.

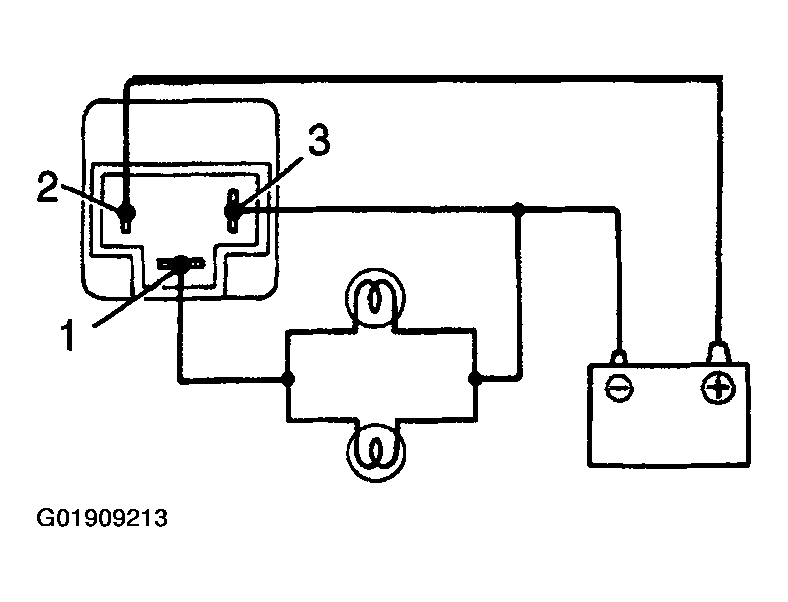

Fig 5: Testing Turn Signal Flasher Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 turn signal light bulbs parallel to each other to terminals 1 and 3, check that the bulbs flash.
