Section 366 (Front Brake Speed Sensor): Removal
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT WHEEL
Torque: 110 N.m (1,150 kgf.cm, 83 ft.lbf)
- DISCONNECT SPEED SENSOR CONNECTOR
- REMOVE SPEED SENSOR
- Remove the clips and 3 clamp bolts holding the sensor harness from the frame, upper arm and steering knuckle.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

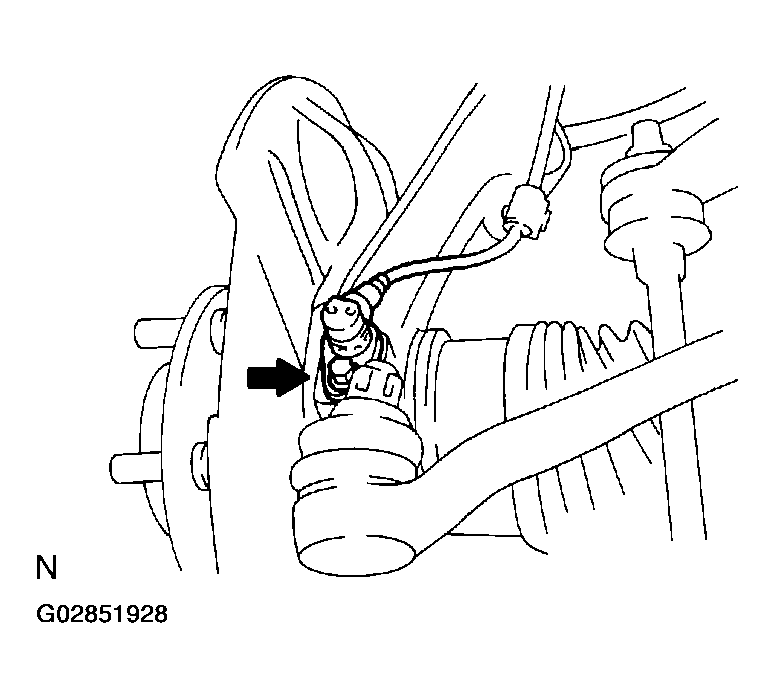

- Remove the bolt and speed sensor from the steering knuckle.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- Remove the clips and 3 clamp bolts holding the sensor harness from the frame, upper arm and steering knuckle.
