Cruise Control Actuator ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CRUISE CONTROL ACTUATOR COVER
1. Disengage the 2 claws, then remove the cruise control actuator cover.

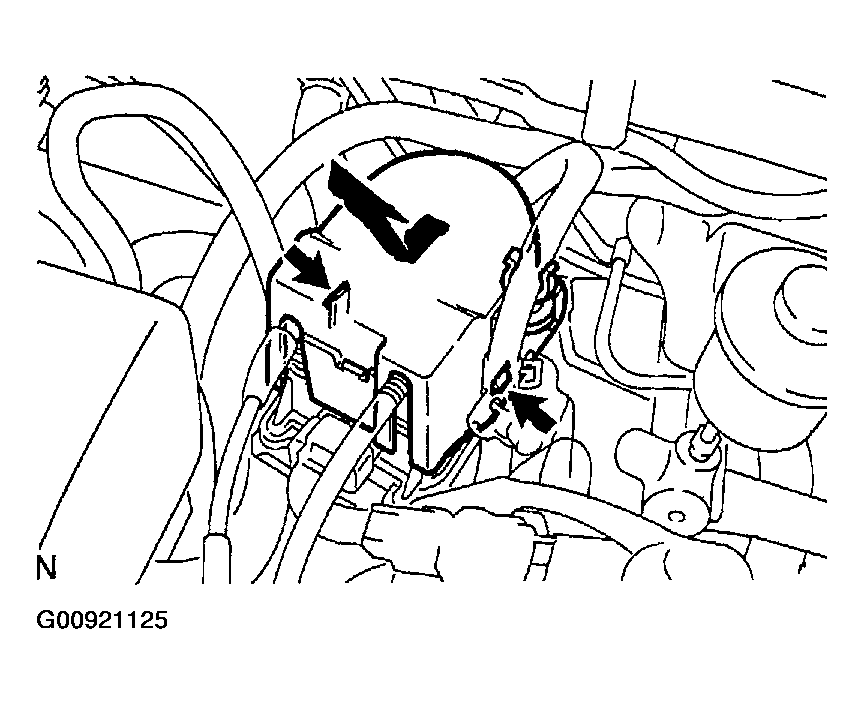

Fig 1: Disengaging Claws And Removing Cruise Control Actuator Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE ACCELERATOR CONTROL CABLE ASSY
1. Loosen the double nut and separate the accelerator control cable assy.

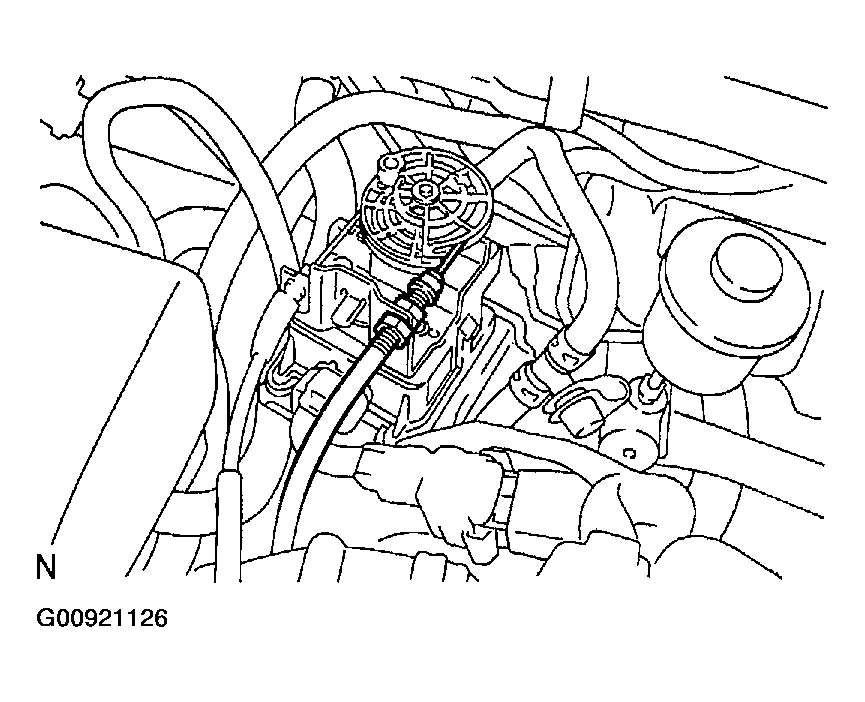

Fig 2: Loosening Double Nut And Separating Accelerator Control Cable Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE ACCELERATOR AUTO DRIVE CABLE ASSY
1. Remove the screw and separate the accelerator auto drive cable assy.

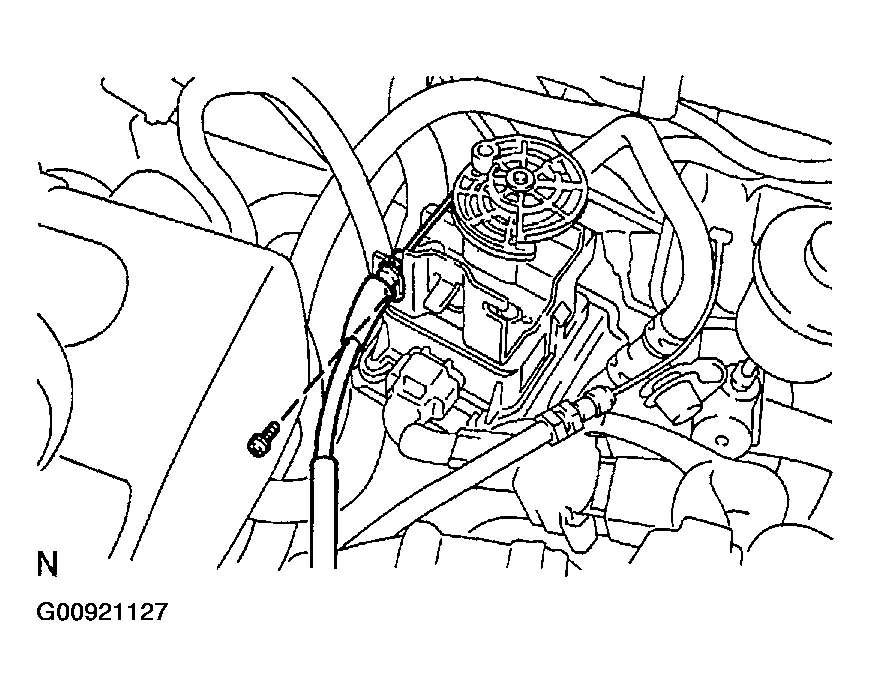

Fig 3: Removing Screw And Separating Accelerator Auto Drive Cable Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRUISE CONTROL ACTUATOR ASSY
1. Disconnect the connector.
2. Remove the 2 bolts and cruise control actuator assy.
  1. Torque: 6.0 N.m (60 kgf.cm, 52 in.lbf)

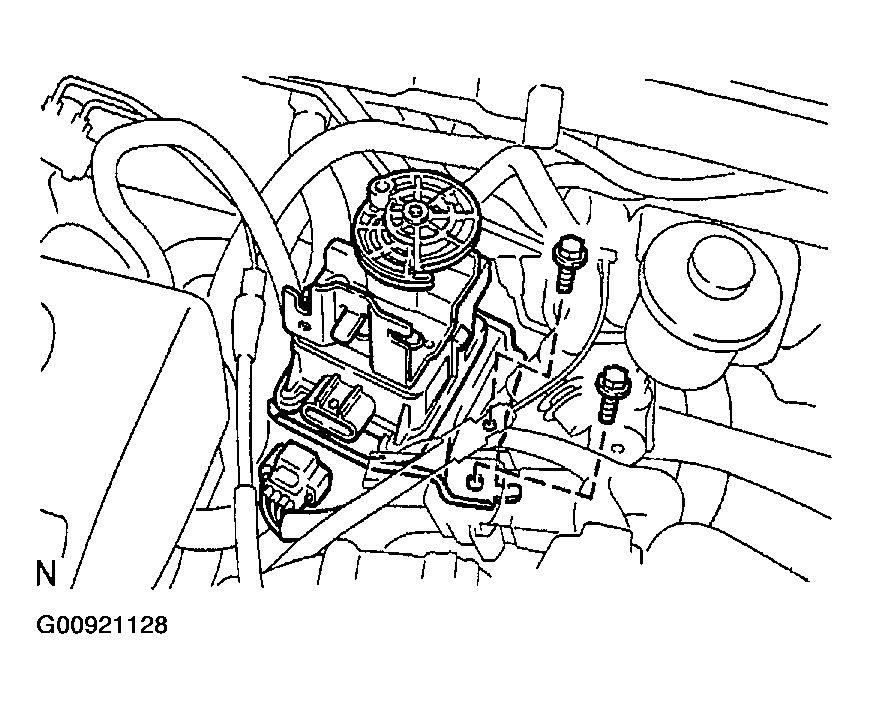

Fig 4: Removing Bolts And Cruise Control Actuator Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
