Cruise Control Ecu ASSY: Replacement
WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE METER HOOD SUB-ASSY (See OVERHAUL
)
- REMOVE COMBINATION METER ASSY (See OVERHAUL
)

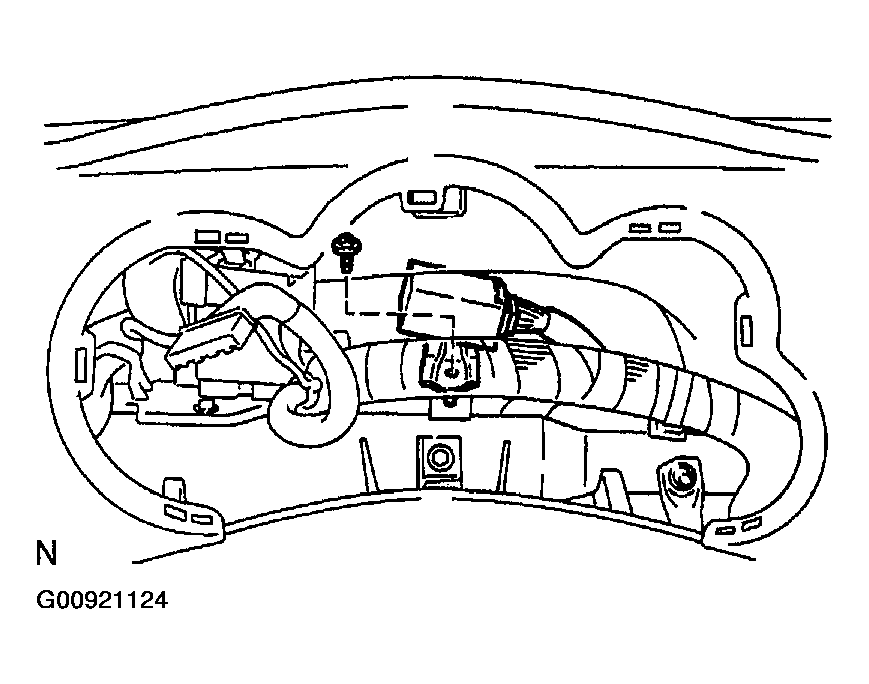

- REMOVE CRUISE CONTROL ECU ASSY
- Disconnect the connector.
- Remove the screw and cruise control ECU assy.
