Section 12 (Engine Mechanical Timing Chain Sub-Assembly - 2ZZ-GE): Components

WARNING: This page is about a different variant/trim than selected.

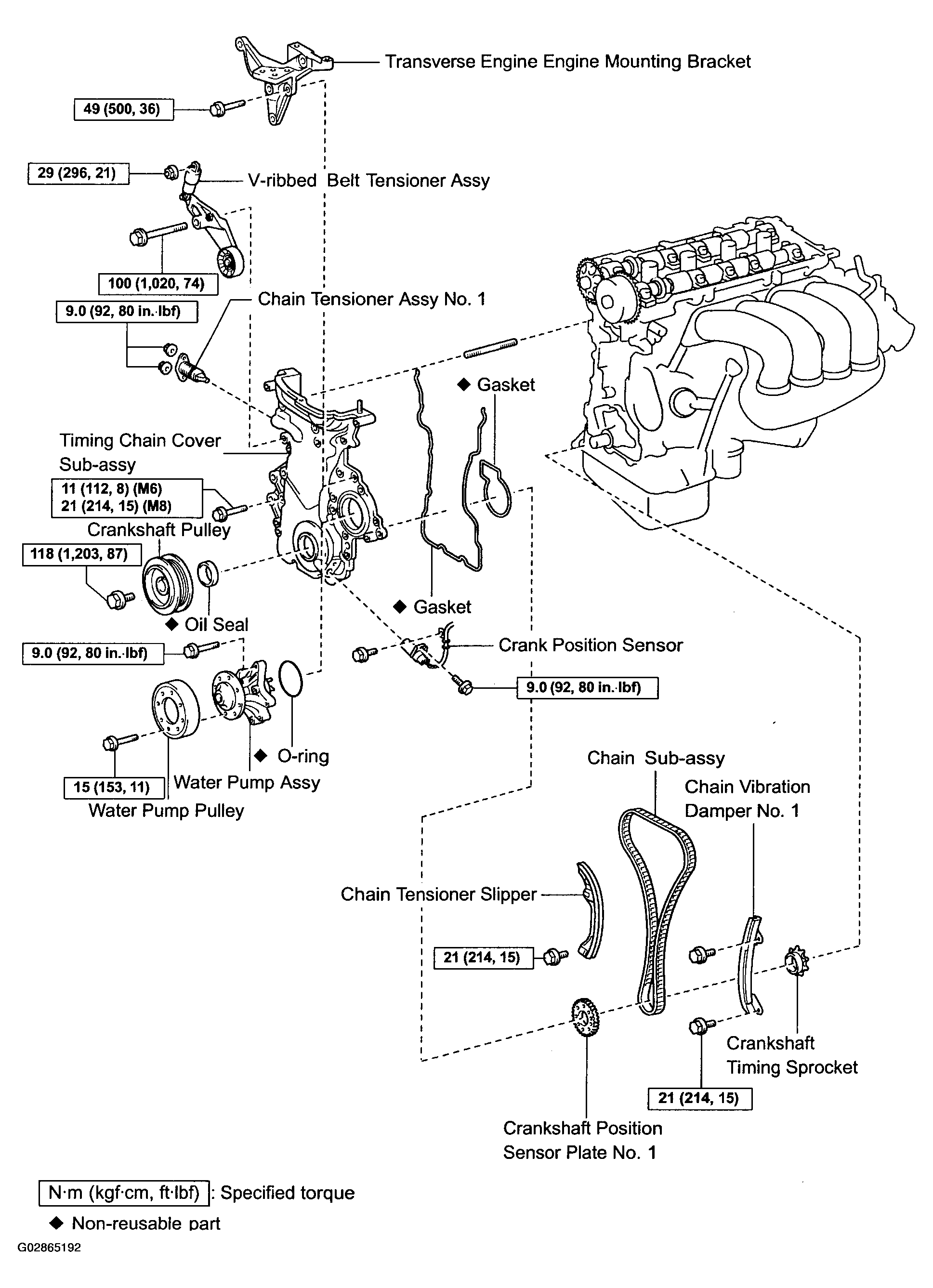

Fig 1: Identifying Components For Timing Chain Sub-Assembly Removal (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

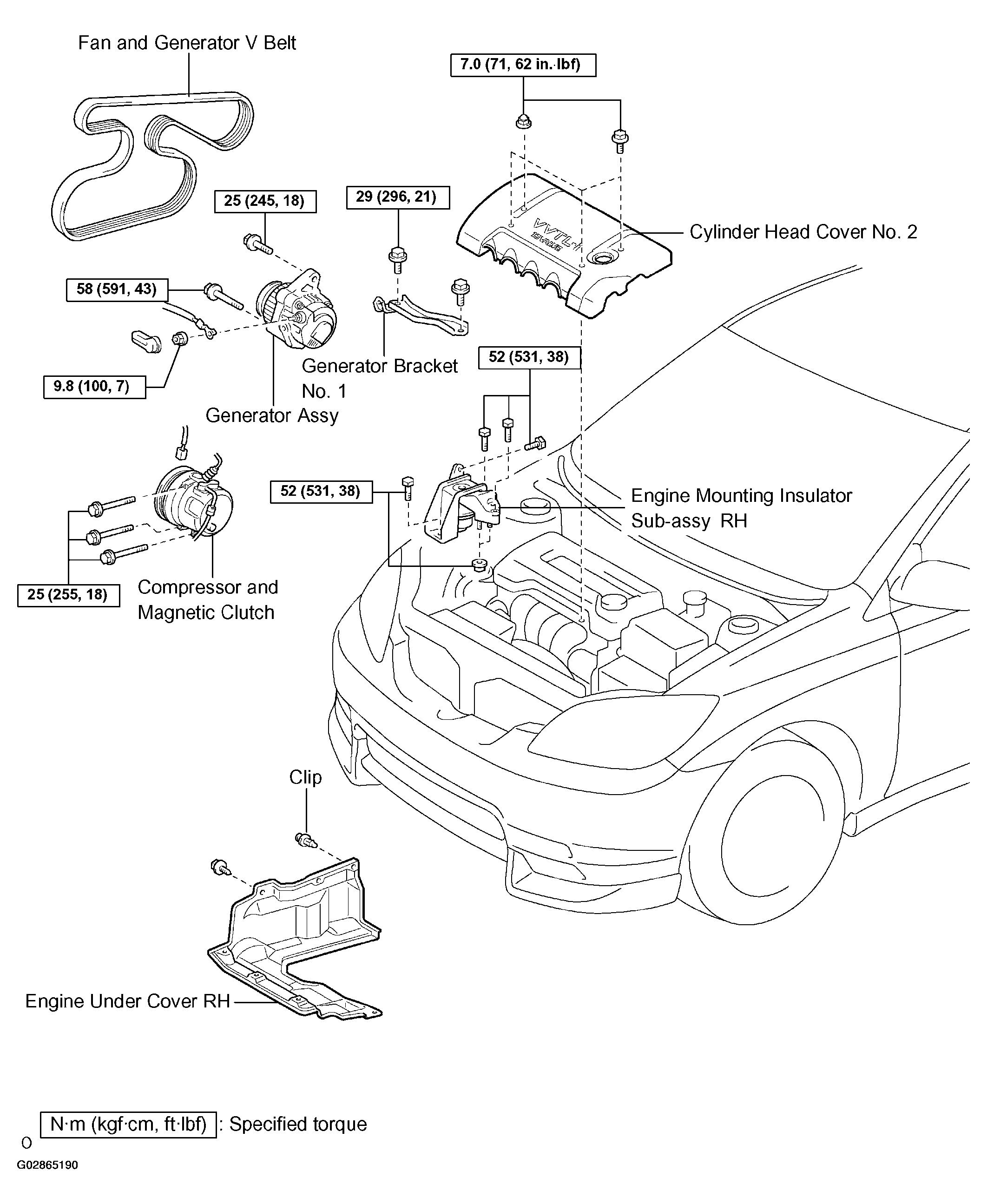

Fig 2: Identifying Components For Timing Chain Sub-Assembly Removal (2 Of 3)

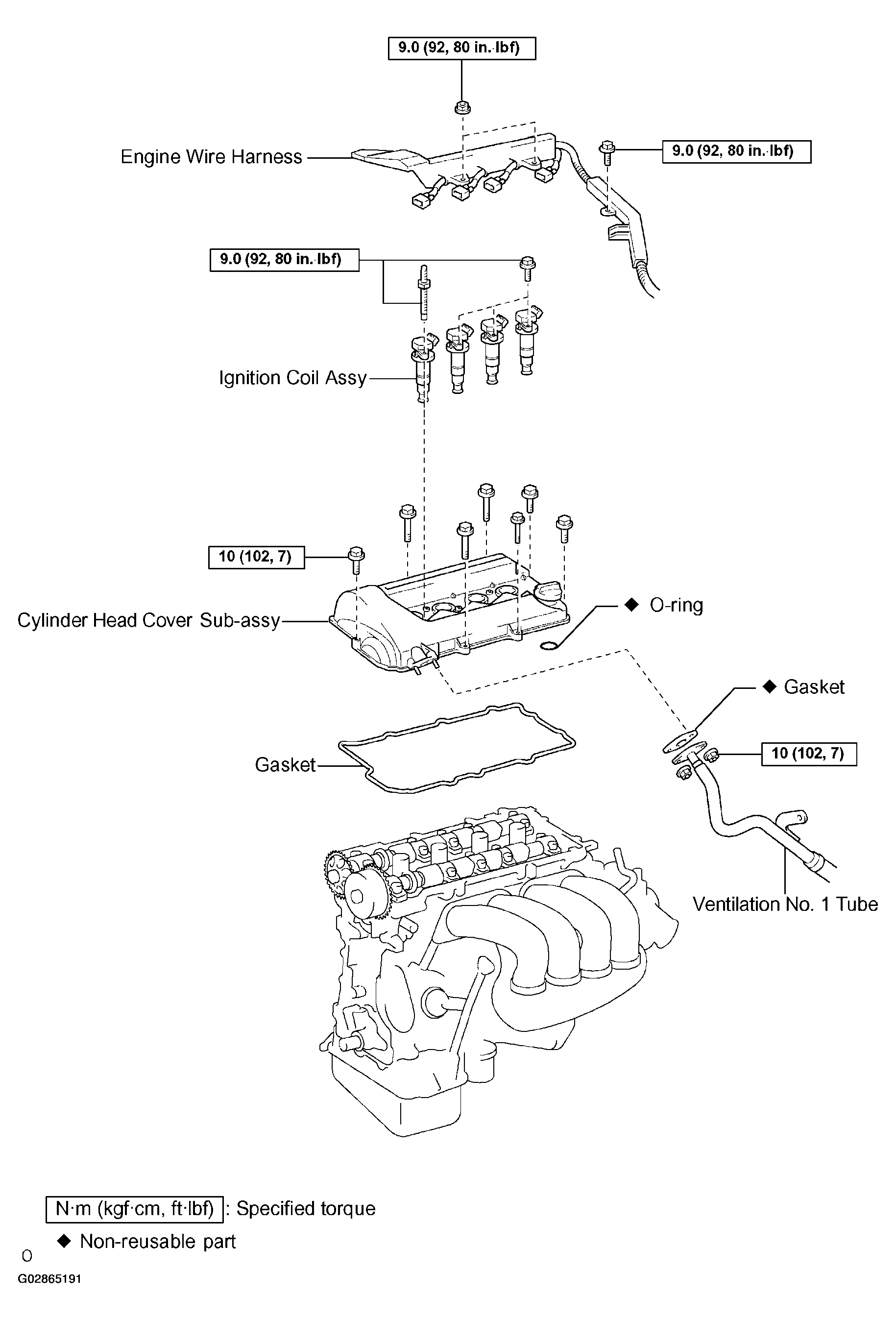

Fig 3: Identifying Components For Timing Chain Sub-Assembly Removal (3 Of 3)
