Cruise Control Main Switch ASSY: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect battery negative terminal.
  2. Inspect place front wheels facing straight ahead.
  3. REMOVE HORN BUTTON ASSY .
  4. REMOVE STEERING WHEEL ASSY .

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  5. Remove cruise control main switch assy.
    1. Remove the 2 screws and cruise control main switch assy. See Fig 1.
  6. CENTER SPIRAL CABLE .
  7. Install STEERING WHEEL ASSY .
  8. Inspect STEERING WHEEL CENTER POINT .
  9. Inspect HORN BUTTON ASSY .
  10. Inspect HORN BUTTON ASSY .
  11. Inspect SRS WARNING LIGHT .

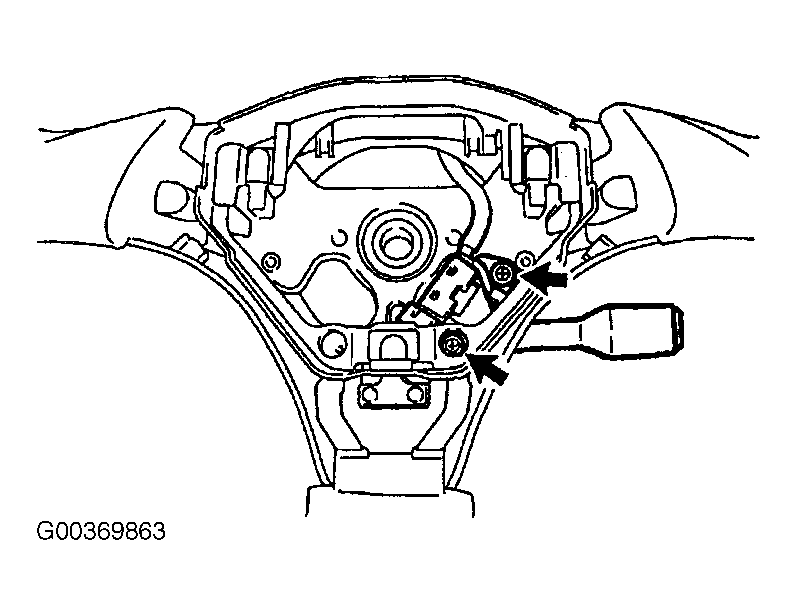

Fig 1: Removing & Installing Cruise Control Main Switch Screws
G00369863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
