O2S Test Results (Mode 05) (SS002-03)

Publication date: 2003-12-17
Reference number: SS002-03

O2S TEST RESULTS (MODE 05)

O2S TEST RESULTS (MODE 05)

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS002-03, Date of Issue:  December, 17 2003
SCION: 2004 xA & xB
TOYOTA: All 1996 - 2003; 2004 Corolla, ECHO, Matrix, Sienna
SECTION: SPECIAL SERVICE TOOLS
COPYRIGHT: © 2018 Toyota, USA License Agreement TMS1002

Introduction

This Service Bulletin contains Oxygen Sensor (O2S) Monitor threshold values for all models from 1996 to 2003 and some 2004 models. Starting in 2004, the O2S Monitor threshold values can be found in the repair manual. These values are used when analyzing the O2S test results to determine the O2S condition.

Applicable Vehicles

Function Description

Checking O2S Test Results

To view O2S test results, the O2S Monitor must be completed and the test results must be checked within the same key cycle. If the ignition key is cycled OFF, the O2S test results will be set to the minimum or maximum limits, and all test results will be erased. The O2S test results are stored in the ECU (SAE term: Powertrain Control Module/PCM) when the monitor is completed. The test results are static and will not change once the monitor is complete.

The process for checking O2S test results is described in the following three basic steps:

  1. Completing O2S Readiness Monitor .
  2. Accessing O2S Test Results .
  3. Comparing O2S Test Results to Failure Thresholds .

Required SSTs

Fig 1: Special Service Tool
G02504286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Additional Diagnostic Tester Kits, Program Cards or other SSTs may be ordered by calling SPX/OTC.

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty -- -- -- --

Completing O2S Readiness Monitor

  1. Clear any stored Diagnostic Trouble Codes (DTCs) using the Toyota Diagnostic Tester.
  2. Start the engine.
  3. Perform the drive pattern below to run and complete the Oxygen Sensor (O2S) Monitor.

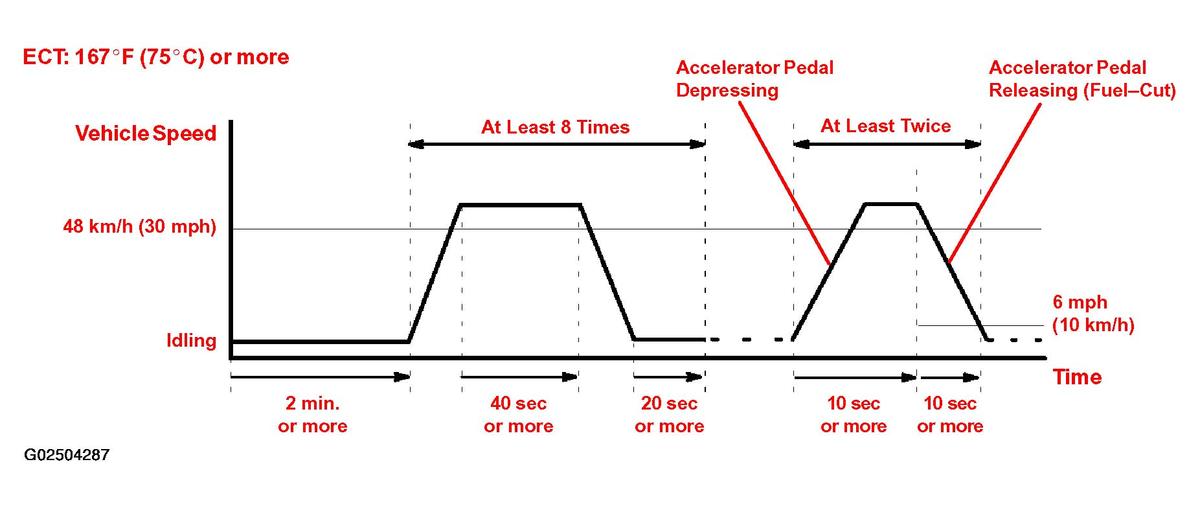

    Fig 2: O2S Monitor Drive Pattern
    G02504287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: The O2S Monitor is completed when the following conditions are met:
    • Two (2) minutes or more passed after the engine start.
    • The Engine Coolant Temperature (ECT) is 167°F (75°C) or more.
    • Cumulative running time at 30 mph (48 km/h) or more exceeds 6 minutes.
    • Vehicle is in closed loop.
    • The fuel-cut is operated for 8 seconds or more (for Rear O2S Monitor).
    1. Allow the engine to idle for two minutes.
    2. Warm up the engine until the Engine Coolant Temperature (ECT) reaches 167°F (75°C).
    3. Drive the vehicle over 30 mph (48 km/h) for more than 40 seconds.
    4. Stop the vehicle and allow the engine to idle for more than 20 seconds.
    5. Repeat steps C and D at least 8 times in one driving cycle. (Do not cycle the ignition key.)

    In addition, perform the following steps for the Rear O2S Readiness Monitor:

    1. Select second gear.
    2. Allow the vehicle to run at 30 mph (48 km/h) or more.
    3. Keep the accelerator pedal "off-idle" for more than 10 seconds.
    4. Immediately after step C, release the accelerator pedal for at least 10 seconds without depressing the brake pedal (to execute the fuel-cut).
    5. Decelerate the vehicle until the vehicle speed reaches less than 6 mph (10 km/h).
    6. Repeat steps B - E  at least twice in one driving cycle.

Accessing O2S Test Results

  1. On the Diagnostic Tester* screen, select the following menus:
    • DIAGNOSTICS
    • CARB OBD II
    • O2S TEST RESULTS

    A list of the available oxygen sensors will be displayed.

  2. Select the desired oxygen sensor and press Enter.

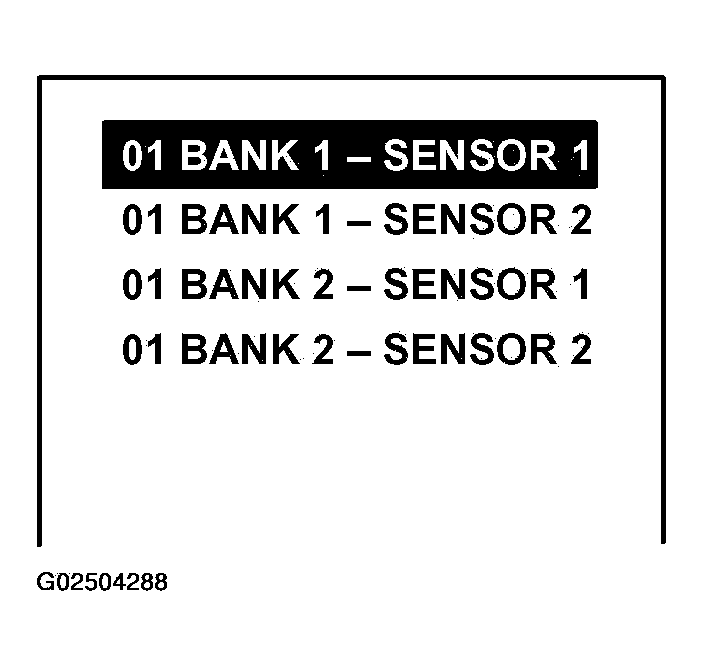

    Fig 3: O2S Test Results Screen
    G02504288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: The monitor result of the A/F sensor will not be displayed. If you select "Bank 1-Sensor 1" or Bank 2-Sensor 1" for a vehicle equipped with an A/F sensor, the Diagnostic Tester will display "No parameter to display."
  3. Compare the test results with the values listed in the Failure Threshold Chart.

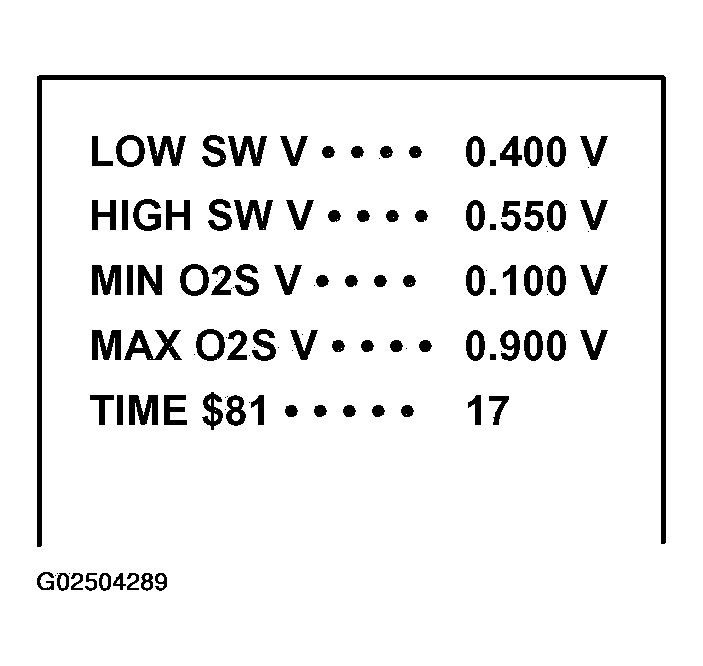

    Fig 4: Test Data Screen (1 Of 2)
    G02504289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    * Although this procedure references the Toyota Diagnostic Tester, the O2S test results can be checked using a generic OBDII scantool. Refer to your OBDII scantool operator's manual for specific procedures.

Comparing O2S Test Results to Failure Thresholds

  1. Determine the correct O2S Failure Threshold Chart for your vehicle by looking in the "O2S Application Table," pages 5 - 9 in this bulletin.
  2. Select appropriate year, model, and engine for specified O2S Failure Threshold Chart.
  3. Compare O2S test results with the specified O2S Failure Threshold Chart. It may be necessary to convert O2S test results to a specific measurement unit using the conversion factor that is supplied in the specified table. See example below:

    Example:

    1. The Diagnostic Tester displays "17" as a value of the "Time $81" (see illustration Fig 5).

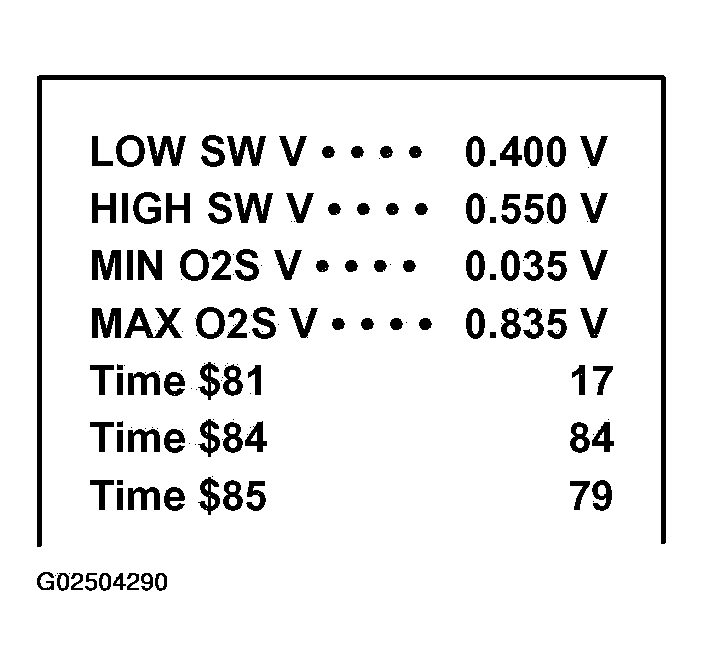

      Fig 5: Test data Screen (2 Of 2)
      G02504290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Find the Conversion Factor value of "Time $81" in the O2S Failure Threshold chart below.

      0.3906 is specified for Time $81 in this chart.

    3. Multiply "17" in step "A" by 0.3906 (Conversion Factor) in step "B." 17 x 0.3906 = 6.6%
    4. If the answer is within the Standard Value of TEST LIMIT, the "Time $81" can be confirmed to be normal.
NOTE:
  • "LOW SW V" indicates the O2S voltage when the O2S status changes from rich to lean.
  • "HIGH SW V" indicates the O2S voltage when the O2S status changes from lean to rich.
  • If the O2S voltage is lower than "LOW SW V," the O2S status is lean.
  • If the O2S voltage is higher than "HIGH SW V," the O2S status is rich.
O2S Failure Threshold Chart

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time when Oxygen Sensor voltage is less than 0.05V Multiply 0.3906 % Within 60%
NOTE: Before the O2S Monitor completes or after the ignition switch is turned OFF, the Diagnostic Tester displays the viewable upper limit or a lower limit of the test value (example: 0 V, 1.275 V, 0 s [seconds], 10.2 s, 0 and 255).

O2S Application Table

1996 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All 50-State 1
Camry 5S-FE All California 2
Camry 5S-FE All Federal 1
Camry 1MZ-FE All 50-State 1
Celica 7A-FE All 50-State 1
Celica 5S-FE All California 2
Celica 5S-FE All Federal 1
Corolla ALL All 50-State 1
Land Cruiser 1FZ-FE All 50-State 1
Paseo 5E-FE All 50-State 1
Previa 2TZ-FZE All 50-State 1
RAV4 3S-FE All 50-State 2
Supra ALL All 50-State 1
Tacoma ALL All 50-State 1
Tercel 5E-FE All 50-State 1
T100 ALL All 50-State 1
4Runner ALL All 50-State 1
1997 O2S APPLICATION

MODEL ENGINE DRIVETRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All 50-State 1
Camry 5S-FE All California 3
5S-FE All Camry Federal 1
1MZ-FE Camry All 50-State 1
Celica 7A-FE All 50-State 1
Celica 5S-FE All California 2
Celica 5S-FE All Federal 1
Corolla ALL All 50-State 1
Land Cruiser 1FZ-FE All 50-State 1
Paseo 5E-FE All 50-State 1
Previa 2TZ-FZE All 50-State 1
RAV4 3S-FE All 50-State 2
Supra ALL All 50-State 1
Tacoma 2RZ-FE All 50-State 1
Tacoma 3RZ-FE A/T 50-State 1
Tacoma 3RZ-FE M/T,2WD 50-State 1
Tacoma 3RZ-FE M/T,4WD 50-State 2
Tacoma 5VZ-FE All 50-State 2
Tercel 5E-FE All 50-State 1
T100 3RZ-FE All 50-State 1
T100 5VZ-FE All 50-State 2
4Runner 3RZ-FE All 50-State 1
4Runner 5VZ-FE All 50-State 1
1998 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All California 4
Avalon 1MZ-FE All Federal 1
Camry 5S-FE All California 3
Camry 5S-FE All Federal 2
Camry 1MZ-FE A/T California 4
Camry 1MZ-FE A/T Federal 1
Camry 1MZ-FE M/T 50-State 1
Celica 5S-FE All California 2
Celica 5S-FE All Federal 1
Corolla 1ZZ-FE All 50-State 2
Land Cruiser 2UZ-FE All 50-State 2
Paseo 5E-FE All 50-State 1
RAV4 3S-FE All California 3
RAV4 3S-FE All Federal 2
Sienna 1MZ-FE All 50-State 1
Supra 2JZ-GE All 50-State 2
Supra 2JZ-GTE All 50-State 1
Tacoma ALL All 50-State 2
Tercel 5E-FE All 50-State 1
T100 ALL All 50-State 2
4Runner ALL All 50-State 2
1999 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All California 4
Avalon 1MZ-FE All Federal 5
Camry CNG 5S-FNE All 50-State 6
Celica 5S-FE All 50-State 5
Corolla 1ZZ-FE All 50-State 2
Land Cruiser 2UZ-FE All 50-State 2
Paseo 5E-FE All 50-State 1
RAV4 3S-FE All California 3
RAV4 3S-FE All Federal 2
Sienna 1MZ-FE All California 4
Sienna 1MZ-FE All Federal 5
Solara 5S-FE All California 2
Solara 5S-FE All Federal 5
Solara 1MZ-FE A/T California 4
Solara 1MZ-FE A/T Federal 5
Solara 1MZ-FE M/T 50-State 5
Tacoma ALL All 50-State 2
Tercel 5E-FE All 50-State 1
4Runner 3RZ-FE All 50-State 2
4Runner 5VZ-FE All California 4
4Runner 5VZ-FE All Federal 2
2000 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All 50-State 4
Camry CNG 5S-FNE All 50-State 6
Celica ALL All 50-State 1
Corolla 1ZZ-FE All 50-State 7
ECHO 1NZ-FE All 50-State 1
Land Cruiser 2UZ-FE All 50-State 2.
MR2 1ZZ-FE All 50-State 1
RAV4 3S-FE All California 4
RAV4 3S-FE All Federal 2
Sienna 1MZ-FE All California 4
Sienna 1MZ-FE All Federal 5
Solara 5S-FE All California 4
Solara 5S-FE All Federal 5
Solara 1MZ-FE A/T California 4
Solara 1MZ-FE A/T Federal 5
Solara 1MZ-FE M/T 50-State 5
Tacoma 2RZ-FE All California 4
Tacoma 2RZ-FE All Federal 2
Tacoma 3RZ-FE All California 4
Tacoma 3RZ-FE All Federal 2
Tacoma 5VZ-FE All California 8
Tacoma 5VZ-FE All Federal 2
Tundra 2UZ-FE All 50-State 2
Tundra 5VZ-FE All California 8
Tundra 5VZ-FE All Federal 2
4Runner 3RZ-FE All California 4
4Runner 3RZ-FE All Federal 2
4Runner 5VZ-FE All California 8
4Runner 5VZ-FE All Federal 2
2001 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All 50-State 4
Camry CNG 5S-FNE All 50-State 6
Celica ALL All 50-State 1
Corolla 1ZZ-FE All 50-State 7
ECHO 1NZ-FE All 50-State 1
Highlander 1MZ-FE All 50-State 9
Highlander 2AZ-FE All 50-State 3
Land Cruiser 2UZ-FE All 50-State 1
MR2 1ZZ-FE All 50-State 1
Prius 1NZ-FXE All 50-State 11
RAV4 1AZ-FE All 50-State 4
Sequoia 2UZ-FE All 50-State 1
Sienna 1MZ-FE All 50-State 4
Solara 5S-FE All 50-State 3
Solara 1MZ-FE A/T 50-State 9
Solara 1MZ-FE M/T 50-State 10
Tacoma ALL All 50-State 4
Tundra 2UZ-FE All 50-State 1
Tundra 5VZ-FE All 50-State 4
4Runner ALL All 50-State 4
2002 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All 50-State 4
Celica 1ZZ-FE All 50-State 4
Celica 1ZZ-FE All 50-State 1
Celica 2ZZ-GE All 50-State 13
Corolla 1ZZ-FE All 50-State 7
ECHO 1NZ-FE All 50-State 1
Highlander 1MZ-FE All 50-State 4
Highlander 2AZ-FE All 50-State 3
Land Cruiser 2UZ-FE All 50-State 14
MR2 1ZZ-FE All 50-State 1
Prius 1NZ-FXE All 50-State 15
RAV4 1AZ-FE All 50-State 3
Sequoia 2UZ-FE All 50-State 14
Sienna 1MZ-FE All 50-State 4
Solara 2AZ-FE All 50-State 12
Solara 1MZ-FE A/T 50-State 9
Solara 1MZ-FE M/T 50-State 5
Tacoma ALL All 50-State 12
Tundra 2UZ-FE All 50-State 14
Tundra 5VZ-FE All 50-State 12
4Runner ALL All 50-State 12
2003 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Avalon 1MZ-FE All 50-State 16
Camry 2AZ-FE All Federal 17
Camry 2AZ-FE M/T California 17
Camry 2AZ-FE A/T California 18
Camry 1MZ-FE All With VVT 19
Camry 1MZ-FE All Without VVT 20
Celica 1ZZ-FE All 50-State 13
Celica 2ZZ-GE All 50-State 21
Corolla 1ZZ-FE All 50-State 22
ECHO 1NZ-FE All 50-State 23
Highlander 1MZ-FE All 50-State 16
Highlander 2AZ-FE All 50-State 12
Land Cruiser 2UZ-FE All 50-State 24
Matrix 1ZZ-FE All 50-State 22
Matrix 2ZZ-GE All 50-State 21
MR2 1ZZ-FE All 50-State 13
Prius 1NZ-FXE All 50-State 15
RAV4 1AZ-FE All 50-State 25
Sequoia 2UZ-FE All 50-State 24
Sienna 1MZ-FE All 50-State 16
Solara 2AZ-FE All 50-State 17
Solara 1MZ-FE All 50-State 20
Tacoma ALL All 50-State 16
Tundra 2UZ-FE All 50-State 24
Tundra 5VZ-FE All 50-State 16
4Runner 1GR-FE All 50-State 12
4Runner 2UZ-FE All 50-State 26
2004 O2S APPLICATION

MODEL ENGINE DRIVE TRAIN CERTIFICATION SEE CHART NO.
Corolla 1ZZ-FE All 50-State 27
ECHO 1NZ-FE All 50-State 23
Matrix 1ZZ-FE 2WD 50-State 27
Matrix 1ZZ-FE 4WD 50-State 28
Matrix 2ZZ-GE All 50-State 29
Sienna 3MZ-FE All 50-State 30
Scion xA 1NZ-FE All 50-State 23
Scion xB 1NZ-FE All 50-State 23

O2S Failure Threshold Charts

CHART 1

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 1 (1 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 2 (2 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 1 second
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 1 second

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 3 (3 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 2

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 2 (1 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
$07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.35 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 2 (2 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.35 V) to Rich ($$0.55 V) N/A Second Between 0 and 1.1 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$ 0.35 V) N/A Second Between 0 and 1.1 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 2 (3 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 3

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 3

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.45 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 4

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 4

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 5

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 5 (1 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 5 (2 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 1.1 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 1.1 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 5 (3 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 6

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 6

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.55 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 1 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 7

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 7 (1 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 7 (2 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 0.9 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 0.9 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 7 (3 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 8

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 8 (1 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.35 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 8 (2 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.35 V) to Rich ($$0.55 V) N/A Second Between 0 and 1 second
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.35 V) N/A Second Between 0 and 1 second

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 8 (3 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 9

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 9

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.5 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 10

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 10 (1 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 10 (2 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 1.1 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 1.1 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 10 (3 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.5 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 11

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 11 (1 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.42 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.48 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 11 (2 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.42 V) to Rich ($$0.48 V) N/A Second Between 0 and 0.4 seconds
Time $32 Time to change from Rich ($$0.48 V) to Lean ($$0.42 V) N/A Second Between 0 and 0.4 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 11 (3 OF 3)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.45 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

CHART 12

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 12 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.45 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 12 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 13

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 13 (1 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 13 (2 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 1 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 1 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 13 (3 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 13 (4 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.5 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 14

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196,P2197 and P2198

O2S FAILURE THRESHOLD CHART 14 (1 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 14 (2 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 0.9 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 0.9 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 14 (3 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 14 (4 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.5 V Multiply 0.3906 % Between 0 and 90%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 15

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 15 (1 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.42 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.48 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 15 (2 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.42 V) to Rich ($$0.48 V) N/A Second Between 0 and 0.4 seconds
Time $32 Time to change from Rich ($$0.48 V) to Lean ($$0.42 V) N/A Second Between 0 and 0.4 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 15 (3 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.45 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 15 (4 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.5 V Multiply 0.3906 % Between 0 and 80%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 10 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 16

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 16 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 16 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.5 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 17

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 17 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time$07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.45 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 17 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 55%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 18

Rear O2S (Bank 1 Sensor 2) Voltage Monitor

Related DTCs: P0136

O2S FAILURE THRESHOLD CHART 18 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.2 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 3) Deterioration Monitor

Related DTCs: P0142

O2S FAILURE THRESHOLD CHART 18 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $86 Average of the second impedance ratio between high-frequency and low-frequency Multiply 0.0312 % Between 0.7 and 1.35

If the average of the sensor impedance ratio is out of the standard value, the ECM interprets this as a malfunction.

CHART 19

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 19 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.5 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 19 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 95%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 20

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 20 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.5 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 20 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 80%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 21

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 21 (1 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 21 (2 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 0.8 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 0.8 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Engine Idling

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 21 (3 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $33 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 3.05 seconds
Time $34 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 3.05 seconds

If the sum of Time $33 and Time $34 is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Vehicle Running

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 21 (4 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $35 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 0.95 seconds (varies depending on feedback compensation factor)
Time $36 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 0.95 seconds (varies depending on feedback compensation factor)

If the sum of Time $35 and Time $36 is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 21 (5 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 21 (6 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 22

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 22 (1 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 22 (2 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 0.9 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 0.9 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 22 (3 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 22 (4 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.5 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 23

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 23 (1 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 23 (2 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 0.9 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 0.9 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Engine Idling

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 23 (3 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $33 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 4.5 seconds
Time $34 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 4.5 seconds

If the sum of Time $33 and Time $34 is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Vehicle Running

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 23 (4 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $35 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 0.9 seconds (varies depending on feedback compensation factor)
Time $36 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 0.9 seconds (varies depending on feedback compensation factor)

If the sum of Time $35 and Time $36 is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 23 (5 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Mon

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 23 (6 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 24

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 24 (1 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 24 (2 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 0.9 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 0.9 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Engine Idling

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 24 (3 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $33 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 2.8 seconds
Time $34 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 2.8 seconds

If the sum of Time $33 and Time $34 is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Vehicle Running

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 24 (4 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $35 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 0.75 seconds (varies depending on feedback compensation factor)
Time $36 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 0.75 seconds (varies depending on feedback compensation factor)

If the sum of Time $35 and Time $36 is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 24 (5 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 24 (6 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 90%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 25

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 25 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.45 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.6 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 25 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 80%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 26

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 26 (1 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.55 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 26 (2 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.4 V) to Rich ($$0.55 V) N/A Second Between 0 and 0.9 seconds
Time $32 Time to change from Rich ($$0.55 V) to Lean ($$0.4 V) N/A Second Between 0 and 0.9 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Engine Idling

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 26 (3 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $33 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 2.8 seconds
Time $34 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 2.8 seconds

If the sum of Time $33 and Time $34 is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Vehicle Running

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 26 (4 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $35 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 0.75 seconds (varies depending on feedback compensation factor)
Time $36 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 0.75 seconds (varies depending on feedback compensation factor)

If the sum of Time $35 and Time $36 is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Mon

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 26 (5 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 26 (6 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 27

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196 P2197 and P2198

O2S FAILURE THRESHOLD CHART 27 (1 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.35 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.45 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 27 (2 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.35 V) to Rich ($$0.45 V) N/A Second Between 0 and 0.6 seconds
Time $32 Time to change from Rich ($$0.45 V) to Lean ($$0.35 V) N/A Second Between 0 and 0.6 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Engine Idling

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 27 (3 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $33 Average Lean ($$0.35 V) time of one waveform cycle N/A Second Between 0 and 3 seconds
Time $34 Average Rich ($$0.45 V) time of one waveform cycle N/A Second Between 0 and 3 seconds

If the sum of Time $33 and Time $34 is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Vehicle Running

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 27 (4 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $35 Average Lean ($$0.35 V) time of one waveform cycle N/A Second Between 0 and 0.55 seconds (varies depending on feedback compensation factor)
Time $36 Average Rich ($$0.45 V) time of one waveform cycle N/A Second Between 0 and 0.55 seconds (varies depending on feedback compensation factor)

If the sum of Time $35 and Time $36 is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 27 (5 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 27 (6 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 28

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Voltage Monitor

Related DTCs: P0130, P0150, P2195, P2196, P2197 and P2198

O2S FAILURE THRESHOLD CHART 28 (1 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.35 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.45 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Response Monitor

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 28 (2 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $31 Time to change from Lean ($$0.35 V) to Rich ($$0.45 V) N/A Second Between 0 and 0.6 seconds
Time $32 Time to change from Rich ($$0.45 V) to Lean ($$0.35 V) N/A Second Between 0 and 0.6 seconds

If the time required to change is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Engine Idling

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 28 (3 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $33 Average Lean ($$0.35 V) time of one waveform cycle N/A Second Between 0 and 2 seconds
Time $34 Average Rich ($$0.45 V) time of one waveform cycle N/A Second Between 0 and 2 seconds

If the sum of Time $33 and Time $34 is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Vehicle Running

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 28 (4 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $35 Average Lean ($$0.35 V) time of one waveform cycle N/A Second Between 0 and 0.5 seconds (varies depending on feedback compensation factor)
Time $36 Average Rich ($$0.45 V) time of one waveform cycle N/A Second Between 0 and 0.5 seconds (varies depending on feedback compensation factor)

If the sum of Time $35 and Time $36 is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 28 (5 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 28 (6 OF 6)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 29

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Engine Idling

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 29 (1 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $33 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 4 seconds
Time $34 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 4 seconds

If the sum of Time $33 and Time $34 is out of the standard value, the ECM interprets this as a malfunction.

Front O2S (Bank 1 Sensor 1 and Bank 2 Sensor 1) Frequency Monitor During Vehicle Running

Related DTCs: P0133 and P0153

O2S FAILURE THRESHOLD CHART 29 (2 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $35 Average Lean ($$0.4 V) time of one waveform cycle N/A Second Between 0 and 1.08 seconds (varies depending on feedback compensation factor)
Time $36 Average Rich ($$0.55 V) time of one waveform cycle N/A Second Between 0 and 1.08 seconds (varies depending on feedback compensation factor)

If the sum of Time $35 and Time $36 is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 29 (3 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.4 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 29 (4 OF 4)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 60%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.

CHART 30

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Voltage Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 30 (1 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $07 The minimum voltage during O2S monitoring N/A V Between 0 and 0.45 V
Time $08 The maximum voltage during O2S monitoring N/A V Between 0.5 and 1.275 V

If the sensor voltage is out of the standard value, the ECM interprets this as a malfunction.

Rear O2S (Bank 1 Sensor 2 and Bank 2 Sensor 2) Element Monitor

Related DTCs: P0136 and P0156

O2S FAILURE THRESHOLD CHART 30 (2 OF 2)

TEST ID DESCRIPTION OF TEST DATA CONVERSION FACTOR UNIT STANDARD VALUE OF TEST LIMIT
Time $81 Percentage of monitoring time where Oxygen Sensor voltage is less than 0.05 V Multiply 0.3906 % Between 0 and 80%
Time $84 Percentage of monitoring time where Oxygen Sensor voltage is 0.70 V or more Multiply 0.3906 % Between 20 and 100%
Time $85 Maximum Rich ($$0.45 V) time Multiply 0.2621 Second Between 20 and 66.8 seconds

If all the values (Time $81, Time $84 and Time $85) are out of the standard values, the ECM interprets this as a malfunction.
