Front Axle LH Hub Bolt: Replacement

NOTE: COMPONENTS: See FRONT AXLE HUB & WHEEL BEARING

REMOVE FRONT WHEEL
SEPARATE FRONT DISC BRAKE CALIPER ASSY LH (See REMOVAL )
REMOVE FRONT DISC
REMOVE FRONT AXLE LH HUB BOLT
1. Using SST and a hammer handle or an equivalent, remove the LH hub bolt.
  SST 09628-10011

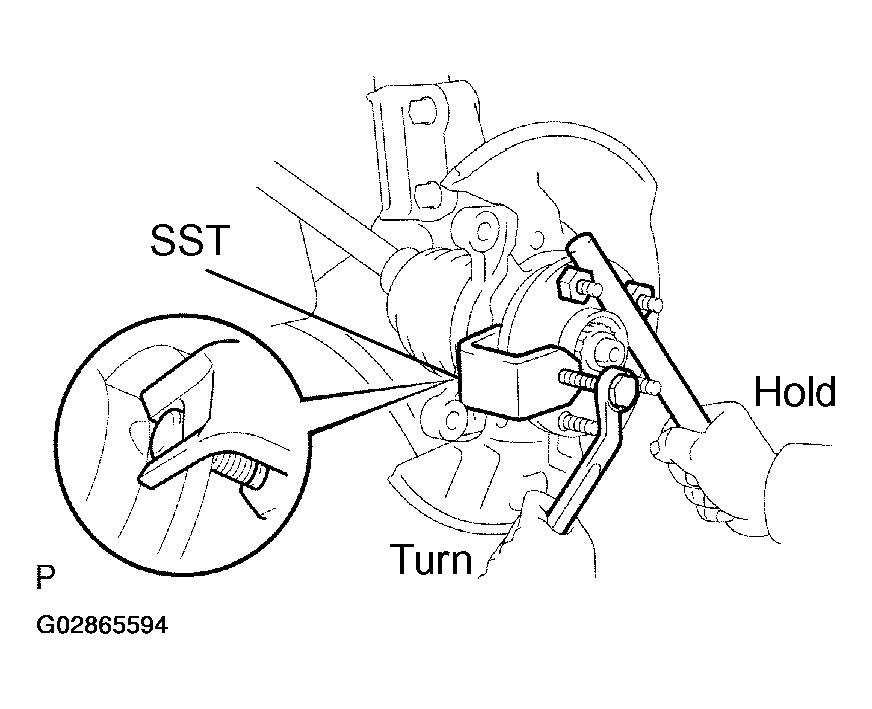

  Fig 1: Using SST To Remove Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE LH HUB BOLT
1. Install a washer and nut to a new LH hub bolt as shown in the illustration.
2. Using a hammer handle or an equivalent to hold the hub sub-assy LH, install the LH hub bolt by tightening the nut.

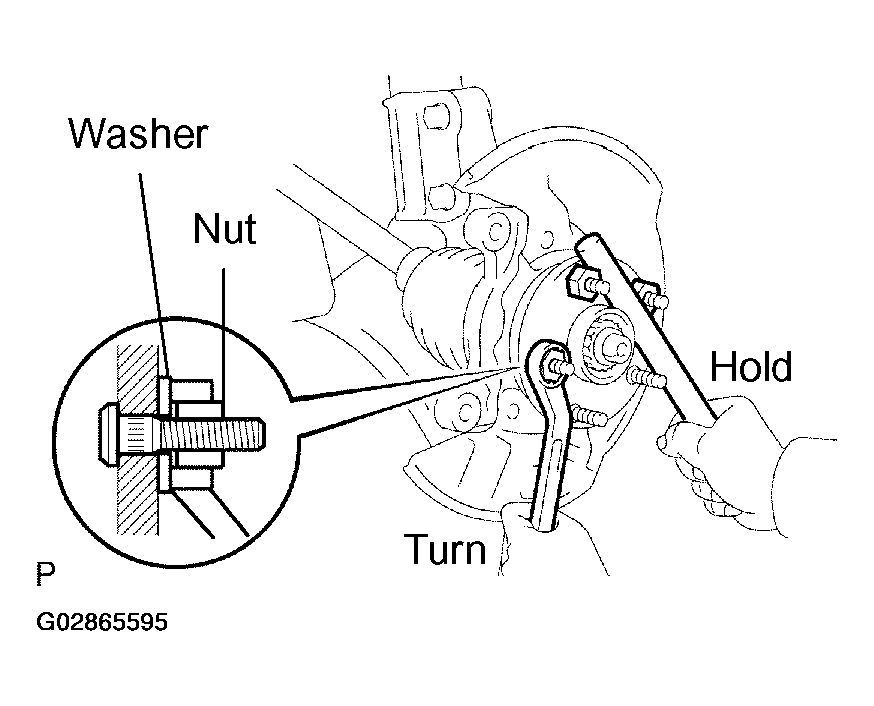

  Fig 2: Installing Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC
INSTALL FRONT DISC BRAKE CALIPER ASSY LH (See REMOVAL )
INSTALL FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
