Automatic Transmission Shift Lock Control Ecu (ATM): Inspection
- INSPECT SHIFT LOCK CONTROL ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the connector of shift lock control ECU.

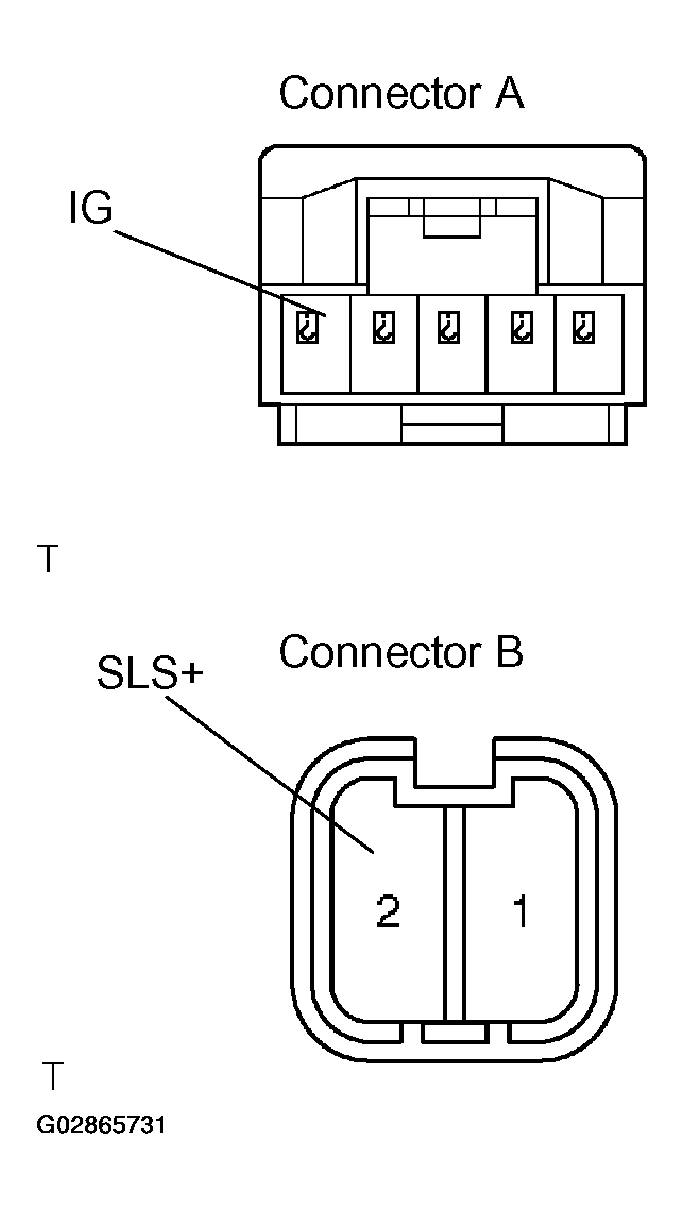

- Using an ohmmeter, measure the resistance between terminals.TERMINAL SPECIFIED CONDITION

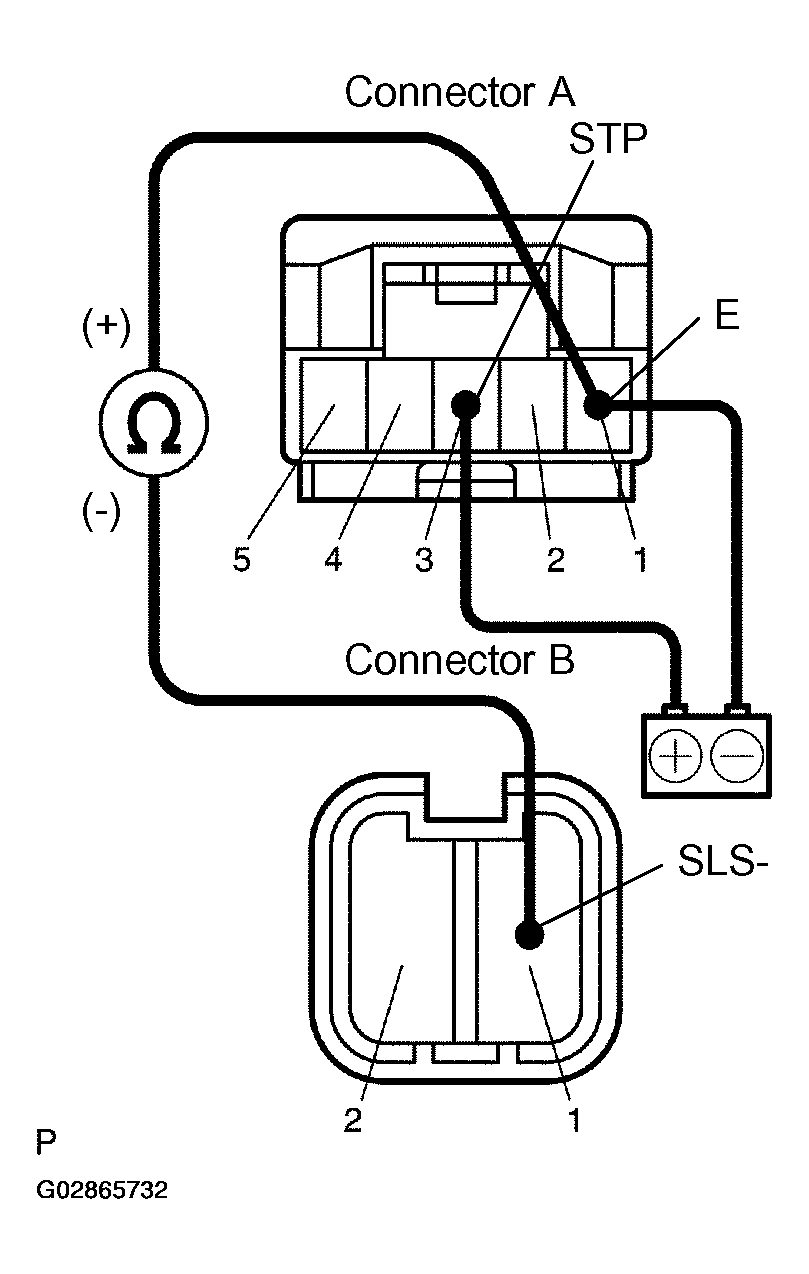

Terminal Measuring Condition Specified Value A5(IG) - B2(SLS+) Switch ON Continuity A5(IG) - B2(SLS+) Switch OFF NO Continuity - Connect STP terminal to the batteries' positive (+) terminal, and E terminal to the battery negative (-) terminal, and apply about 12 V between STP - E terminals.
- Using an ohmmeter, measure the resistance between terminals.TERMINAL SPECIFIED CONDITION
Terminal Measuring Condition Specified Value A1 (E) - B1 (SLS-) Connect Battery Continuity A1 (E) - B1 (SLS-) Disconnect Battery NO Continuity
