Screen Cannot Be Dimmed When Light Control Switch Is Turned To "Tail" Position: Wiring Diagram

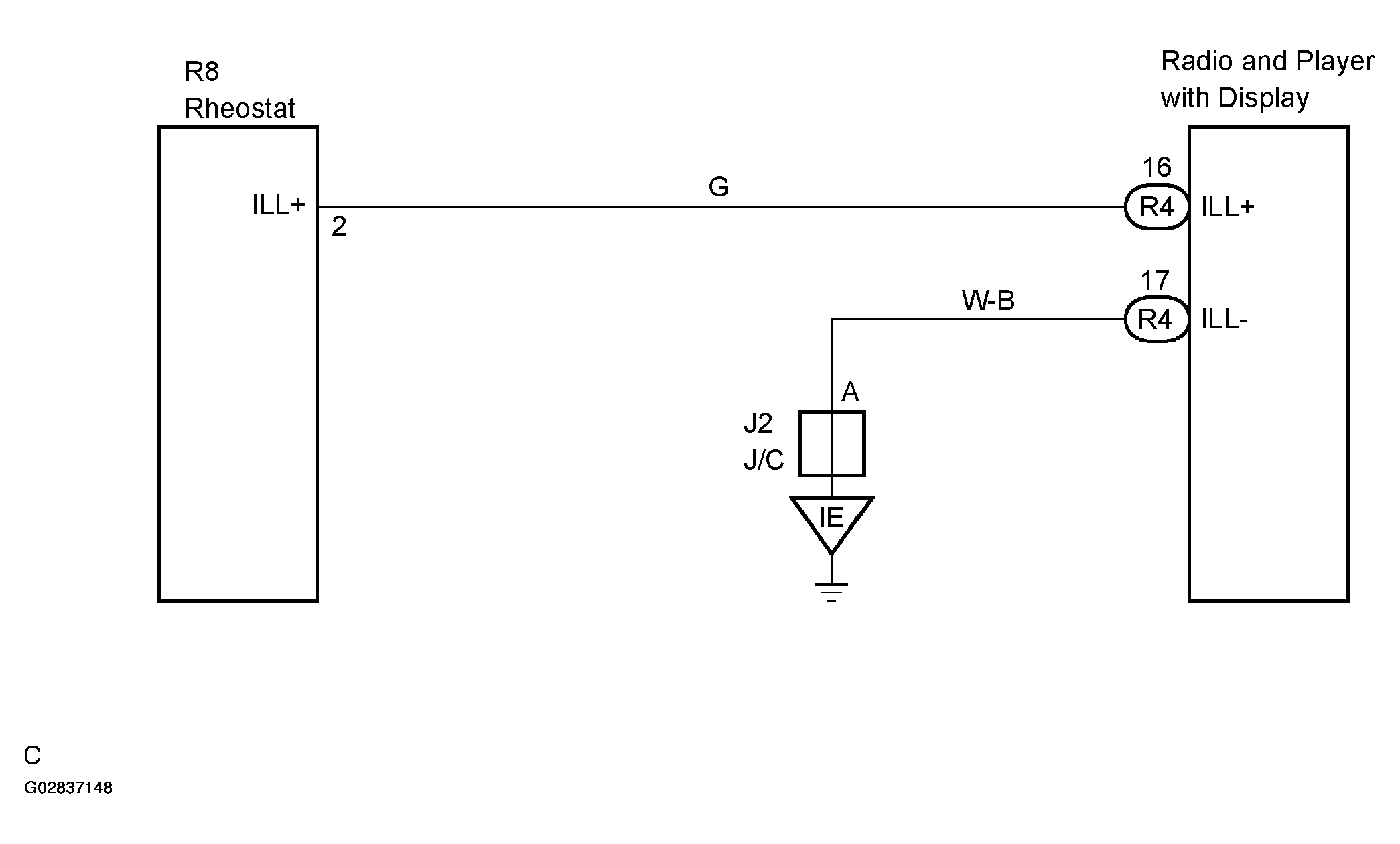

Fig 1: Wiring Diagram - Navigation Receiver Assy (Light Control Switch Turned To "Tail" Position)
