Inspection Procedure

  1. INSPECT STOP LAMP SWITCH ASSY
    1. Check that the stop lamp lights up when brake pedal is depressed and turns OFF when the brake pedal is released.
    1. NG: Go to   4
    2. OK: Go to next step
  2. INSPECT SKID CONTROL ECU TERMINAL VOLTAGE (STP TERMINAL)

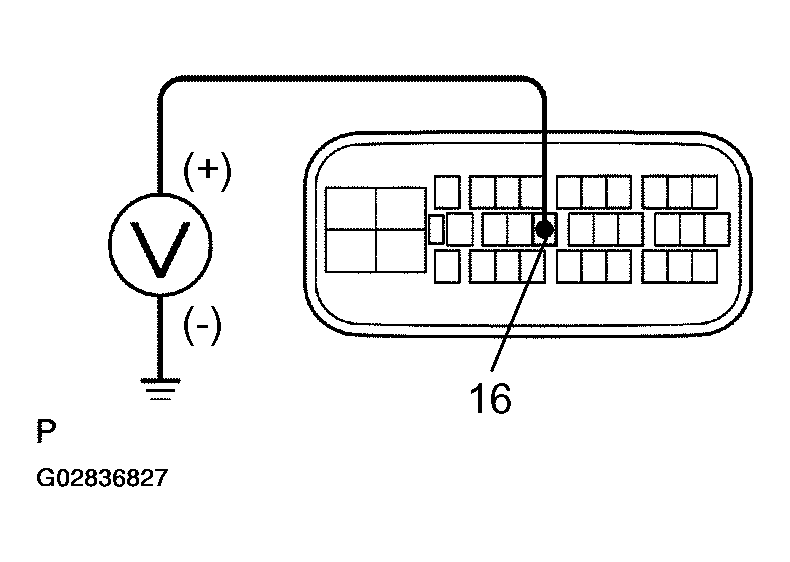

    Fig 1: Measure Voltage Between Terminal STP (S1-18) & Body Ground Of Skid Control ECU Harness Side Connector
    G02836827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect skid control ECU connector.
    2. Measure voltage between terminal STP (S1-18) and body ground of skid control ECU harness side connector when the brake pedal is depressed.

      Voltage: 10 - 14 V

    1. OK: Check And Replace Brake Actuator Assy (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    2. NG: Go to next step
  3. CHECK HARNESS AND CONNECTOR (STOP LAMP SWITCH - SKID CONTROL ECU) (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    1. Check for open and short circuit in harness and connector between stop lamp switch and skid control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
    1. NG: Repair Or Replace Harness Or Connector
    2. OK: Proceed To Next Circuit Inspection Shown On Problem Symptoms Table (See  PROBLEM SYMPTOMS TABLE   )
  4. CHECK HARNESS AND CONNECTOR (STOP LAMP CIRCUIT)
    1. Check for open and short circuit in harness and connector of the stop lamp circuit (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
    1. OK: Replace Stop Lamp Switch Assy
    2. NG: Repair Or Replace Harness Or Connector
