Fuel EVAP System Test (Highlander)
For fuel EVAP system test, see
Fig 1
-
Fig 5
.

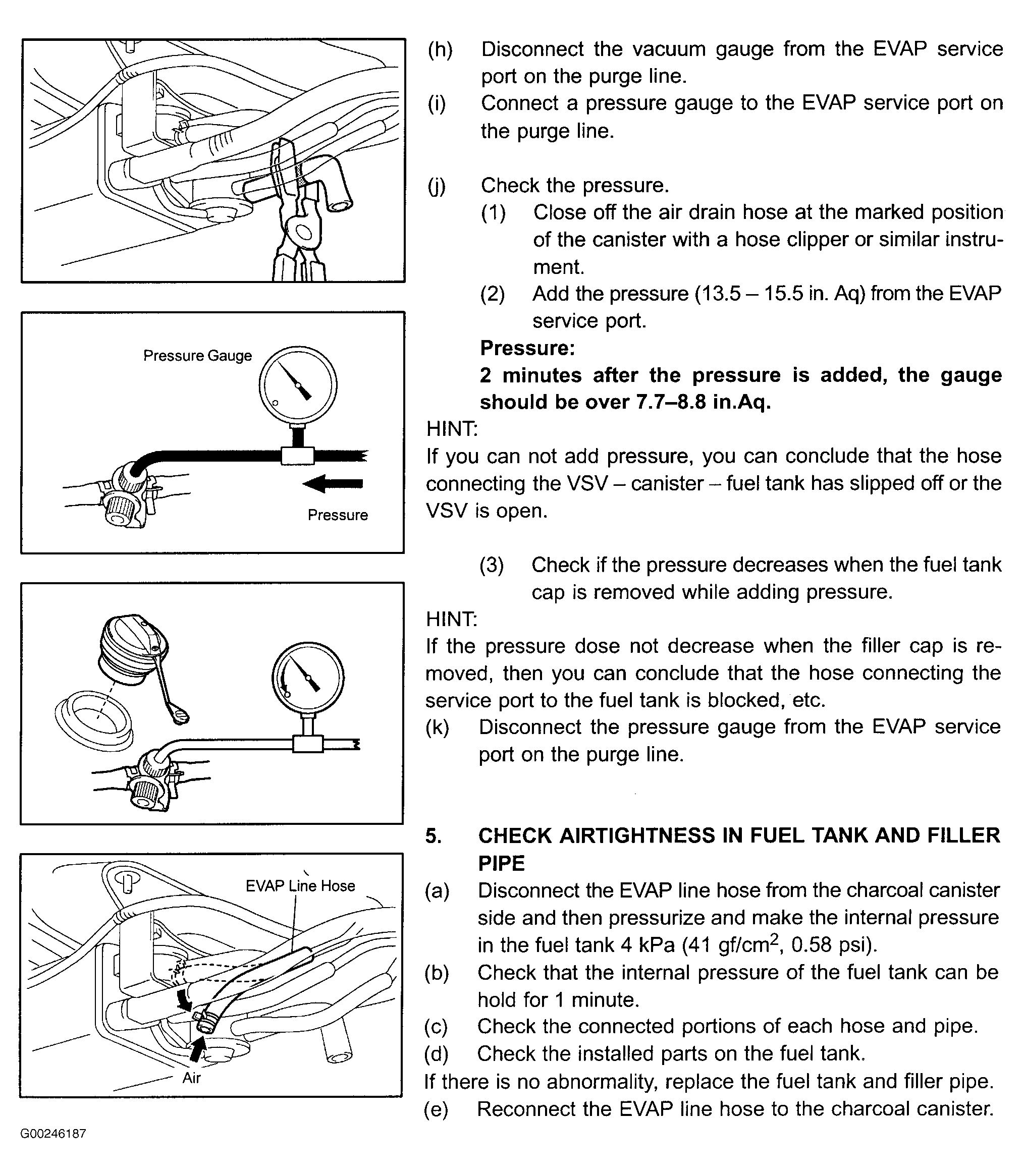

Fig 1: Testing Fuel EVAP System - 1 Of 5 (Highlander)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

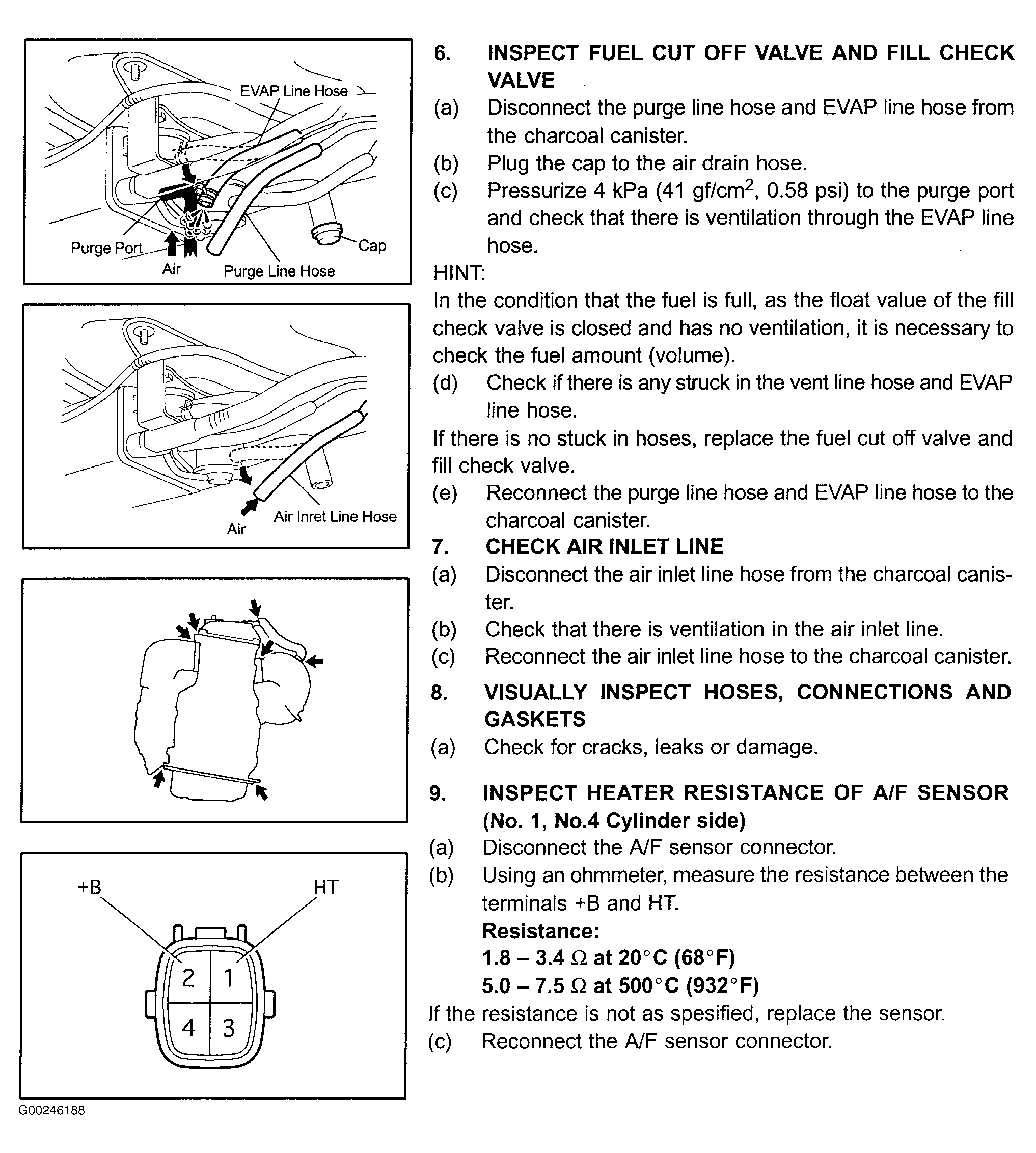

Fig 2: Testing Fuel EVAP System - 2 Of 5 (Highlander)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

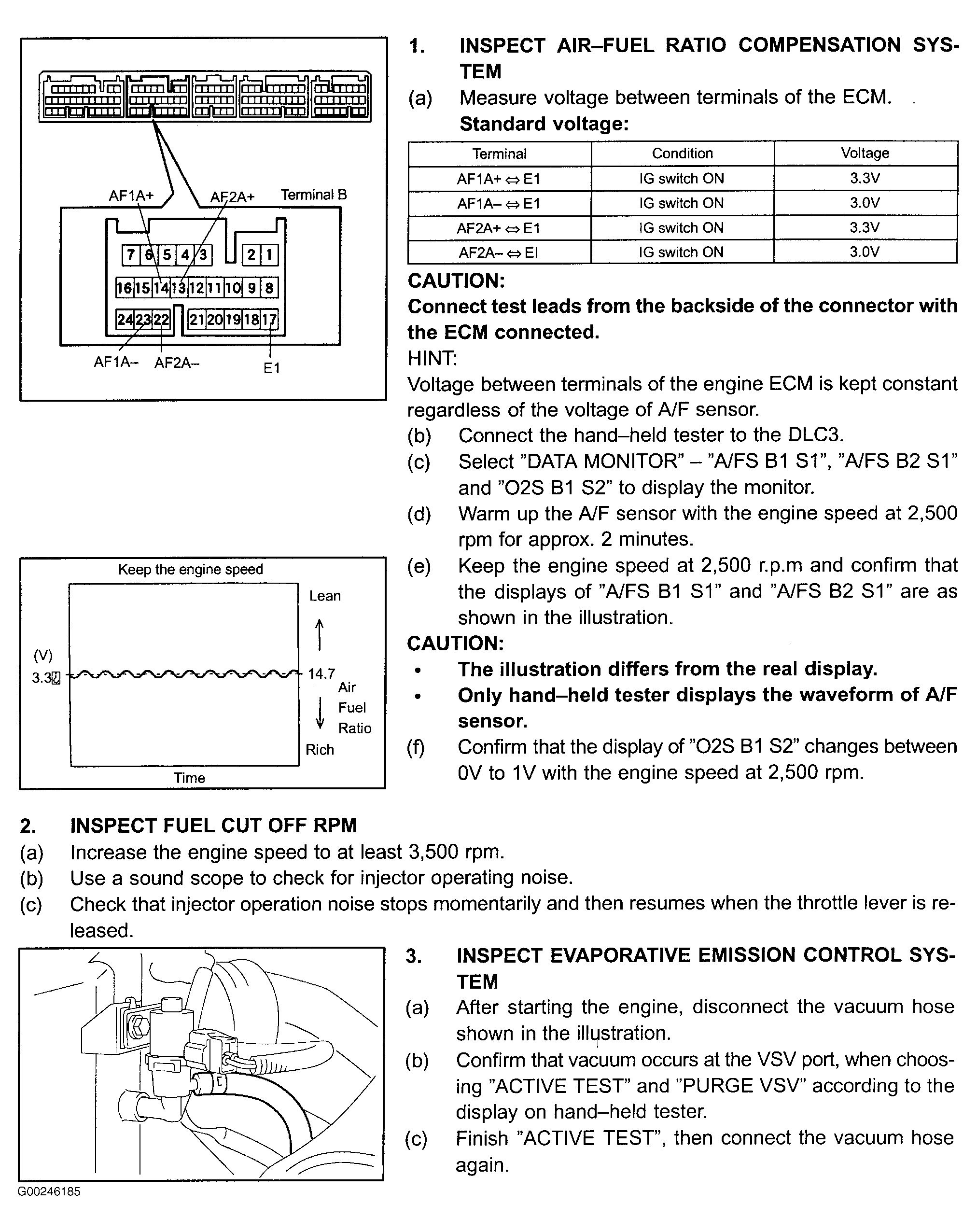

Fig 3: Testing Fuel EVAP System - 3 Of 5 (Highlander)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

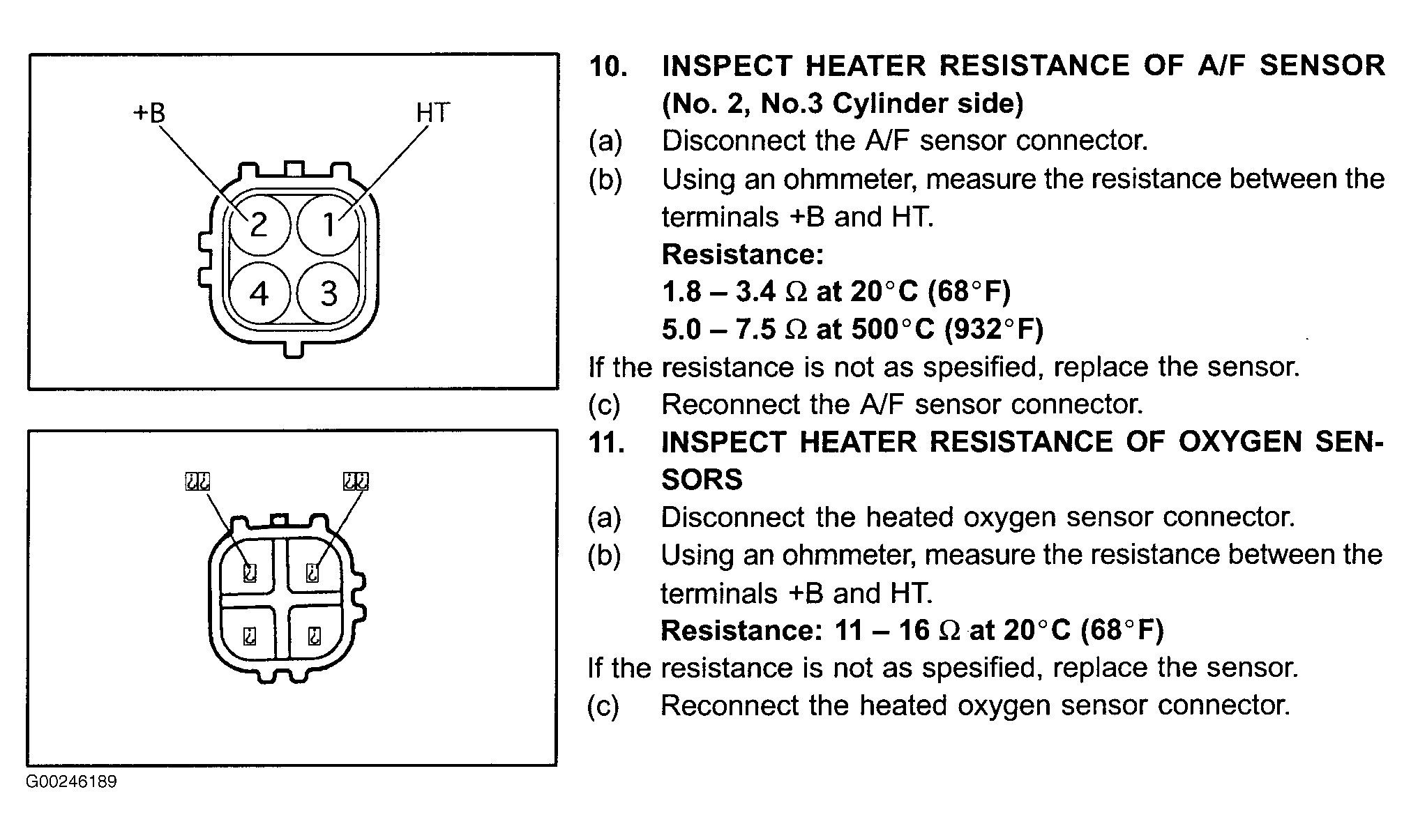

Fig 4: Testing Fuel EVAP System - 4 Of 5 (Highlander)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

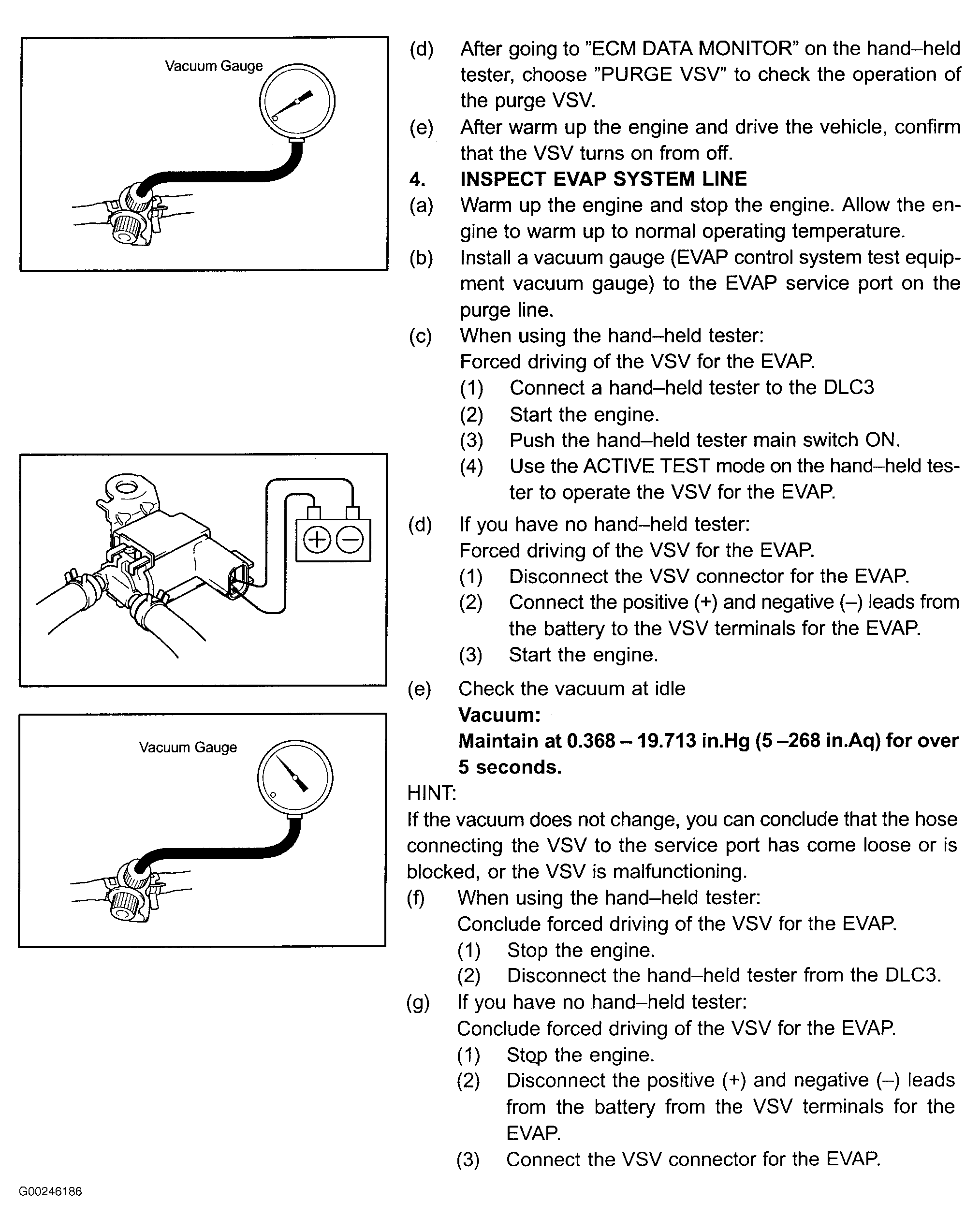

Fig 5: Testing Fuel EVAP System - 5 Of 5 (Highlander)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
