Glass Breakage Sensor Circuit: Wiring Diagram

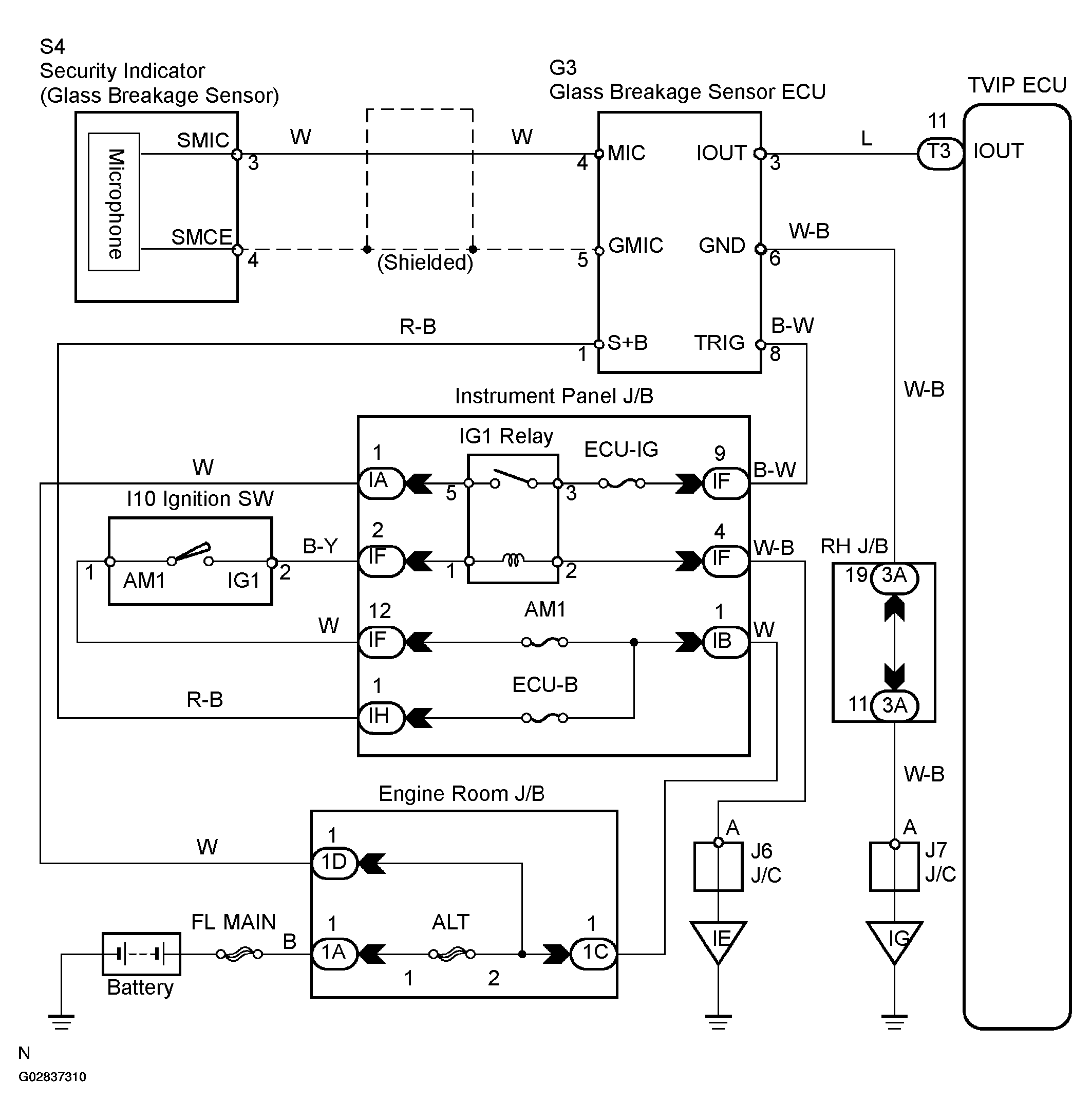

Fig 1: Wiring Diagram - Glass Breakage Sensor Circuit
G02837310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
