Abs With EBD System - Diagnostics: Location

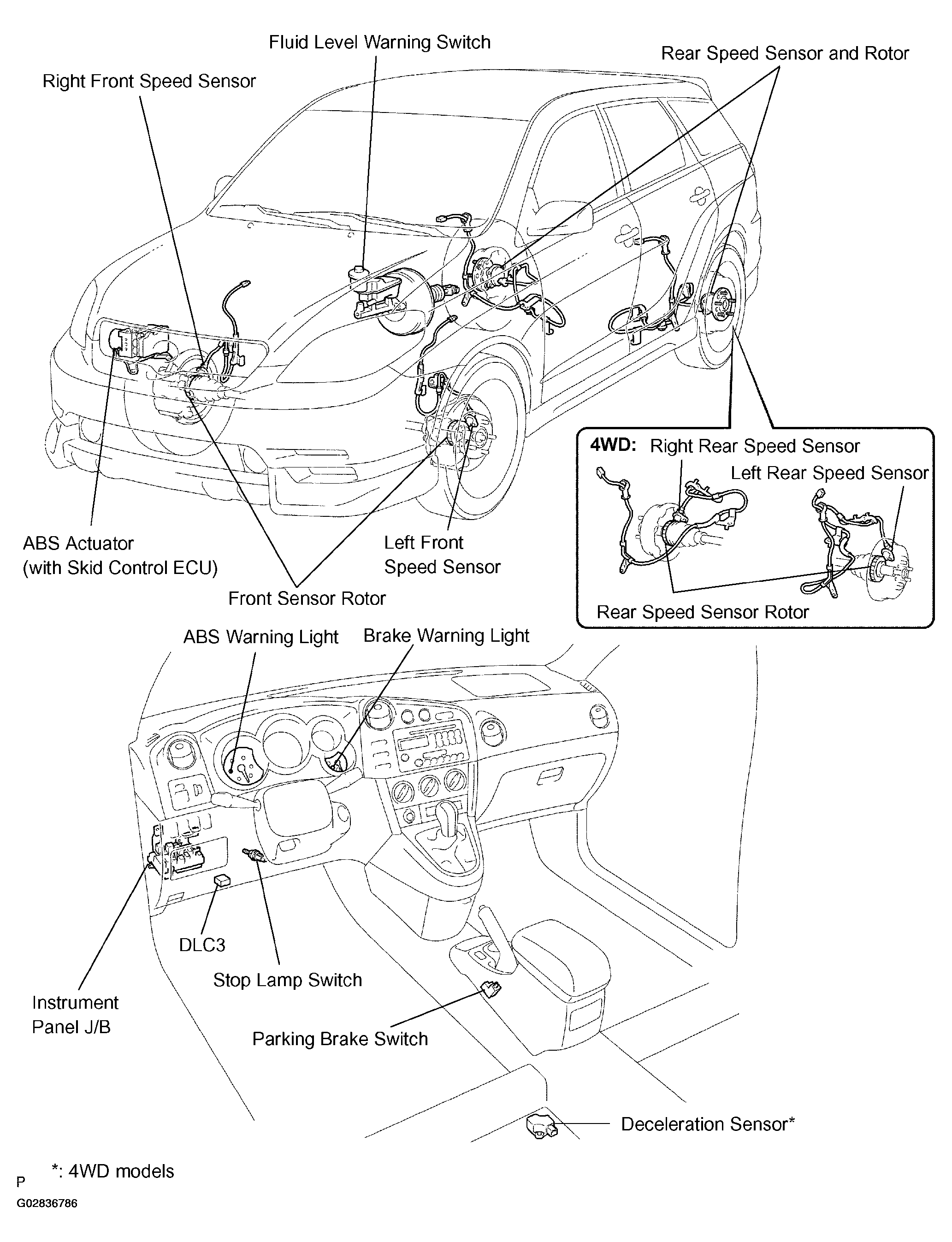

Fig 1: Locating ABS System Assembly Components
G02836786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
