Vapor Pressure Sensor (RAV4)
For testing of vapor pressure sensor, see
Fig 1
.

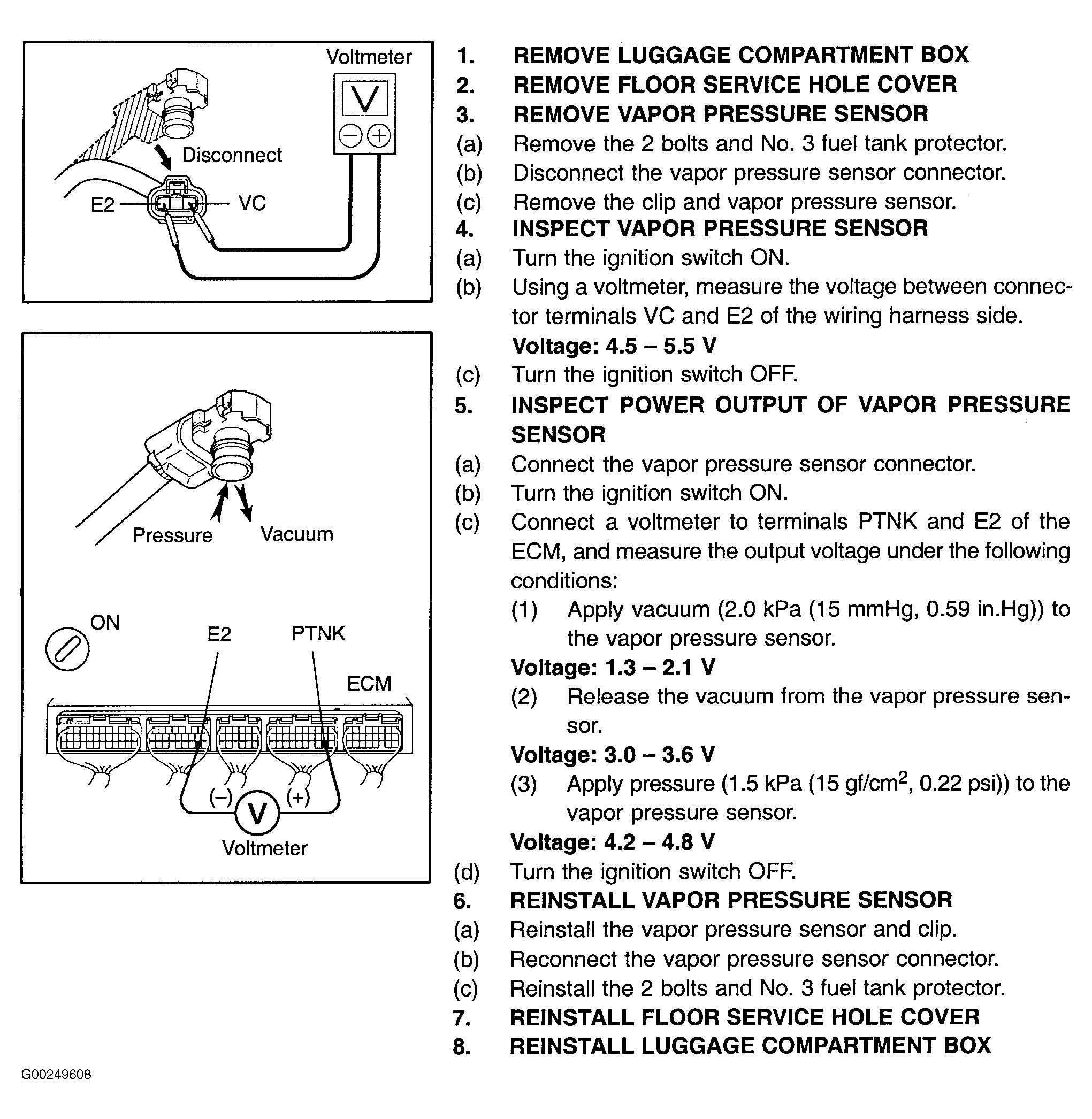

Fig 1: Testing Vapor Pressure Sensor (RAV4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
