HCAC Vacuum Switching Valve

WARNING: Read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

For HCAC vacuum switching valve inspection and testing, see Fig 1 and Fig 2.

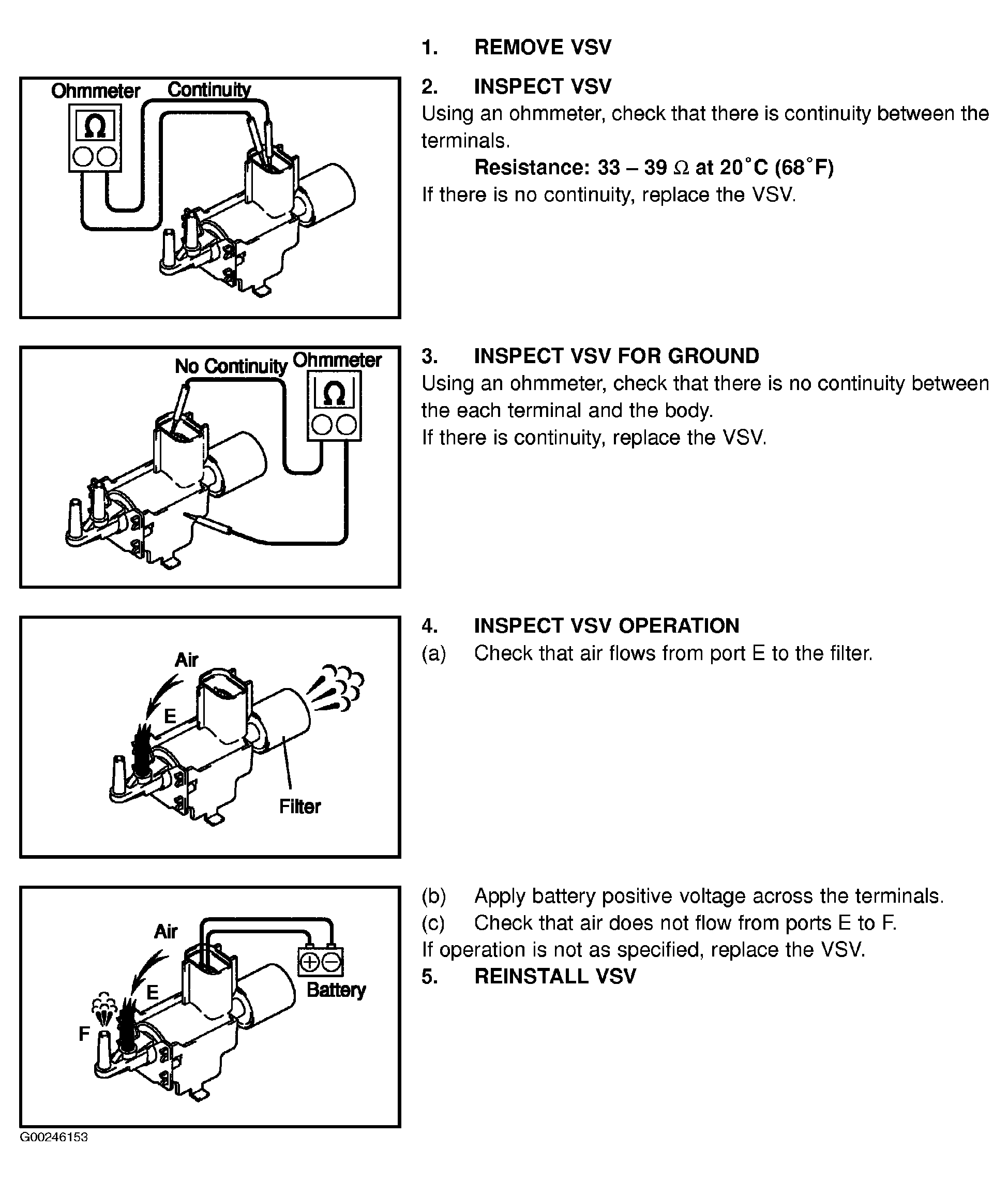

Fig 1: Testing Hydrocarbon Absorber Catalyst Vacuum Switching Valve (Prius)
G00246153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating Hydrocarbon Absorber Catalyst Vacuum Switching Valve (Prius)
G00020827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
