MR2 (With M/T)

For testing of throttle position sensor, see Fig 1-Fig 4 . To check for intermittent problems, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS  under COMPUTERIZED ENGINE CONTROLS.

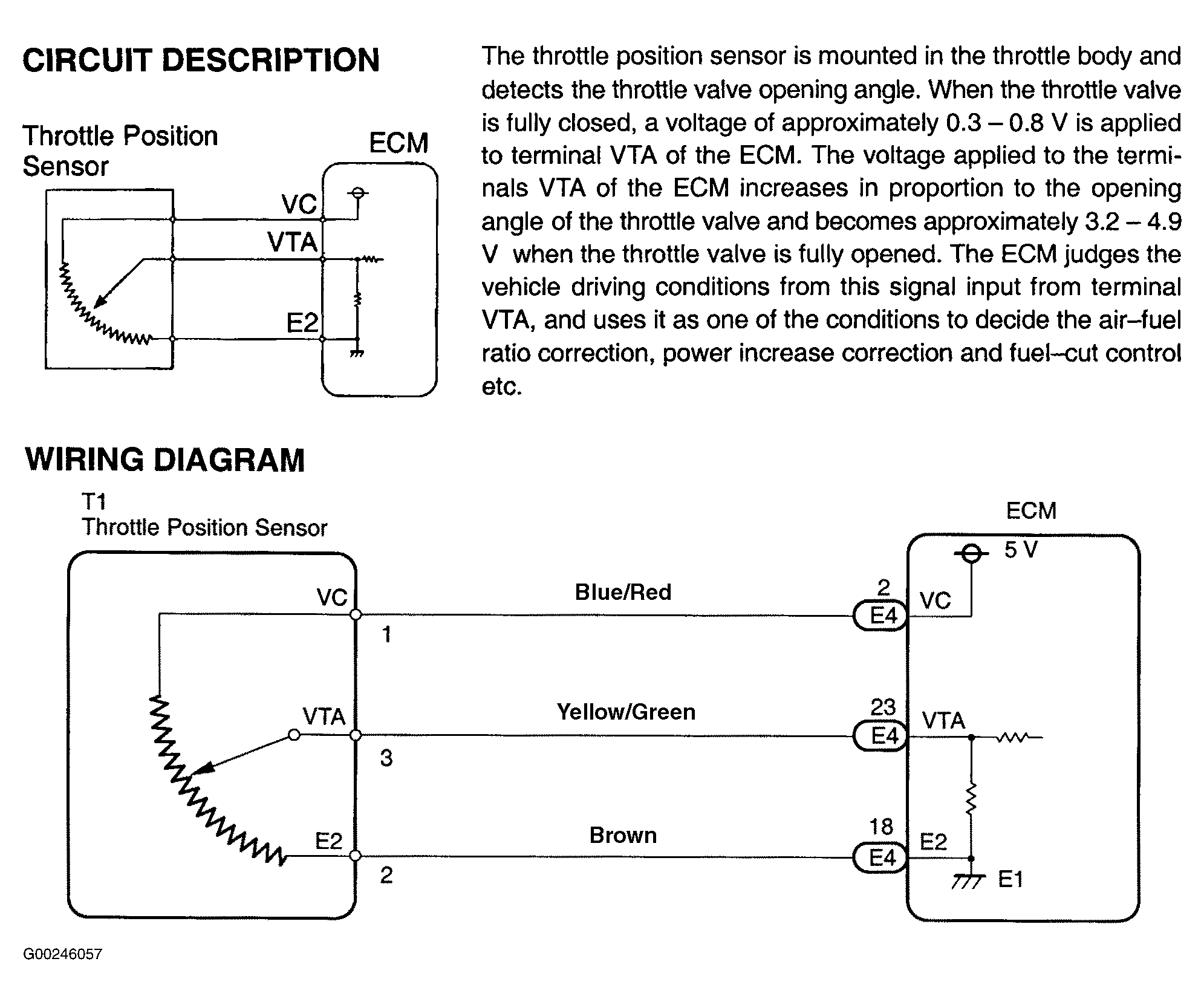

Fig 1: Testing Throttle Position Sensor - Circuit Description (MR2 With M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

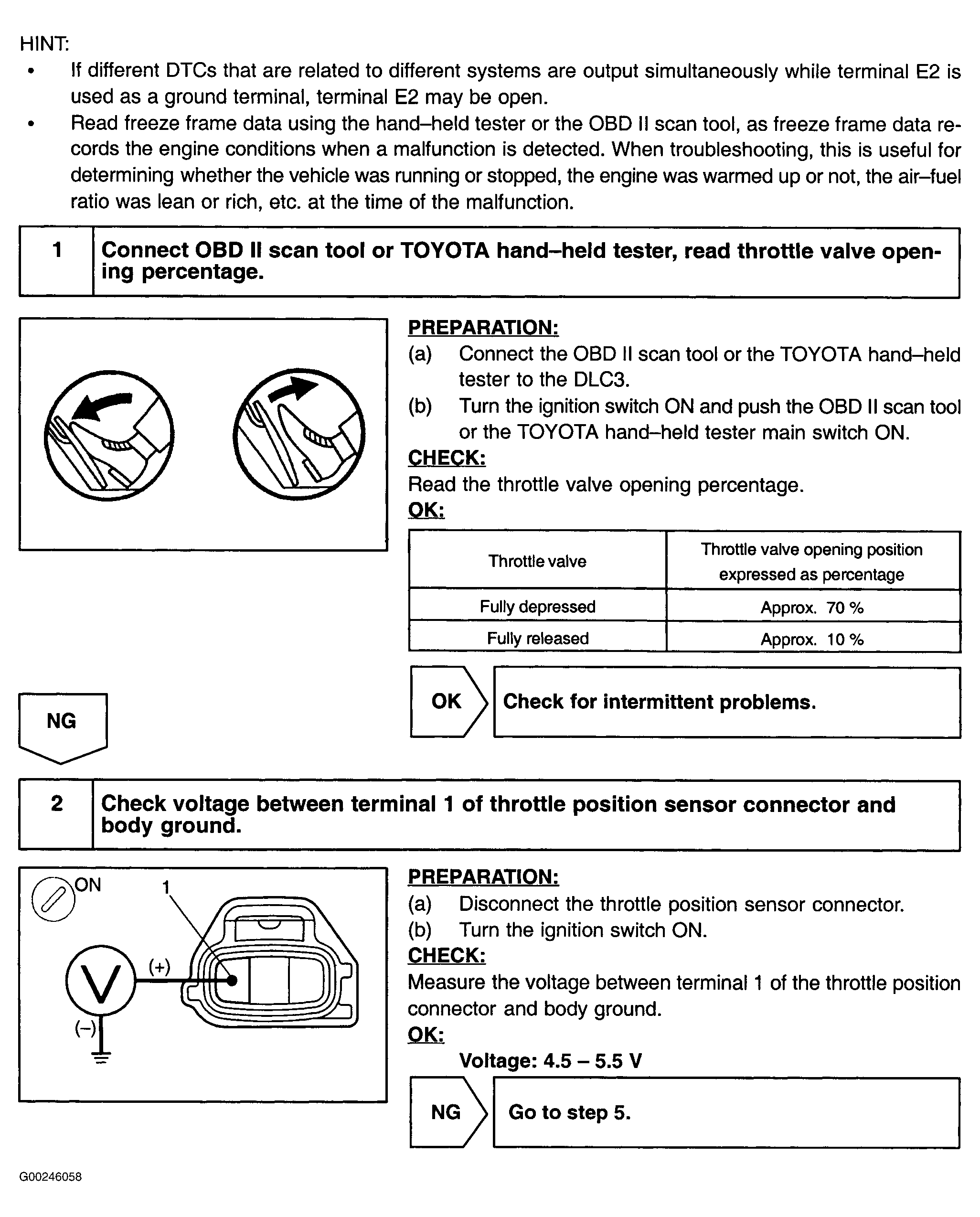

Fig 2: Testing Throttle Position Sensor - Steps 1-2 (MR2 With M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing Throttle Position Sensor - Step 2 Cont. & Steps 3-4 (MR2 With M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

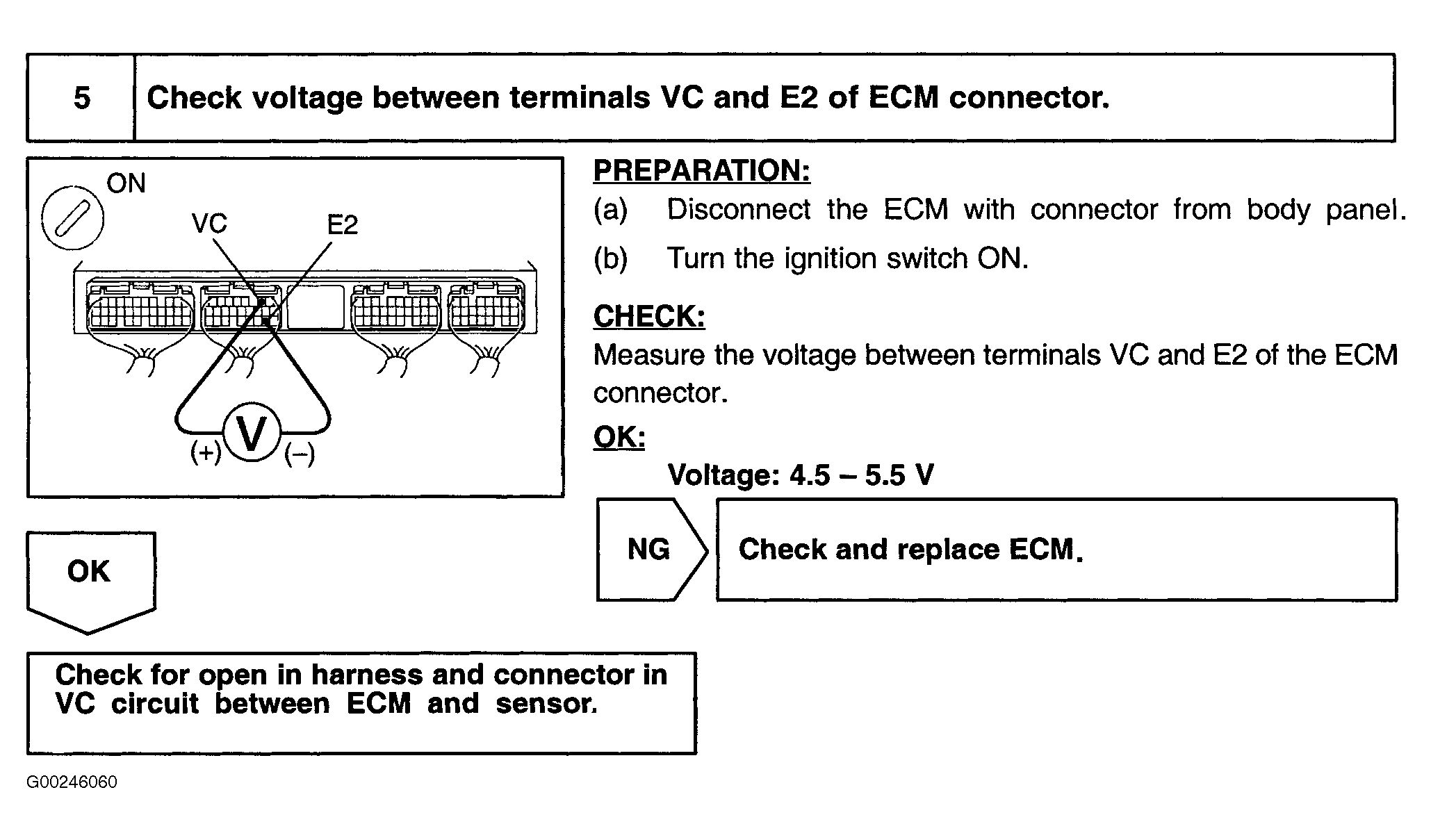

Fig 4: Testing Throttle Position Sensor - Step 5 (MR2 With M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
