Celica & ECHO

For Idle Air Control (IAC) system testing procedures, see Fig 1-Fig 2 .

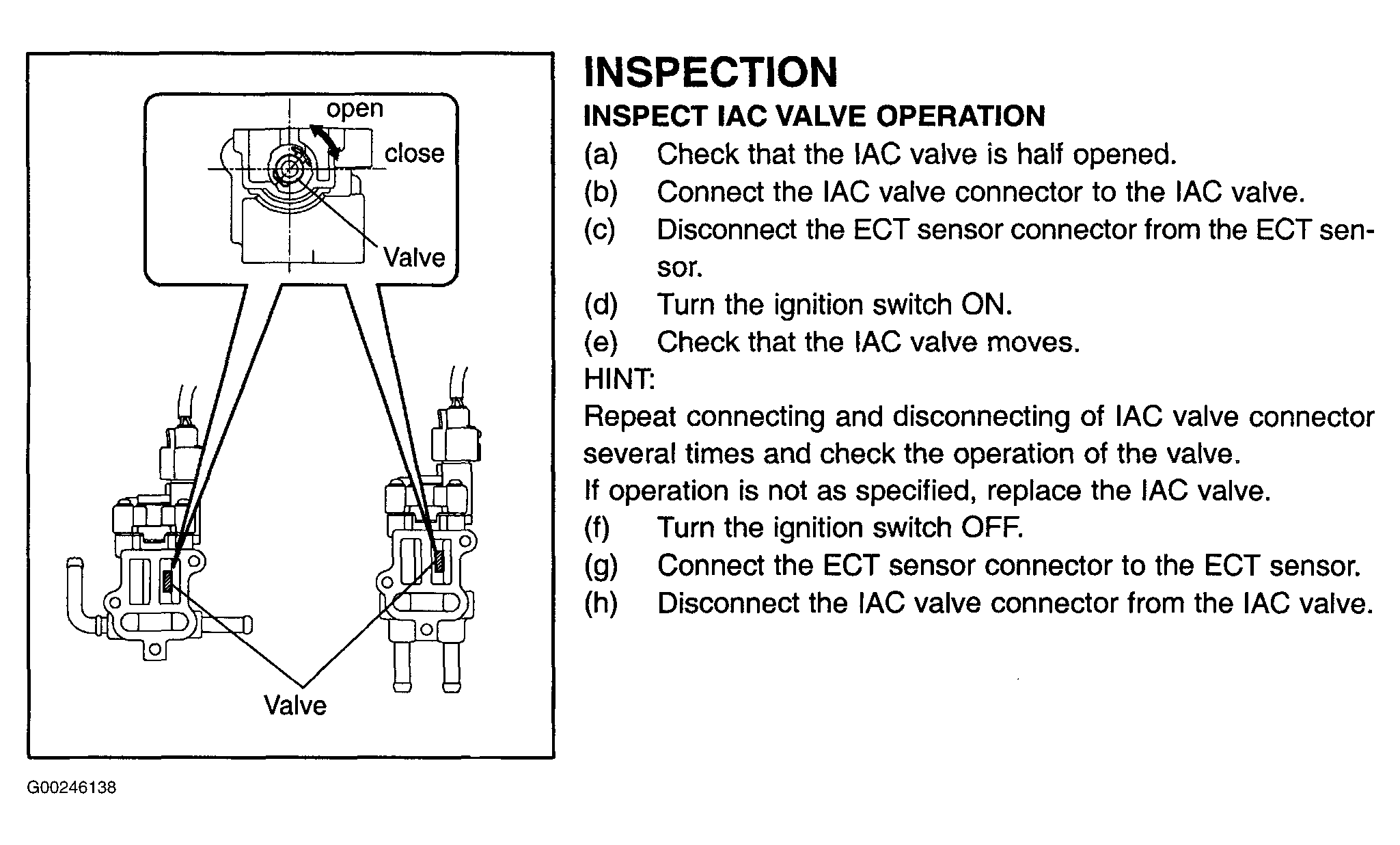

Fig 1: Inspecting Idle Air Control Valve Off-Vehicle (Celica & ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

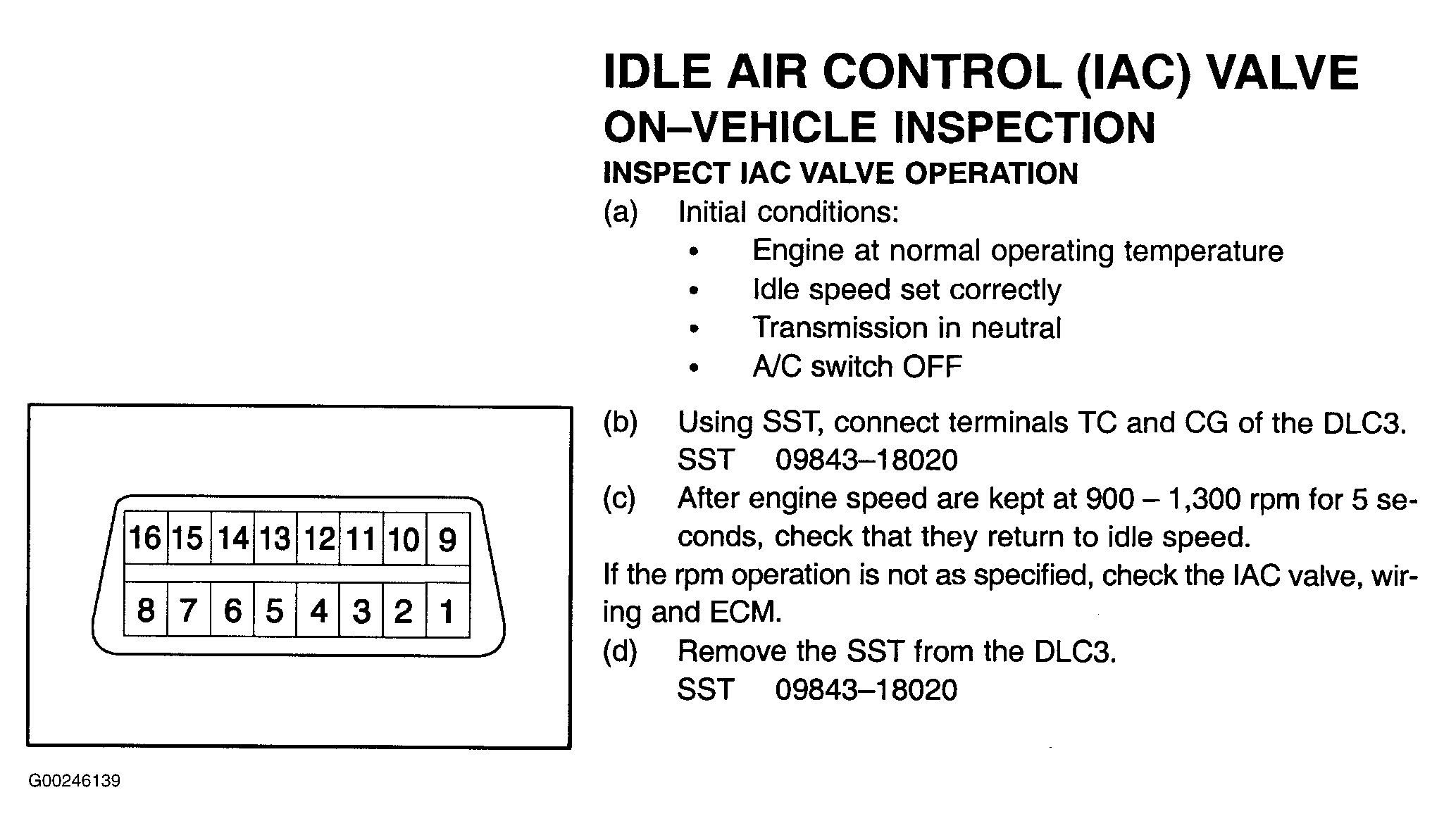

Fig 2: Testing Idle Air Control System On-Vehicle (Celica & ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
