Celica (With VIN "Y")

For throttle body inspection procedure, see Fig 1-Fig 2 .

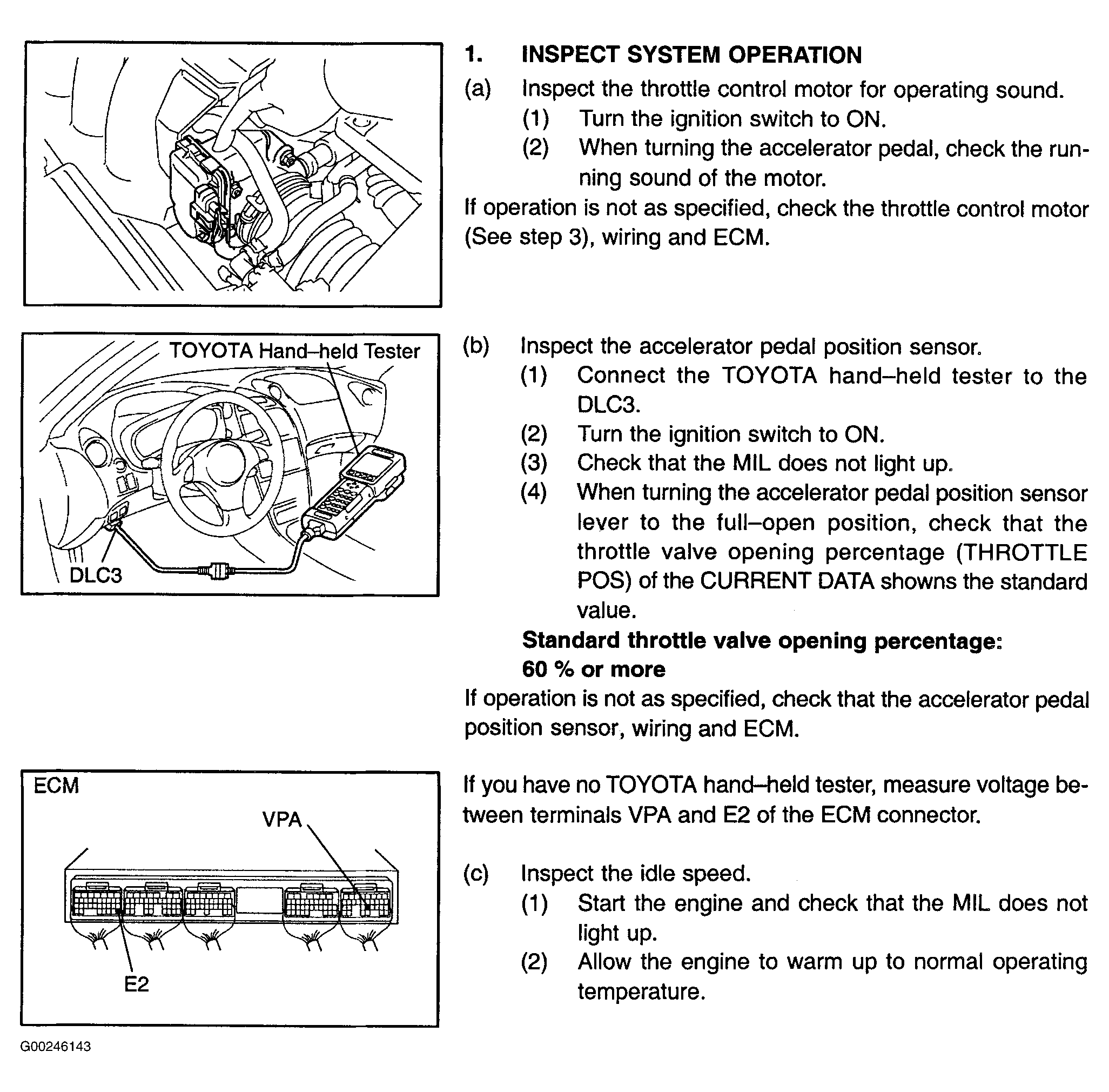

Fig 1: Inspecting Throttle Body - 1 Of 2 (Celica VIN "Y")
G00246143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

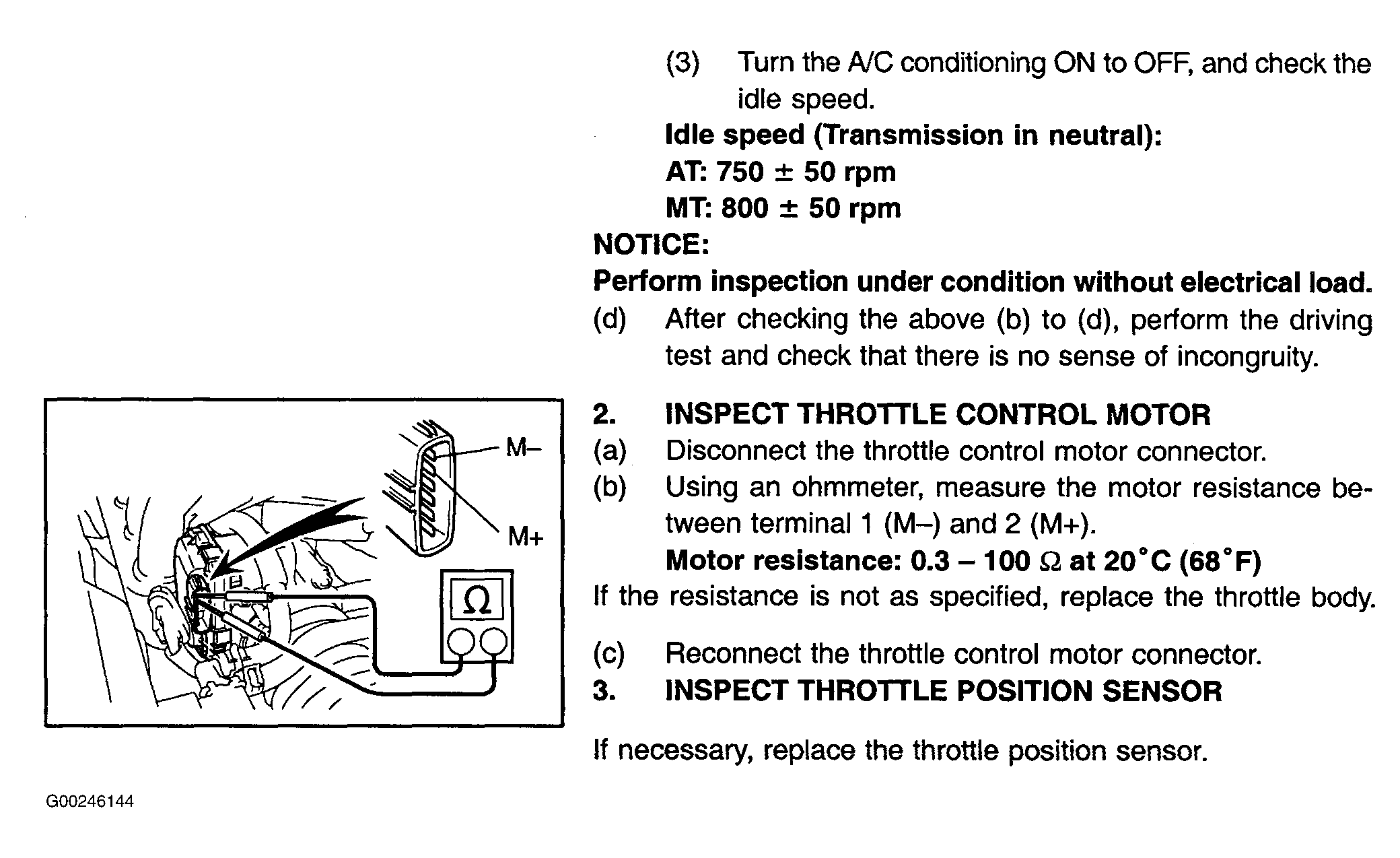

Fig 2: Inspecting Throttle Body - 2 Of 2 (Celica VIN "Y")
G00246144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
