Diagnosis & Repair

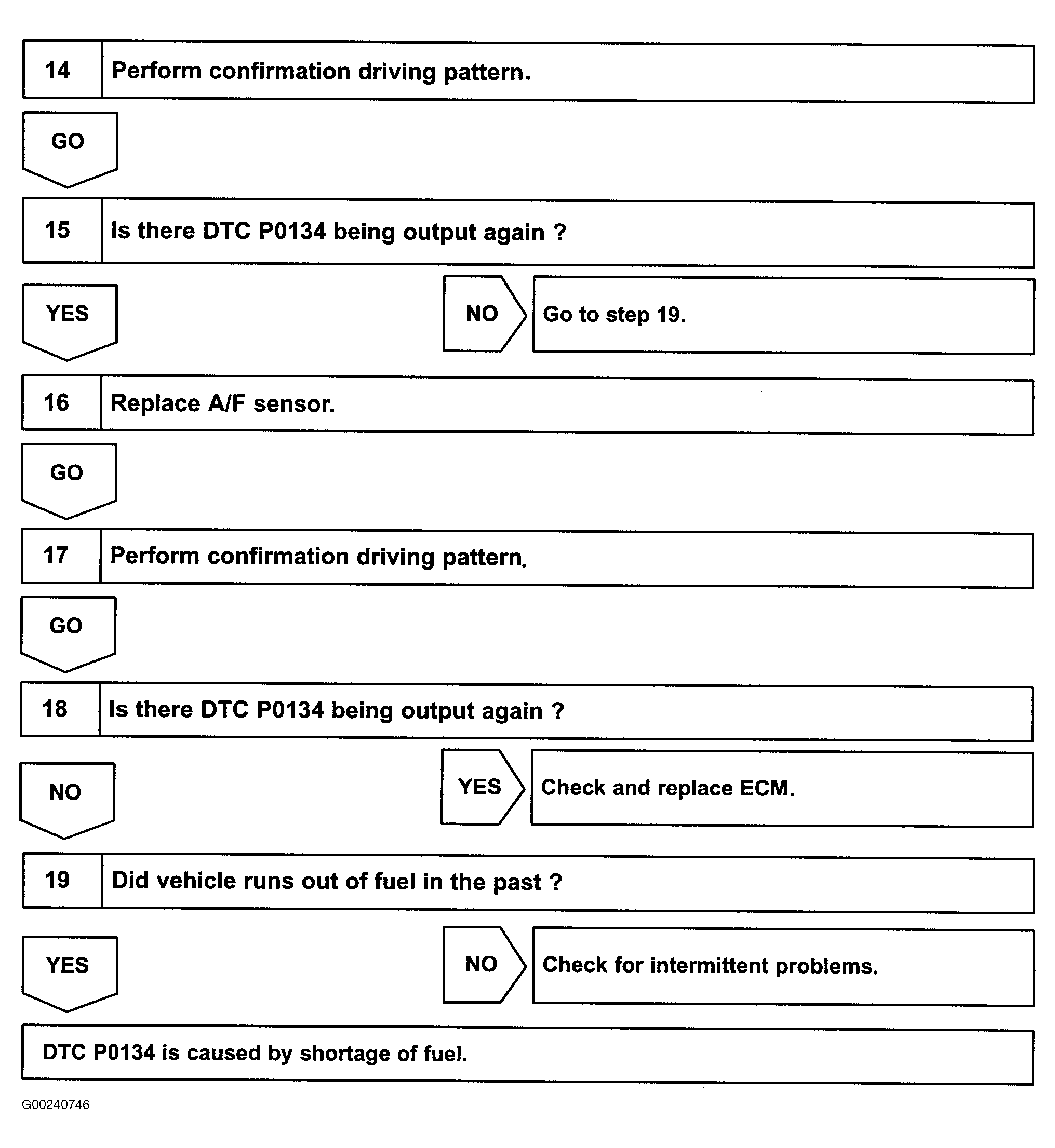

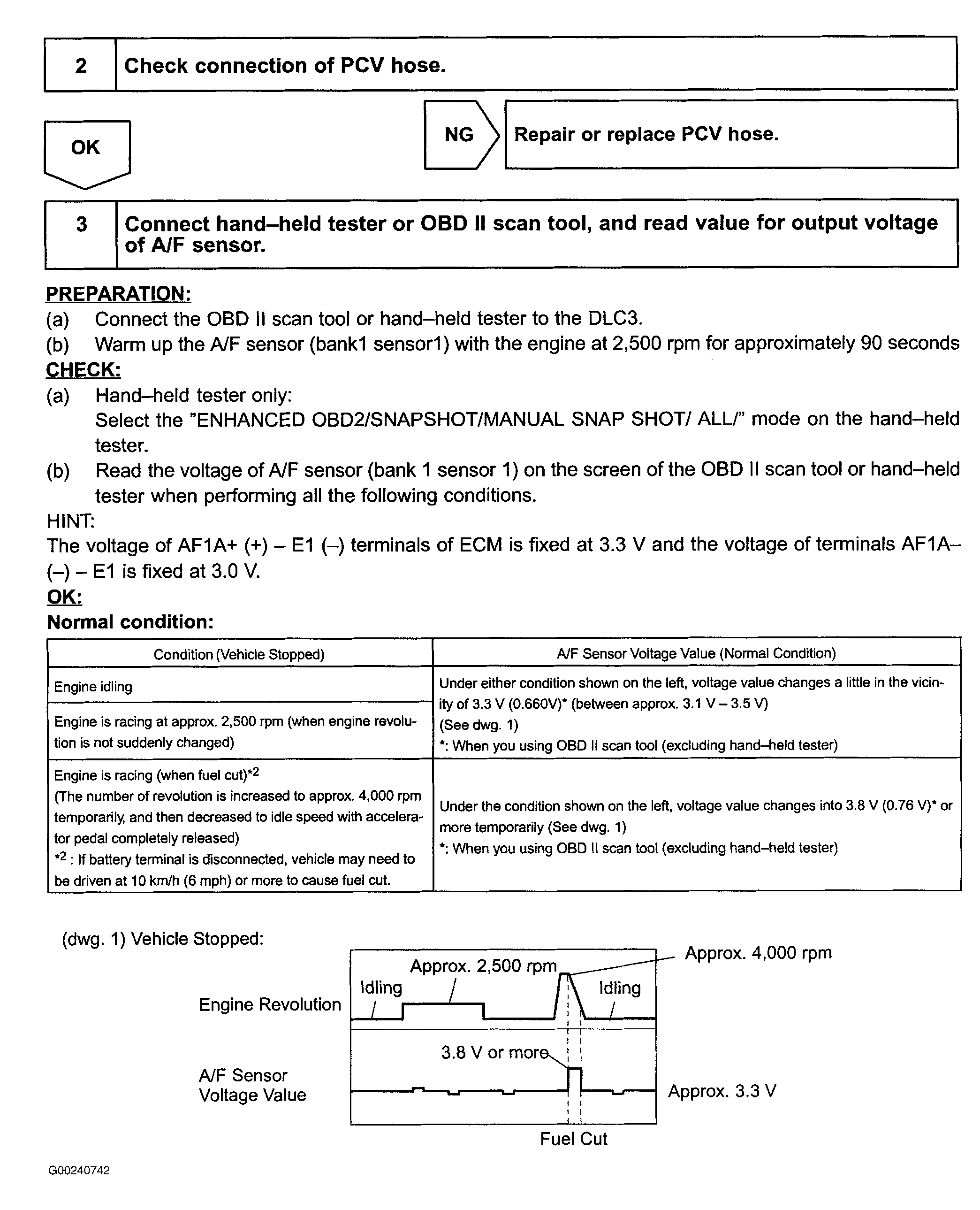

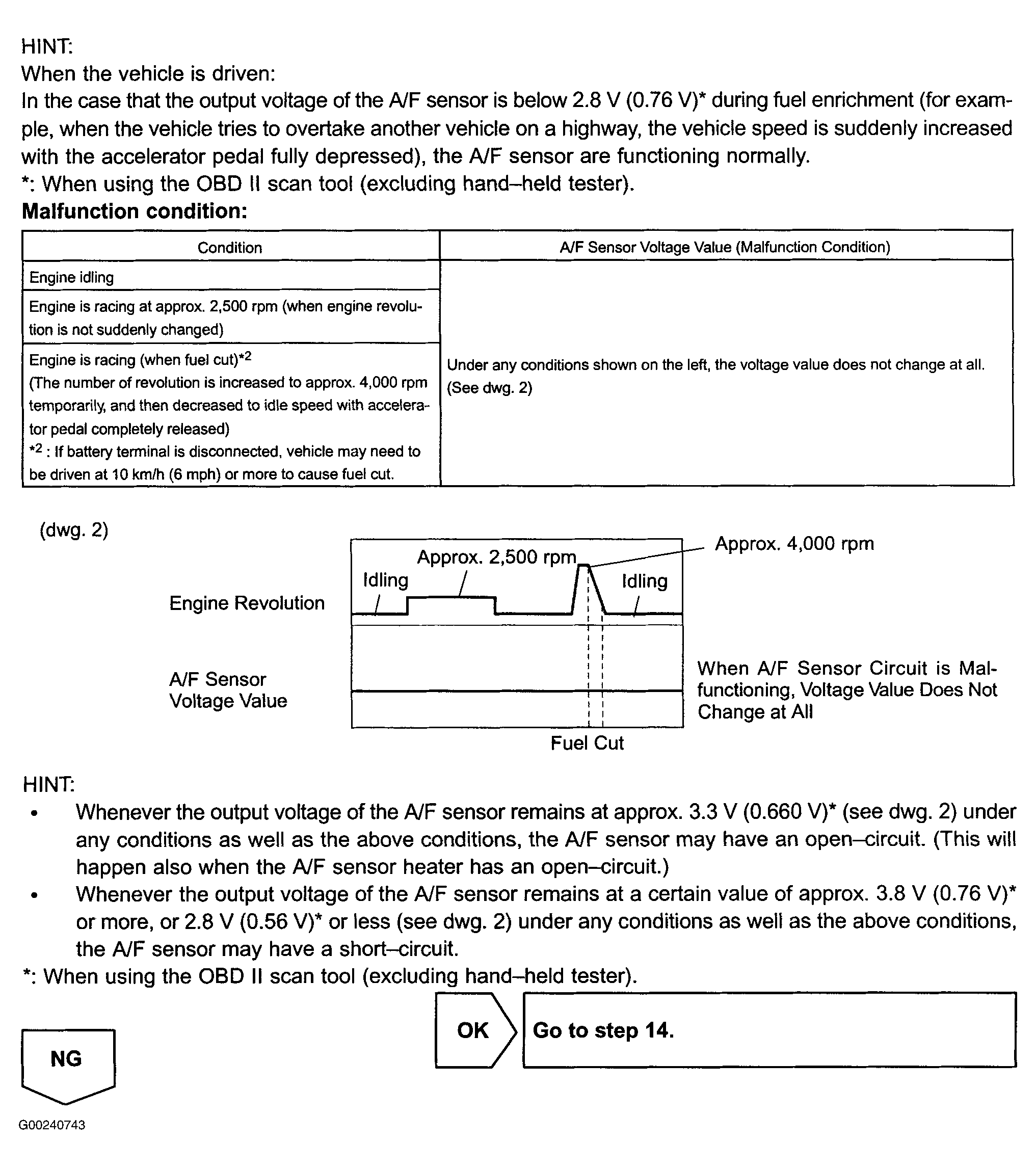

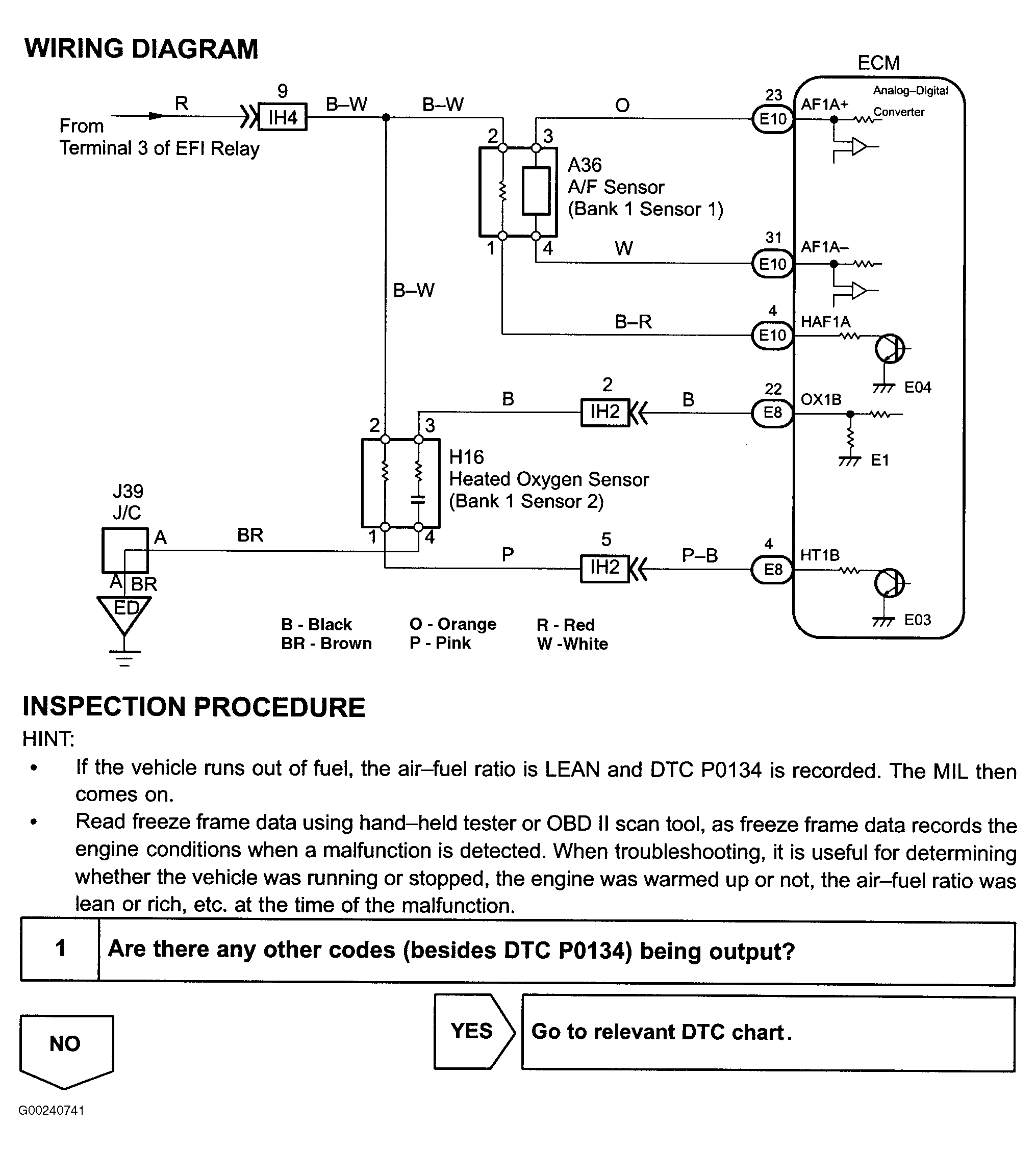

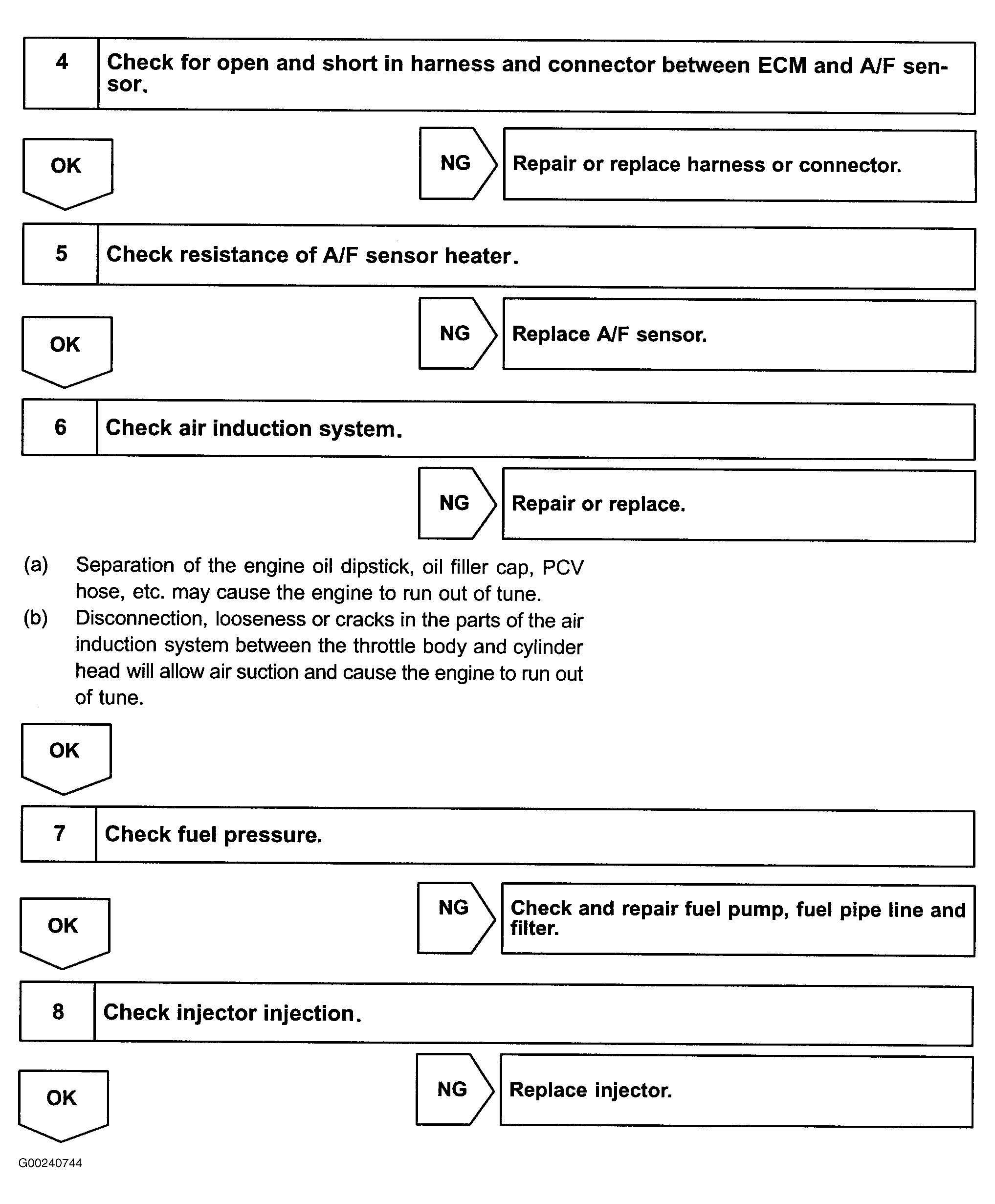

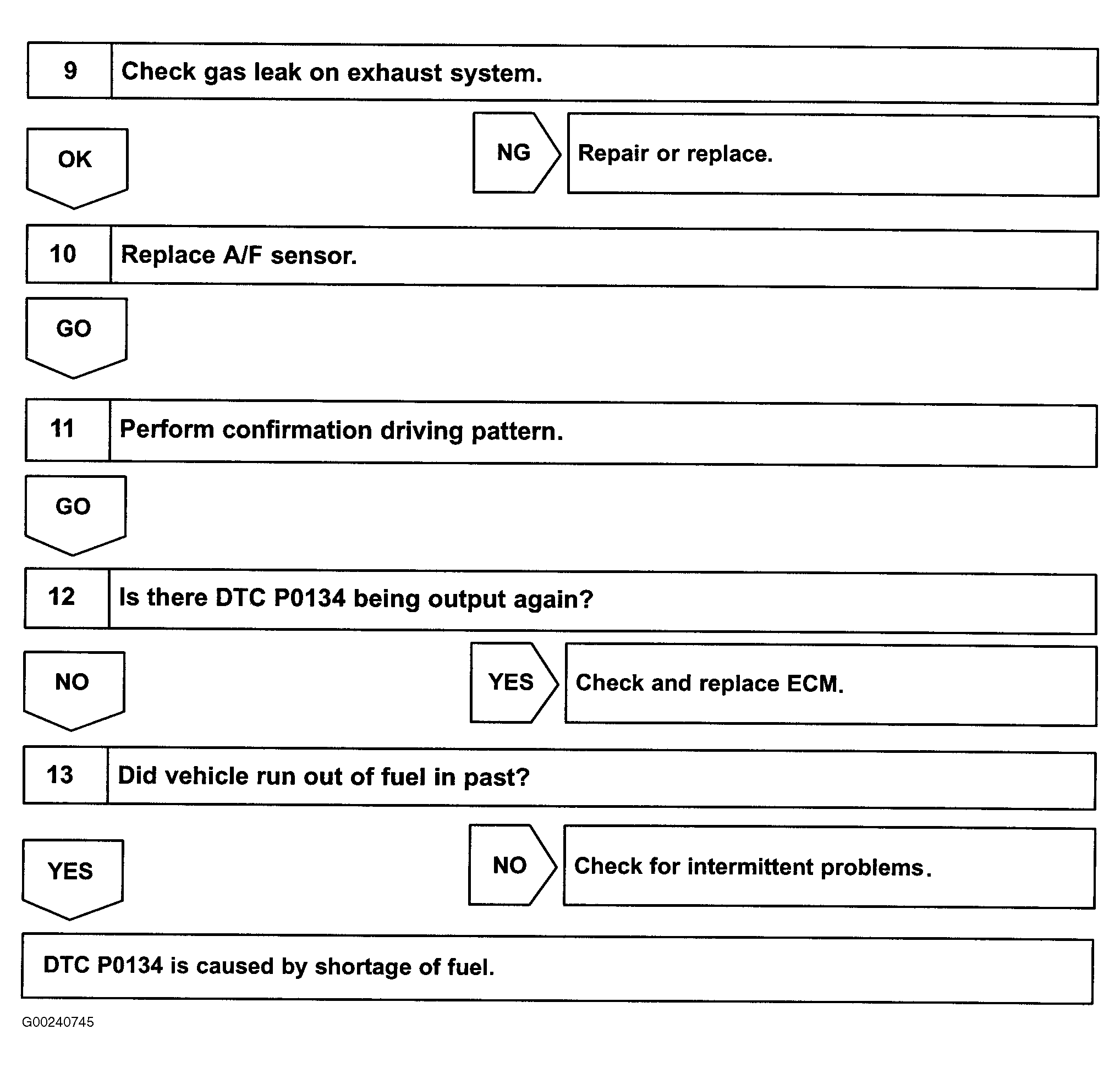

For diagnosis and repair, see Fig 1-Fig 6 . To go to relevant DTC chart, see DIAGNOSTIC TROUBLE CODE DEFINITIONS . To identify circuits referenced in testing, see appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article. For testing of systems and components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYL article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article. To perform confirmation driving pattern, see DTC P2195, DTC P2196, DTC P2237, DTC P2238, DTC P2239, DTC P2251, DTC P2252 & DTC P2253 . To check ECM inputs and outputs, see PIN VOLTAGE CHARTS article. For ECM location, see ENGINE CONTROL MODULE LOCATION under SELF-DIAGNOSTIC SYSTEM. To check for intermittent problems, see INTERMITTENT PROBLEM CHECK under SELF-DIAGNOSTIC SYSTEM.
