Inspection Procedure

WARNING: This page is about a different car, the 2003 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Combination meter is located top center of dashboard. To inspect combination meter circuit and speedometer (on-vehicle), see Fig 1 & Fig 2 .

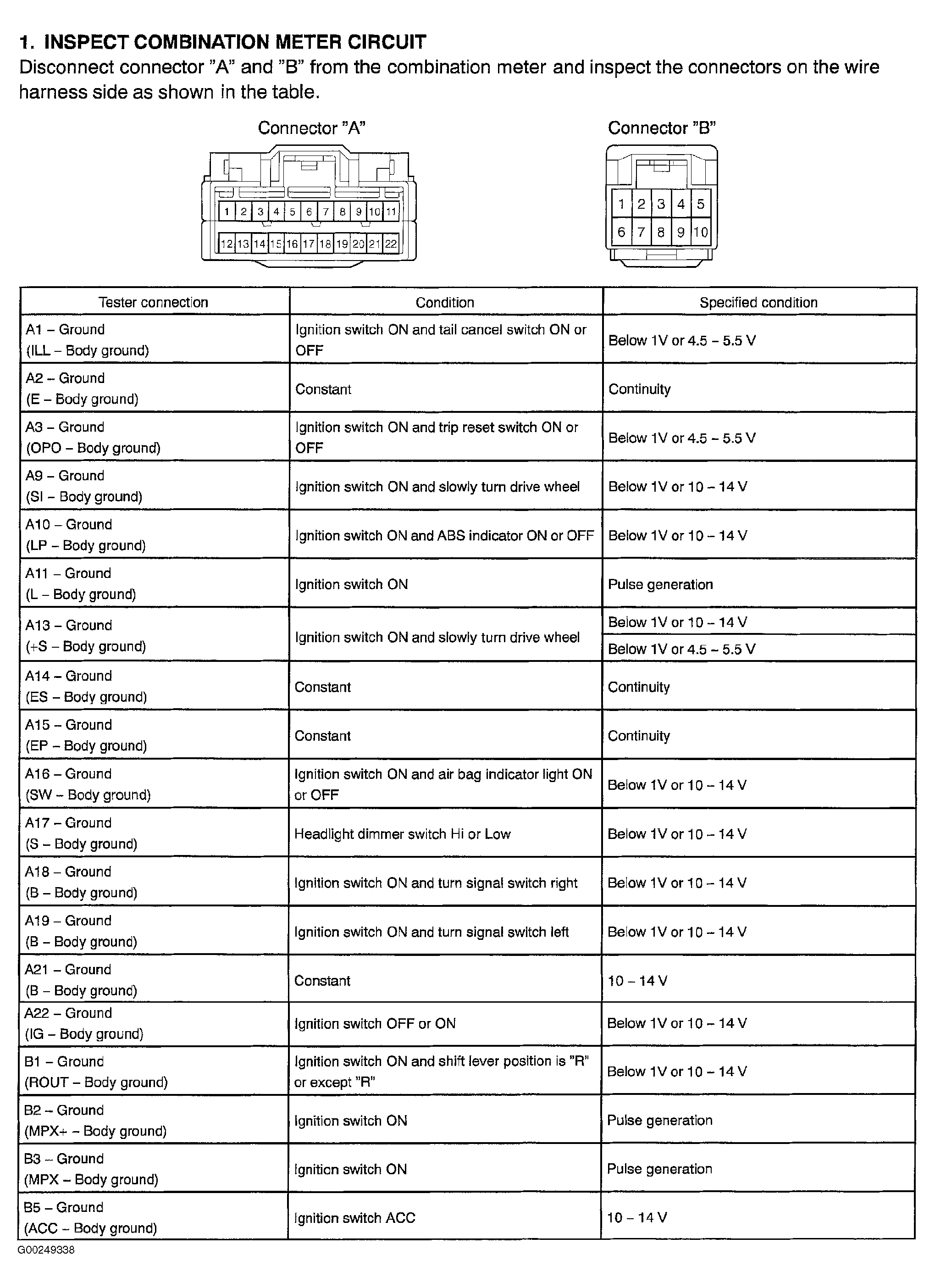

Fig 1: Combination Meter Circuit Diagnostic Procedure (Step 1)
G00249338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

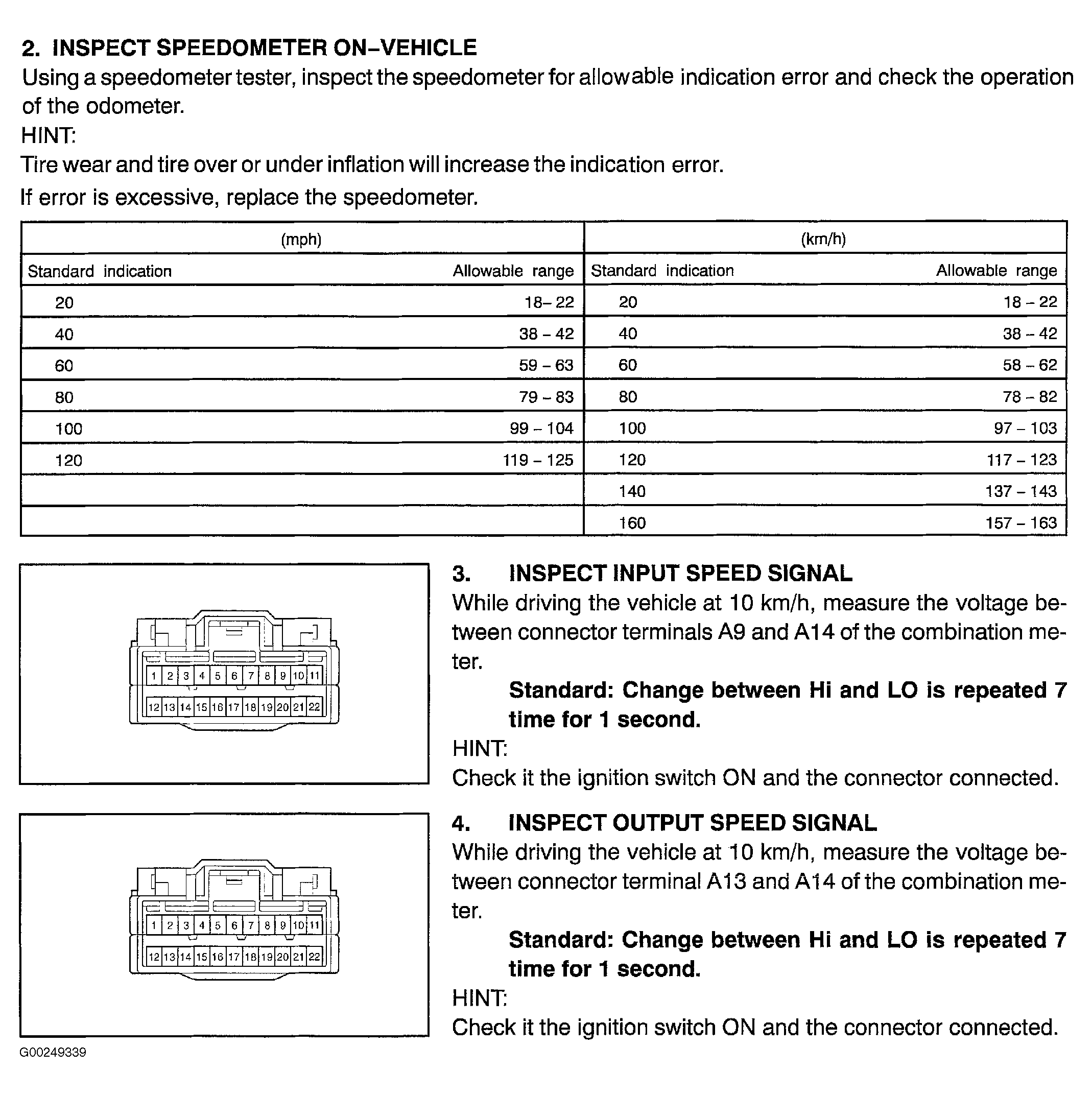

Fig 2: Combination Meter Circuit Diagnostic Procedure (Steps 2-3)
G00249339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
