Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

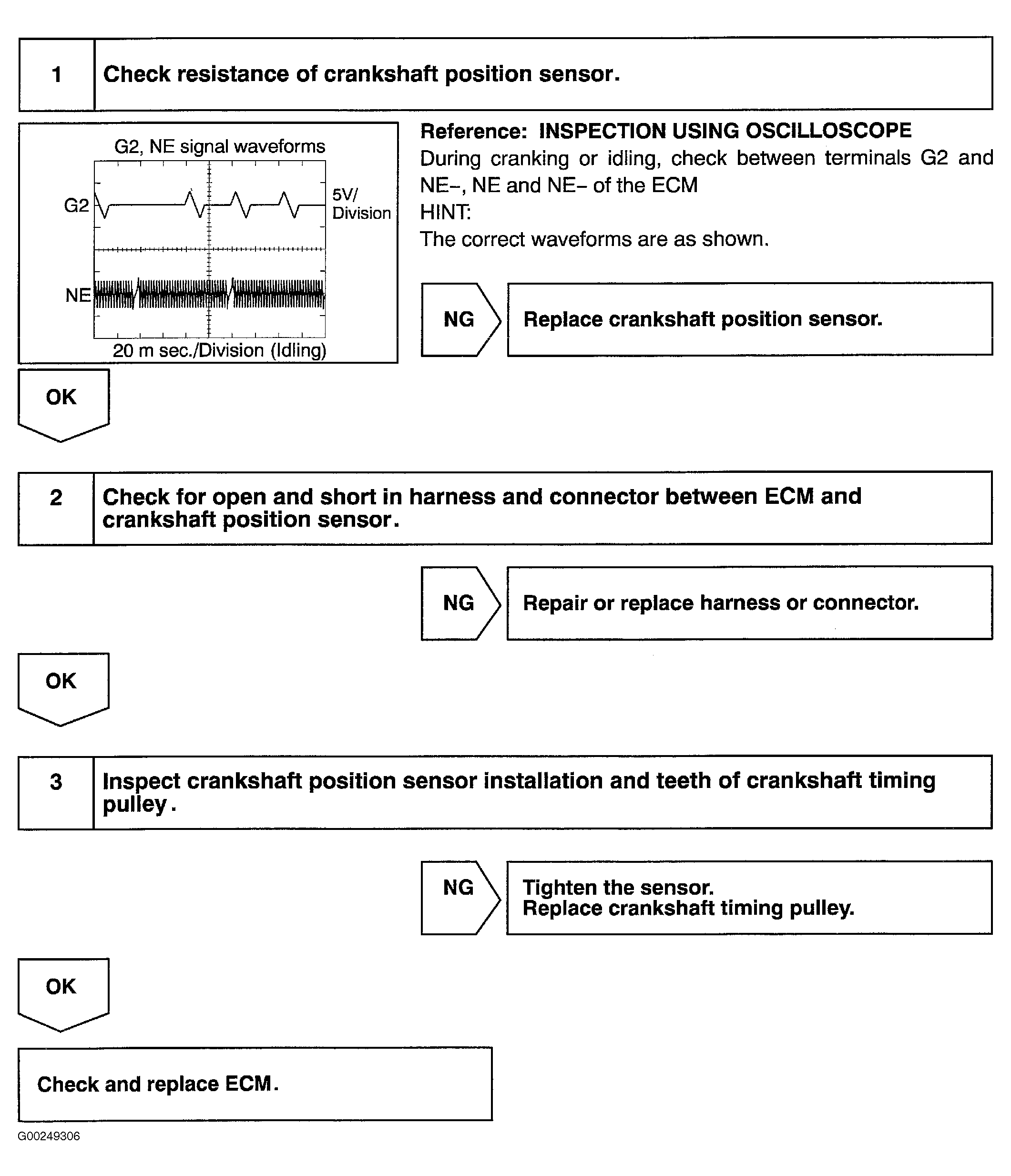

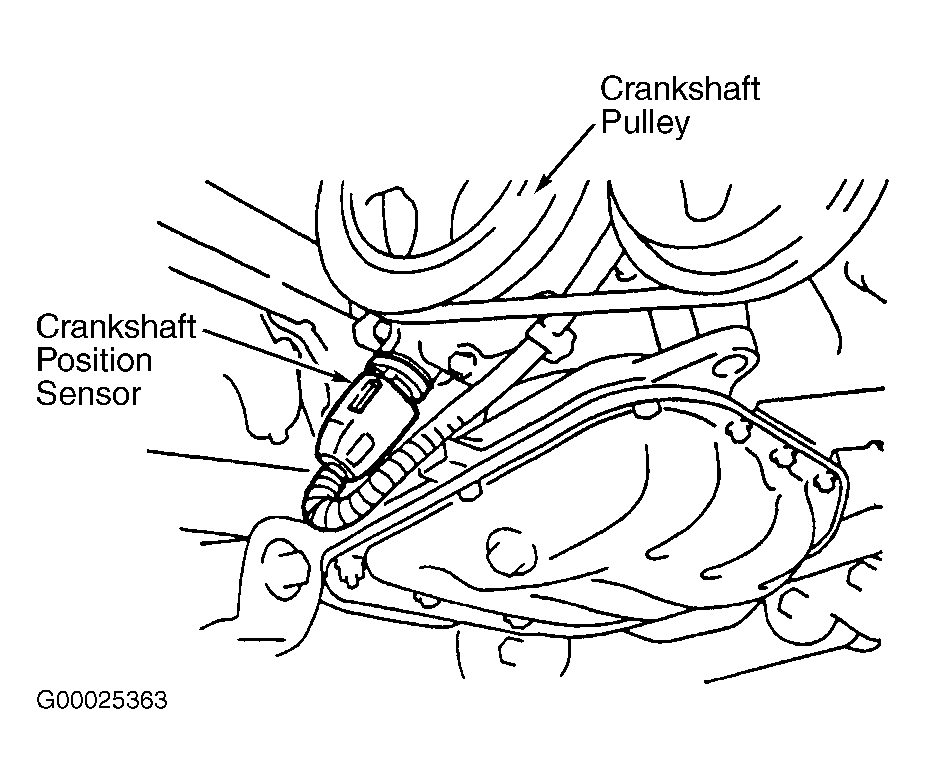

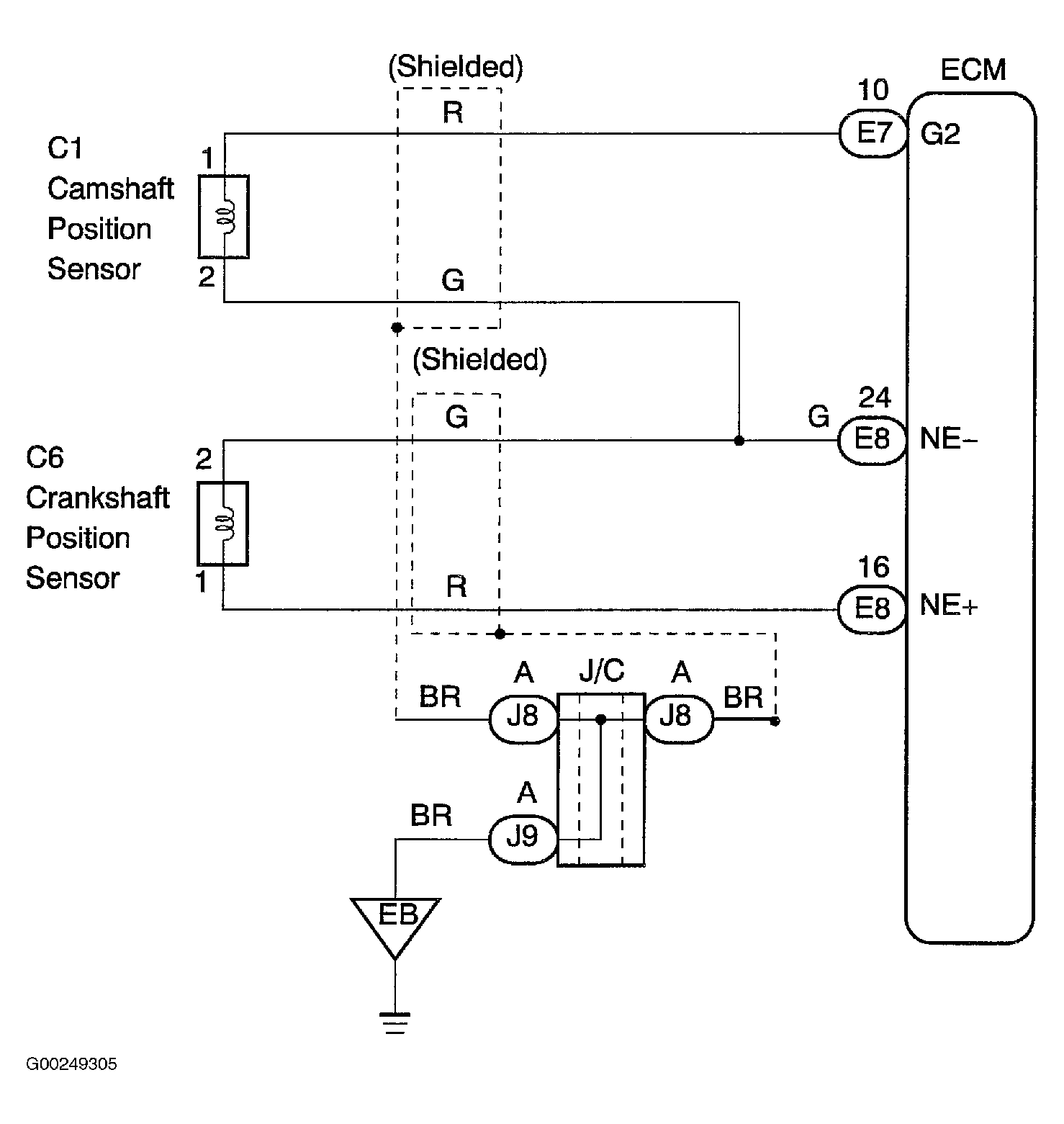

For diagnosis and repair procedure, see Fig 1. Crankshaft position sensor is located on front of engine, near crankshaft pulley. See Fig 2. For CKP sensor circuit wiring diagram, see Fig 3.
For ECM location, see Figure. For ECM connector terminal view, see Figure.
For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article.
