For starter signal circuit inspection and wiring diagram, see Fig 1-Fig 4 . For circuit identification, see ENGINE PERFORMANCE in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL. Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS under COMPUTERIZED ENGINE CONTROLS.

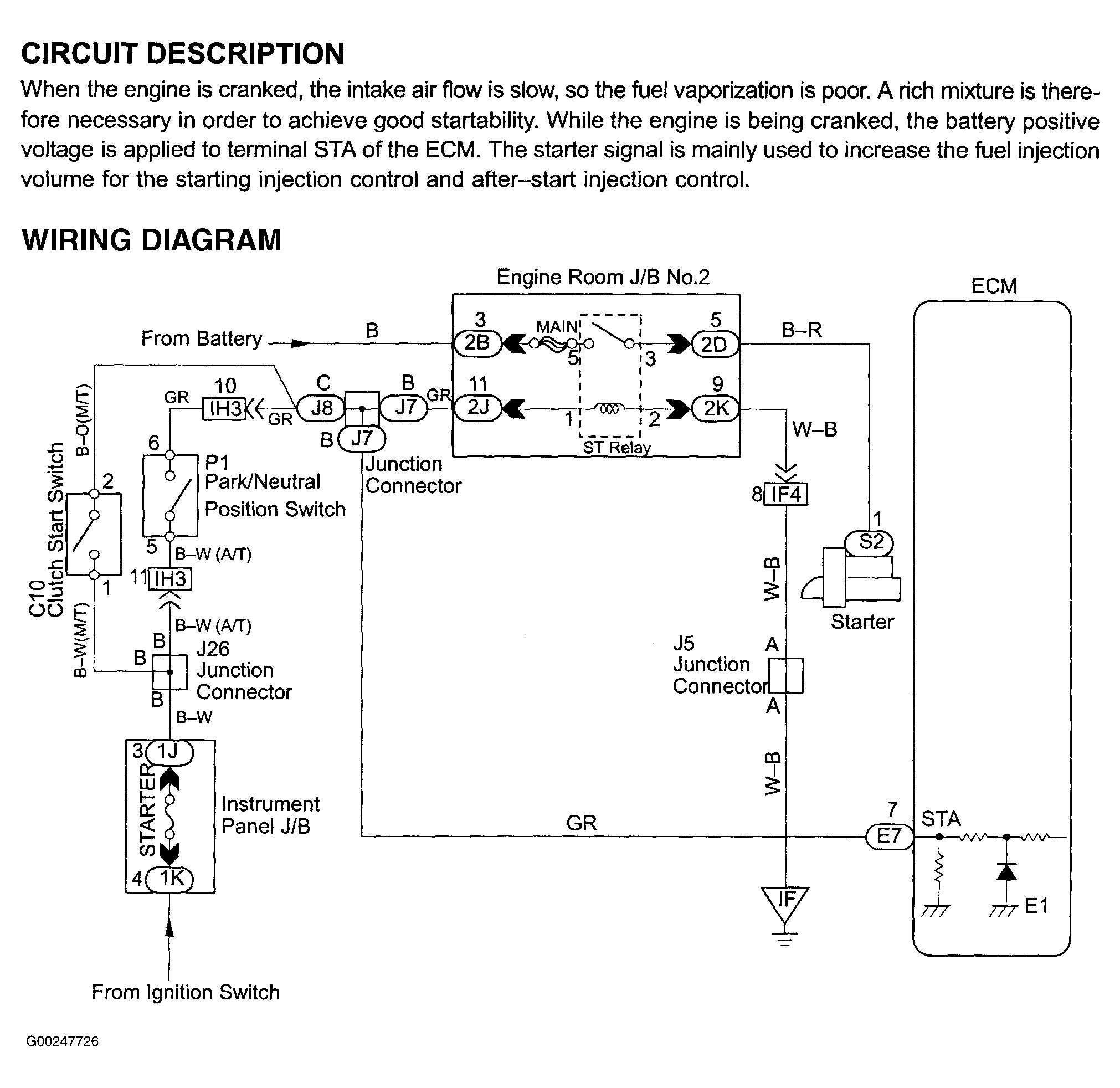

Fig 1: Starter Signal Wiring Diagram (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

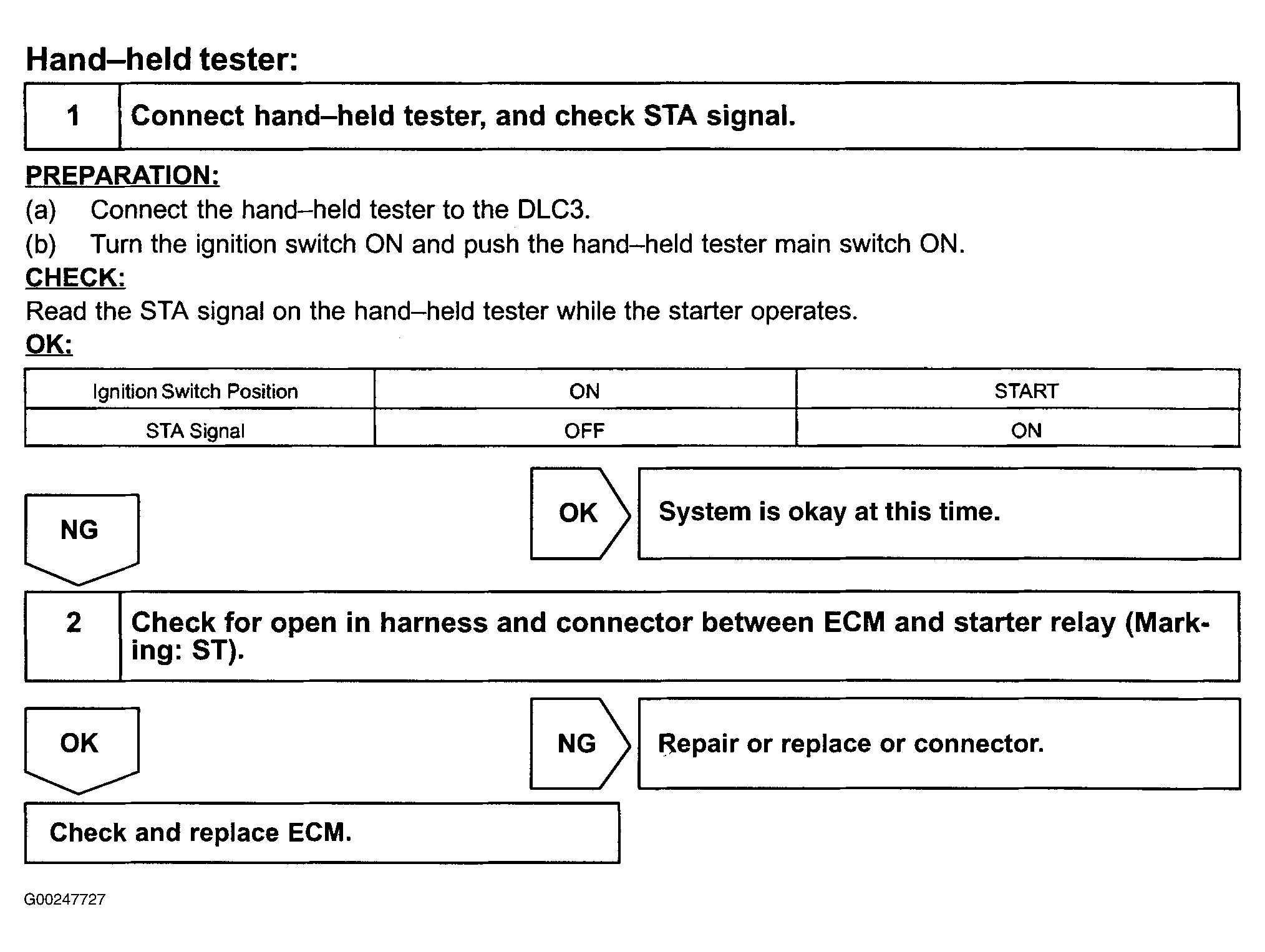

Fig 2: Starter Signal Circuit Inspection Using Hand-Held Tester - Steps 1-2 (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

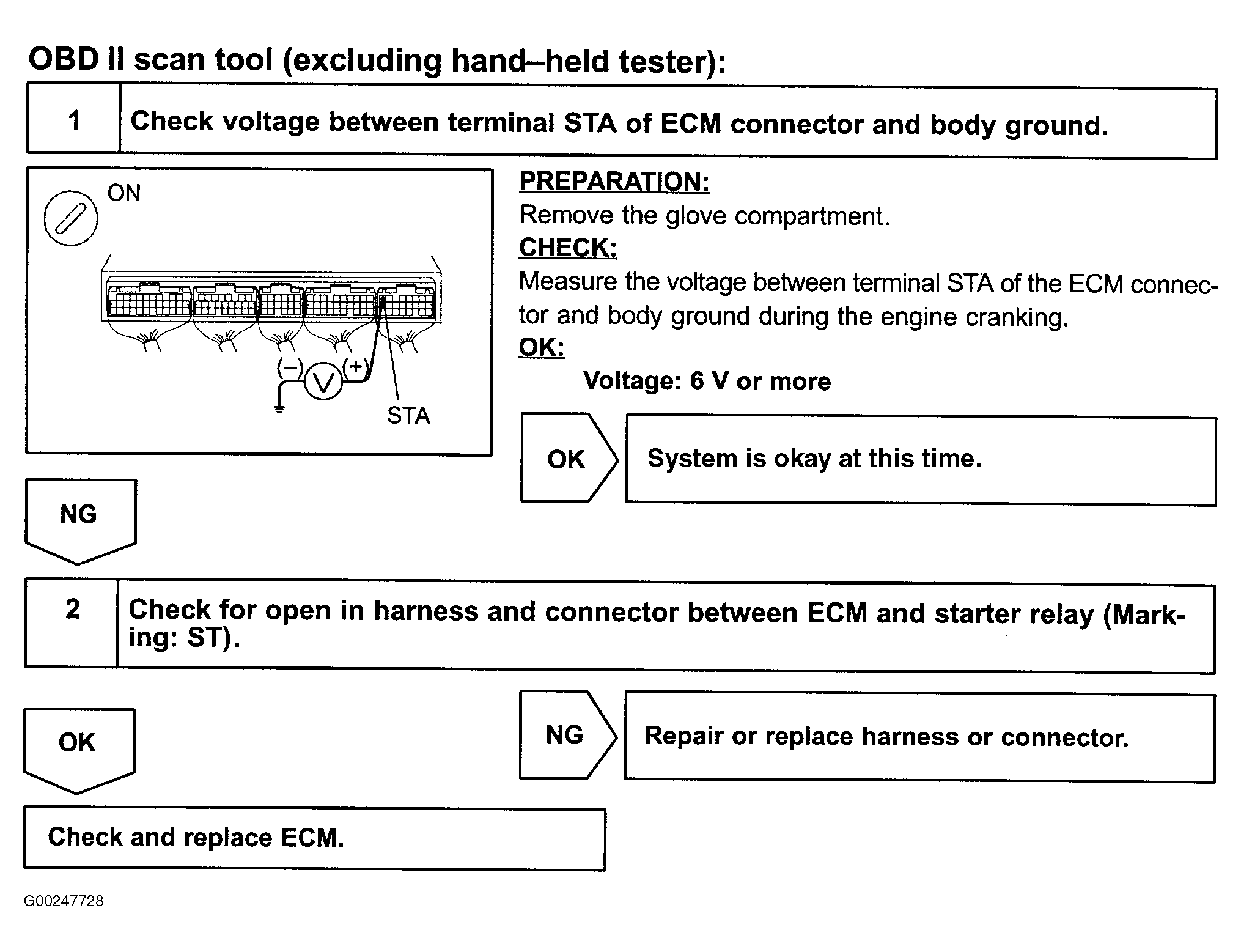

Fig 3: Fuel Pump Control Circuit Using OBD II Scan Tool - Steps 1-2 (Camry Solara)

Fig 4: Locating Data Link Connector No. 3 (Camry Solara)
