Fuel EVAP System Test (Camry)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Manufacturer provides testing information for testing airtightness of fuel tank and testing fuel EVAP system.

For fuel EVAP system test, see Fig 1-Fig 5 .

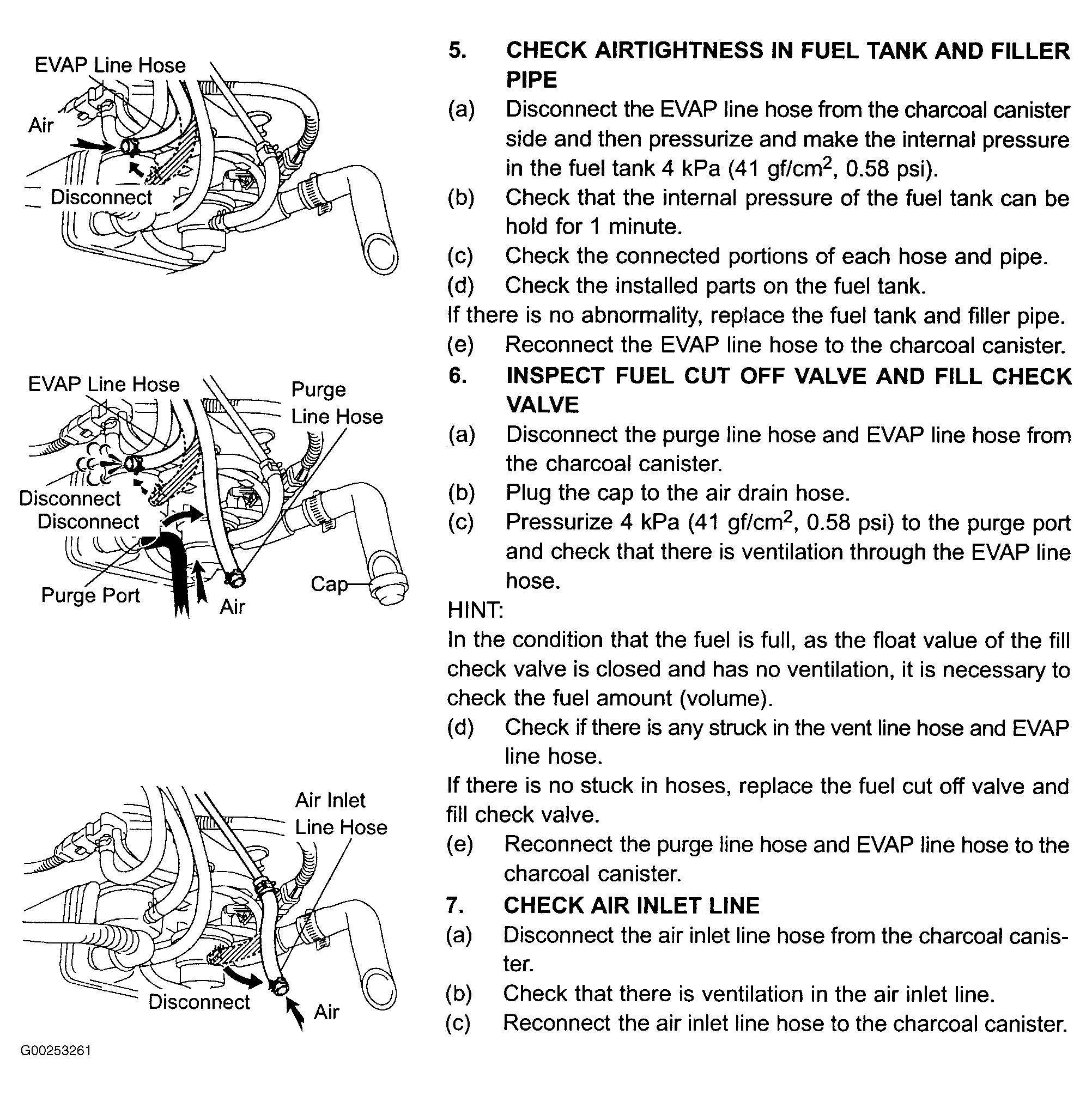

Fig 1: Testing Fuel EVAP System - 1 of 5 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

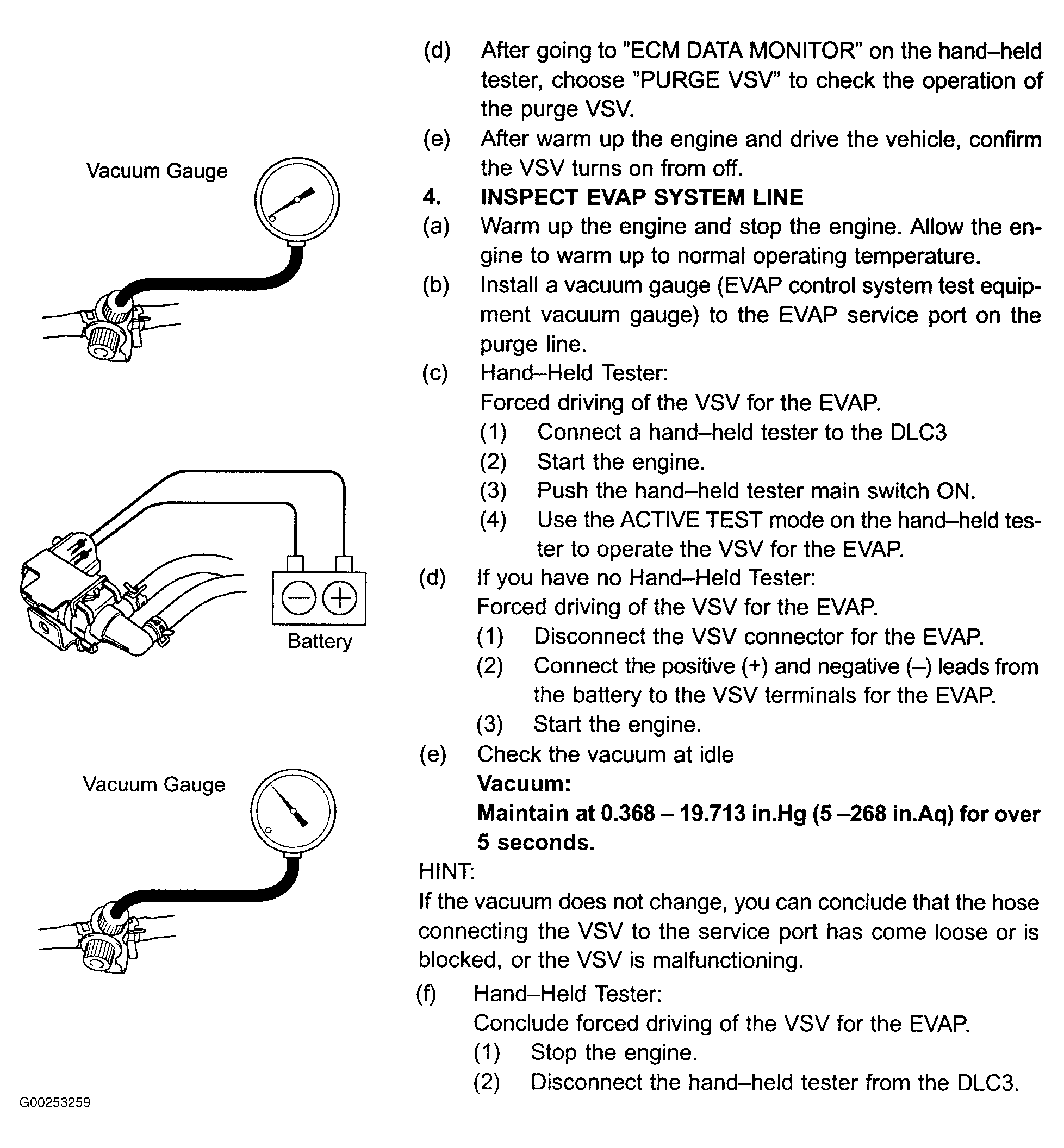

Fig 2: Testing Fuel EVAP System - 2 of 5 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

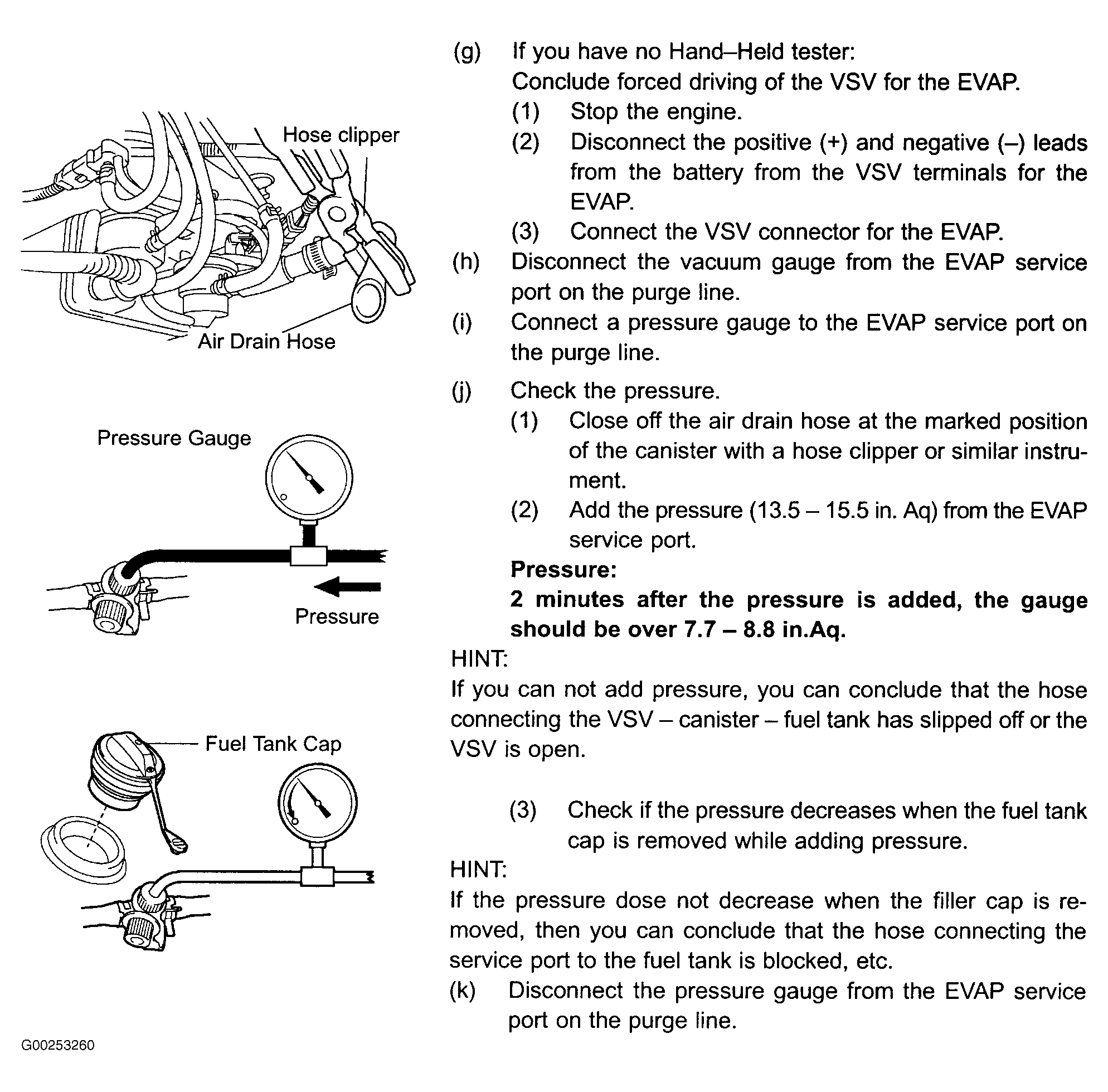

Fig 3: Testing Fuel EVAP System - 3 of 5 (Camry)

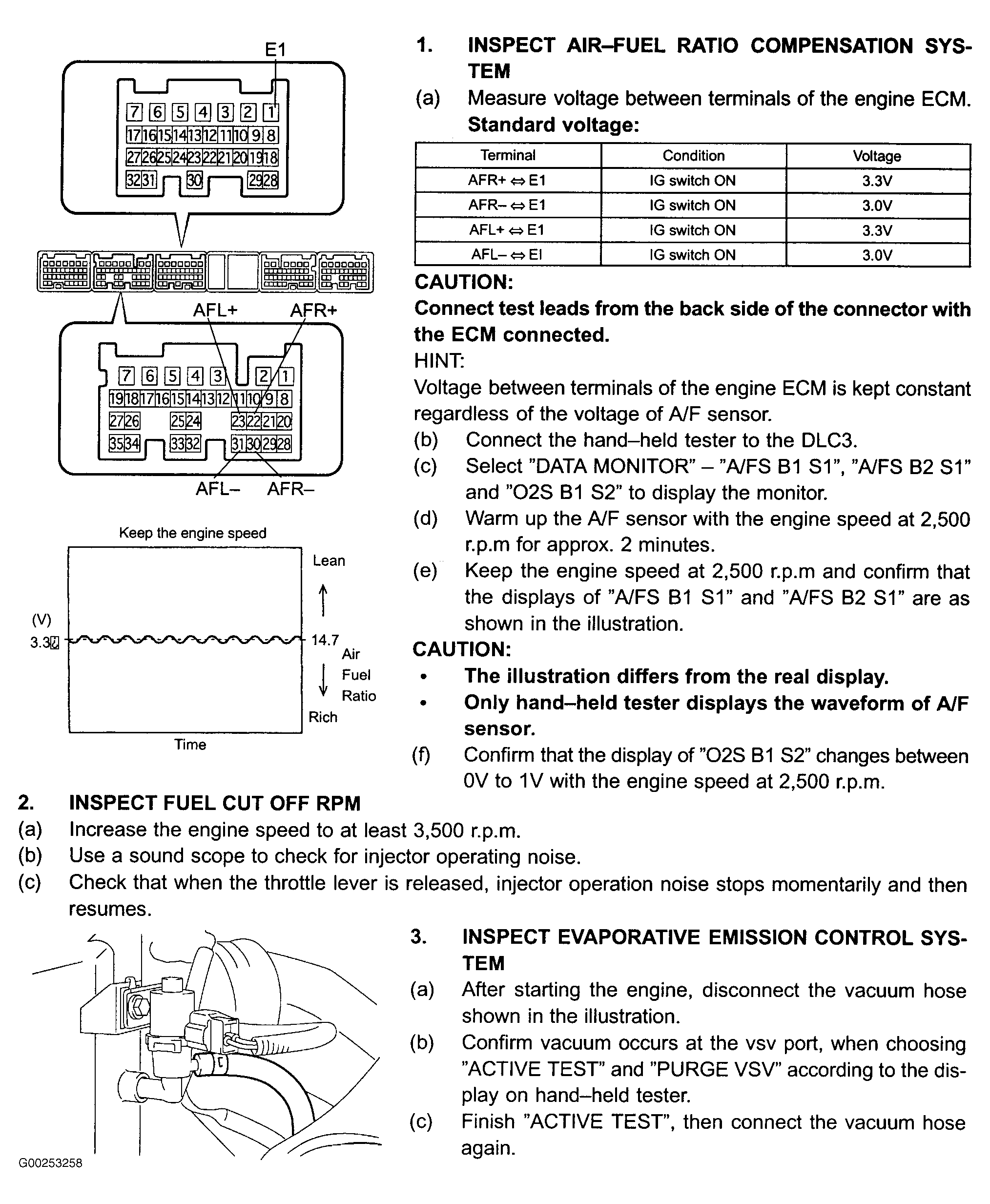

Fig 4: Testing Fuel EVAP System - 4 of 5 (Camry)

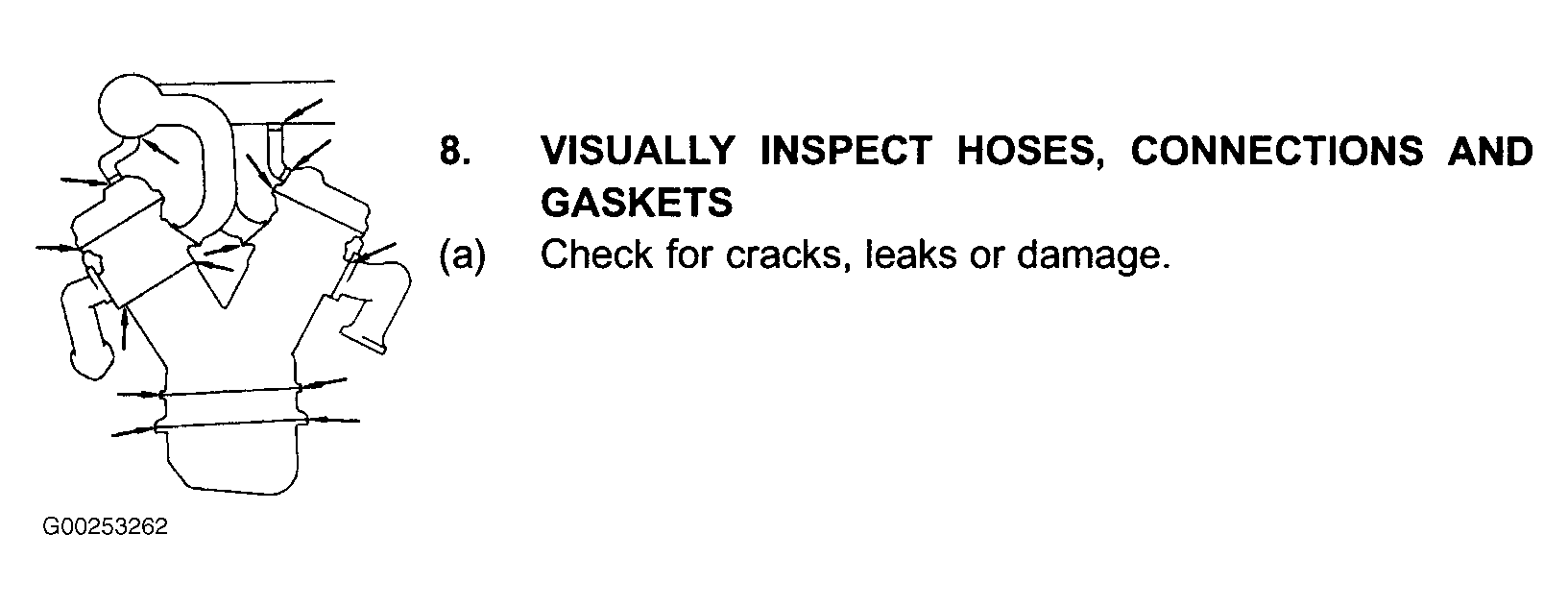

Fig 5: Testing Fuel EVAP System - 5 of 5 (Camry)
