Test No. 1: Mirror(S) Does Not Operate
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- Check ECU-ACC (5-amp) fuse located in driver side junction block. See Figure. If fuse is okay, go to next step. If fuse is defective, repair short in wiring connected to fuse. See POWER MIRRORS in SYSTEM WIRING DIAGRAMS article. After repairs have been made, perform confirmation test. See CONFIRMATION TEST .
- Check power mirror switch. See POWER MIRROR SWITCH under COMPONENT TESTS. If switch is okay, go to next step.

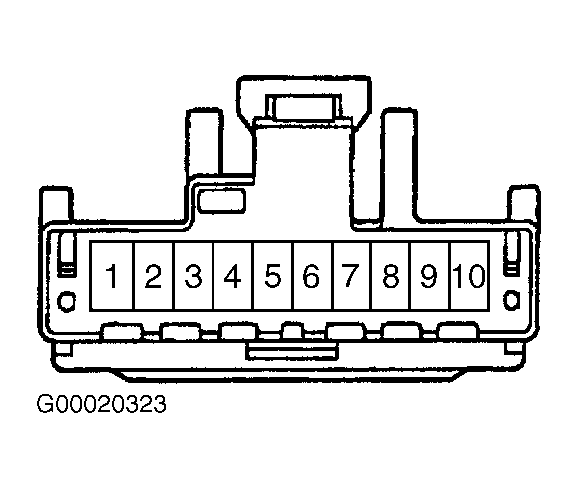

- Turn ignition off and disconnect Black 10-pin power mirror switch electrical harness connector. Using a DVOM, measure across specified terminals of wire harness side of Black 10-pin power mirror switch electrical harness connector. See Fig 1. See POWER MIRROR SWITCH CIRCUIT SPECIFICATIONS table. If circuits are as specified, go to next step. If circuits are not as specified, check wiring harness connections at other components and repair/replace as required. See POWER MIRRORS in SYSTEM WIRING DIAGRAMS article. After repairs have been made, perform confirmation test. See CONFIRMATION TEST .
- Check power mirror motor. See POWER MIRROR MOTOR under COMPONENT TESTS. If power mirror motor is okay, go to next step.
- Turn ignition off and disconnect Black 10-pin power mirror switch electrical harness connector. On models with mirror heater, disconnect 6-pin electrical harness connector. On models without mirror heater, disconnect 3-pin electrical harness connector. Check wires, wiring harness and connectors between power mirror switch and power mirrors for opens, shorts, intermittents, poor connections, deformed terminals, etc. Repair any defective wire, harness or connector as required. After repairs have been made, perform confirmation test. See CONFIRMATION TEST .
POWER MIRROR SWITCH CIRCUIT SPECIFICATIONS
| DVOM Test Points Terminal No. (Wire Color) | Condition | Specification |
|---|---|---|
| 8 (White/Black) & Ground | Constant | Continuity |
| 4 (Gray) & Ground | Ignition In LOCK Position | No Voltage |
| 4 (Gray) & Ground | Ignition In ACC Or ON Position | Battery Voltage |
