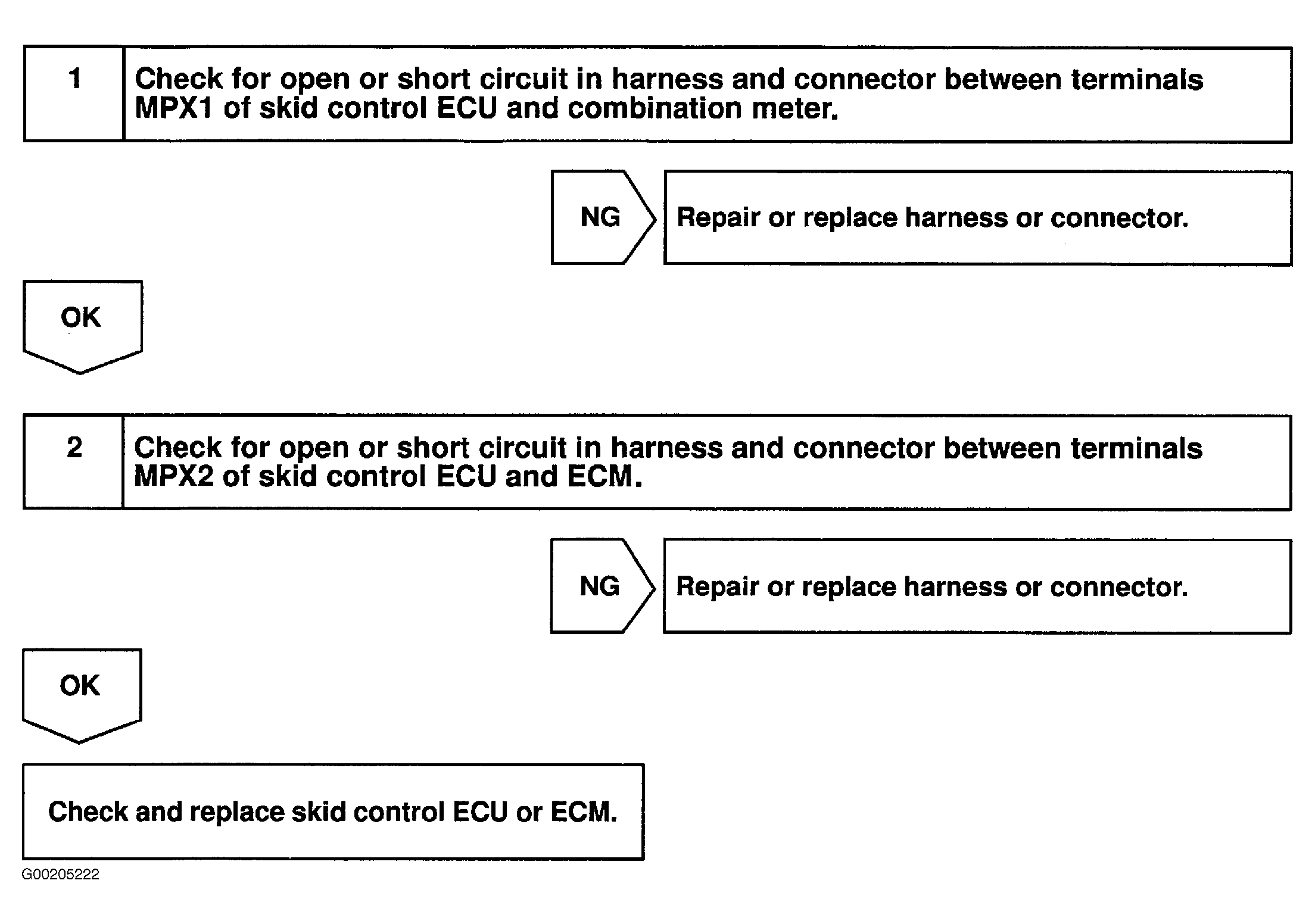

For wiring diagram see Fig 1. For testing procedure see Fig 2.

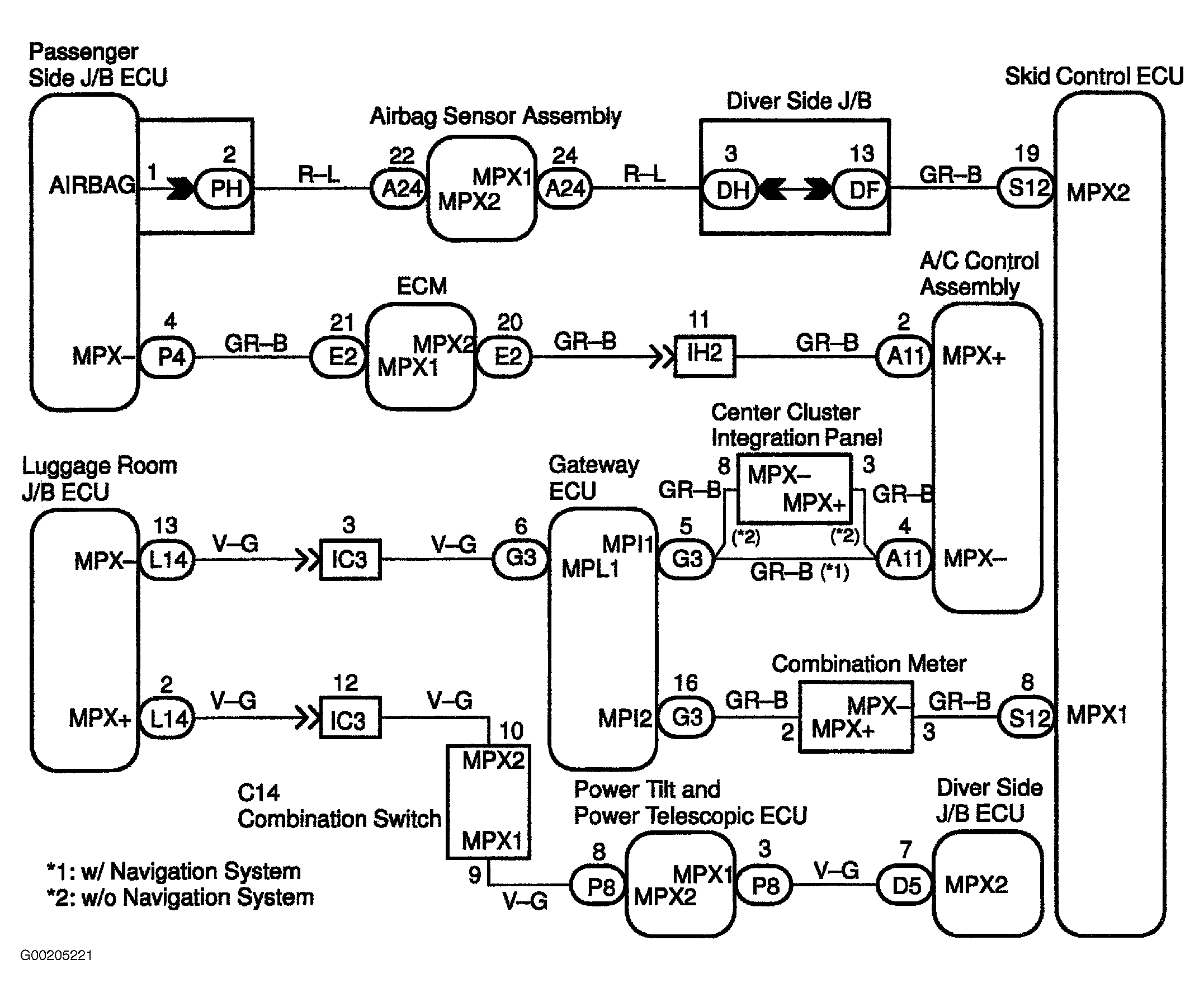

Fig 1: Multiplex Communication Circuit Wiring Diagram
