Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1.

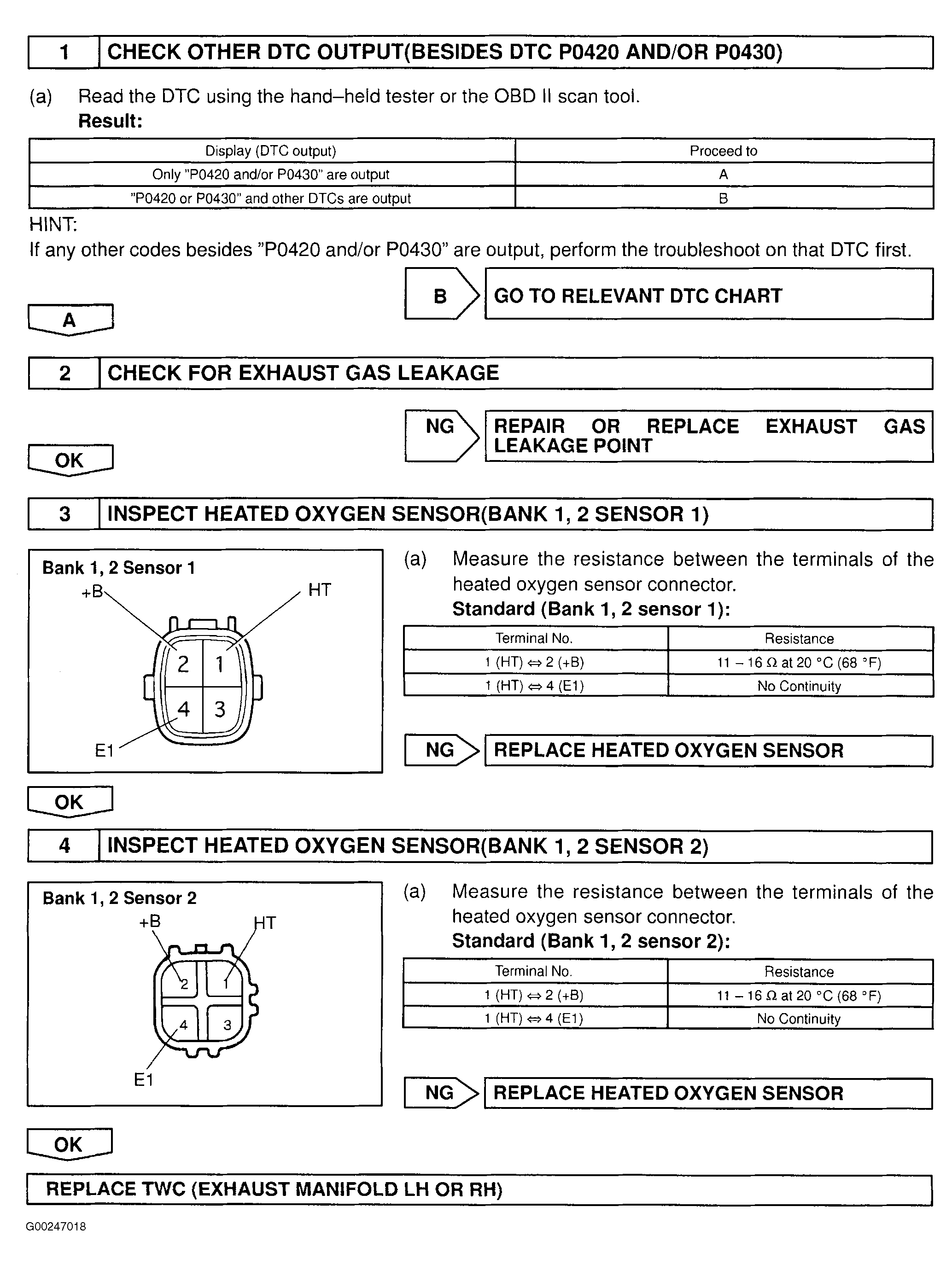

Fig 1: Diagnosis & Repair Of Catalyst System Efficiency Below Threshold
G00247018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
