Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2.

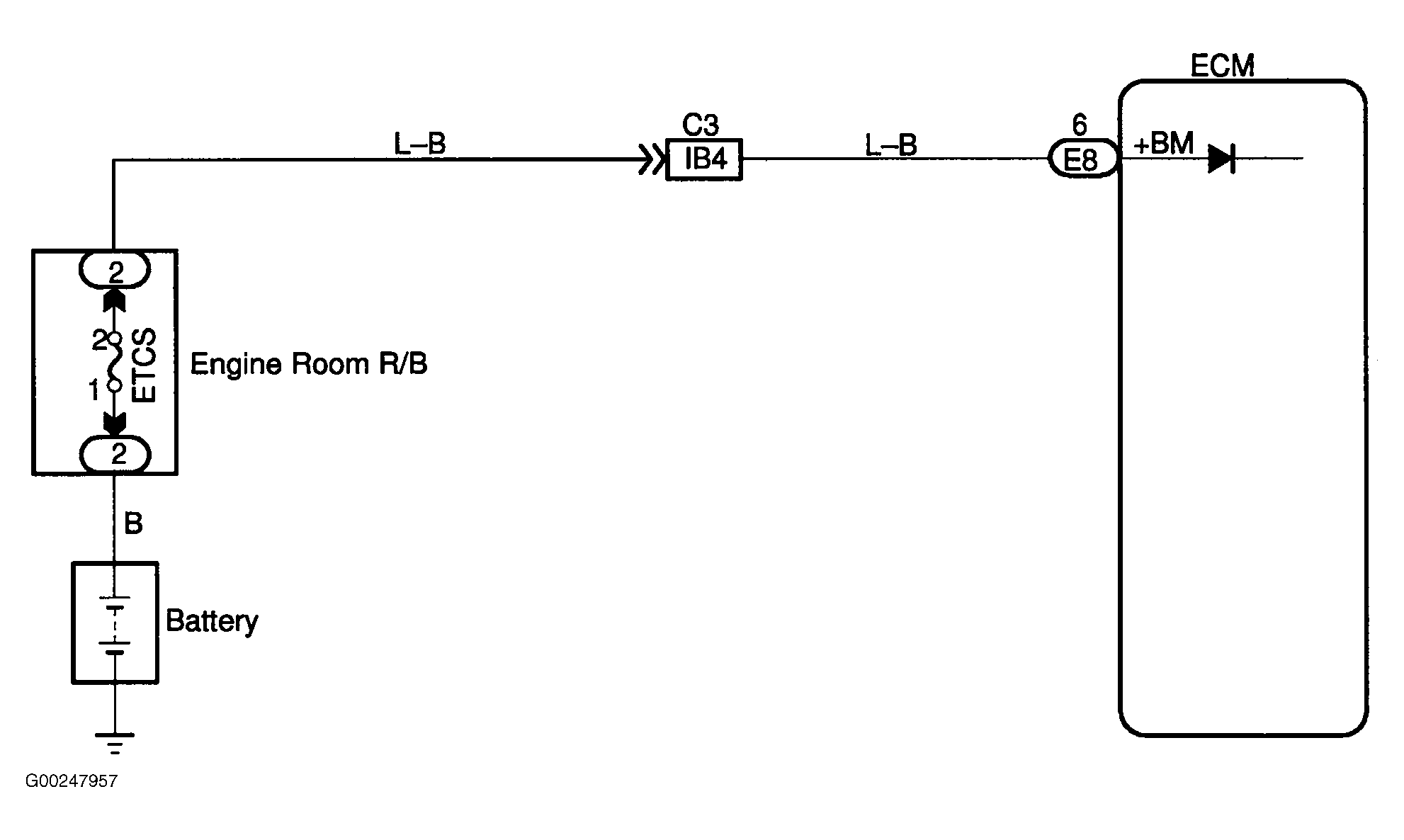

Fig 1: ETCS Power Source Circuit Wiring Diagram
G00247957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

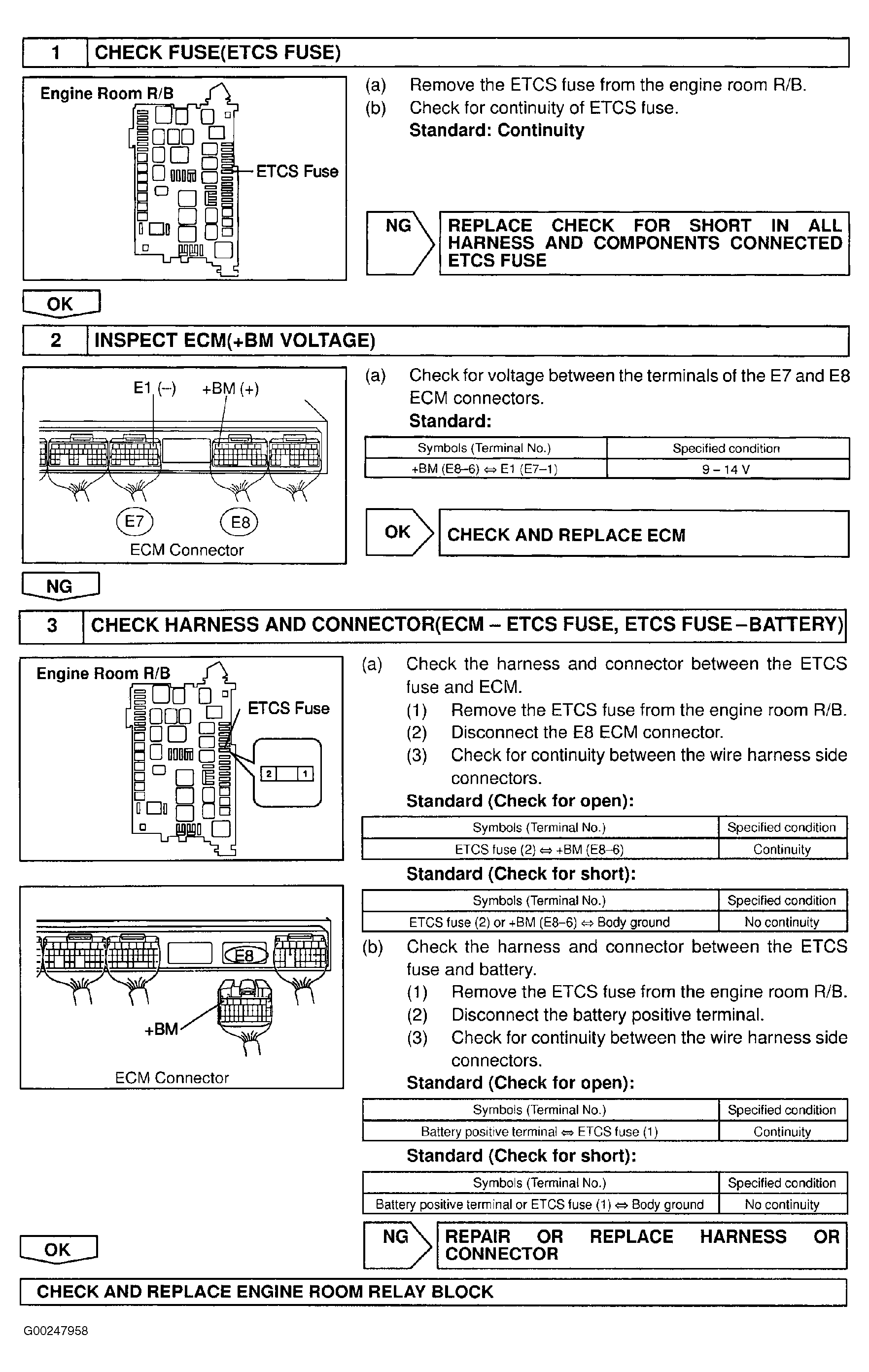

Fig 2: Diagnosis & Repair Of ETCS Power Source Circuit
G00247958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
