DTC P1520: Stop Light Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

For DTC P1520 diagnosis, see Fig 1-Fig 3 .

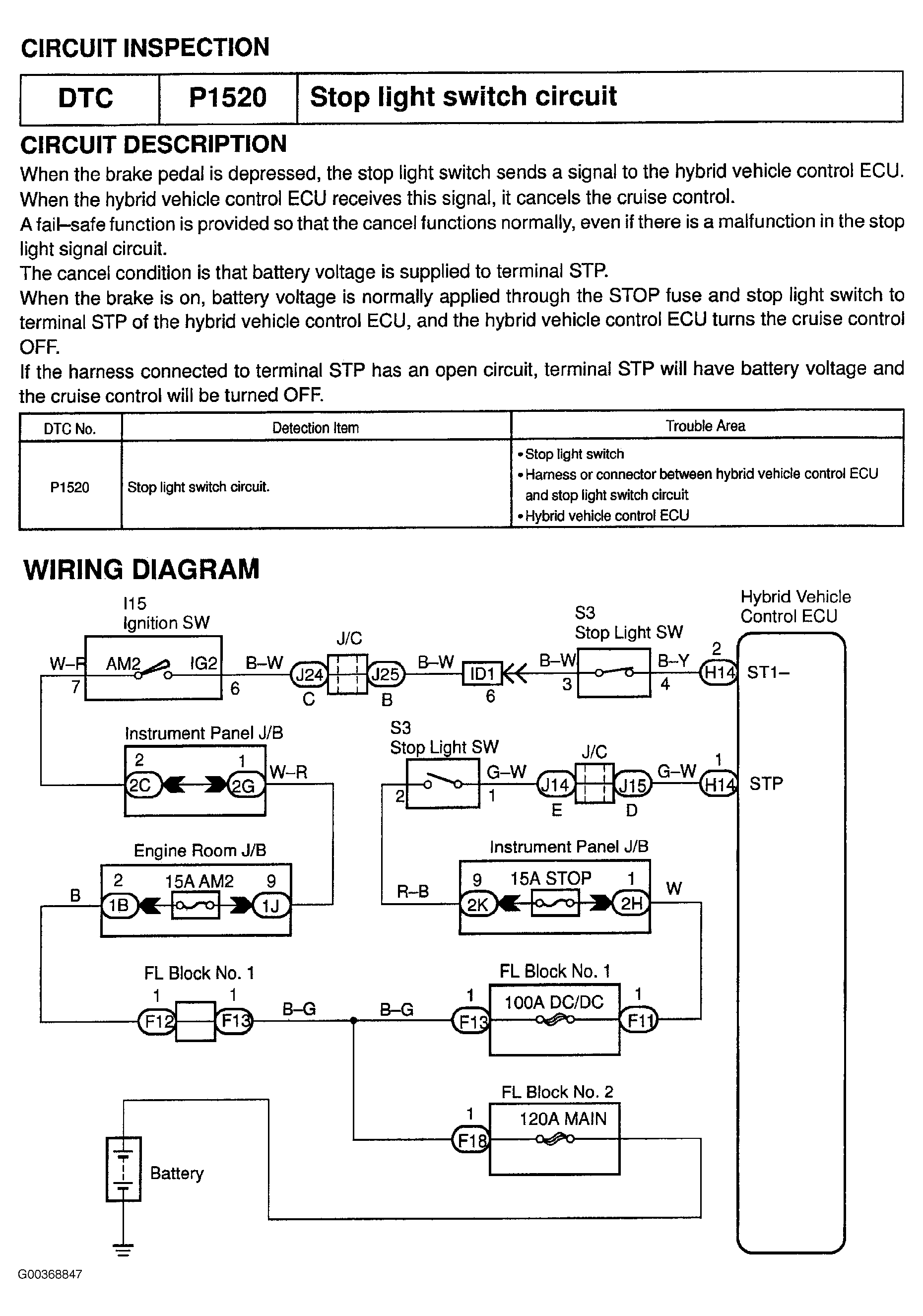

Fig 1: Diagnosing Stop Light Switch Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

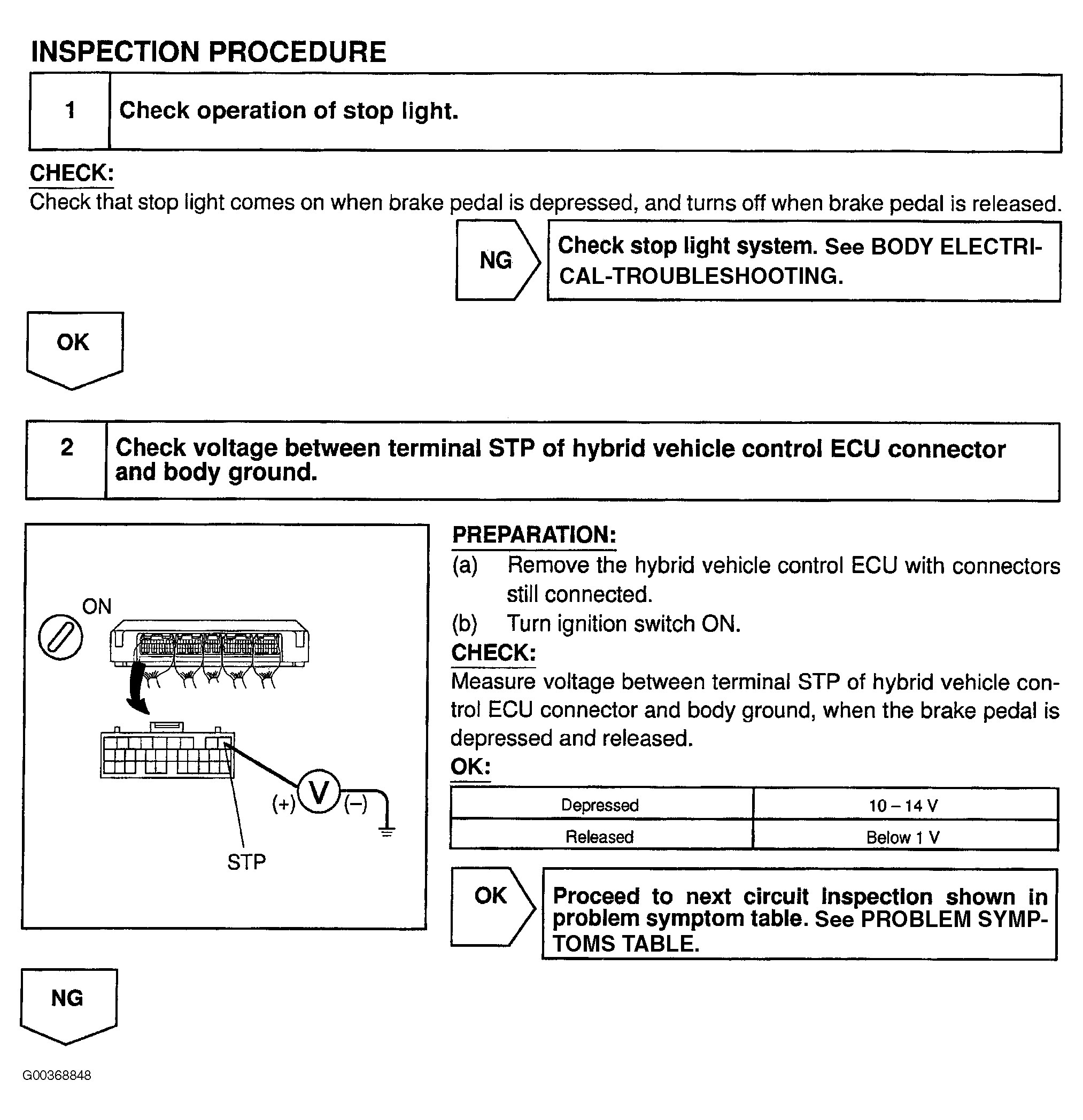

Fig 2: Diagnosing Stop Light Switch Circuit (2 Of 3)

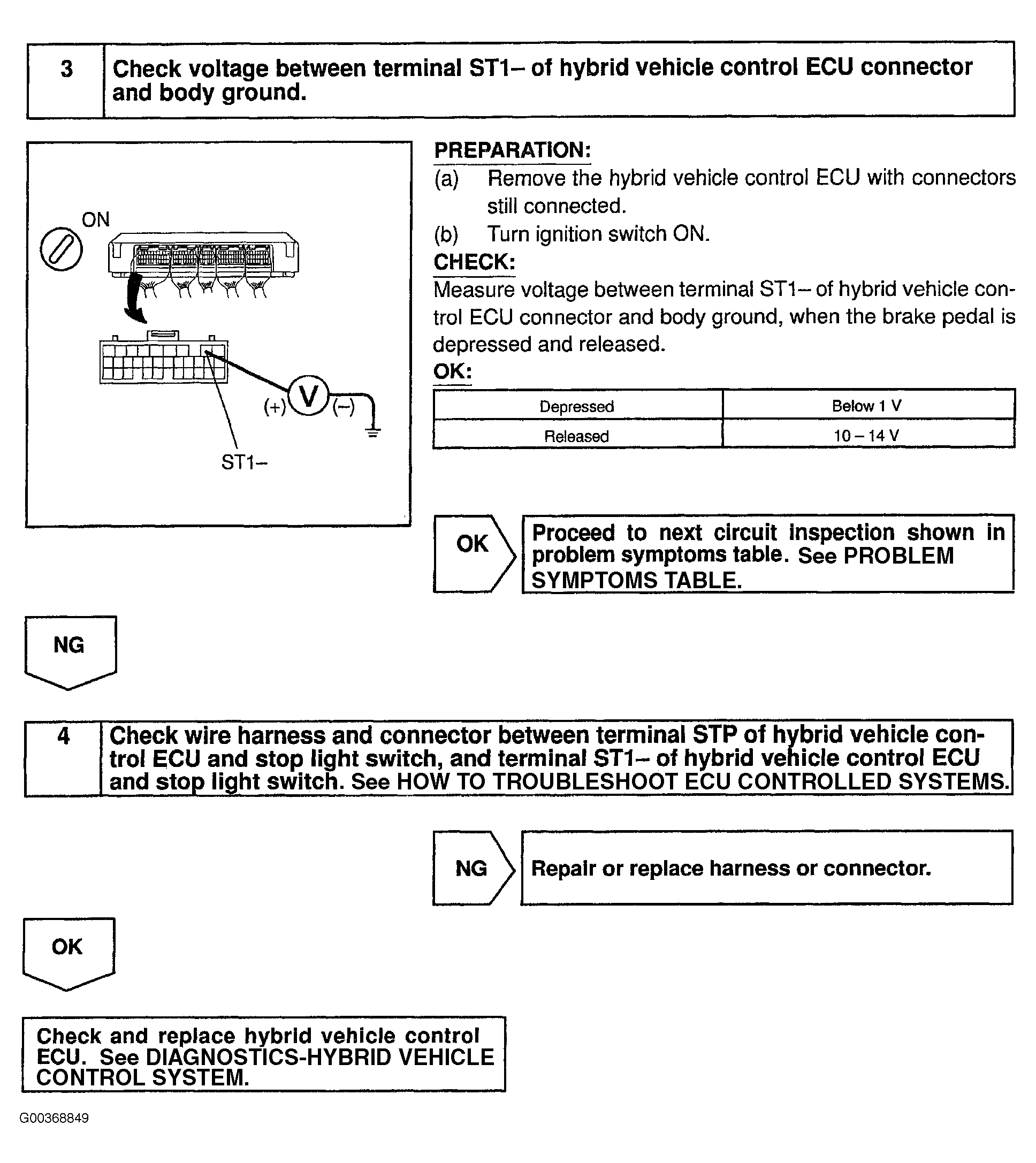

Fig 3: Diagnosing Stop Light Switch Circuit (3 Of 3)
