Headlight Dimmer Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

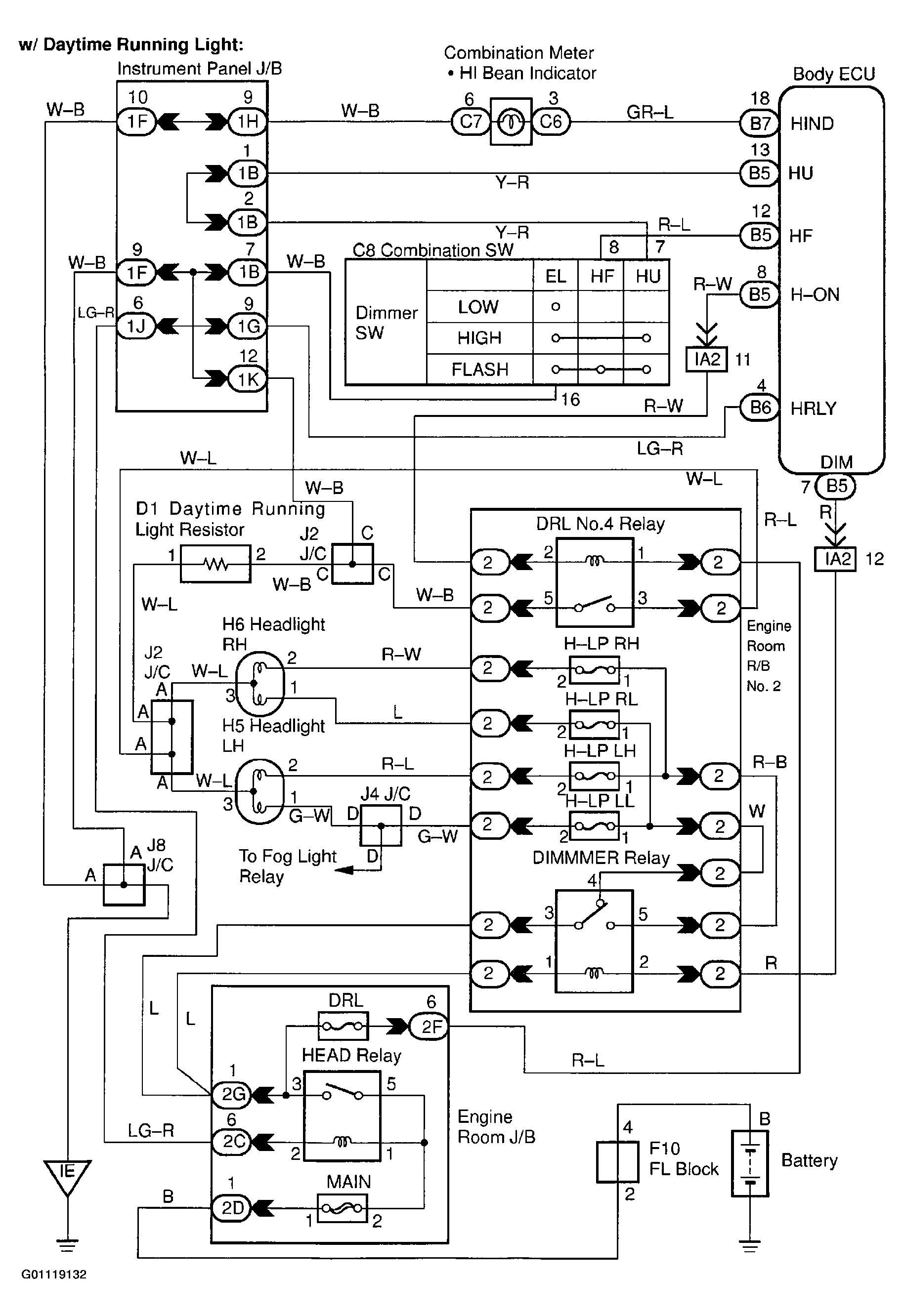

Fig 1: Headlight Dimmer Switch Circuit (W/D.R.L.)
G01119132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

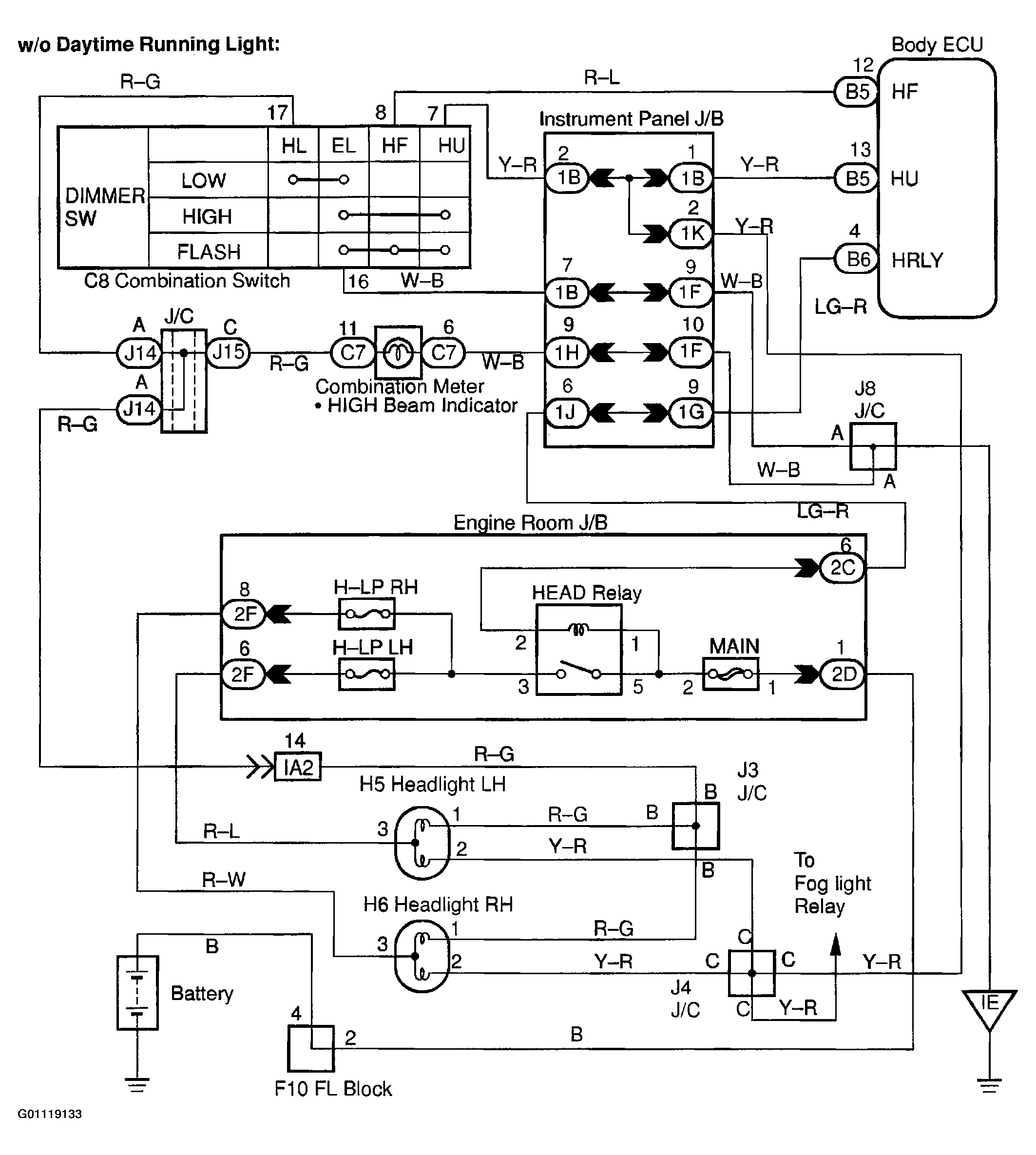

Fig 2: Headlight Dimmer Switch Circuit (W/O D.R.L.)
G01119133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
