Terminal Of Ecu
WARNING:
This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

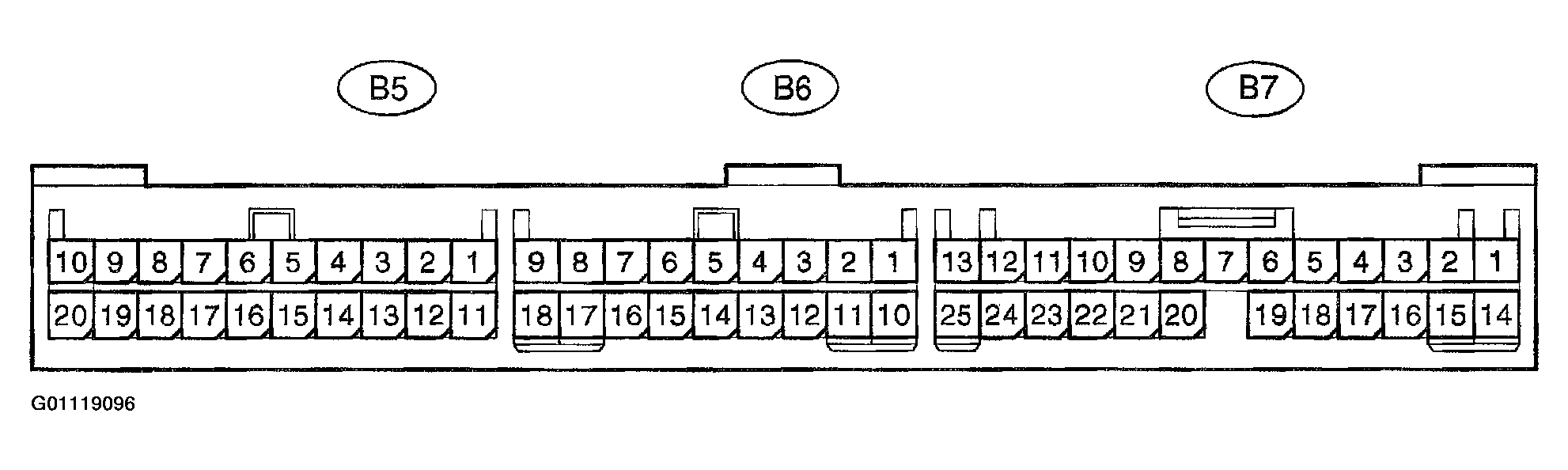

Fig 1: Locating ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

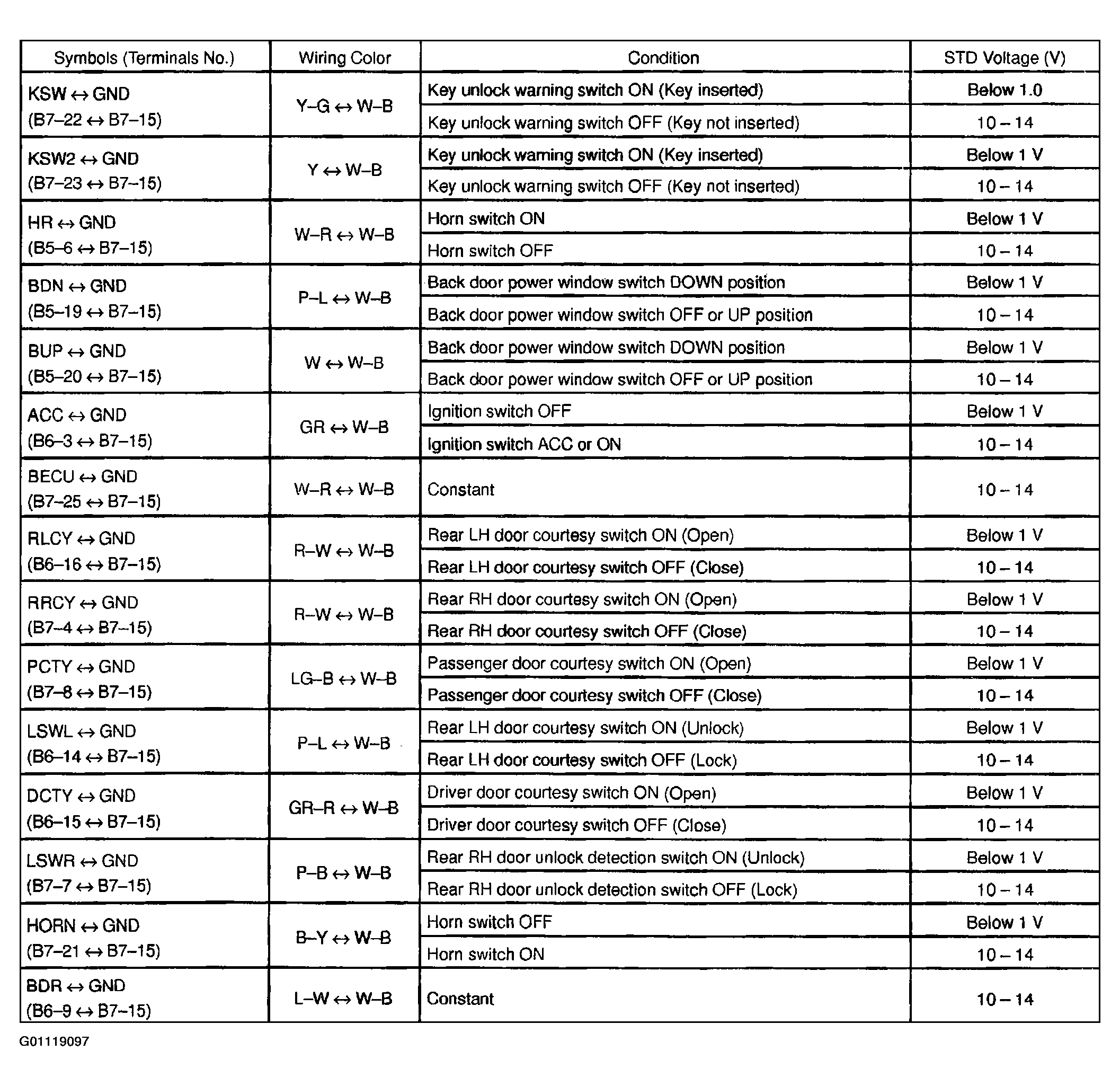

Fig 2: ECU Terminal Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

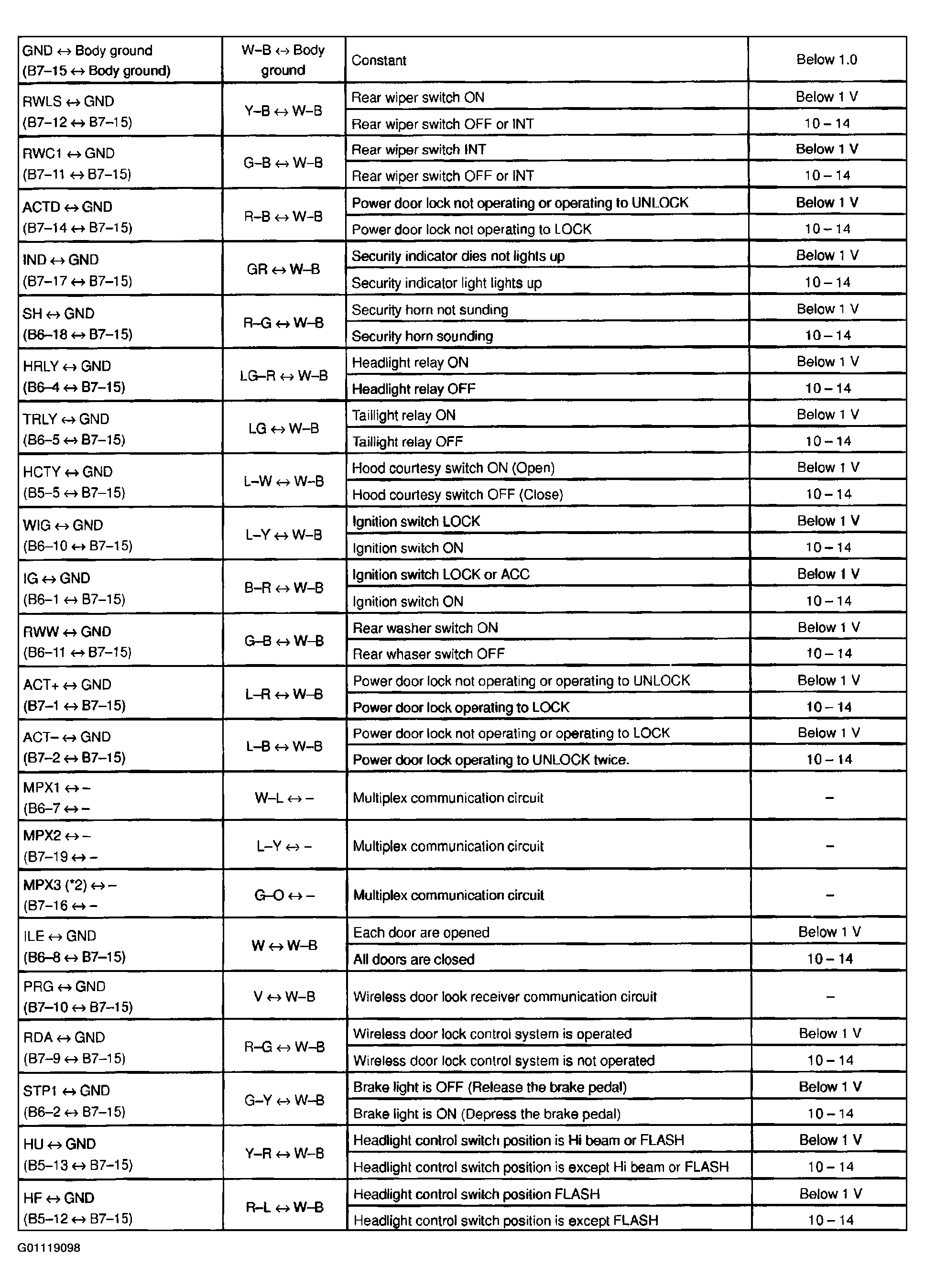

Fig 3: ECU Terminal Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

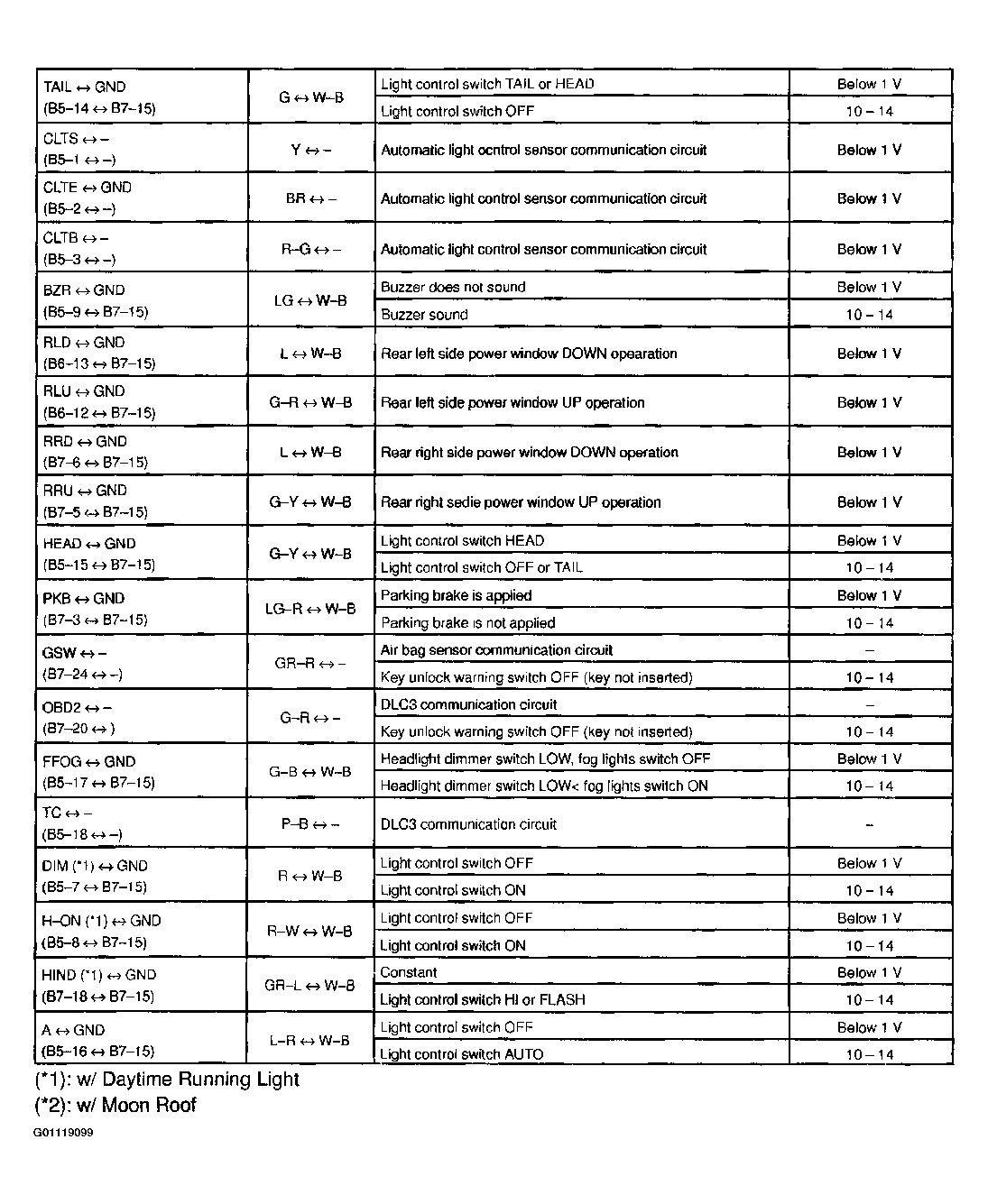

Fig 4: ECU Terminal Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
