Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

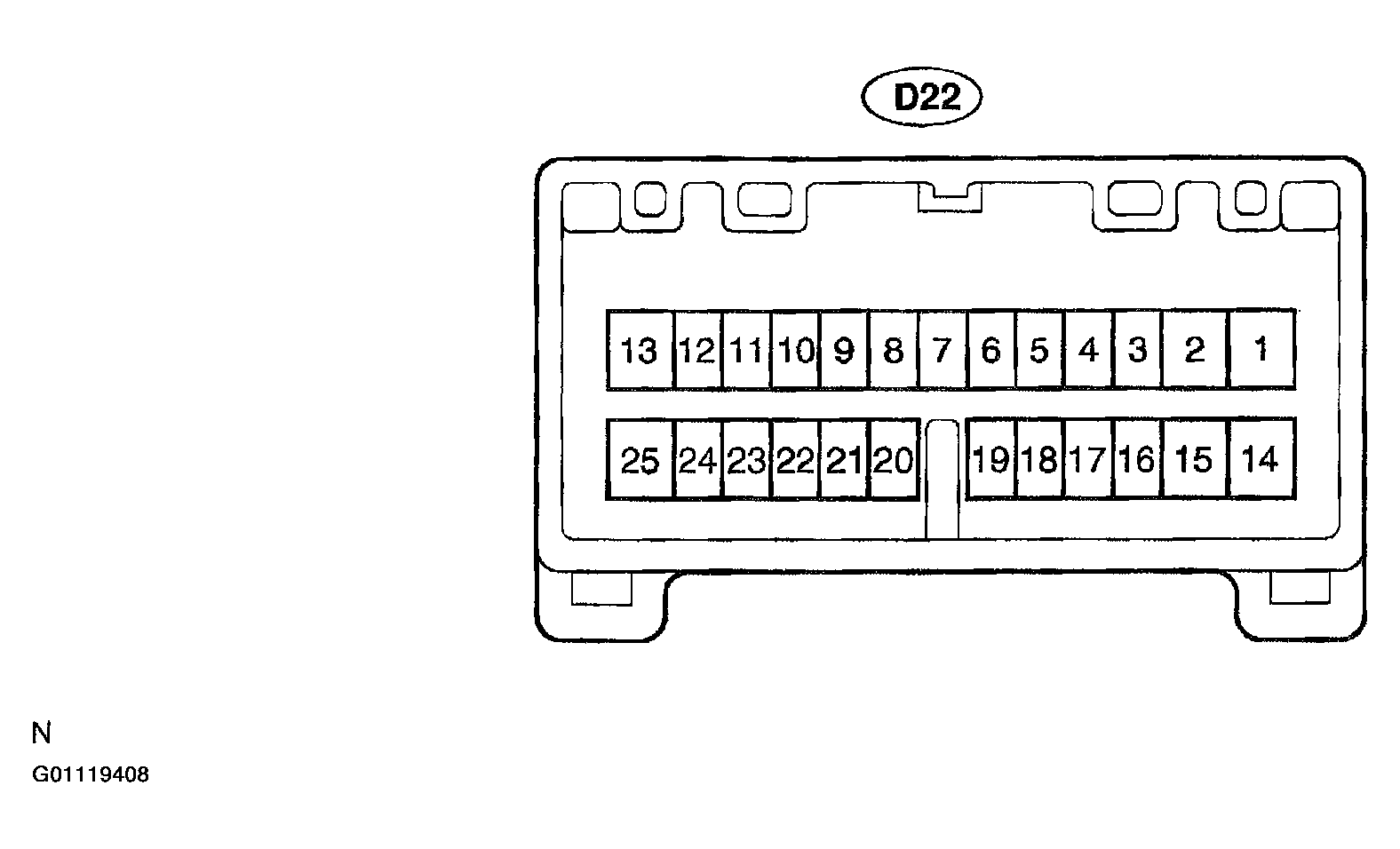

Fig 1: Identifying ECU Terminals
G01119408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

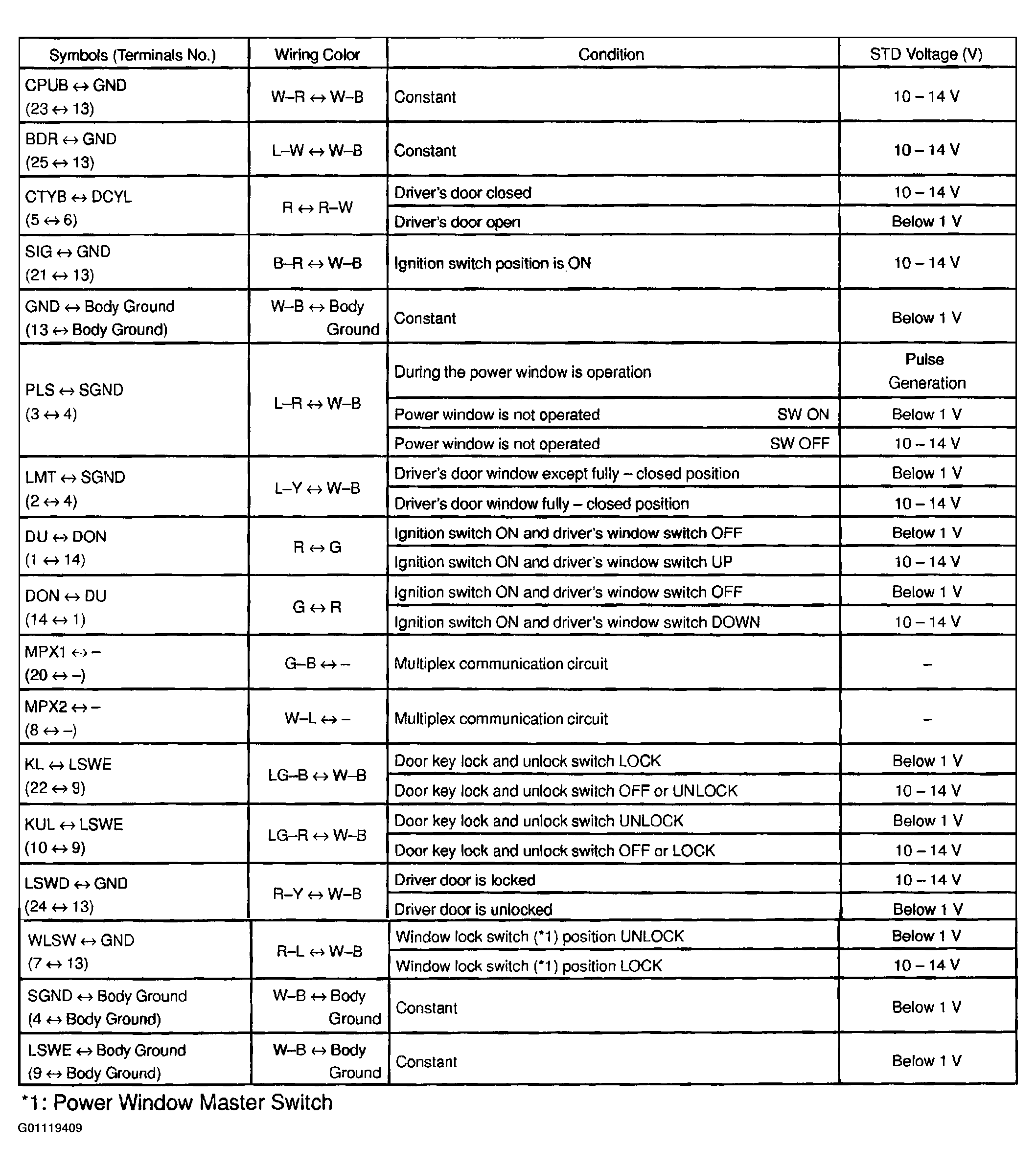

Fig 2: ECU Terminal Specifications
G01119409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
